Характеристики

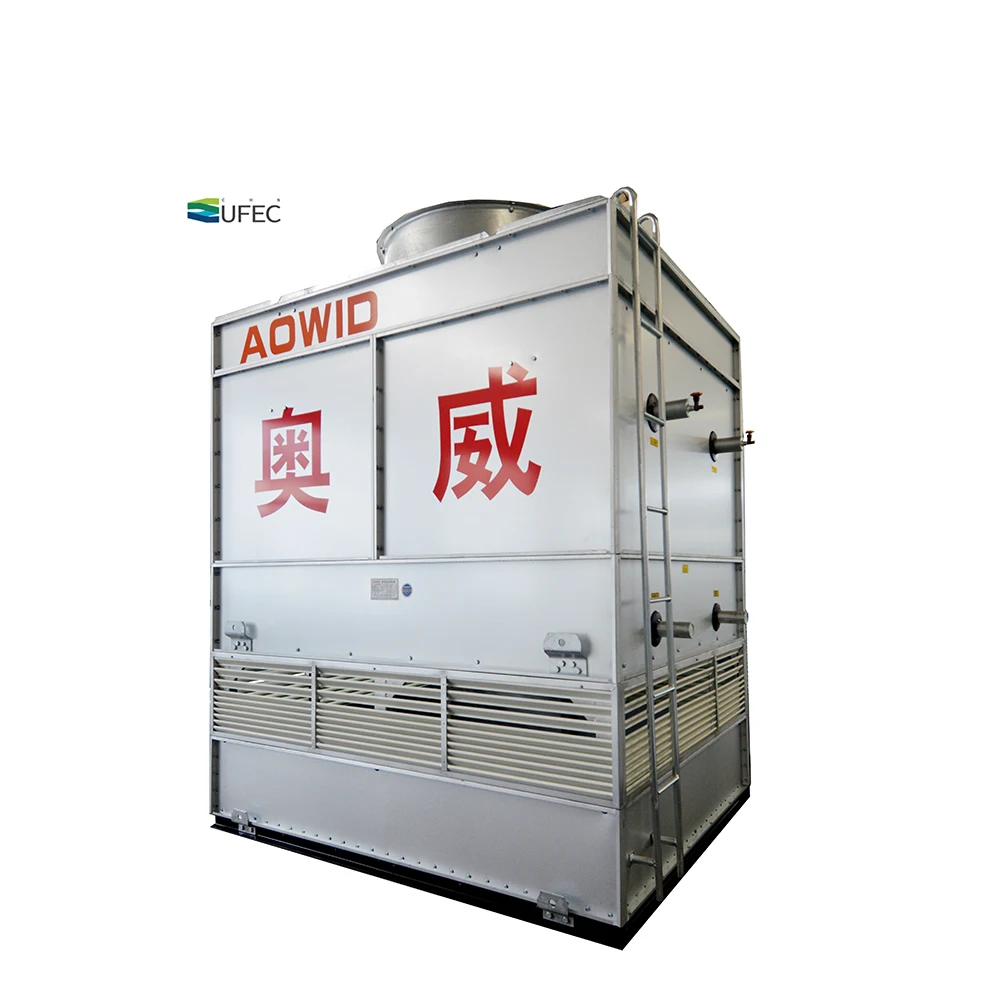

Product Description




ZNX 2 series evaporation condenser is designed according to JB/T7658.5-2006 "evaporation condenser for ammonia refrigerating device" standard.Basis on many years of design production experiences , integrated the advantages of similar products at home and abroad.
The product have novel structure, unique, advanced and reasonable, safe and reliable, high efficiency;it can adapt to all kinds of different temperature requirements, which are widely used in refrigeration, cold storage, ice storage, hotels, shopping malls and large factories and other places.


Structure characteristics



The condenser and cooling tower organically integrated, energy saving.
Air and water flow same, affect the heat transfer coefficient.
Heat exchange pipe tilt design, it is good for refrigerant flow, reduce the flow resistance.
Evaporation condenser side have maintance door, easy for maintenance.
Axial flow fan blades is die casting aluminum, light weight, low noise,high efficiency and motor is waterproof.
Heat exchange coil and internal black metal artifacts have been hot-dip zinc process, good anti-corrosion performance, long life time ;Heat exchange coil with special structural design, make the coil arrangement more compact, increased in the same plane coil area, improving the heat transfer efficiency.
Using anti-blocking type spray system, large coverage area .
Use high-efficiency dehydrator, dehydration with high efficiency, water loss is small.
Heat exchange coil with heat transfer layer below the secondary water distribution, increase the contact area, reduce the water temperature, spray water cooling effect is good, so as to ensure the evaporation condenser effect.






Heat removal coefficient of R507AIR134 = Heat removal coefficient of R717 × 1.12(Except GZN series)


Specification


Model
Nominal heat exchange (KW)
Fan
Water pump
Refrigerant charge
 (kg)
Tube connection dimension(mm)
Model
Air flow
Power
Volume(L/s)
Power
Vapour in
Liquid out
ZNX-320
322
30000
2.2
6.2
1.1
50
DN100
DN65
ZNX-400
402
50000
2.2x2
6.2
1.1
62
DN100
DN65
ZNX-480
481
50000
2.2x2
7
1.5
75
DN100
DN65
ZNX-560
565
60000
2.2x2
7
1.5
87
DN80x2
DN65x2
ZNX-640
645
60000
2.2x2
12.5
2.2
100
DN80x2
DN65x2
ZNX-720
722
75000
5.5
13.9
3
106
DN80x2
DN65x2
ZNX-800
805
90000
2.2x3
13.9
3
114
DN80x2
DN65x2
ZNX-880
884
90000
2.2x3
24.7
4
124
DN100x2
DN65x2
ZNX-960
962
90000
2.2x3
24.7
4
136
DN100x2
DN65x2
ZNX-1100
1105
12000
4x2
24.7
4
156
DN100x2
DN65x2
ZNX-1200
1203
12000
4x2
24.7
4
168
DN100x2
DN65x2
ZNX-1300
1304
12000
4x2
24.7
4
184
DN100x2
DN65x2
ZNX-1400
1406
12000
4x2
24.7
4
193
DN100x2
DN65x2
ZNX-1500
1505
15000
5.5x2
24.7
4
212
DN100x2
DN65x2
ZNX-1600
1603
15000
5.5x2
27.8
5.5
226
DN100x2
DN65x2
ZNX-1700
1701
15000
5.5x2
27.8
5.5
240
DN100x2
DN65x2
ZNX-1800
1804
15000
5.5x2
27.8
5.5
252
DN125x2
DN65x2


Working Principle
The vapor evaporate and take away the heat of the refrigerant. During operation, the cooling water is pumped up to the nozzle on the top of condenser and evenly spraying to the outside surface of condensing tubes and forming a water layer. The high temperature refrigerant gas come into the condensing coils from top and condenses by cooling water into liquid and flow out from bottom. Some water absorb the heat and become steam, the rest water drop to the water tank for re-circulation, meanwhile, the fans on the top make wind with speed of 3~ 5 m/s to speed up the evaporation of the water layer outside the surface of condensing tubes and also cool the dropping water which will get back to spay onto the heat-exchange tubes. The steam is blown out by the blower and the blobs mixed to the steam remain on the dehydrator. The floating valve in the tank control water supplement into the tank automatically.





Advantages of evaporation condenser

●Power-saving: The condensing temperature of evaporation condenser is decided by wet ball temperature. Normally, the wet ball temperature is 6 ~ 8C lower than ambient temperature. So we designed the structure of the evaporation condenser according to this to lower the condensing temperature and system pressure; so that to increase the refrigerating capacity of the compressor and reduce the power consumption. The power of water pump is only 1/3 ~ 1/4 compared with other water-cooled condenser. According to the calculation and operation, the power consumption of evaporation condenser is 15% lower than water-cooled condenser.

●Water-saving: the evaporation condenser use water evaporation to take away the heat -1 liter of water evaporated will take away 670W of heat. But water-cooled system use water heating-up to take away the heat -1 liter of water only can take away 4 ~ 5W of heat. Therefore, to remove same volume of heat the water-cooled condenser needs more water (we need to prepare large water tank, cooling tower and cooling tubes which will bring more chance for water losing). Contrarily the evaporation condenser needs less water and meanwhile the dehydrator of the machine has higher efficiency of water reclaim. The water loss of evaporation condenser is only 10% of water-cooled condenser.

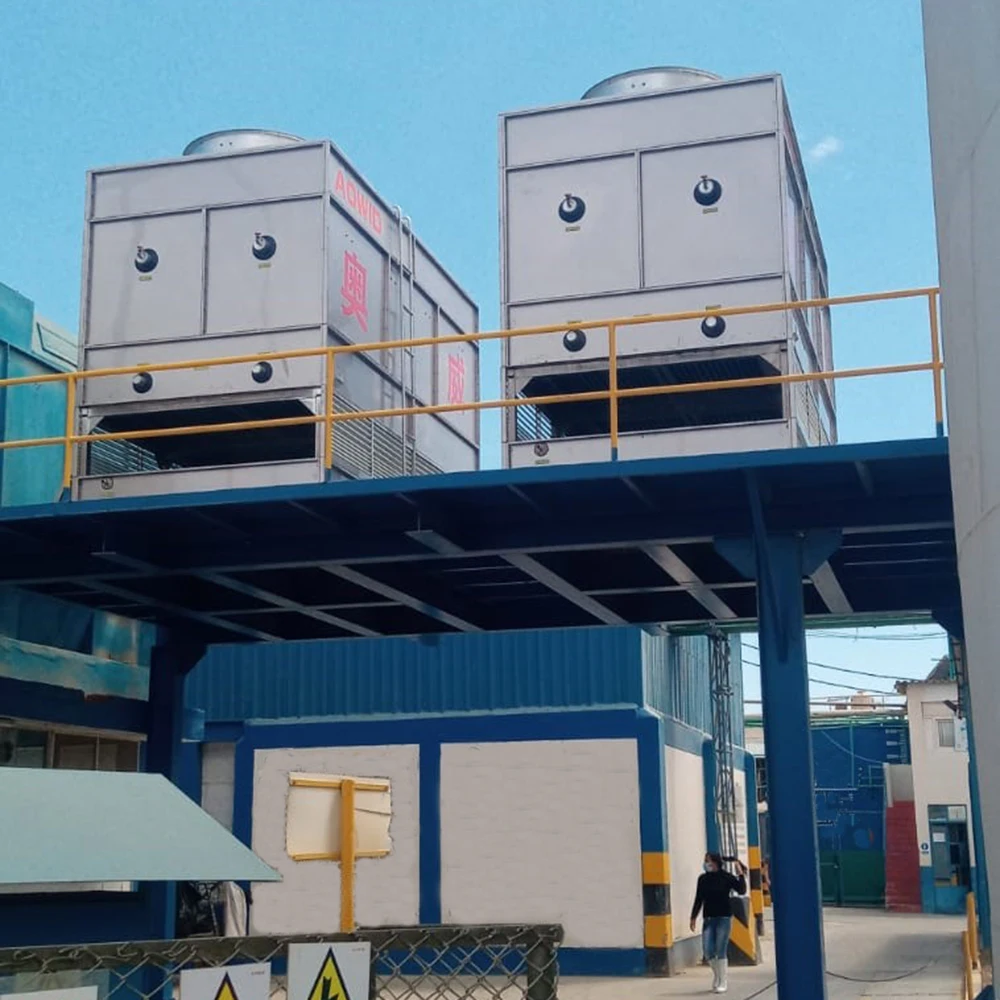

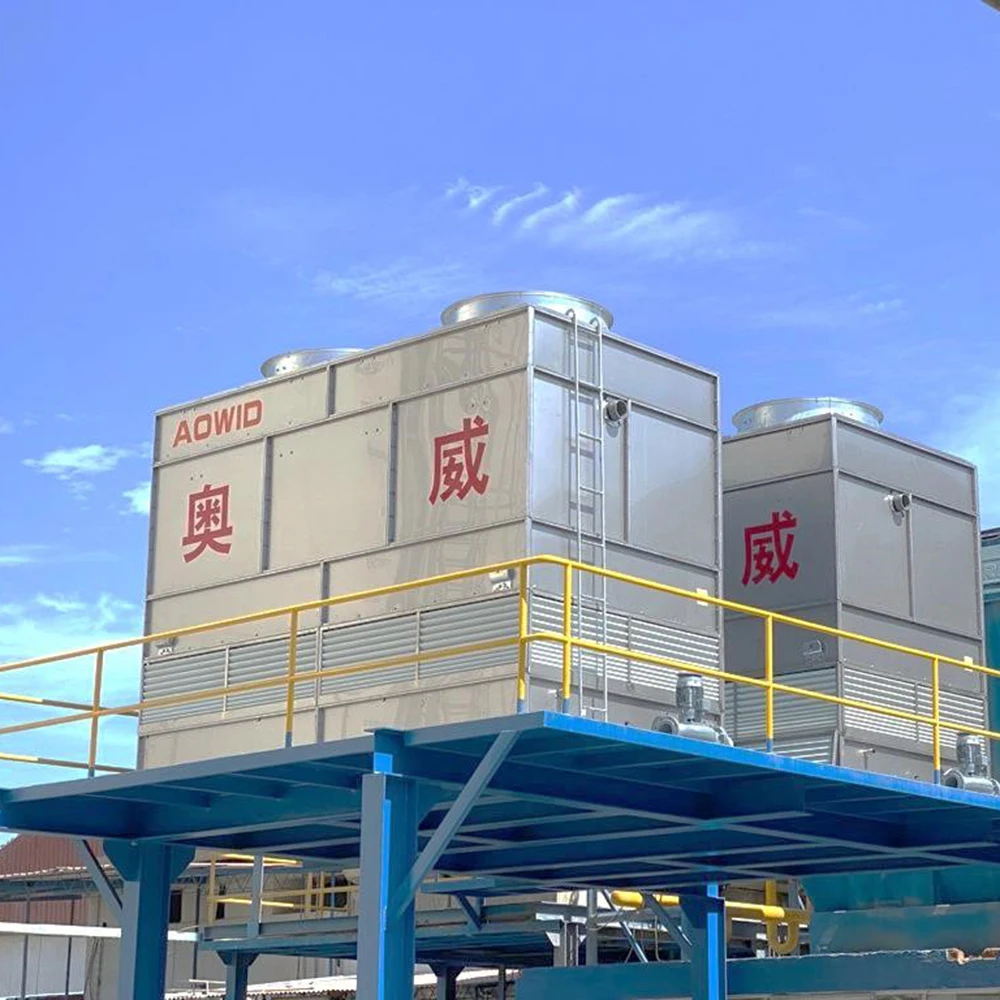

●Space-saving, easy to install and short duration.The evaporation condenser is an integrated machine include condensing coil, cooling tower,water pond and water pump, which can be put on the top of the roof. The piping system is simple and there is no other accessory of water system.It will reduce the installation material, construction period and installation cost.

●Low maintenance cost. If we use evaporation condenser, the condensing temperature will be low, what's more, the exhaust pressure, exhaust temperature and the temperature of lubrication oil are also low. So the machine is working under a perfect condition, and the lifetime of the machine will be longer and the running of the machine is more smoothly so that to reduce the maintenance cost.



Company Profile



Aowei refrigeration equipment Co., Ltd is located in the coastal city of Yantai, which is one of the earliest private enterprises established in the middle of 1980s .The first generation founders with courage and wisdom have built the company which is mainly engaged in refrigeration engineering and installation accessories . After several ecades of development, the company has grown up to refrigeration equipment industry chain leader under the belief of self-improvement and social service . After taking over by the second eneration owners , they devoted himself to building a high-tech enterprise center with international competition inspirit. Now the company not only have four professional refrigeration equipment manufacturing plant engineering company and trading company, but also building a technology Research Institute where include esearching and developing compressors and compressor systems integration , cold chain integration mainly in frozen equipment.

Review the past and look forward to the future, greet the new age of development. Aowei company devote himself to manufacturing matching with national standards and industry standard products as the company lifeline , and always putting the customer's benefit as themselves. R&D and produce the products in conformity with the international standards.

Aowei obey the national development strategy to manufacture products with advantages of "green, low-carbon, environmental protection ,sustainable development" .All products and systems are intelligent, digital and realized unmanned system . Developed a new generation series of screw refrigeration compressor successfully, the structure and the type of line parameters have a big breakthrough. Especially for CO2 compressor and system,more nearly to realize "environmental protection, safe, and efficient'. The company is committed to one-stop overall cold chain solutions and value-added services . Represented by the integrated carton quick freezer and spiral freezer machine already get more than 110 patents. The compressor test platform with experimental device and air cooler test platform laid a good foundation for the company to the higher level.

According to country laws and regulations , all the products of our company have already got the corresponding certificates and licence.

Aowei will continue insisting the principle of "brand strategy, well-designed " to produce high -tech and customer satisfactory products. Aowei is willing to join hands with all friends at home and abroad and create a bright future.





Exhibition






After-sales Service


After-sales Outlets All Over The World
Since 1993, Aowei refrigeration equipment has not only sold well in more than 20 provinces, cities and autonomous regions in China, but also some products have been exported to more than 30 countries and regions such as Southeast Asia, Europe, America, and South Africa.
The offices and after-sales service departments established by our company all over the world can enable you to get timely and efficient technical support and spare parts supply nearby.


FAQ


1.What's your advantage?
A:
Thte set of heat exchange tube, oval high-frequenay weldaed pipe and thefow af the liquid in the pipe and the pipe outer surlace foma unilarm"wwater film. enhanceci heat tranafer effect
Peasonable dicsign all meet the conditions of container transpoert. simple and conwcnient.

2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.

3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.

4.How about the delivery time?
A: Within 60 days after we confirm you requirement.

5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
