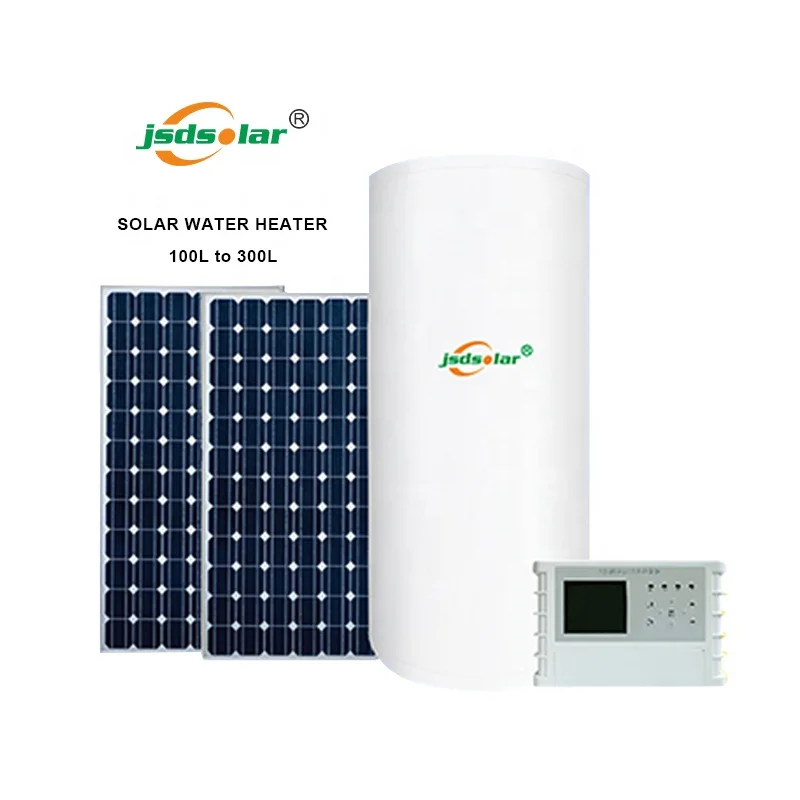

TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
Оптовая продажа 200л пассивный Солнечный водонагреватель компания doormitories использование 220В
- Категория: Солнечные водонагреватели >>>
- Поставщик: Shenzhen,Jinsdon,Lighting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.55 $* | 0.58 $* |
| Aug-18-2025 | 0.44 $* | 0.78 $* |
| Jul-18-2025 | 0.66 $* | 0.20 $* |
| Jun-18-2025 | 0.39 $* | 0.88 $* |
| May-18-2025 | 0.30 $* | 0.17 $* |
| Apr-18-2025 | 0.51 $* | 0.85 $* |
| Mar-18-2025 | 0.9 $* | 0.49 $* |
| Feb-18-2025 | 0.7 $* | 0.47 $* |
| Jan-18-2025 | 0.29 $* | 0.52 $* |
Характеристики
Definition

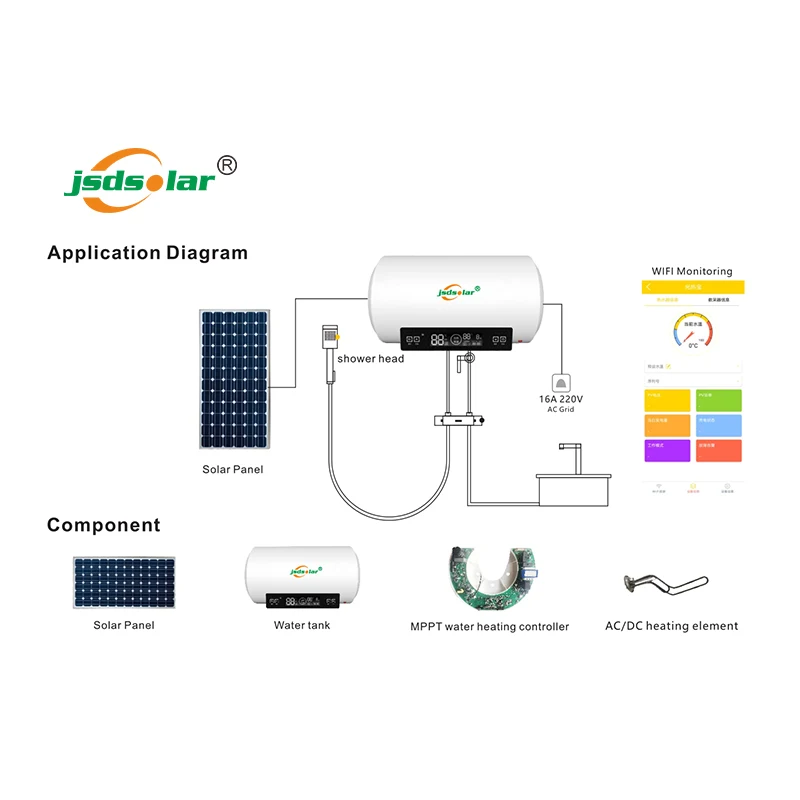

Applying the MPPT technology, the solar panel convert the photon of the sun to a DC power that is boosted and regulated by the MPPT controller to the PTC element. The PTC element , heats the water during the day when there is adequate sun light. Thus an alternative AC powered as a backup at night or rainy season.
Features
1. Photovoltaic power generation, ,low consumption and work at low temperature;
2. MPPT controller technology, 98.5% efficiency maximum the solar power harvest and convert to heating;
3. Smart switching DC/AC control to save your electricity bill cost;
4. Pressurized water tank, with continuous hot water output 24/7 without waste of cold water;
5. WIFI monitoring and remote setting;
2. MPPT controller technology, 98.5% efficiency maximum the solar power harvest and convert to heating;
3. Smart switching DC/AC control to save your electricity bill cost;
4. Pressurized water tank, with continuous hot water output 24/7 without waste of cold water;
5. WIFI monitoring and remote setting;
6. Easy installation, maintenance and commissioning.
Specification
Model | SWH-V100L | SWH-V150L | SWH-V200L | SWH-V300L | ||||
Volume | 100L | 150L | 200L | 300L | ||||
Solar | ||||||||
Solar Max Output Power | 2400W | |||||||
recommeded solar panel | 1000W | 1200W | 1500W | 2400W | ||||
heating time 40℃ | 4 hours | 5 hours | 5.5 hours | 5hours | ||||
annual solar power harvest | 1460KWH | 1752KWH | 2190KWH | 3504KWH | ||||
solar input voltage | 40V-150Vdc | |||||||
mppt range | 20V-145Vdc | |||||||
AC | ||||||||
AC heater power | 2000w | 2000w | 2000w | 3000w | ||||
AC voltage | 220V | |||||||
Physical | ||||||||
Monitoring | wifi setting and monitoring | |||||||
Protection | over temperature protection, leakage protection | |||||||
Inner tank material | Enamel | |||||||
package dimension | φ470*500*1000 | φ470*500*1475 | φ4560*500*1135 | φ560*500*1810 | ||||
gross weight | 20kg | 27kg | 35kg | 47kg | ||||
certificate | CE,IEC62109 | |||||||
Recommend Products
Company Profile
Headquarter & Factory Location | No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China |
Industry Experience | 12-Year Manufacturer and Trading, Alibaba Supplier |
Product Range | Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc. |
Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
Department | 2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept. |
Certificate | ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc. |
Patent | Software Patent, Design Patent, Project Patent |
Our Service
Samples, OEM and ODM, Warranty and After-Sale Service:
* Welcome Solar Power water heater Sample Test;
* OEM & ODM is welcomed;
* Warranty: 3 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. email us about PI number, Product number, most importantly, is the description of broken products, to the best, show us more
detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
* Welcome Solar Power water heater Sample Test;
* OEM & ODM is welcomed;
* Warranty: 3 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. email us about PI number, Product number, most importantly, is the description of broken products, to the best, show us more
detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
Exhibition
Certificate
FAQ
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:10-15days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,L/C,West Union
5- What is your MOQ?
1 set .
6- What is your Packing?
LCL order/Sample order in wooden box Package Full container order in Standard quality export carton with PE Foam Protection.
7 -What is your FOB Port?
We accept FOB Shenzhen.
