Заводская поставка портативный нагреватель для бассейна нагревательный коврик частного
- Категория: Solar Collectors >>>
- Поставщик: Dongguan,Xindong,Rubber.,Plastics,&,Hardware,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 26.62 $* | 27.3 $* |
| Aug-19-2025 | 26.74 $* | 27.3 $* |
| Jul-19-2025 | 22.10 $* | 23.77 $* |
| Jun-19-2025 | 26.2 $* | 27.40 $* |
| May-19-2025 | 22.20 $* | 23.43 $* |
| Apr-19-2025 | 25.6 $* | 26.49 $* |
| Mar-19-2025 | 25.59 $* | 26.26 $* |
| Feb-19-2025 | 25.49 $* | 26.25 $* |
| Jan-19-2025 | 24.99 $* | 25.22 $* |
Характеристики
Product Description
The working principle of swimming pool heating solar collector:

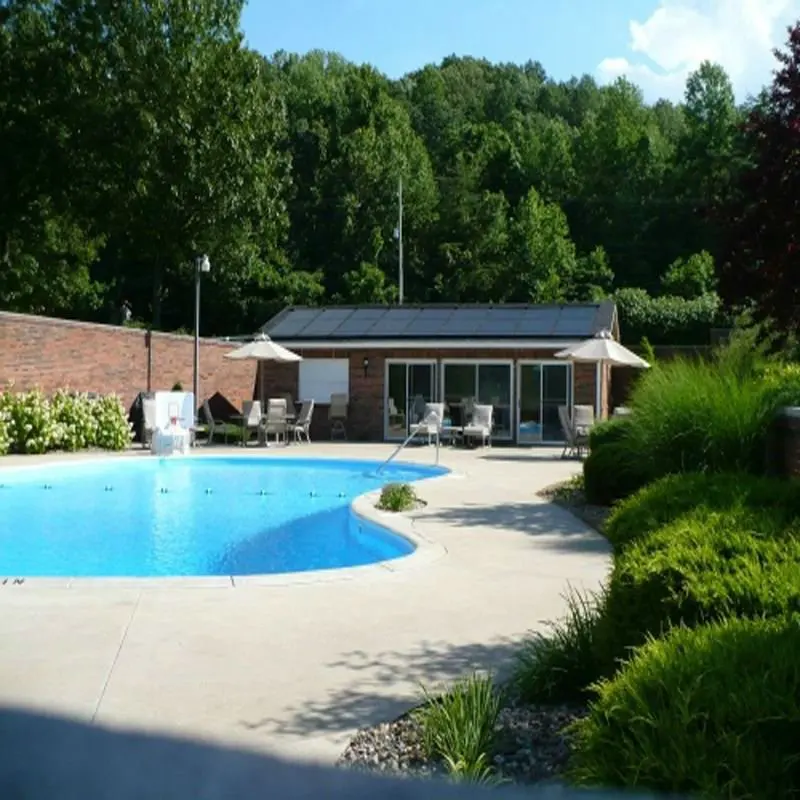

Solar collectors for swimming pool heating are installed on the roof with plenty of sunlight. The water in the pool is pumped
through hundreds of tubes in the collector, where it absorbs solar energy. Then return the hot water to the pool for you to enjoy.
Solar collectors for swimming pool heating are installed on the roof with plenty of sunlight. The water in the pool is pumped
through hundreds of tubes in the collector, where it absorbs solar energy. Then return the hot water to the pool for you to enjoy.
Features of solar collectors for swimming pool heating:
EPDM material is inert to light and chemicals.
High efficiency. Modular and rigid, each tube extends along the length.
EPDM has excellent heat resistance, ozone resistance, steam resistance and weather resistance.
It is an electrical insulator.
The temperature resistance range of EPDM material is -40℃ to 120℃.
Can be installed on any type of roof.
Easy to install.
Standard size is 1.33mx3m(According to your swimming pool size change amount)
Ultraviolet resistance and long service life.
EPDM material is inert to light and chemicals.
High efficiency. Modular and rigid, each tube extends along the length.
EPDM has excellent heat resistance, ozone resistance, steam resistance and weather resistance.
It is an electrical insulator.
The temperature resistance range of EPDM material is -40℃ to 120℃.
Can be installed on any type of roof.
Easy to install.
Standard size is 1.33mx3m(According to your swimming pool size change amount)
Ultraviolet resistance and long service life.
Why choose EPDM solar pool collector?
1. Anti-aging
EPDM has excellent weather resistance, ozone resistance, heat resistance, acid and alkali resistance, water vapor resistance,
color stability, electrical properties, oil injection and room temperature fluidity. EPDM rubber hose can be used for a long time
at 120 degrees Celsius, and can be used briefly or intermittently at 150-200 degrees Celsius.
2. Corrosion resistance
EPDM has good resistance to a variety of polar chemicals (such as alcohols, acids, alkalis, oxidants, refrigerants, detergents,
animal and vegetable oils, ketones and lipids), but it has good resistance to oils and aromatic solvents (such as gasoline).Benzene, etc.) in poor stability. )
1. Anti-aging
EPDM has excellent weather resistance, ozone resistance, heat resistance, acid and alkali resistance, water vapor resistance,
color stability, electrical properties, oil injection and room temperature fluidity. EPDM rubber hose can be used for a long time
at 120 degrees Celsius, and can be used briefly or intermittently at 150-200 degrees Celsius.
2. Corrosion resistance
EPDM has good resistance to a variety of polar chemicals (such as alcohols, acids, alkalis, oxidants, refrigerants, detergents,
animal and vegetable oils, ketones and lipids), but it has good resistance to oils and aromatic solvents (such as gasoline).Benzene, etc.) in poor stability. )
3. Heat resistance
EPDM has good heat resistance, but it is closely related to all vulcanization systems.
EPDM has good heat resistance, but it is closely related to all vulcanization systems.
solar heating mat for pool | ||||||||
Material:EPDM /NBR+PVC for your choice | ||||||||
Width(Meter) | Length(Meter) | Packaging size(CM) | Eight-hole tube meters | NW (kg) | ||||
0.33 | 3 | 60*20*20 | 6 | 3.9 | ||||
4 | 60*20*20 | 8 | 4.9 | |||||
4.5 | 60*20*20 | 9 | 5.4 | |||||
5 | 60*35*35 | 10 | 5.9 | |||||
6 | 60*35*35 | 12 | 6.8 | |||||
0.67 | 3 | 97*20*20 | 12 | 7.9 | ||||
4 | 97*20*20 | 16 | 9.9 | |||||
4.5 | 97*20*20 | 18 | 10.9 | |||||
5 | 97*35*35 | 20 | 11.9 | |||||
6 | 97*35*35 | 24 | 13.9 | |||||
1.33 | 3 | 162*20*20 | 24 | 16.0 | ||||
4 | 162*20*20 | 31 | 19.7 | |||||
4.5 | 162*20*20 | 35 | 21.6 | |||||
5 | 162*35*35 | 39 | 23.6 | |||||
6 | 162*35*35 | 47 | 27.5 | |||||
Details Images
Product Category
Company Profile
Product Process
Certifications
Product packaging
FAQ
Q1: Can I get one set as a sample to test the Pool Solar Heating Mat ?
A1: Yes,of course. Though our MOQ is 10 sets,we can offer you one or two sets for your test. You can click "buy samples" at the top of the page.Or you can contact us directly to get know detailed sample policy.
Q2: Are you a manufacturer for the pool solar heaters?
A2: We are a factory and have been making the rubber pool solar heaters for 15 years.
Q3: Will it leak when I get the pool solar heating mat?
A3: We do leakage test for each set after assembly and before packing.We will make sure that our customers receive the solar
heating mat in good condition.
Q4: Can you make my custom size?
A4: Yes,we can make the length according to your request once your order qty reaches at least 100 sets.
Q5: How many sets should I use for my 12mx6m inground swimming pool?
A5: The solar absorption area should be at least 75% of your pool area. We have solar heating mats with solar absorption area of 2m2,4m2,6m2 and 8m2. If you choose the 8m2 solar heating mat,it will take 12x6x75%/8 = 6 sets for your pool to get an effective
temperature raising.
A1: Yes,of course. Though our MOQ is 10 sets,we can offer you one or two sets for your test. You can click "buy samples" at the top of the page.Or you can contact us directly to get know detailed sample policy.
Q2: Are you a manufacturer for the pool solar heaters?
A2: We are a factory and have been making the rubber pool solar heaters for 15 years.
Q3: Will it leak when I get the pool solar heating mat?
A3: We do leakage test for each set after assembly and before packing.We will make sure that our customers receive the solar
heating mat in good condition.
Q4: Can you make my custom size?
A4: Yes,we can make the length according to your request once your order qty reaches at least 100 sets.
Q5: How many sets should I use for my 12mx6m inground swimming pool?
A5: The solar absorption area should be at least 75% of your pool area. We have solar heating mats with solar absorption area of 2m2,4m2,6m2 and 8m2. If you choose the 8m2 solar heating mat,it will take 12x6x75%/8 = 6 sets for your pool to get an effective
temperature raising.
