Product Description
<1>. BST-I AC current transducer, it converts AC signals (0~20A) from AC transformers into standard process signals.
<2>. This current transducer is used for DCS to centrally monitor the motor,pump and heat supply network,monitor the power supply line and its current.

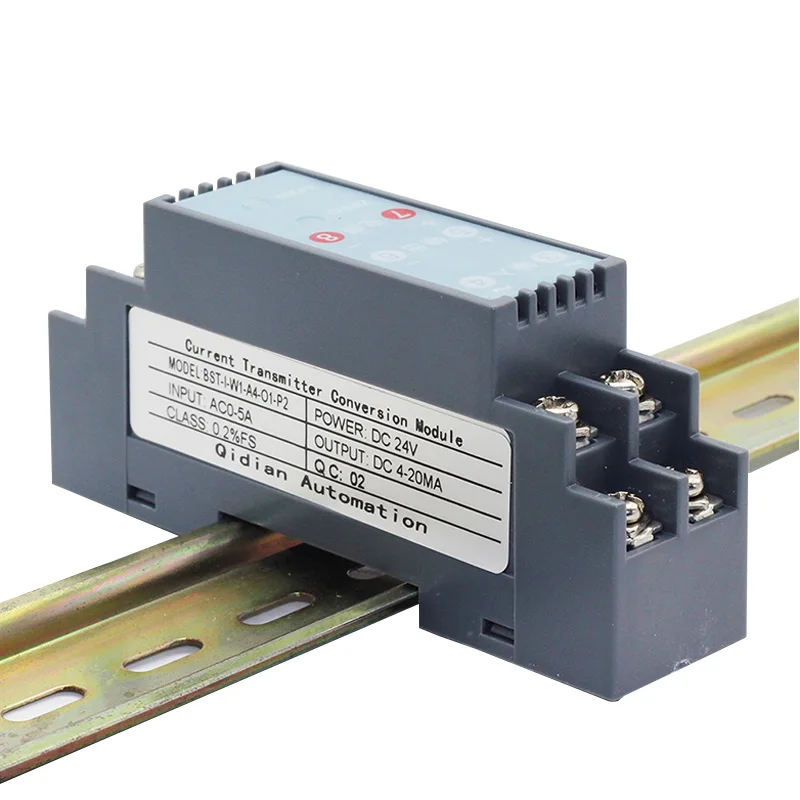

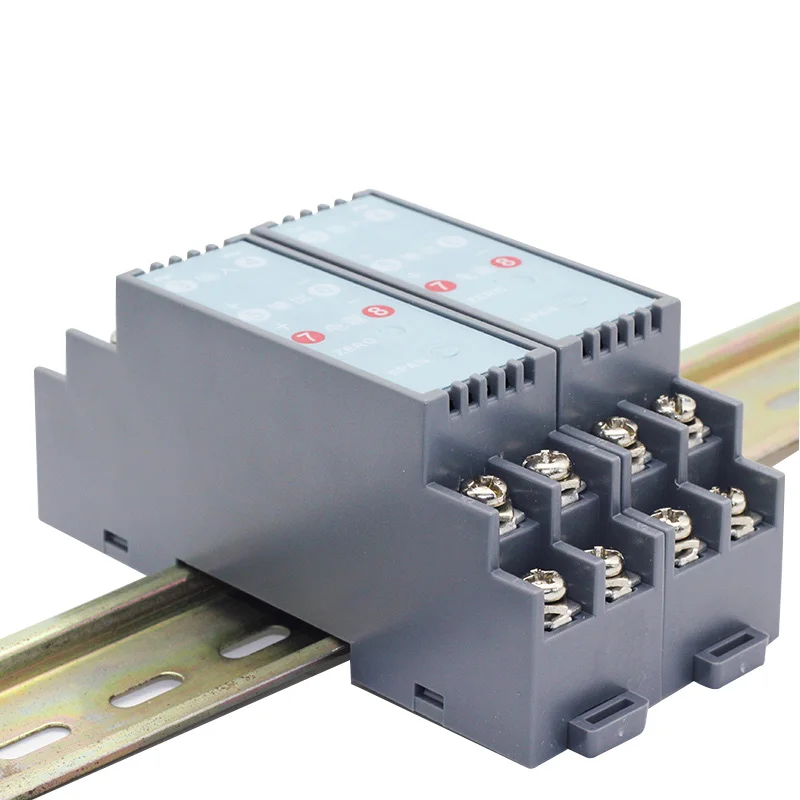

<3>. Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.
Technical Parameters
| Input | |
Input Current Range | AC 0-20A; Customized |
| Frequency Range | 40Hz-60Hz |
| Output | |
| Output Signal | 4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized |
Output Load Resistance | RL≤500Ω(output current signal) |
RL≥10KΩ(output voltage signal) | |
| Other Parameters | |
| Power Supply | DC24V,±10% |
| Accuracy | 0.2%F.S. |
| Respond Time | ≤400mS(0-90%) (TYP) |
| Temperature drift | 0.02%F.S./℃ (-20℃ ~ +55℃) |
| Rated Power Consumption | ≤1W(1 in 1 out,DC24V power supply,output 20mA) |
| Isolation Intensity | 2000V AC/1min(between input-ouput-power) |
| Insulation Resistance | ≥100MΩ(between input-ouput-power) |
| Working Temperature & Humidity | -20℃~+55℃/<80%humidity(non condensing atate) |
| EMC | Complies with GB/T 18268.1(IEC61326-1) |
