Manufacturers Marine Engine Heat Exchanger Plate Seal Factory Price EPDM NBR GC51 Rubber
- Категория: >>>
- Поставщик: Gansu,Nuochen,Petrochemical,Complete,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 48.80 $* | 50.99 $* |
| Aug-15-2025 | 47.80 $* | 49.86 $* |
| Jul-15-2025 | 40.14 $* | 42.36 $* |
| Jun-15-2025 | 46.10 $* | 48.10 $* |
| May-15-2025 | 40.94 $* | 42.61 $* |
| Apr-15-2025 | 46.33 $* | 48.82 $* |
| Mar-15-2025 | 45.67 $* | 47.87 $* |
| Feb-15-2025 | 45.9 $* | 47.20 $* |
| Jan-15-2025 | 44.57 $* | 46.57 $* |
Характеристики
Products Description

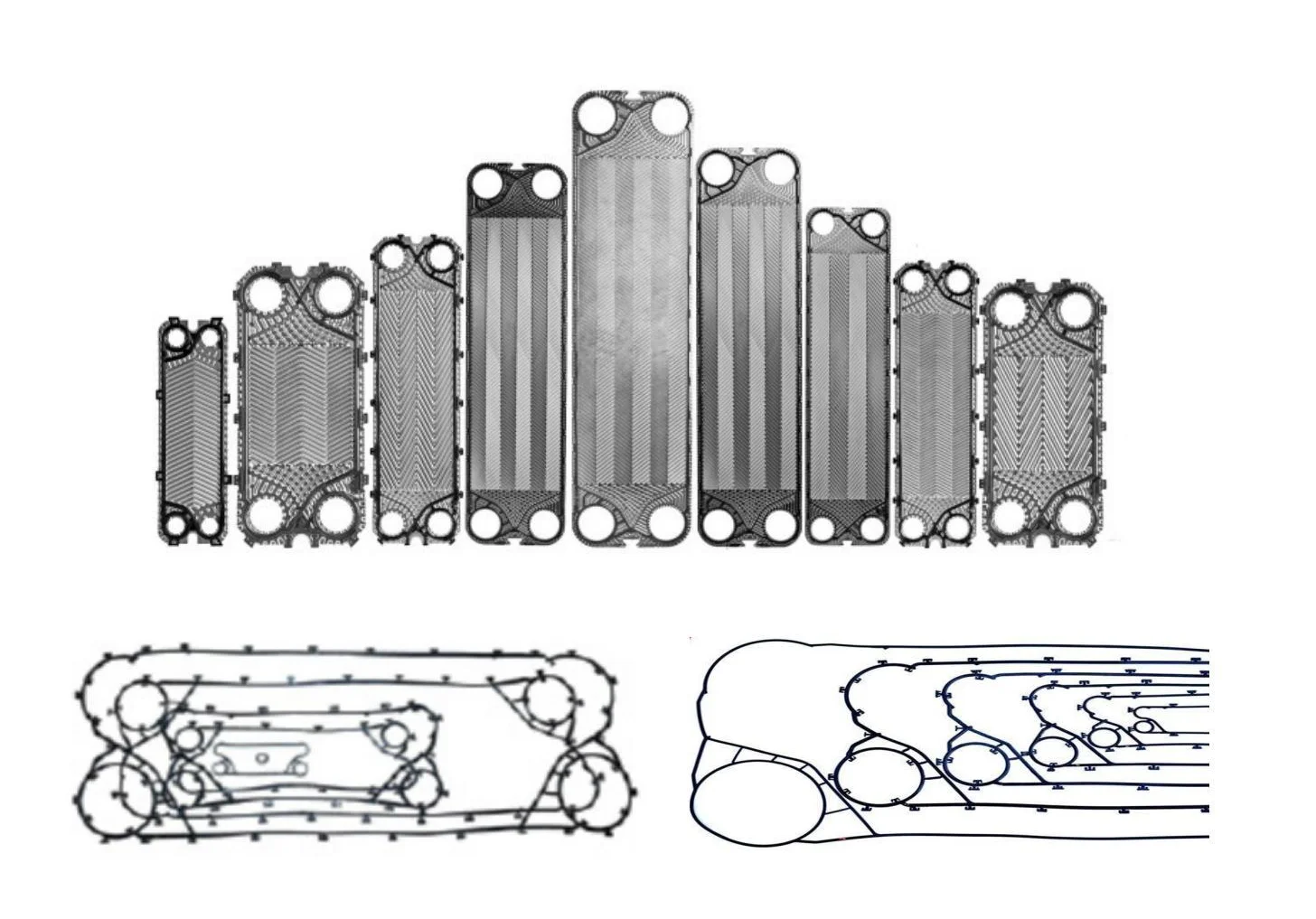

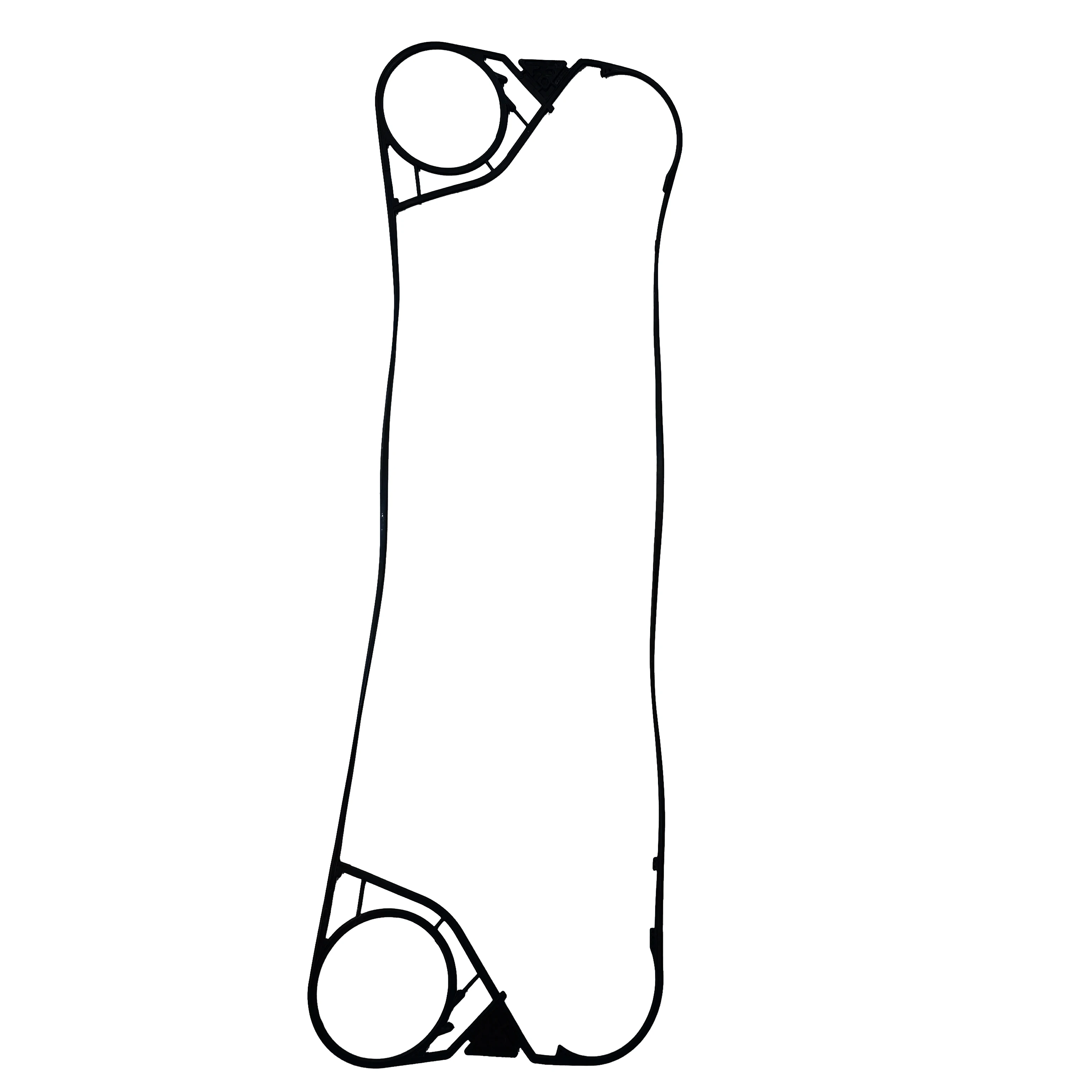

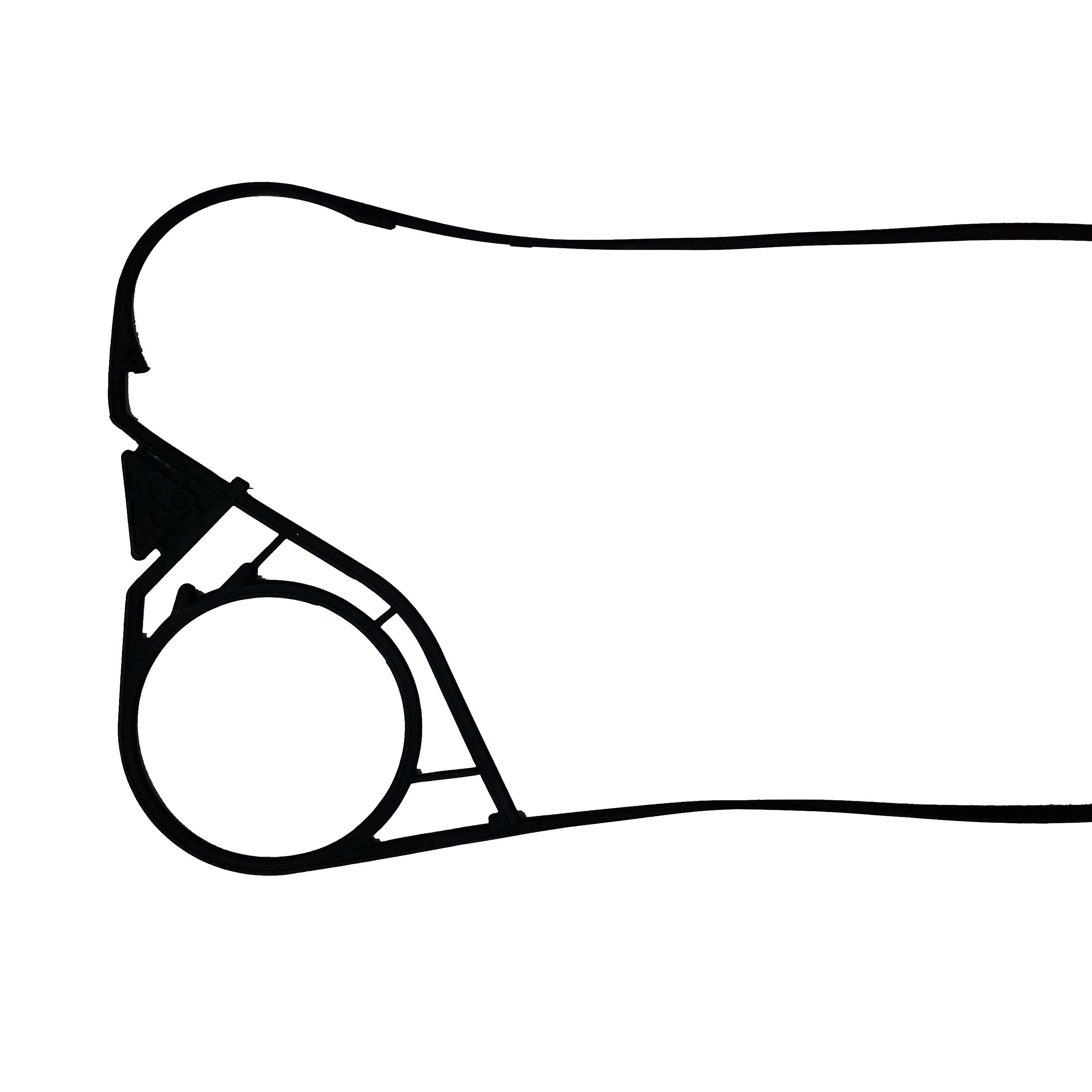

Heat exchanger gasket
The plate heat exchanger realizes the sealing between plates through the sealing gasket, which prevents the leakage of fluid and can bear certain pressure. At the same time, the two kinds of media flow through their own channels through the sealing gasket, without mixing with each other. Therefore, the quality of the gasket plays a very important role in the use quality of the plate heat exchanger. The ability of the plate heat exchanger to bear internal pressure and the degree of temperature resistance are basically determined by the gasket
The plate heat exchanger realizes the sealing between plates through the sealing gasket, which prevents the leakage of fluid and can bear certain pressure. At the same time, the two kinds of media flow through their own channels through the sealing gasket, without mixing with each other. Therefore, the quality of the gasket plays a very important role in the use quality of the plate heat exchanger. The ability of the plate heat exchanger to bear internal pressure and the degree of temperature resistance are basically determined by the gasket
Gasket material | Temperature Range （℃） | Corrosion Resistance |
NBR | -20~110 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
HNBR | -20~ 165 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
EPDM | -50~ 150 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.. |
H-EPDM | -20~ 165 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
S-EPDM | -20~ 130 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
Viton | -40~ 180 | Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc. |
Chloroprene rubber(CR) | -50~ 100 | It is resistant to dilute non oxidizing acid and alkali. |
Silicon | -65~ 230 | Corrosion resistant to dilute acid, alkali and brine. |
Compressed fiber（AFM34 SIL-4400） | 260 | Oil, water and vapor (up to 160 ℃), gas, salt solution, fuel, ethanol, organic / inorganic acids, refrigerants, hydrocarbons. |
PTFE | -200~ 260 | It has excellent corrosion resistance. Except molten metal lithium, sodium, potassium, chlorine trifluoride, oxygen trichloride at high temperature and liquid fluorine with high flow rate, it can resist all chemical media (including concentrated nitric acid and aqua regia). |
Details Images
Models we can provide | |||||||
Tranter | GC008、GL13、GX12、GX18、GC16、GC26、GX26、GX42、GX51、GC51、GC60、GX60、GX100、GX140、GX64、GX91、GX118、GX85、GX145、GX205 | ||||||
Certifications
Our Advantages
Company Profile
Major Market
Payment & Delivery
FAQ
Q:Are you a manufacturer or a trading company?
A: We integrate industry and trade
Q: What are the terms of payment?
A, T/T, Western Union remittance, L / C (60% deposit, 40% balance before delivery). Before you pay the balance, we will show you photos of the products and packaging.), Alibaba Trade guarantee service.
Q: How about the product quality
A: our products have passed ISO9001 certification and CE certification .
Q: If I place an order, what is the delivery time?
A: 15-20 days for general products and 25-30 days for customized products.
Q: If I order a lot, can I get a lower price?
A: Yes, if the order is large, the price can be discounted.
Q: What is the mode of transportation?
A: Shipping, air transportation, international express, DHL / TNT / FedEx / UPS / EMS,
Q: Does your product have after-sales service?
A: Yes. If you have any questions about the product, please feel free to contact us.
A: We integrate industry and trade
Q: What are the terms of payment?
A, T/T, Western Union remittance, L / C (60% deposit, 40% balance before delivery). Before you pay the balance, we will show you photos of the products and packaging.), Alibaba Trade guarantee service.
Q: How about the product quality
A: our products have passed ISO9001 certification and CE certification .
Q: If I place an order, what is the delivery time?
A: 15-20 days for general products and 25-30 days for customized products.
Q: If I order a lot, can I get a lower price?
A: Yes, if the order is large, the price can be discounted.
Q: What is the mode of transportation?
A: Shipping, air transportation, international express, DHL / TNT / FedEx / UPS / EMS,
Q: Does your product have after-sales service?
A: Yes. If you have any questions about the product, please feel free to contact us.
