Linsn TS802D отправляющая карта светодиодный дисплей полноцветная
- Категория: Digital Signage and Displays >>>
- Поставщик: Shenzhen,Ledstore,Technology,Co.Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 105.52 $* | 107.37 $* |
| Jul-18-2025 | 85.89 $* | 87.78 $* |
| Jun-18-2025 | 104.43 $* | 106.20 $* |
| May-18-2025 | 103.81 $* | 105.69 $* |
| Apr-18-2025 | 82.16 $* | 84.50 $* |
| Mar-18-2025 | 101.70 $* | 103.17 $* |
| Feb-18-2025 | 100.28 $* | 102.27 $* |
| Jan-18-2025 | 100.52 $* | 102.26 $* |
Характеристики
Product Description
1. Feature

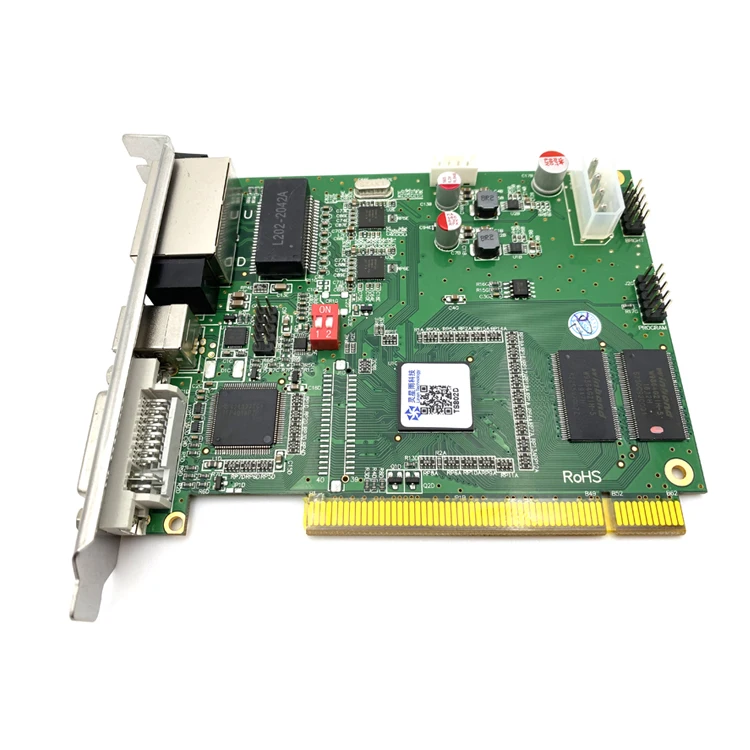

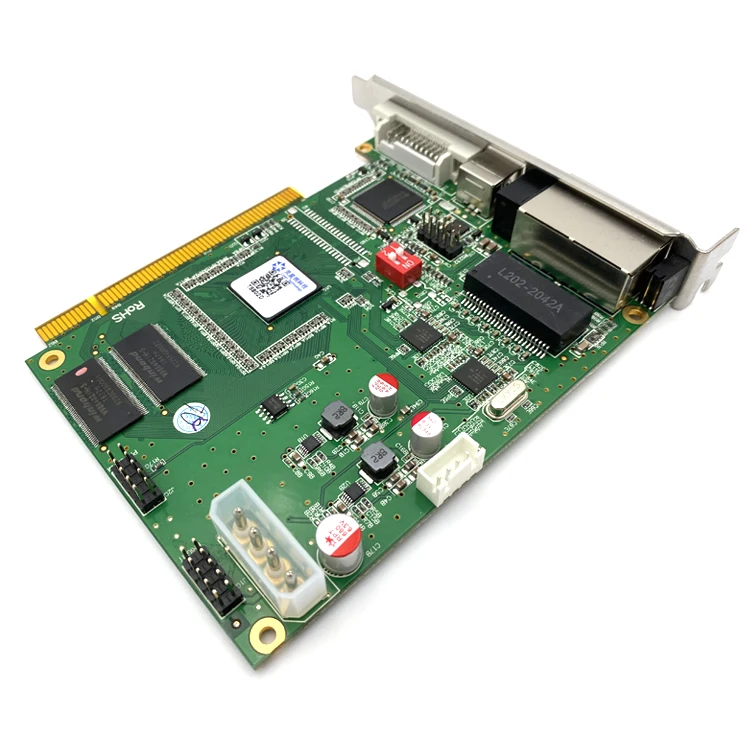

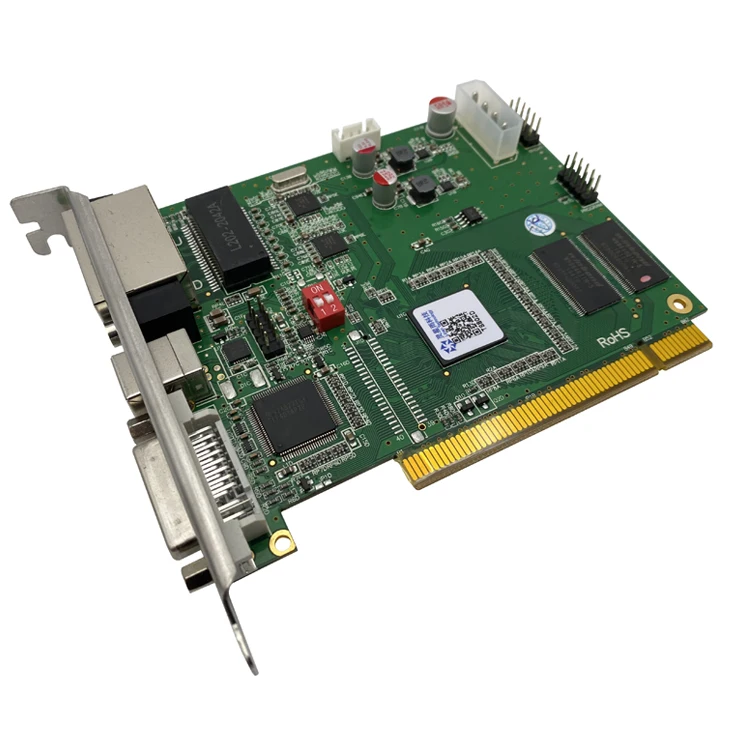

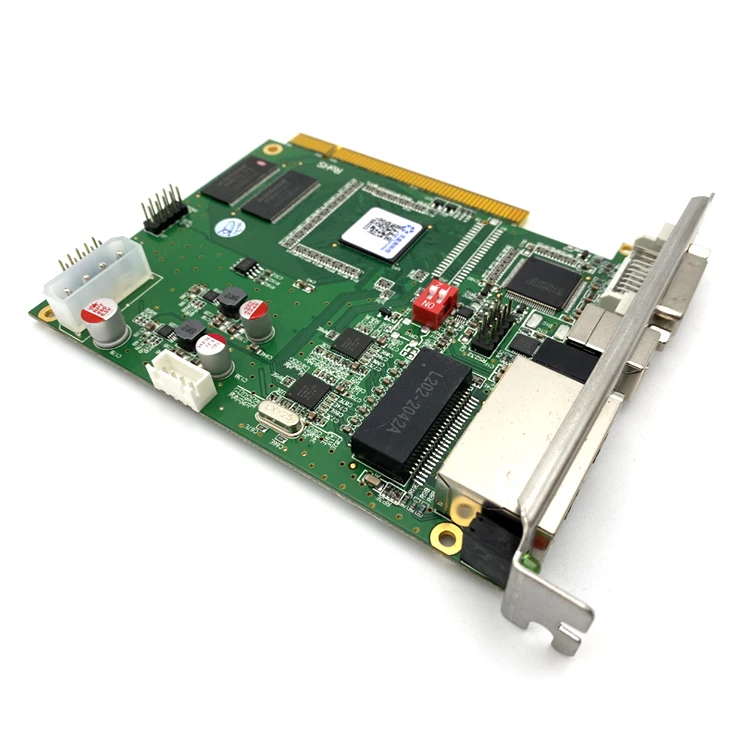

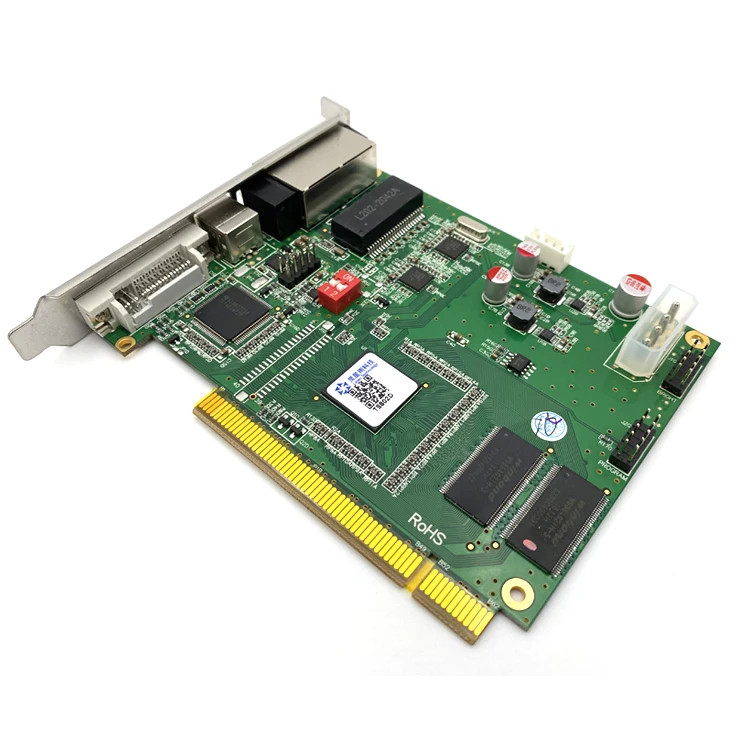

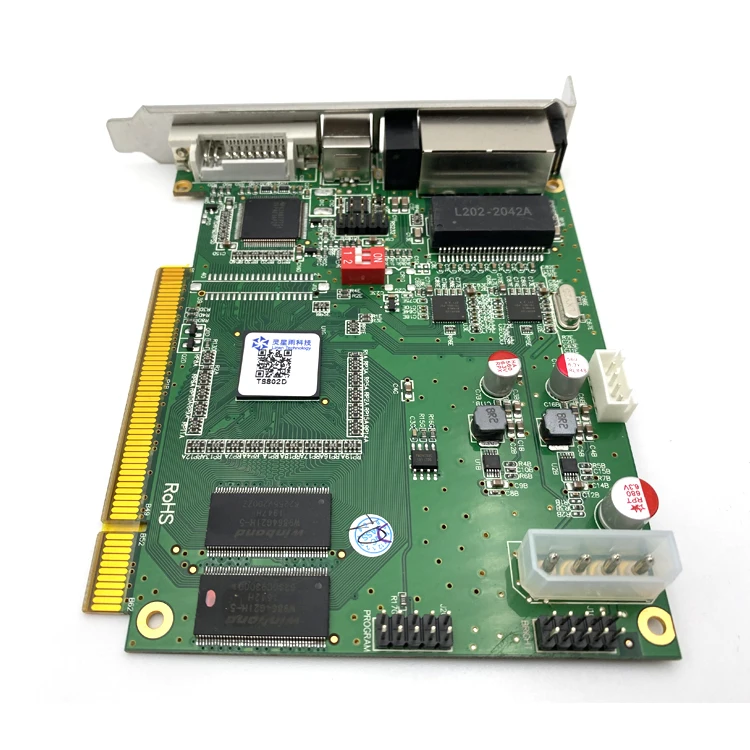

TS802D is a full-color sending card of Lingxingyu, supporting single color, dual color, full color display Show screen. Single card supports 1310720 points, the longest support 4032 points, the highest 2048 points point. Has the following functions:
1) 1 DVI video signal input;
2) 1 audio input;
3) USB interface control, multi-card cascade supports up to 4 sending cards cascaded use;
4) Dual network port output, single network port supports up to 655360 pixels;
5) Support manual brightness adjustment (need to use an external sending box), 16 levels, 32 levels,
64-level brightness adjustment is optional;
6) Support two output modes of 60Hz and 30Hz;
1) 1 DVI video signal input;
2) 1 audio input;
3) USB interface control, multi-card cascade supports up to 4 sending cards cascaded use;
4) Dual network port output, single network port supports up to 655360 pixels;
5) Support manual brightness adjustment (need to use an external sending box), 16 levels, 32 levels,
64-level brightness adjustment is optional;
6) Support two output modes of 60Hz and 30Hz;
2. Capability | ||
60Hz mode（using two ports） | 30Hz mode（using two ports） | |
4032 ×320 | 4032 × 512 | |
3200×400 | 3840 × 544 | |
2560×512 | 3584 × 576 | |
2048 ×640 | 3200 × 640 | |
1600 ×800 | 2560×800 | |
1280×1024 | 1600 ×1280 | |
1024 × 1280 | 1440 ×1440 | |
900×1440 | 1280×1600 | |
800×1600 | 1050×1920 | |
640×2048 | 1000×2048 | |
Note,
1. The above modes require graphics card or video processor support (GTX 1050 and above are recommended for ultra-long and ultra-high resolution).
2. Pay attention to the network port allocation of the sending card. The single network cable of the sending card must be strictly controlled and cannot exceed half of the total points.
3. Working conditions | ||||||||||
Rated voltage（V） | 5 | maximum | 5.5 | minimum | 4.5 | |||||
Rated current（A） | 0.50 | maximum | 0.57 | minimum | 0.46 | |||||
Rated power consumption（W） | 2.5 | maximum | 3.1 | minimum | 2.1 | |||||
Working temperature （℃） | -20℃ ~ 75℃ | |||||||||
Working humidity（%） | 0%~95% | |||||||||
