Сетевой кабель UTP cat5E 48 портов 2U сталь RJ45 коммутационная

Описание и отзывы

Трекер стоимости

Характеристики

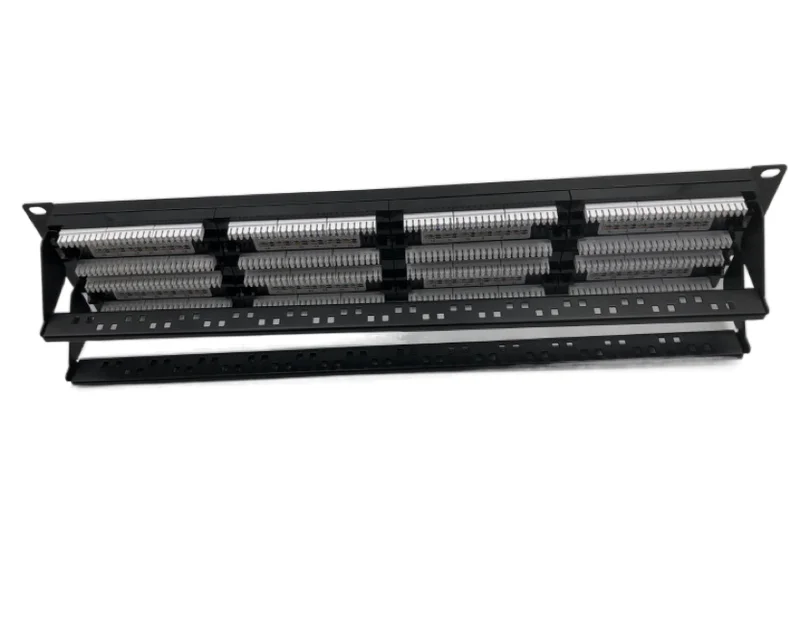

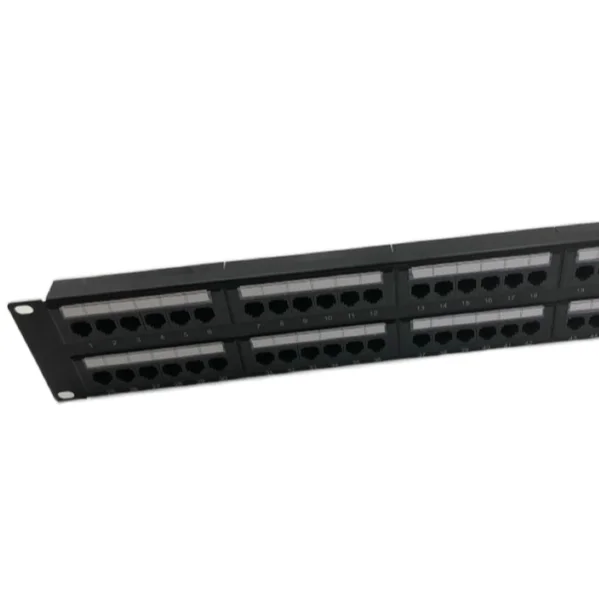

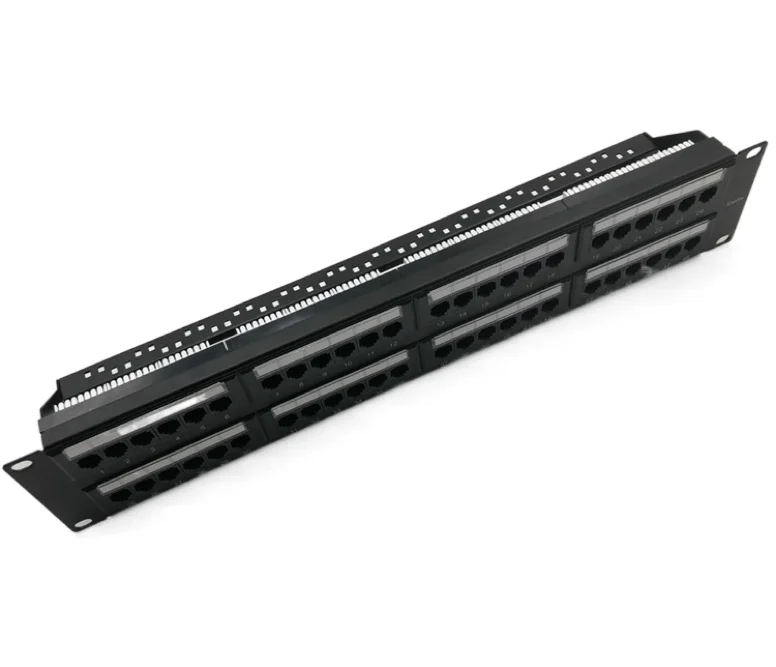

Product Name	2U Network UTP cat5e 48 port steel patch panel
Material	Steel
Specification	48 port
Color	Black
Used	Data center, working area, managing room , equipment room , etc



1. Technique Characteristics

• Brass housing with nickel-plated, phosphor bronze with golden plated avoid oxidation

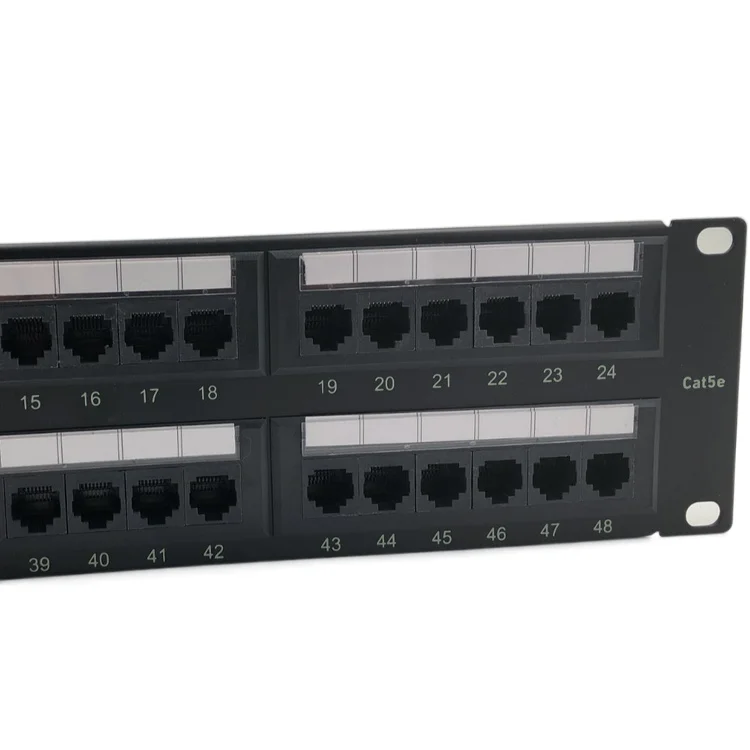

• Front panel with port number and category

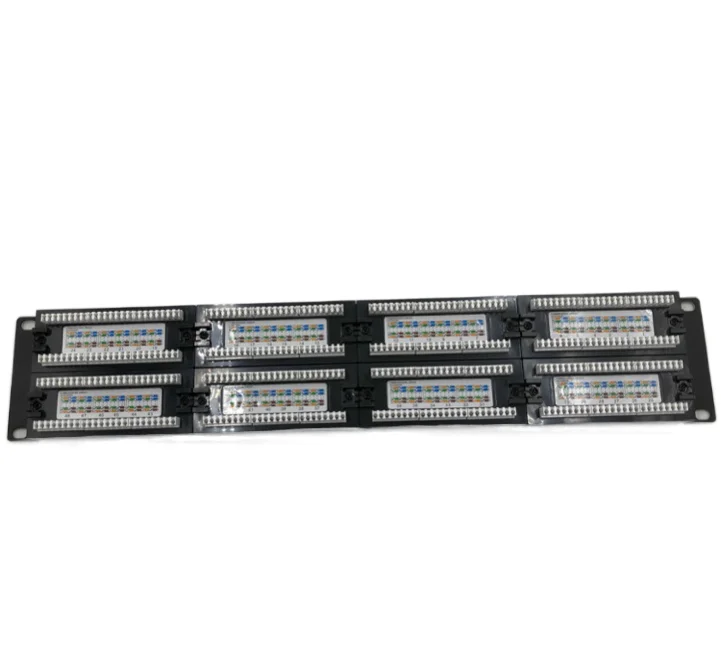

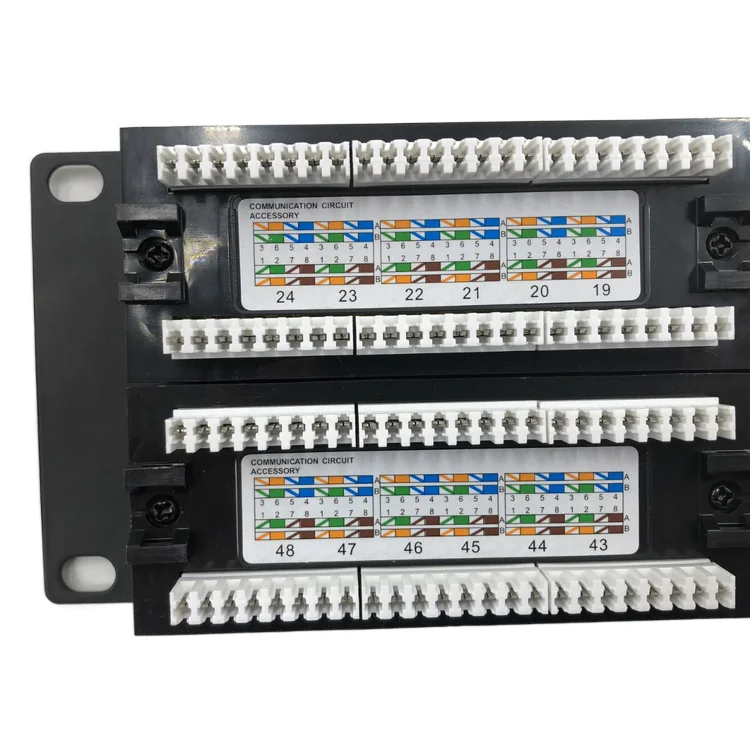

• Both sides of the panel print ports and wiring termination for operation and maintenance

• Integrated back bar provide good cable management, relieving the cable tension and make the wiring system more stable and clear

• Metal structure ensure the product with higher mechanical strength and outstanding profile

• Standard 2U height 48 port panel support T568A/B cabling sequence

• Standard 19” wide range application make assembling, maintenance and upgrade faster



2.  Electrical Characteristics

• DC Resistance: ≤300mΩ

• Contact Resistance: ≤20mΩ

• Dielectric strength: 1000V(AC750V)1min

• Insulation Resistance: ≥1000MΩ



3.  Physical Characteristics

• Golden plated phosphor bronze pins, brass housing with nickel-plated

• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 24-26AWG cables

• Inserting Duration: ≥750 times

• Punching Duration: ≥250 times

• Steel outer frame: Clod rolling steel, with plastic powder clad, black MATT finish

• RJ45 jack frame material: PBT, PC, ABS

• Working temperature: -20℃~65℃



4. Standards

• ISO/IEC11801

• TIA/EIA-568B.2-1

• EN50173

• UL 94V-0



5. Application

• Structured cabling transmitting data, voice , video

• Applied for Cat.5e and D classes
