Автоматическая машина для изготовления ручка швабры деревянный дюбель по производству угля брикетировочный
- Категория: Машина для изготовления брикетов биомассы >>>
- Поставщик: Henan,Mingchuang,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1785.16 $* | 1874.77 $* |
| Aug-19-2025 | 1770.35 $* | 1859.53 $* |
| Jul-19-2025 | 1485.84 $* | 1559.72 $* |
| Jun-19-2025 | 1740.57 $* | 1827.28 $* |
| May-19-2025 | 1515.50 $* | 1591.67 $* |
| Apr-19-2025 | 1710.45 $* | 1796.11 $* |
| Mar-19-2025 | 1695.76 $* | 1780.19 $* |
| Feb-19-2025 | 1680.69 $* | 1764.26 $* |
| Jan-19-2025 | 1665.12 $* | 1748.14 $* |
Характеристики
Product Description

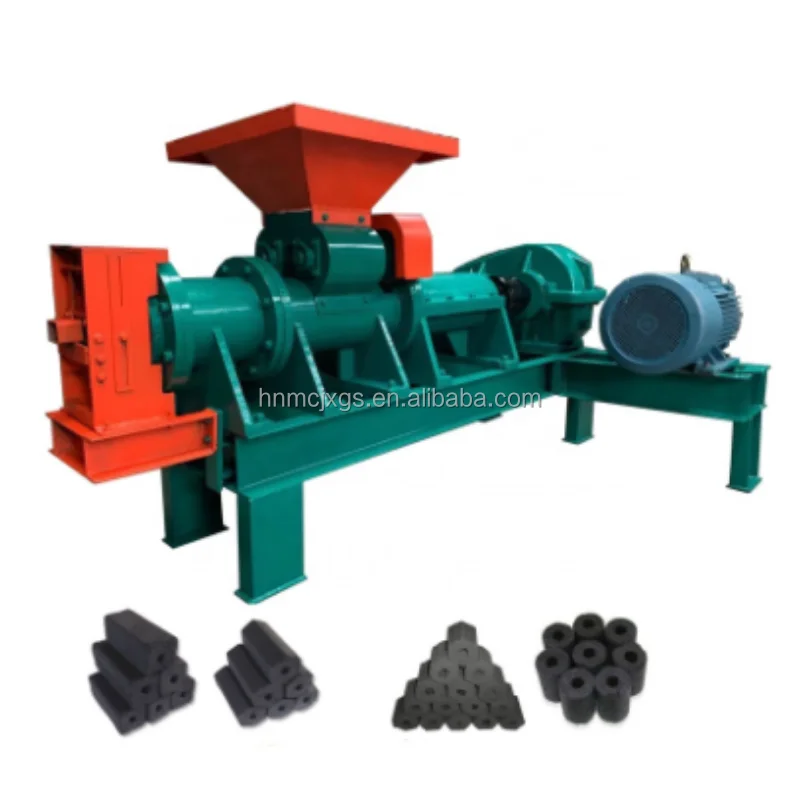

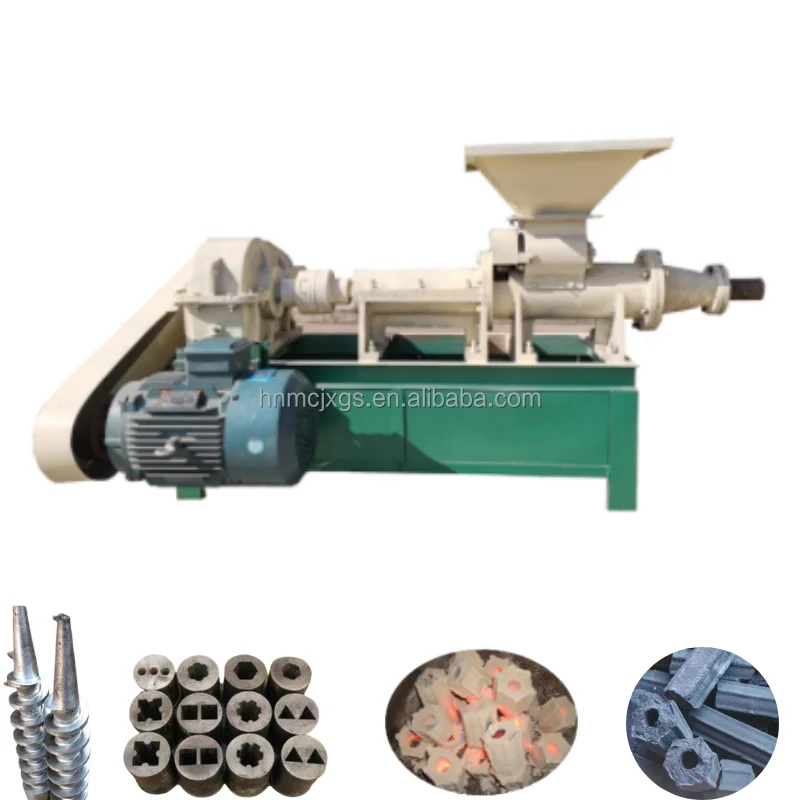

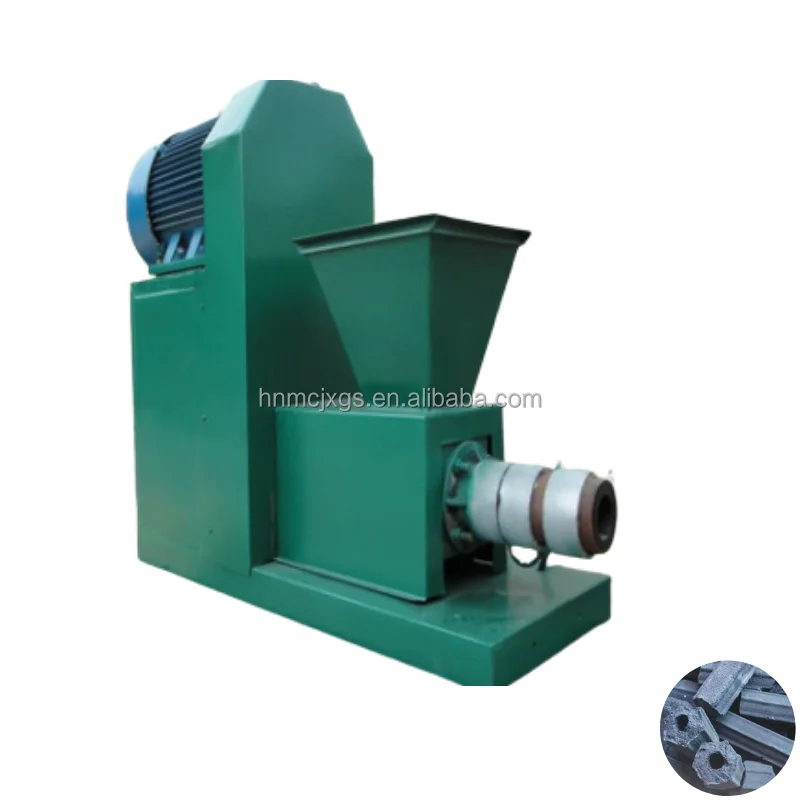

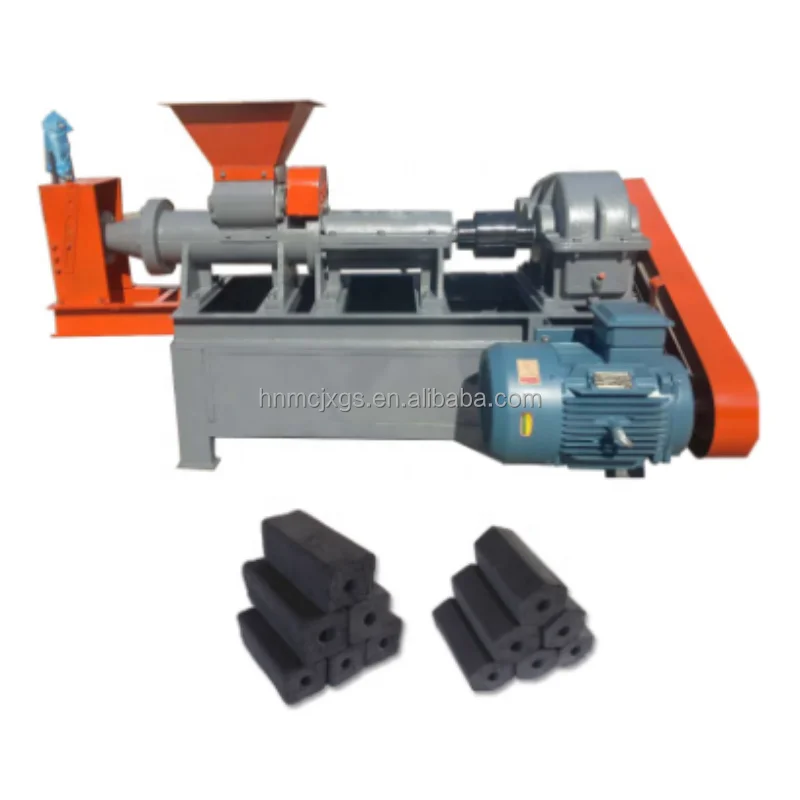

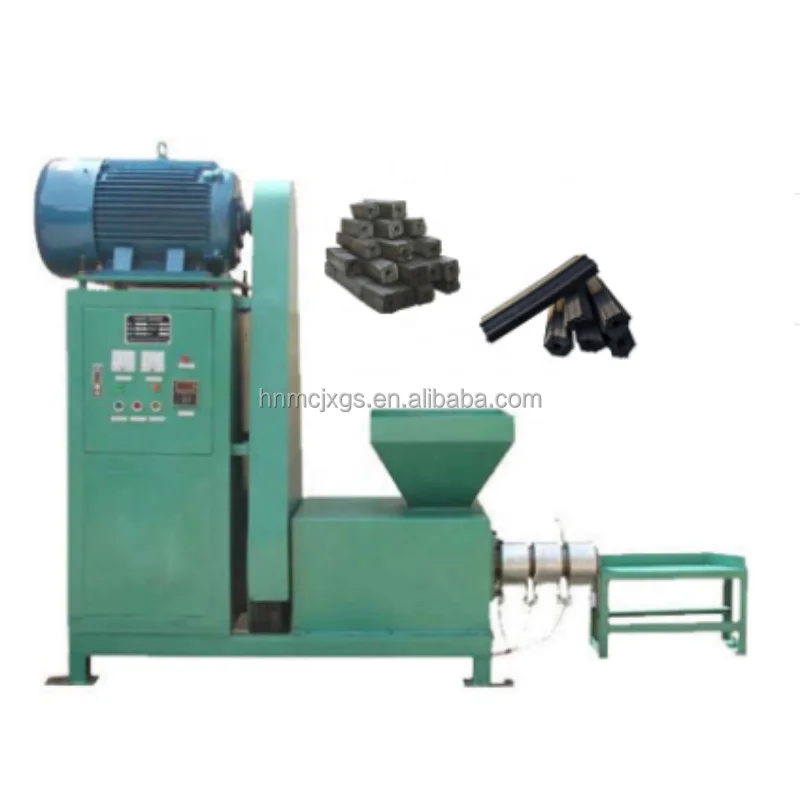

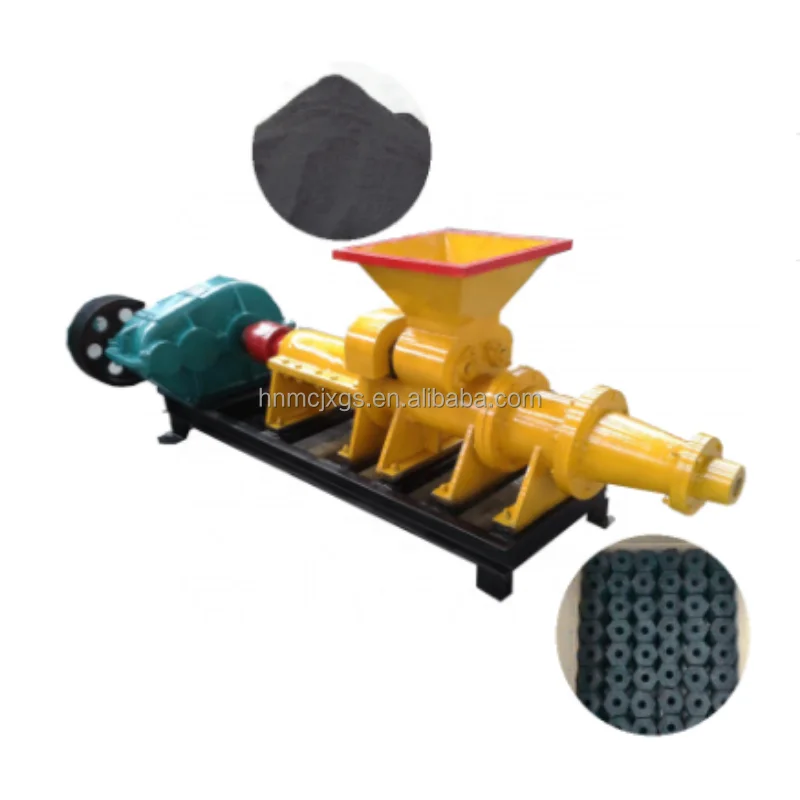

Coal/ charcoal/ rod making machine
Rod making machine is also known as wood powder forming machine. Its products can be divided into wood chip bar making machine, rice husk bar making machine, sawdust bar making machine, etc., the equipment is the main molding equipment for the production Machine-made charcoal.It can change the water content<12% bamboo, wood, nut shell, straw (except rice straw, wheat straw) and other granular (length ≤5mm, diameter ≤3mm) waste, without any binder, through high temperature, high pressure process, extruded into solid firewood with central hole.
The rod making machine adopts the oil-immersed alloy port structure, the propeller is convenient to disassemble and install without screws, so that you can work faster. The key components such as the propulsion shaft adopt special wear-resistant material formula, precision casting.The fit degree, compactness and wear resistance between the propelling shaft and the inner casing barrel are greatly improved. It has the advantages of high output, low energy consumption, compact and durable. Its output, bar density, power consumption, wear resistance and other performance indicators are in the level.
The rod making speed is fast (20 seconds of 60 cm), the extrusion density is large, the screw propeller adopts special wear-resistant material precision casting, the service life of the propeller is more than ten times longer than the traditional propeller;The forming sleeve is precision cast with special formula alloy material, and its life can reach one year.This cutting-edge technology not only reduces costs greatly, but also saves manpower.
Parameter
Model | Power | Output | Dimension |
MC-50 | 15KW | 200-300Kg/h | 1.7*0.66*1.5m |
MC-70 | 18.5KW | 300-350Kg/h | 1.8*0.7*1.6m |
Working Principle
Bar making machine is the use of sawdust, crop stalks (corn stalk, big haulm, sorghum stalk, cotton, rape stalk, peanut seedling, sunflower stalk), chaff, grasses and shrubs branch, bamboo cutter head, head, bagasse as raw material, after crushing in a sawdust crusher, and under screw propeller and heating circle, there is a high temperature zone which can make incompact raw materials be processed into hollow rod.The product has high density, small volume, good flammability, can replace firewood and coal burning.The general product diameter is 50-60mm, aperture is 15-20mm, with a hollow quadrangle or hexagonal column shape. Also it can also be made into spherical, granular, honeycomb coal shape.
Product Features
1.The product design is reasonable, with reliable manufacturing quality, and the characteristics of simple structure,
convenient-operation, small volume, less occupation, save labor, save electricity.
2.Full automatic control electric heating device, can randomly adjust the dry and humidity of the material, and ensure the stability of the discharging molding, improve the work efficiency.
3.The main parts of the product are made of wear-resistant materials with special treatment, so it can be pressed continuously and durable.
4. It is suitable for pressing and forming of all kinds of biomass raw materials, with less energy consumption and high production efficiency.
5. Change the three bearings of the old machine core into four, which increase the stability and durability of the machine.
6. Change the old oil-coated lubrication for oil-immersed lubrication, as long as there is no lack of oil, it can be used for many years.
7. Increase the screw pitch to increase the amount of feed, thus greatly improve the output.
8. Improve the structure of the forming cylinder, reduce the friction between machinery and raw materials, increase the density of the mandrel.
convenient-operation, small volume, less occupation, save labor, save electricity.
2.Full automatic control electric heating device, can randomly adjust the dry and humidity of the material, and ensure the stability of the discharging molding, improve the work efficiency.
3.The main parts of the product are made of wear-resistant materials with special treatment, so it can be pressed continuously and durable.
4. It is suitable for pressing and forming of all kinds of biomass raw materials, with less energy consumption and high production efficiency.
5. Change the three bearings of the old machine core into four, which increase the stability and durability of the machine.
6. Change the old oil-coated lubrication for oil-immersed lubrication, as long as there is no lack of oil, it can be used for many years.
7. Increase the screw pitch to increase the amount of feed, thus greatly improve the output.
8. Improve the structure of the forming cylinder, reduce the friction between machinery and raw materials, increase the density of the mandrel.
Product Advantages
1. Stability&durability,Low noise; Change the three bearings of the old machine core to four, increase the stabilityand durability of the machine and reduce the abnormal sound in the process of running the machine.
2. Longer service life; Change the old oil-coated lubrication for oil-immersed lubrication, as long as there is no lack of oil, can be used for many years.
3. High output; increase the screw pitch to increase the amount of feed, thus greatly improving the output.Improve the structure of the forming cylinder, reduce the friction between machinery and raw materials, and increase the density of the mandrel.
2. Longer service life; Change the old oil-coated lubrication for oil-immersed lubrication, as long as there is no lack of oil, can be used for many years.
3. High output; increase the screw pitch to increase the amount of feed, thus greatly improving the output.Improve the structure of the forming cylinder, reduce the friction between machinery and raw materials, and increase the density of the mandrel.
Packing & Delivery
The small model of the machine is packed in wooden boxes, and the large model must be directly loaded into the container.
