Буровая установка DTH для бурения
- Категория: Mining Machinery >>>
- Поставщик: Jining,Hengwang,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.50 $* | 0.28 $* |
| Aug-17-2025 | 0.29 $* | 0.15 $* |
| Jul-17-2025 | 0.59 $* | 0.37 $* |
| Jun-17-2025 | 0.36 $* | 0.71 $* |
| May-17-2025 | 0.29 $* | 0.77 $* |
| Apr-17-2025 | 0.86 $* | 0.67 $* |
| Mar-17-2025 | 0.57 $* | 0.16 $* |
| Feb-17-2025 | 0.1 $* | 0.74 $* |
| Jan-17-2025 | 0.5 $* | 0.51 $* |
Характеристики
Product Description

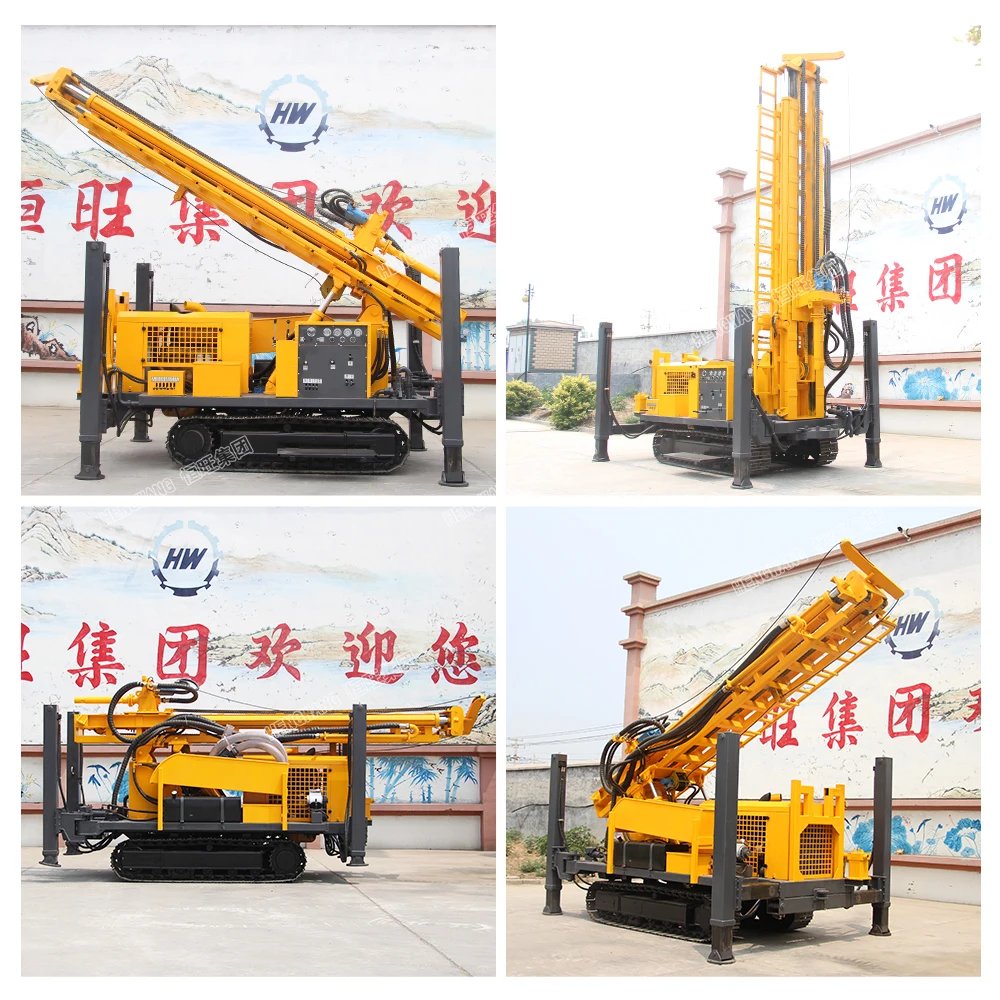

crawler mounted Mining Drilling Rig Portable Water Well Drilling Rig Introduction

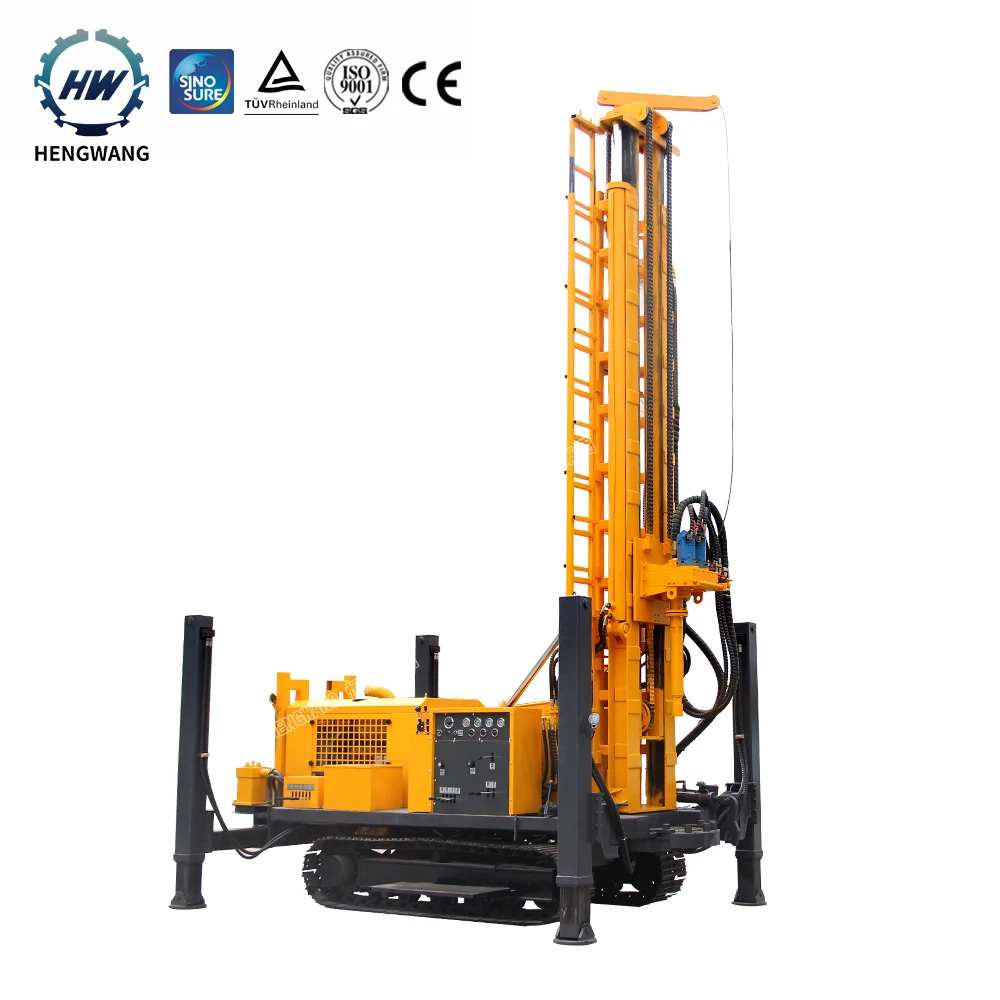

HQZ-450L Pneumatic Drill Rig
* Full hydraulic control, be convenient and flexible: Drilling speed, torque, axial pressure, anti-axial pressure, propulsion speed and speed can be adjusted at any time to meet the needs of different drilling tools and different construction techniques
* Top drive rotary drilling: easy to install and remove the drill rod, shorten the auxiliary time, and fasten the drilling of follow-pipe
* Full hydraulic control, be convenient and flexible: Drilling speed, torque, axial pressure, anti-axial pressure, propulsion speed and speed can be adjusted at any time to meet the needs of different drilling tools and different construction techniques
* Top drive rotary drilling: easy to install and remove the drill rod, shorten the auxiliary time, and fasten the drilling of follow-pipe
crawler mounted Mining Drilling Rig Specification
Model | HQZ-450L |
Total Weight（T ) | 8.7 |
Dimensions（mm ) | 5300*2050*2700 |
Drilling Diameter（mm) | 130-400 |
Drilling Depth（m) | 450 |
One-time Advance Length of the Drill（mm) | 3000/6000 |
Walking Speed（km/h) | 6 |
Climbing Ability（max ) | 25 |
Min.Ground Clearance（mm ) | 300 |
Working Air Pressure（Mpa ) | 1.7-3.5 |
Air Consumption（m3 /min ) | 17-35 |
Main Power（kw) | 100/6 cylinder |
Rotation（rpm) | 45-75 |
Rotary Torque（N.m ) | 9000-10000 |
You may interested

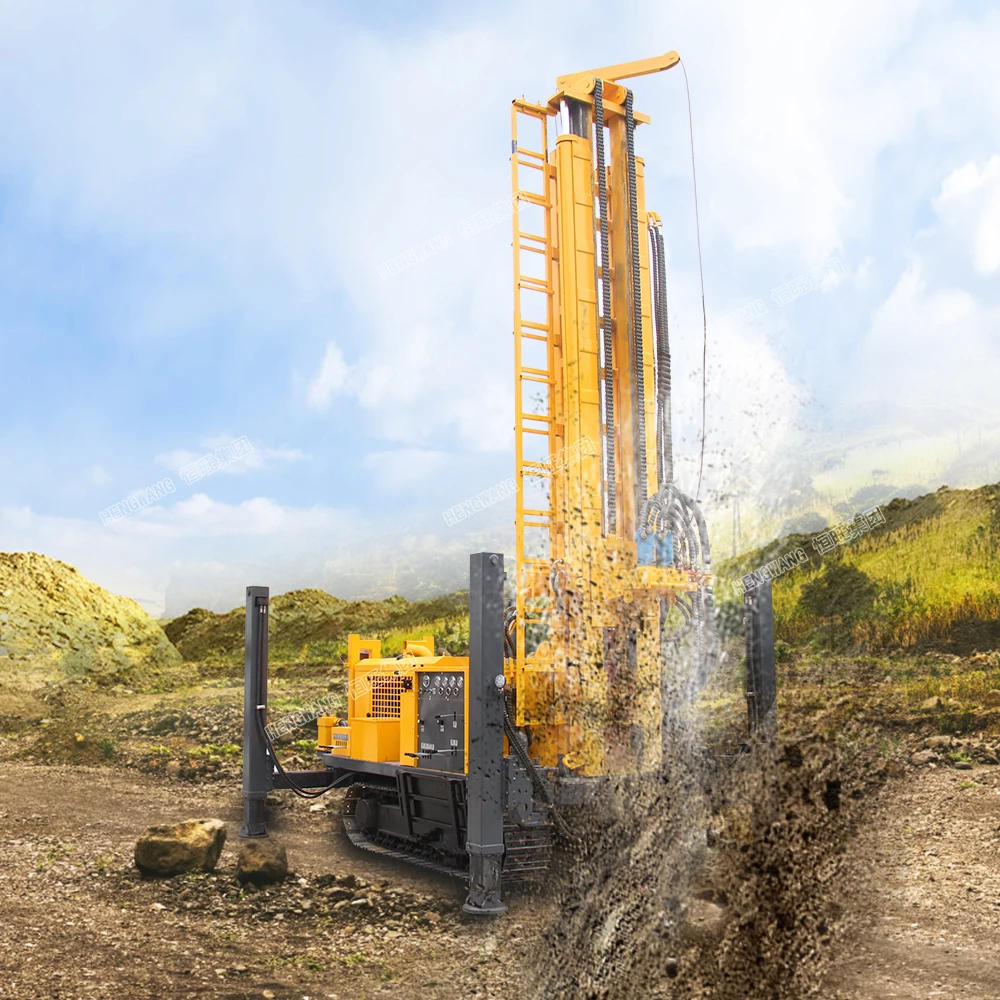

Application
Scope of application: Suitable for workers, people drilling, geothermal drilling, with compact structure, fast drilling speed,movable and flexible, wide geographical application advantages. Especially be suitable for water extraction in mountainous and rock formations.
Products Details
deep water well drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

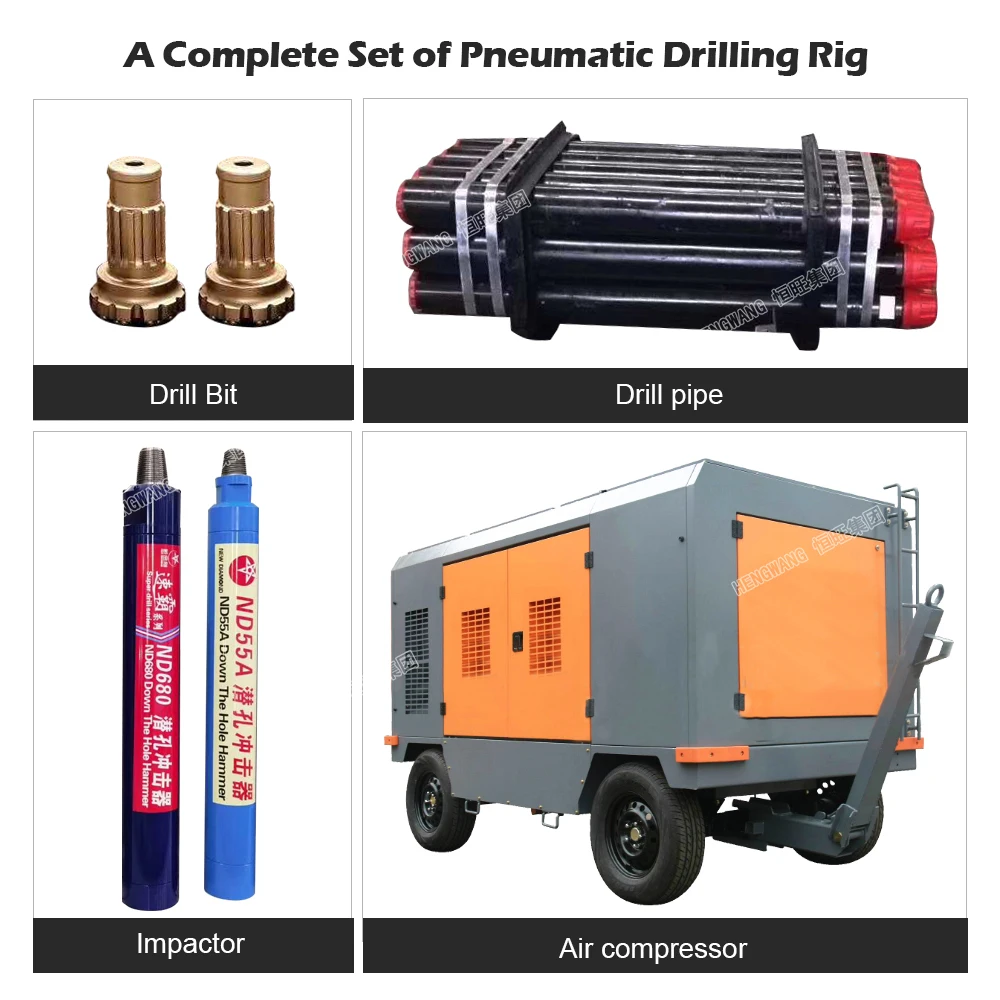

Spare Parts Picture
Certification

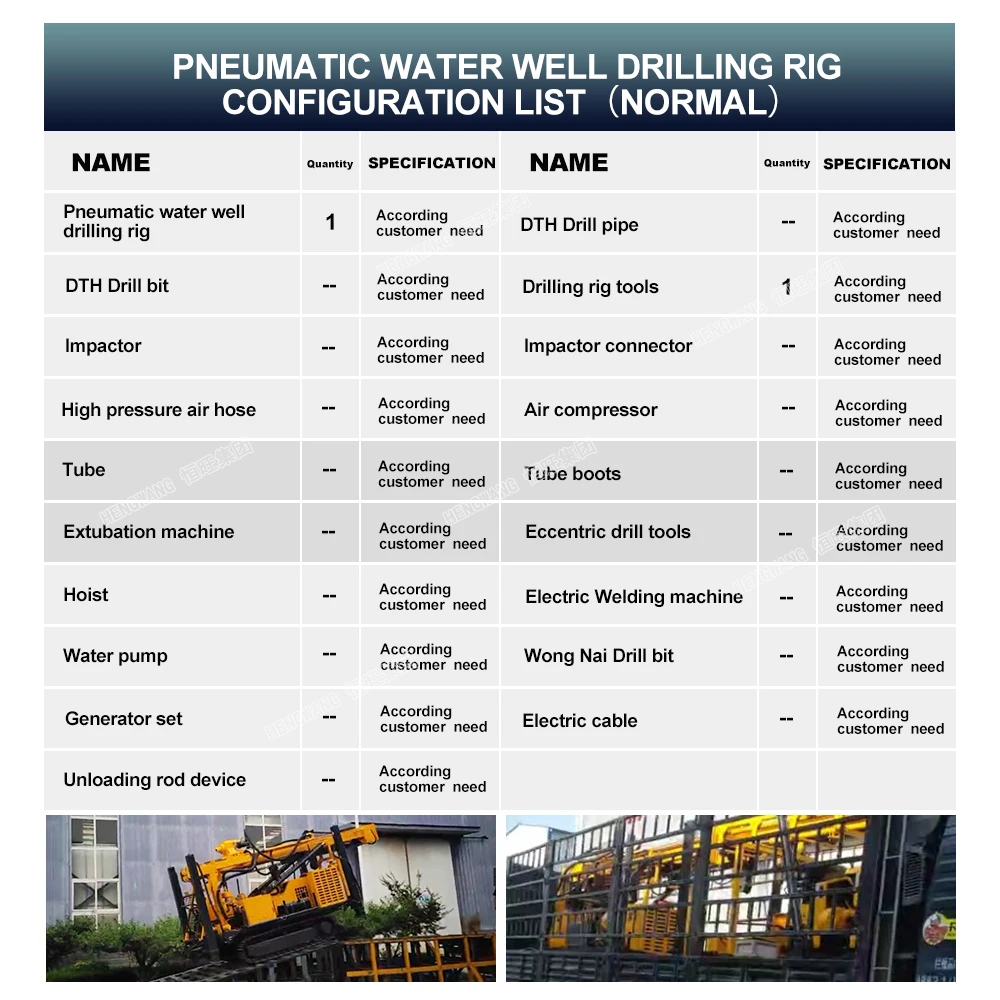

Packing and delivery
One set of HQZ4500l With air compressor by one full 40HQ
