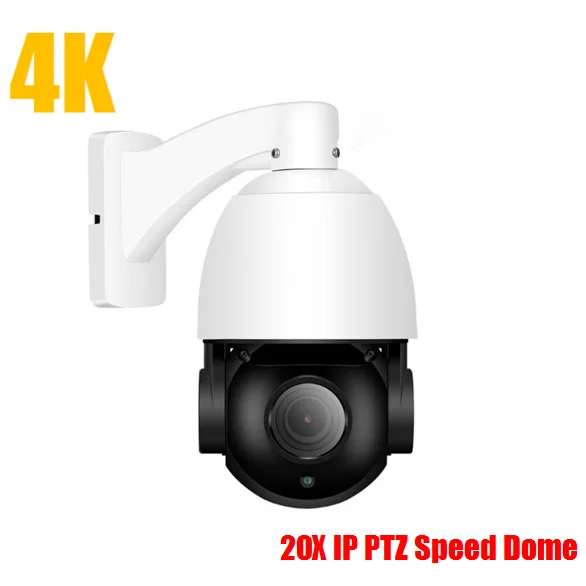

Hik NVR Совместимость 5MP 8mp 4k POE ip PTZ купольная камера 20X оптический зум IP66 на открытом воздухе круглые инфракрасные сетевые камеры со встроенным

Hik NVR Совместимость 5MP 8mp 4k POE ip PTZ купольная камера 20X оптический зум IP66 на открытом воздухе круглые инфракрасные сетевые камеры со встроенным

Категория: Surveillance Products >>>
Поставщик: Shenzhen,YCX,Electronics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.79 $*	0.41 $*
Aug-19-2025	0.58 $*	0.1 $*
Jul-19-2025	0.17 $*	0.85 $*
Jun-19-2025	0.17 $*	0.54 $*
May-19-2025	0.84 $*	0.68 $*
Apr-19-2025	0.2 $*	0.22 $*
Mar-19-2025	0.74 $*	0.33 $*
Feb-19-2025	0.34 $*	0.98 $*
Jan-19-2025	0.75 $*	0.89 $*

Характеристики

Product Description

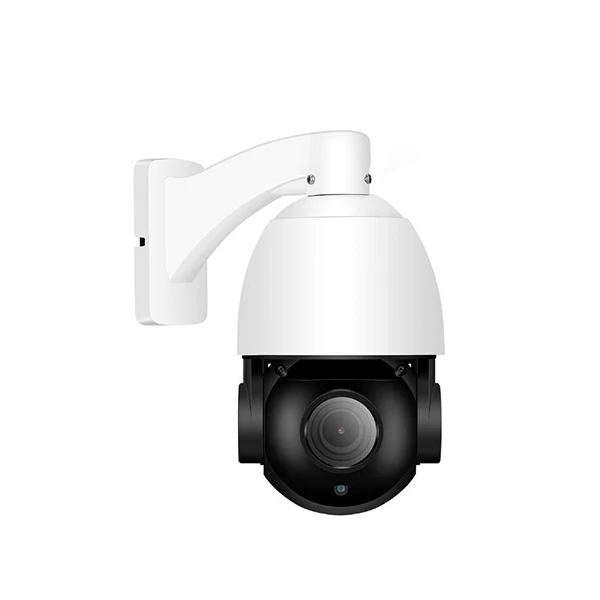

Hik NVR compatible 5MP 8mp 4k POE PTZ Dome Camera 20X Optical Zoom IP66 Outdoor Network Camera with built in audio

Features:

* 1/2.8" low-light CMOS sensor
* 5MP/4K 8MP resolution 2592*1944 / 3840 x 2160 output
* low illumination 0.01Lux
* 20x optical zoom lens
* Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
* D-WDR,Mirror, flip, Defogging
* Multiply Style OSD Overlay,Motion Detection, Privacy Mask
* 264/H.265 dual-stream media server
* Easy-to-use P2P Cloud service
* Support user authentication, video data encryption
* Support Alarm Snapshot to Email and FTP
* Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
* Lightning protection 4000V
* Strong water-proof housing IP66
* 8pcs Array IR Led, IR distance 80-100 meters

Technical Parameters

Model	M555IR-V2-20X-BTJ	YC-M608IR-V2-20X-BTJ
Camera
Image Sensor	1/2.8" CMOS
Effective Pixels	5 megapixels	8 megapixels
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto/Manual
BLC /HLC	Support
DNR	2D/3D DNR
Other	AGC,Motion Detection,Privacy Mask,Flip,OSD overlay
Encode
Video Standard	H.264/H.265
Video Resolution	MainStream:15fps@5 MP（25921944) 25fps@4MP(25921520)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.	MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates	512Kbps - 12Mbps, VBR/CBR
Audio Standard	G.711-u/G.711-a
Built-in Mic	Optional
IR Led
IR Led	8pcs array IR Led (4 near + 4 far)
IR Distance	80-100 M
Lens
Focal length	4.7-94mm motorized
IRIS	F1.6-3.5
View angle	64 - 2.9 °
Zoom	20x optical zoom
Optional Function
High power PoE
PTZ
Pan/Tilt Range	Pan: 0° ~ 360°; Tilt: 0° ~ 90°
Preset Point	128
Control Speed	Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s
A-B Scanning	Support
Auto Cruising	Support 8 groups
Power on Action	Preset/Scan/Cruise
Power-off Recovery	Support
Network Services
Protocol	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P	Yes
Web	IE , Firefox (32bit esr), etc.
Media	CMS, Android, IOS

General
Network Port	1-RJ45, 100Mbps, PoE 48V in
Power Supply	12 VDC ± 10% 2A
Power Consumption	< 20 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

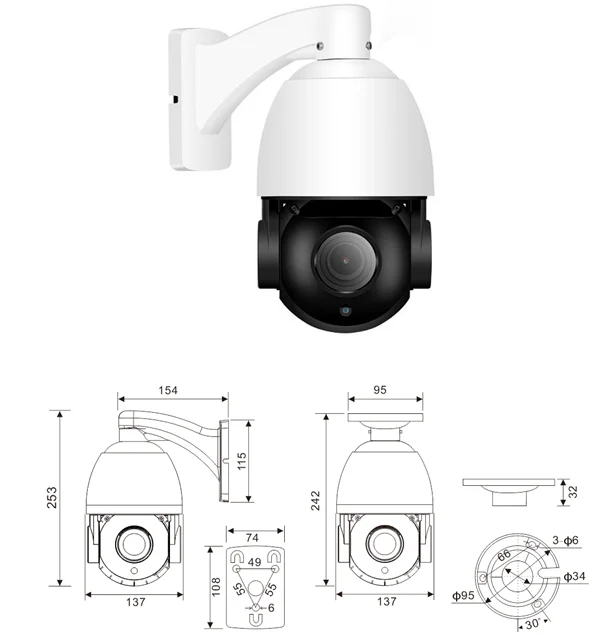

Size	Φ137(mm)×234(mm)
Weight	2.3kg

Connection Diagram

Company Profile

Packing & Delivery

Our Service

Warranty
*2 years free repair and lifetime technical support provided after the shipment date.
*Any product proves defective under normal usage, we will repair or replace it by free of Charge.
*If you could repair the products by yourself, we will supply the spare parts.
* If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
*All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%

OEM & ODM
*OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
*ODM Projects acceptable and welcome to your enquiries!

Payment Terms
*T/T, Paypal, Western Union, Sinosure & L/C
*We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
*If order value less than 20,000 USD , we should get 100% payment before production
*Sinosure & L/C acceptable according to the order amount

MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.

How to order from us?
* Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
* We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.
* After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.
*When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.

Technical Support
Professional technical support team 24 Hours Online!
