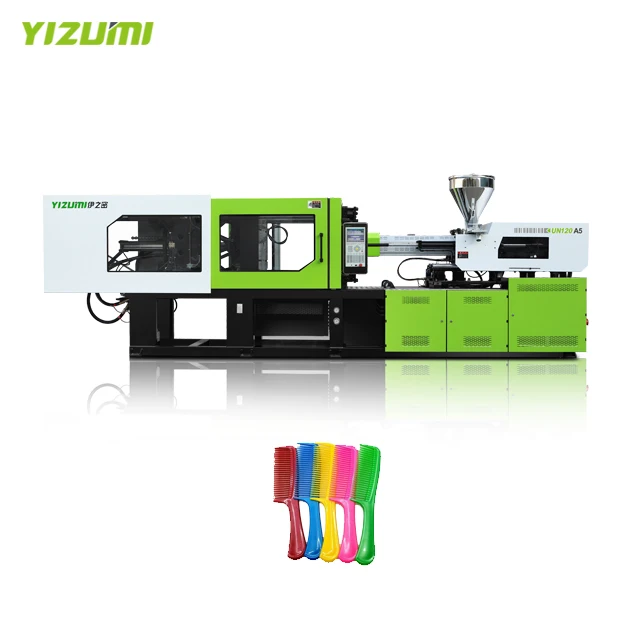

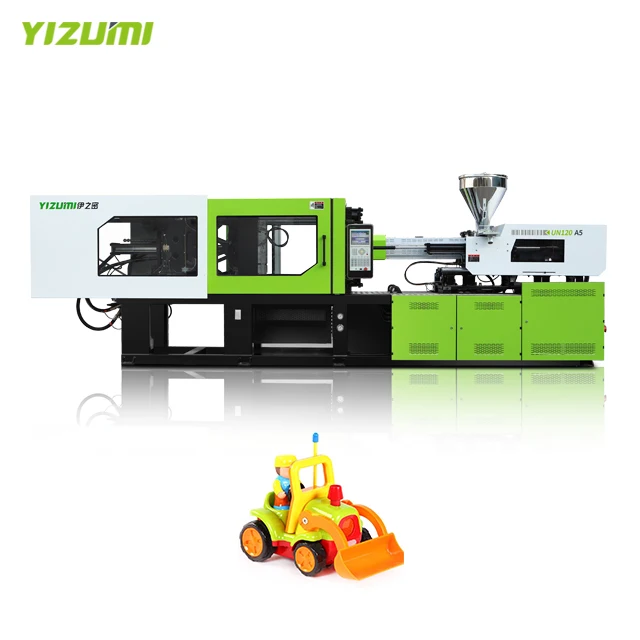

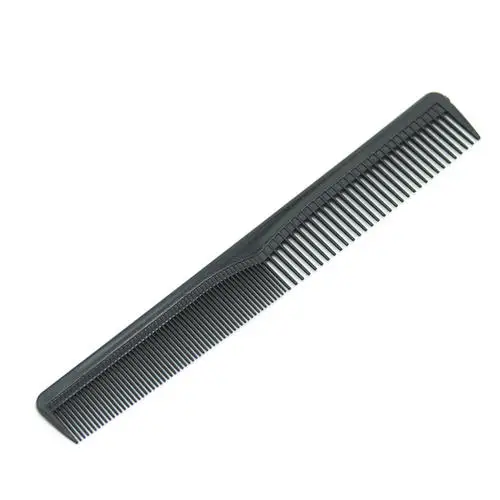

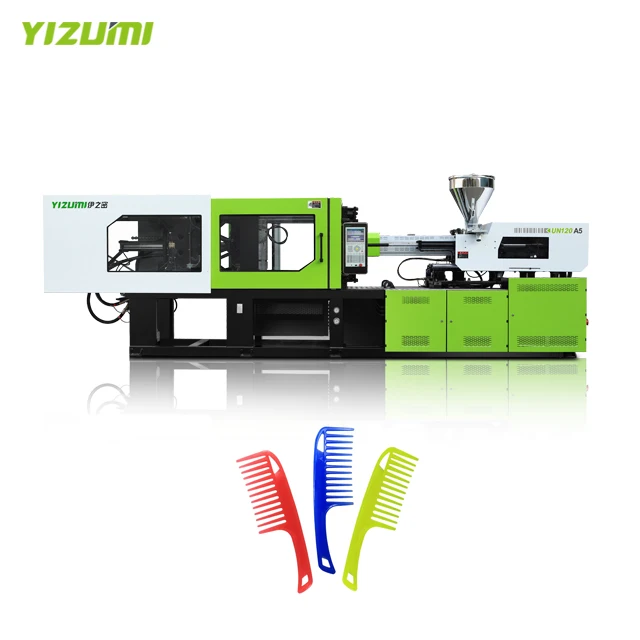

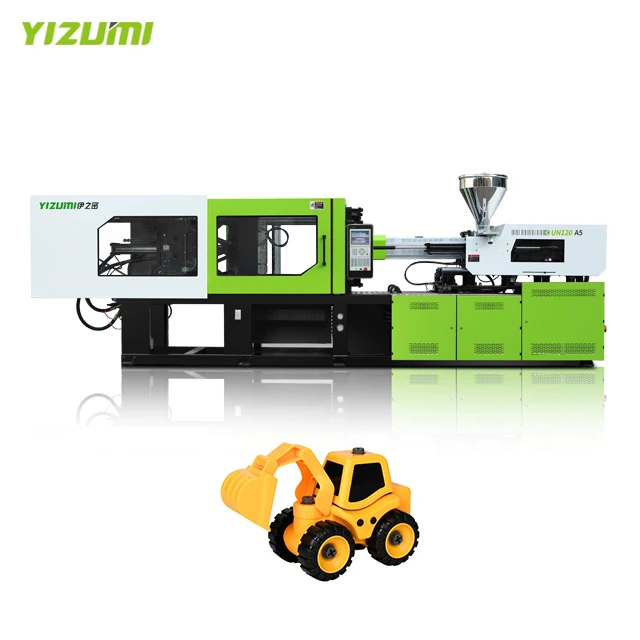

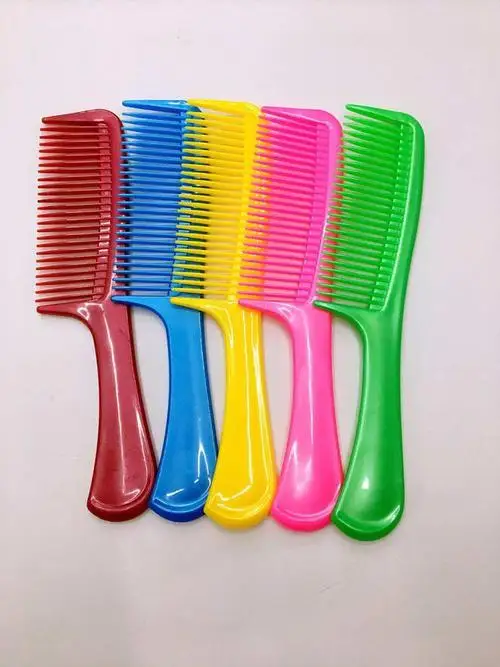

YIZUMI 120Ton Plastic Injection Molding Moulding Making Machine Hair Brush Comb Cheap Price Factory
- Категория: Plastic Injection Machines >>>
- Поставщик: Guangdong,Yizumi,Precision,Injection,Molding,And,Die,Casting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2492038.37 $* | 2541879.12 $* |
| Jul-16-2025 | 2021102.15 $* | 2061524.6 $* |
| Jun-16-2025 | 2452794.62 $* | 2501850.34 $* |
| May-16-2025 | 2433171.23 $* | 2481834.75 $* |
| Apr-16-2025 | 1942613.43 $* | 1981465.5 $* |
| Mar-16-2025 | 2393927.62 $* | 2441806.10 $* |
| Feb-16-2025 | 2374304.12 $* | 2421790.7 $* |
| Jan-16-2025 | 2354682.14 $* | 2401776.97 $* |
Характеристики
Clamping Unit
T-slot platen and Compulsory ejector return
T-slot platen can increases the overall rigidity of clamping unit by 30%, brings convenience for installation and removal of mold, reduces the wear of thread due to long-term use of screw hole and extends the life of platen.The compulsory ejector return meets the requirement of special mold reset and the molds are more applicable.
Anti-tilt platen support design
Special anti-tilt platen support design increases the smoothness of motion, lowers friction, improves the efficiency of motion, reduces energy consumption and prevents the platen from tilting so as to protect the mold.
Closed-loop control of mold open position
The enhanced accuracy and repeatability of mold open position result in accurate part removal by robot and benefit automated continuous production. The mold open position accuracy is smaller than 2mm and repeatability is below 0.3mm.
Low pressure mold protection
Low-pressure mold protection control unit ensures the mold gets effectively protected.
Injection Unit
Integrated linear guide rail structure
The injection unit is equipped with the one-piece supporting base which is integrated with linear guide rails, which minimizes the friction to motion, increases injection accuracy and enhances plasticizing efficiency.
New universal screw and barrel unit
The upgraded screw and barrel unit further optimizes color mixing and plasticizing efficiency. It has the advantages of easy color change and cleaning, low shear without temperature rise and wider applicability, etc.
Movable hopper rails (60T-320T)
Horizontal double-carriage design
Proportional back pressure control
Hydraulic System
![]()
![]()
![]()
The third-generation servo
1.low energy consumption, strong power and fast response
2.Overall hydraulic circuit optimization reduces flow loss.
3.The resistance to moving parts, including the clamping unit and injection unit is further reduced, raising the response speed and reducing frictional loss.
Control System
Mirle MK500 control system delivers better performance in machine control and adds to the stability of product and machine.
![]()
1. CAN open bus technology makes transmission more stable and control more accurate.
2. 10.4-inch 800X 600 TFT LCD with separate
control by 32-bit CPU.
control by 32-bit CPU.
3. The control unit adopts Cortex-A8 processor with scan time of 0.5ms, speedy response and accurate control.
4. 240 sets of mold data memory, USB port for extension of storage.
5. 7+1 sections of PID temperature control supports switchover between type J and type K thermocouples. Automatic PID tuning improves the temperature control accuracy.
6. Expansion of hot runner interface is available, supporting 60 sets of hot runner and switch over between type J and type K thermocouples (optional).
7. Production quality control, with display of process parameter graphs and statistics tables.
8. The I/O module has 64 outputs and 64 inputs at maximum (optional).
9. Integration of common software meets different injection molding process
requirements.
requirements.
10. Common communication interface, including RS-232\485, CANOPEN, OPC UA (expand as needed).
User-friendly Design
EU-based robot mounting holes
Centralized lubrication module.
Manual lubrication pump
Electric lubricant pump
Electrical cabinet that is neat ,Safe and maintenance-friendly
Universal standardized interfaces and connectors
![]()
Specification
DESCRIPTION | UNIT | DATA | |
