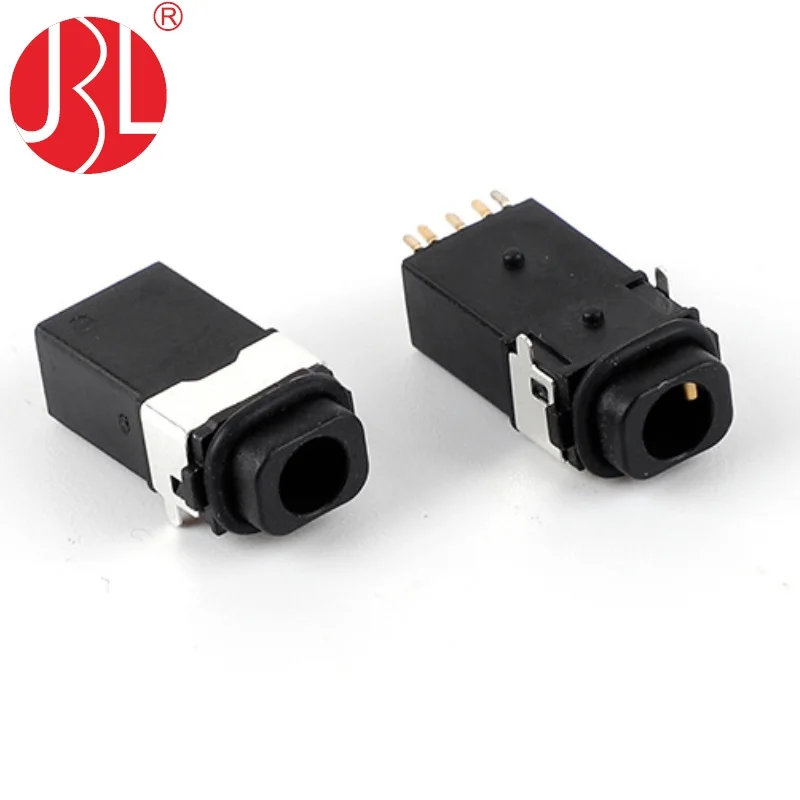

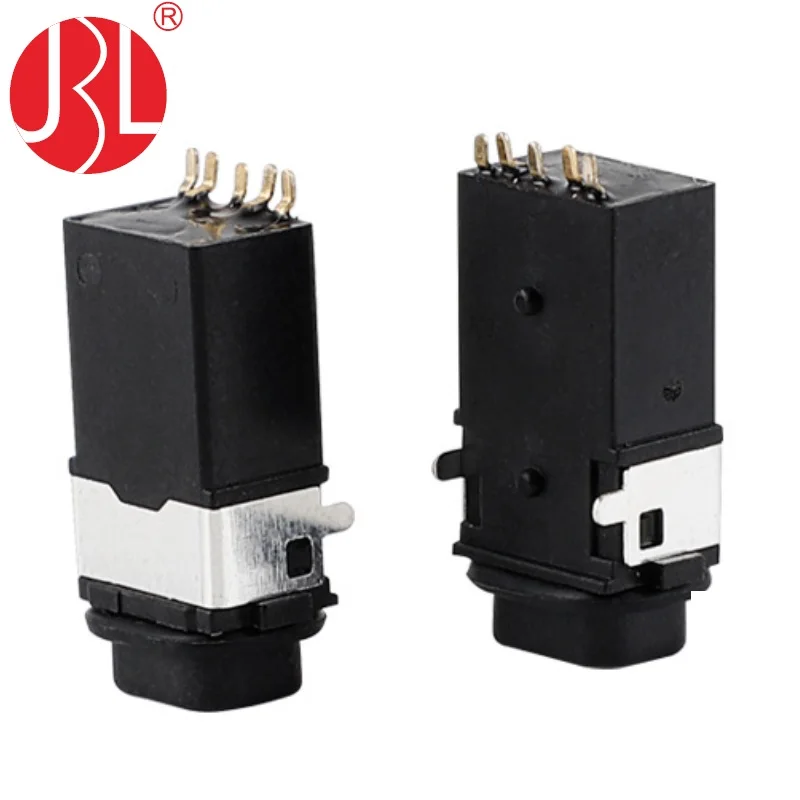

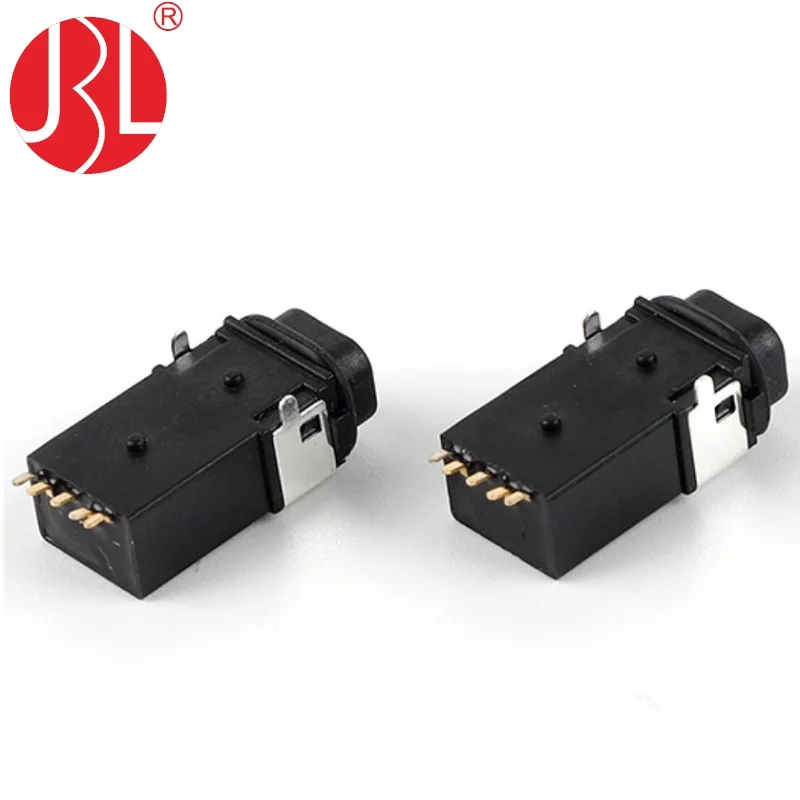

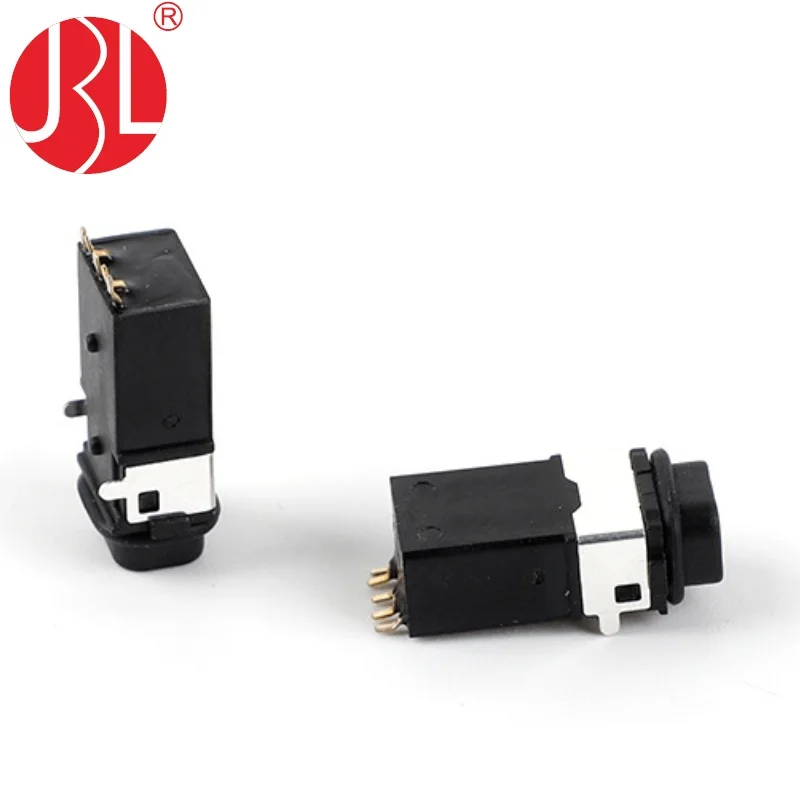

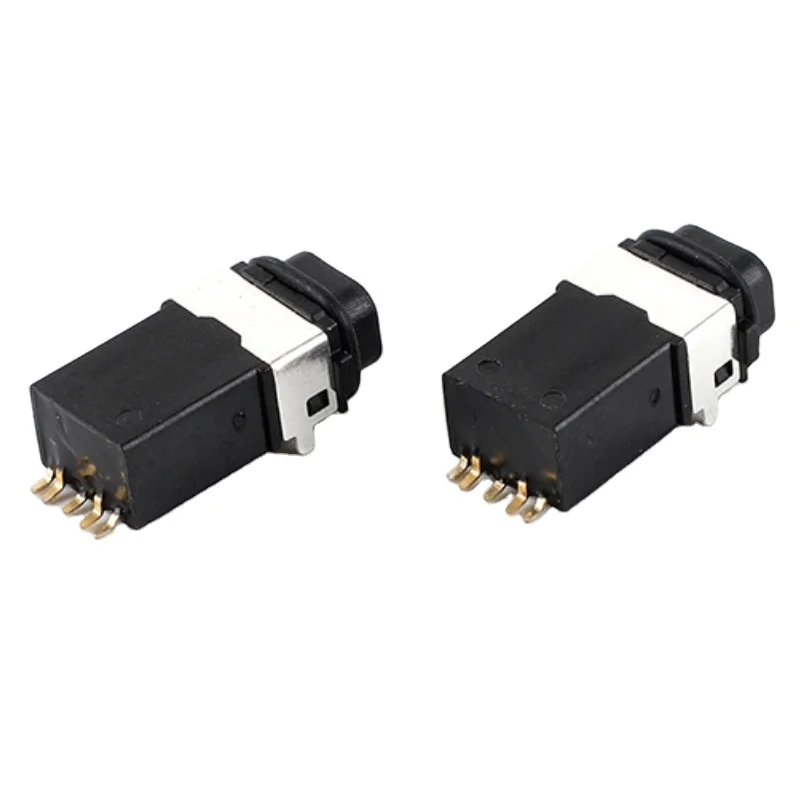

PJ-3170A 3 5 мм аудиоразъем SJ-3541AS-SMT-TR-67 разъем Jack женский estereo позиций SMD SMT IP67 из водонепроницаемого
- Категория: >>>
- Поставщик: Xiamen,Jinbeili,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.58 $* | 0.49 $* |
| Aug-19-2025 | 0.86 $* | 0.84 $* |
| Jul-19-2025 | 0.24 $* | 0.4 $* |
| Jun-19-2025 | 0.11 $* | 0.66 $* |
| May-19-2025 | 0.82 $* | 0.88 $* |
| Apr-19-2025 | 0.73 $* | 0.7 $* |
| Mar-19-2025 | 0.39 $* | 0.73 $* |
| Feb-19-2025 | 0.35 $* | 0.23 $* |
| Jan-19-2025 | 0.35 $* | 0.38 $* |
Характеристики
Product Description
Product Name : | 3.5mm Phone Jack |
Rating : | 12V DC , 1A |
Mounting Angle : | Right Angle |
Insulation Resistance: | 100MΩ |
Dielectric Withstanding Voltage: | 100V AC |
Insertion Force: | 3N to 30N |
Extraction Force: | 3N to 30N |
Product Type : | audio jack |
Dielectric Strength: | AC 500V for 1min |
Operation Temperature Range : | -20°C ~ +70°C |
FEATURES :
1, 3.5mm
2, Meet ROHS and REACH standards;
3, 12V DC 1A
4, PCB Board Connector
5 , SMD
6 , Right Angle
2, Meet ROHS and REACH standards;
3, 12V DC 1A
4, PCB Board Connector
5 , SMD
6 , Right Angle
APPLICATIONS :
1 , Home Appliance
2, Consumer electronics
2, Consumer electronics
3, Telecommunications markets
4, Audio / Video products
5, Computer/peripherals
6, , Testing / instrumentation

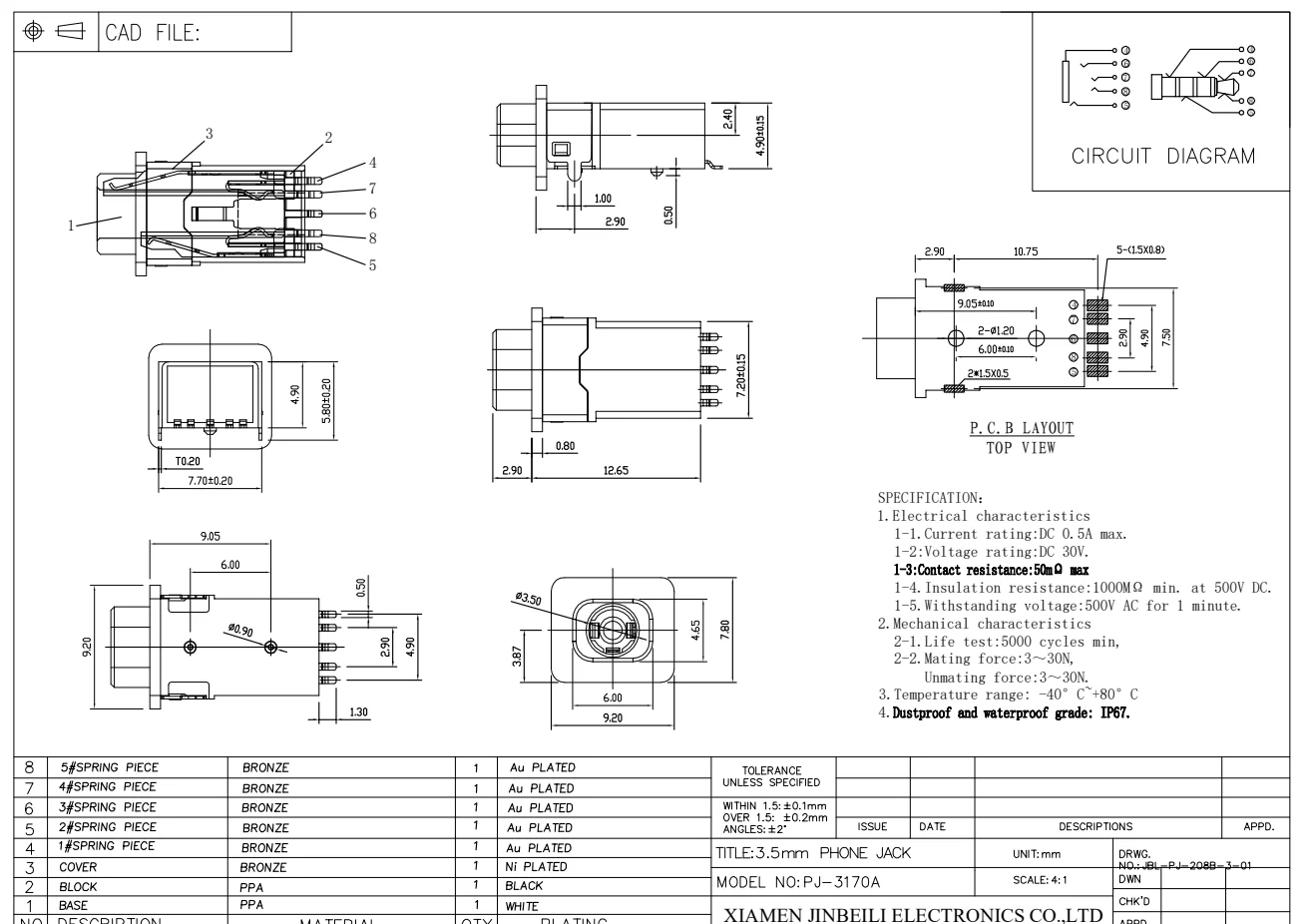

Spec Sheets
R&D Development
Our engineer design and develop products by software and 3D printer to provide a precision pattern
Tooling
we design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time
Stampling
It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm
Plastic Molding
All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer
Automate Assembly Line
most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day
Testing & Inspection
We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance
Xiamen Jinbeili Electronicsl Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main products are computer high-speed USB connectors, tact switches, toggle switches, pushbutton switches, headphone sockets, power sockets, etc.
Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.
Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.
ISO9001 CERTIFICATED
IATF 16949 CERTIFICATED
Factory Inside
FAQ
1, Q : Could you provide me the spec data sheet for further reference ?
A: Of course. Please contact us via Alibaba , we will send you PDF format sheet as soon as possible
2, Q : Do you customize material of switch as buy's requirement ?
A : Yes, we do. we customize different colors, materials, shapes etc. Please provide us your spec sheet and requirement
3, Q : Could I get a sample to test ?
A: Sure, we provide you free sample, but shipping cost should be paid by buyer
4, Q : How quick could you deliver a order ?
A: For custom order, it takes about 15 days normally. It depends on quantities of your order.
