Products description

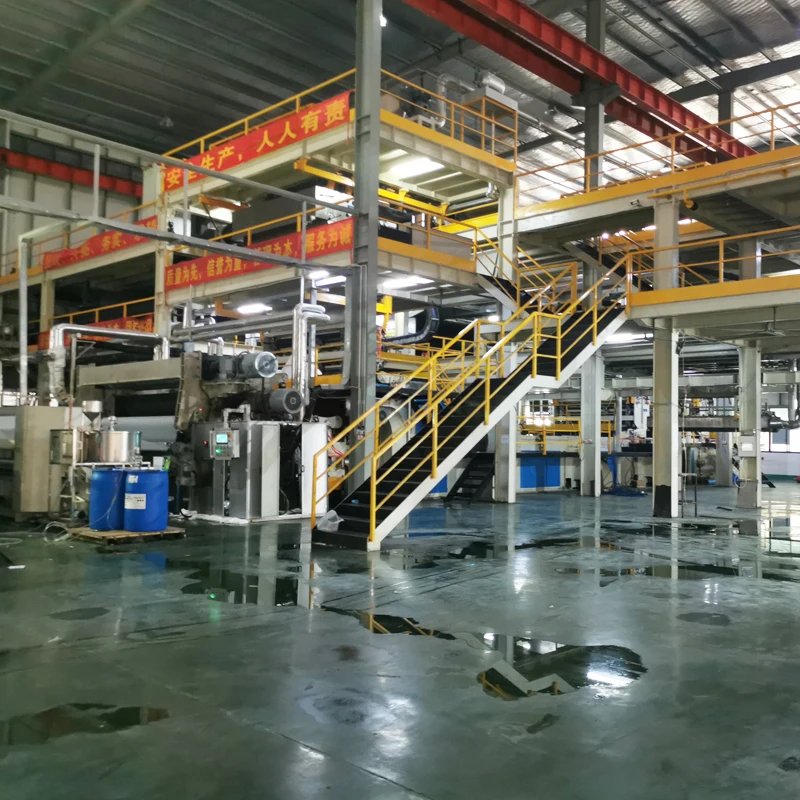

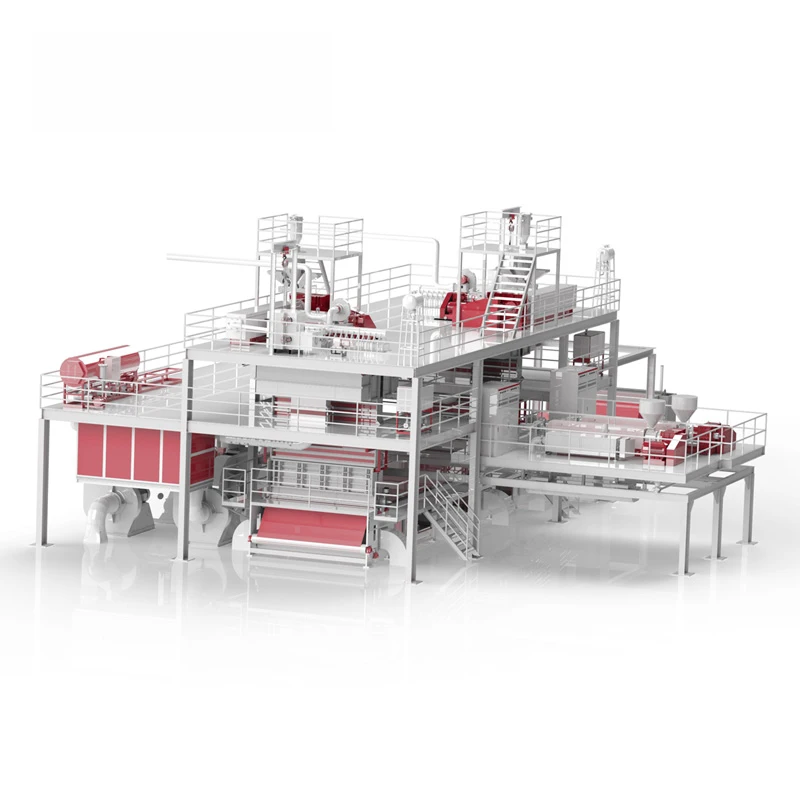

Full Automatic PP Spunbond Nonwoven Fabric Machine

This production line is polypropylene non woven fabric equipment. Its raw material is polypropylene(PP), take the principle of spinning fibres, during polymer filature, continuous filament is extended into fiber, during which is finished by mechanical hot pressing.
They are widely used for hygiene, medical, filtration and in the industrial, agricultural fields. They are mostly applied to the medical.
In addition, this production line can produce non woven fabrics of different color, differen width and grams, different attribute according to users'demand.

KH-SMS Three-Beam spunbond nonwoven fabric making machine/line
Effective Width (mm)	GSM Range (g/sq.m)	Max. Speed (m/min.)	Daily Capacity (Tons/Day)	Annual Capacity (Tons/Year)
1600	8-200	400	11	4000
2400					16.4	6000
3200					22	8000
4800					32.9	12000
The configuration of machines could be CUSTOMIZED as your needs!

Details Images

Meltblown die head assembly

maximum temperature: 300.;Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10; Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;

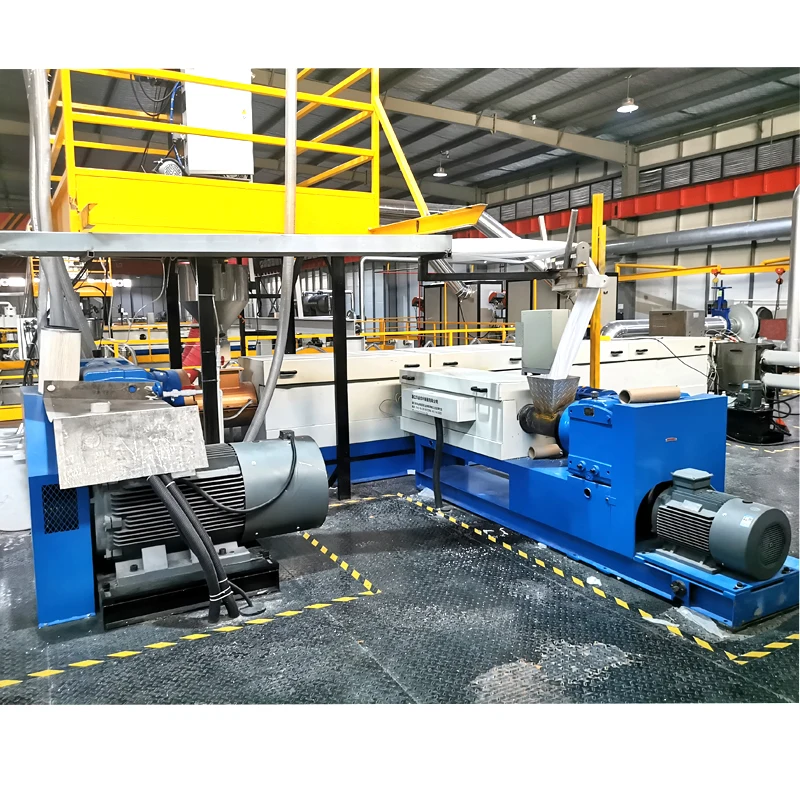

Extrusion Machine

Aperture：90 300kg/h 1pc;Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;

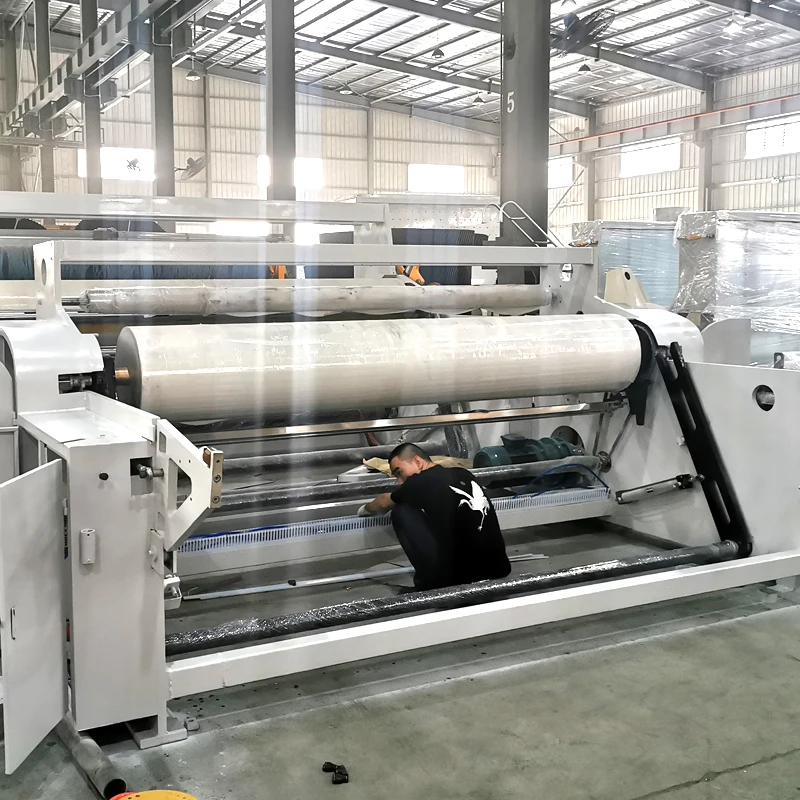

Automatic Winding Machine

Effective width:1600/2400/3200/4800 mm;

Rolling Speed:200-400M/Minute;

Rolling Diameter:2000 mm;

Original: CHINA;

Automatic Slitting Machine

Speed:600-800 M/Minute;

Min. Slitting width:80mm;

Max. Rolling size:1500mm diameter; Auto tensile control:online;

Auto meter counting:online;

Original:CHINA;

Production Line Control Cabinet

Voltage: 380 V/3 Phase;

Touch Screen:Siemens;

PLC: Siemens;

Frequency:Siemens;

Indicator: RKC,JAPAN

; Original:CHINA;

Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs;

Accuracy:0.01%;

Feeding Percentage: 1-99%; Original:USA/ITALY;

Candle Filtration Machine

Filtration Area: 3.5m²;

Capacity: 650kgs/h;

Filtration Chamber: 2 pcs (switch online);
Original:CHINA;

Spinneret

Hole size: 0.45mm;

Hole Qty:12350-24500pcs;

Material: SUS431; Original:CHINA/GERMANY;

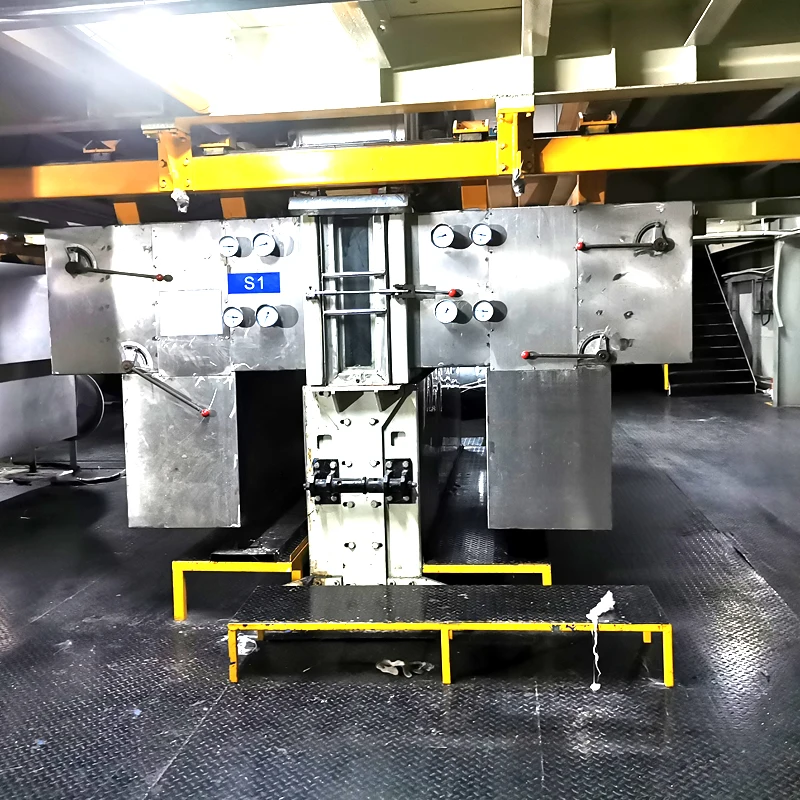

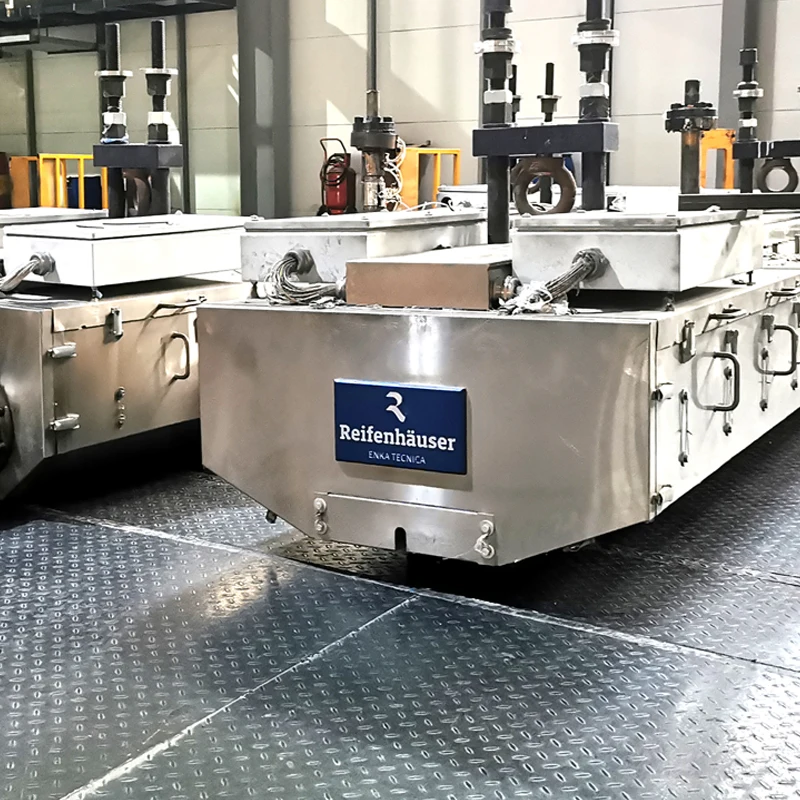

Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;

Spinning Pump

Capacity:300-450Kg/H;

Speed:40Rpm/Minute;
Drive Motor:Siemens;
Original: CHINA/GERMANY;

Embossing Calender Machine

Emboss Pattern: ovel/diamond/sesame/dot;

Emboss Roll diameter: 450-520mm;

Linear pressure: 30-125 N/mm;

Original:CHINA/GERMANY;

Process of meltblown nonwoven production line

Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product
