Машина для резки текстильной ткани многослойная машина одежды текстиля детских

Цена:3 000,00 $ - 4 000,00 $*

Количество:

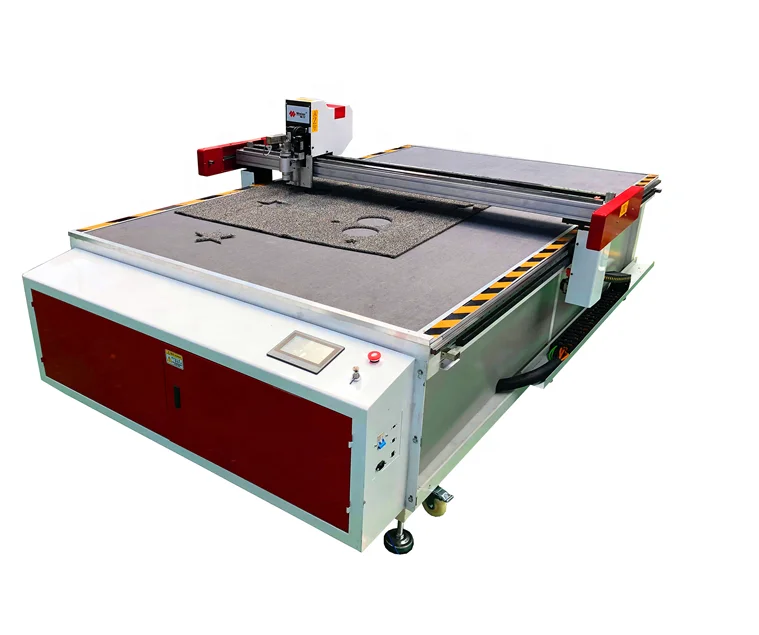

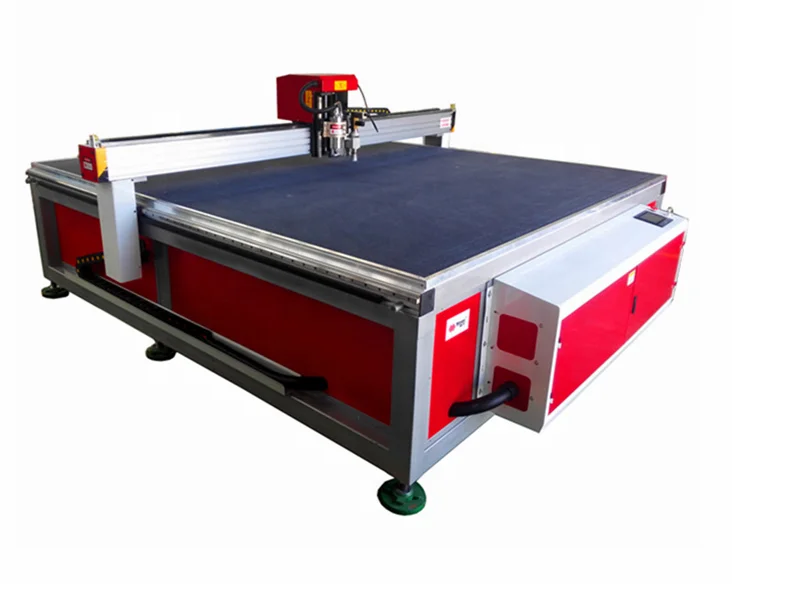

CE Certification Textile Cutter cutting Multi Layer Fabric Cutting Machine Cloth Garment Textile Baby Suits cutting machine

Product Description

1. Working area: 1800*2500mm

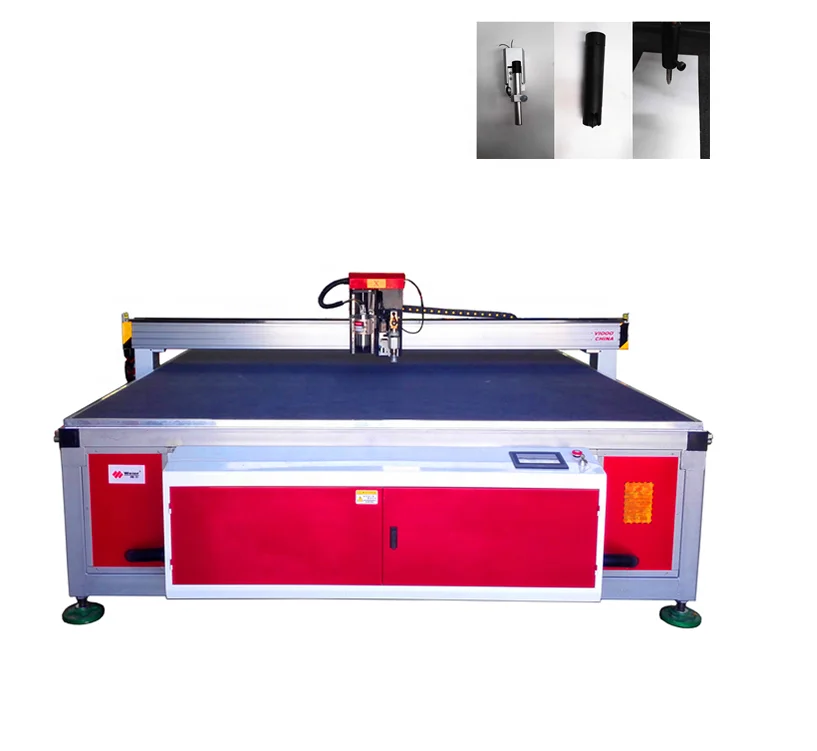

2. Oscillating knife cutting head

3. Ruida controller RDD6584G ( English version )

4. Transmission System: Yaskawa servo motor and drivers, Linear guide, Reducer, Lead screw

5. Rail guide: Taiwan PMI linear square rails guide

6. Steel structure

7. Intelligence auto-nesting software

8. Table: 40mm thickness Aviation aluminum vacuum

adsorption table with felt and 9.0kw air vacuum

pump(with muffler)

9. High sensitive infrared induction security device,

10. Red-light cross positioning system

11. Tool box (spanners,21pcs blades)

12. Dedicated industry CCD for natural leather

13. Projector

14. Punching hole device

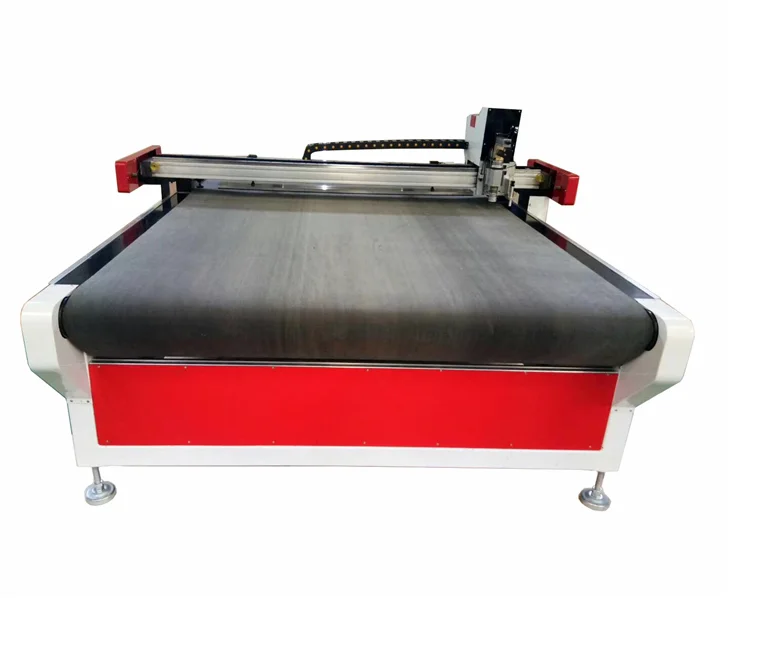

15. Conveyor feeding type

Technical Parameter

Model	WZD-1825
Cutting Size	1800*2500mm
Tools included	Oscillating knife/ punching hole device//CCD camera/ projector/etc
Safety Devices	Safety devices use infrared sensing, safe and reliable
Max. Cutting Speed	1200mm/s
No-load Speed	1500mm/s
Cutting Thickness	≤25mm (set according to different materials and tools)
Cutting Accuracy	± 0.1mm
Material Fixing Method	High power vacuum absorption
Data transmission method	USB port or Ethernet
Transmission System	Yaskawa servo motor, Linear guide, Reducer, Lead screw
Rated Power	11kw
Rated Voltage	380V±10%/220V±10% ,50HZ/60HZ (Customizable)
Control System	English LCD touch screen
Support File	DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc (Software AutoCad, Coreldraw, AI)
Package	Plywood wooden case
