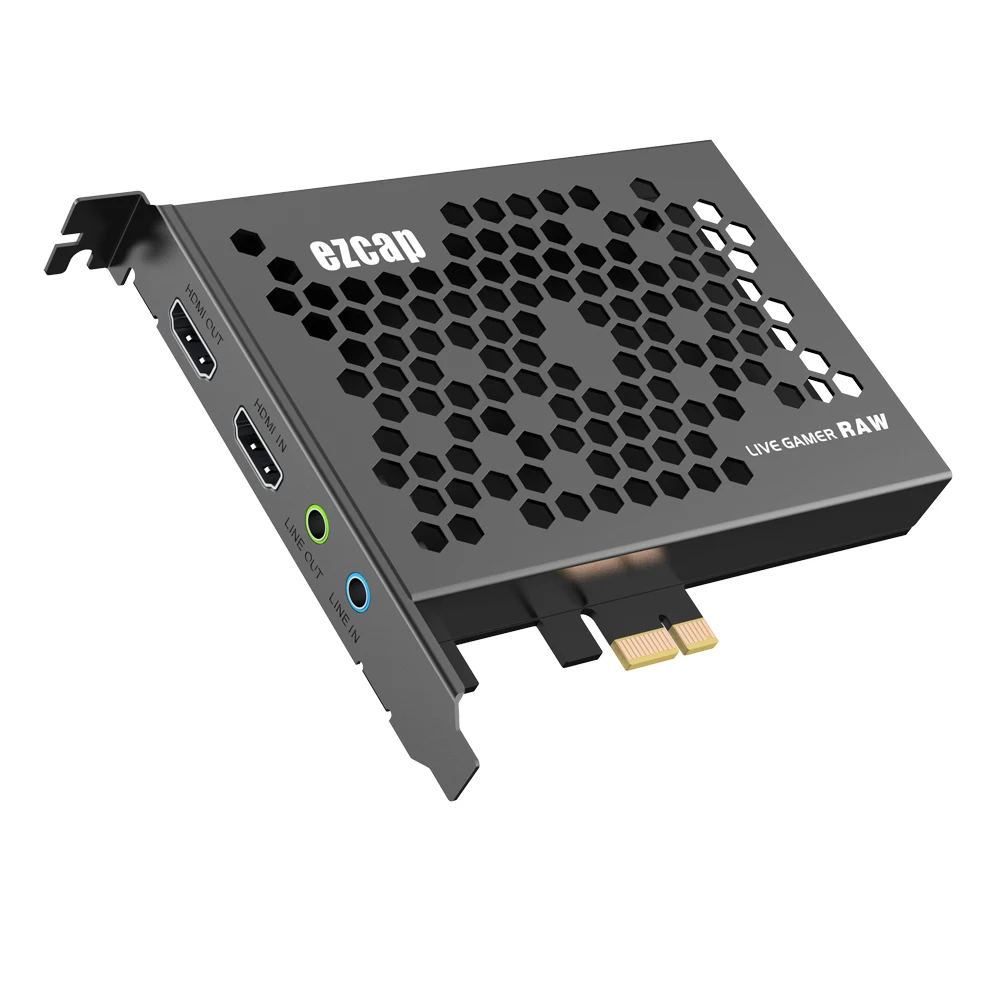

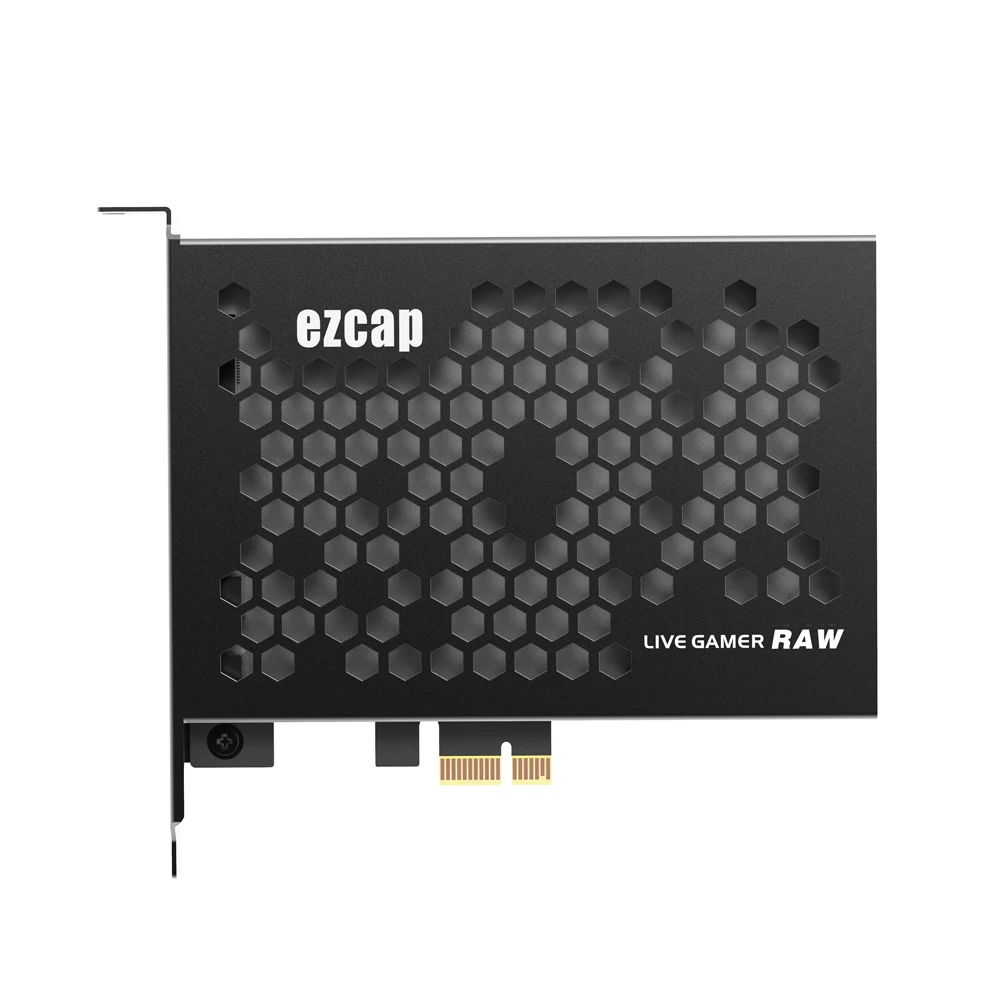

Ezcap324 Live Gamer RAW 4K HDMI HDR PCI-E HD коробка для захвата видео в реальном времени переключатель

ezcap324 Live Gamer RAW 4K HDMI HDR PCI-E HD Video Capture Live Streaming Box HDMI Video Capture switch streaming

SPECIFICATIONS

•






  •


    - Interface: PCIe Gen2 X1
    - Video Input: HDMI 1.4
    - Audio Input: HDMI, Line In (3.5mm TRS)
    - Video Output: HDMI 1.4
    - Audio Output: HDMI, Line Out (3.5mm TRS)
    - Max. Pass-Through: 2160p30, 1440p60, 1080p120
    - Max. Recording: 1080p120, 2160p30, 1440p60
    - Supported Resolution: 2160p, 1440p, 1080p, 720p
    - Output Video Format: YUY2, NV12, RGB
    - Recording Resolution and Max FPS:  3840x2160 - NV12/30; 2560x1440 - NV12/60, YUY/50; 1920x1080 - NV12/120, YUY/60, XRGB/30; 1280x720 - NV12/60, YUY/60, XRGB/60.
    - System Requirement:
    Windows 10 x 64, PCI-E X1 slot
    For 4Kp30 or 1080p120 recording:Intel Core i5-6XXX / AMD, Ryzen 3 XXX or above, NVIDIA GTX 1060 / AMD RX 5700 or above, 8 GB RAM.
    For 1080p60 recording:Intel Core i7-3770 recommended, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or above, 4 GB RAM.
    Mac Pro, Mac OS High Sierra 10.15 and above, PCI-E X1 slot

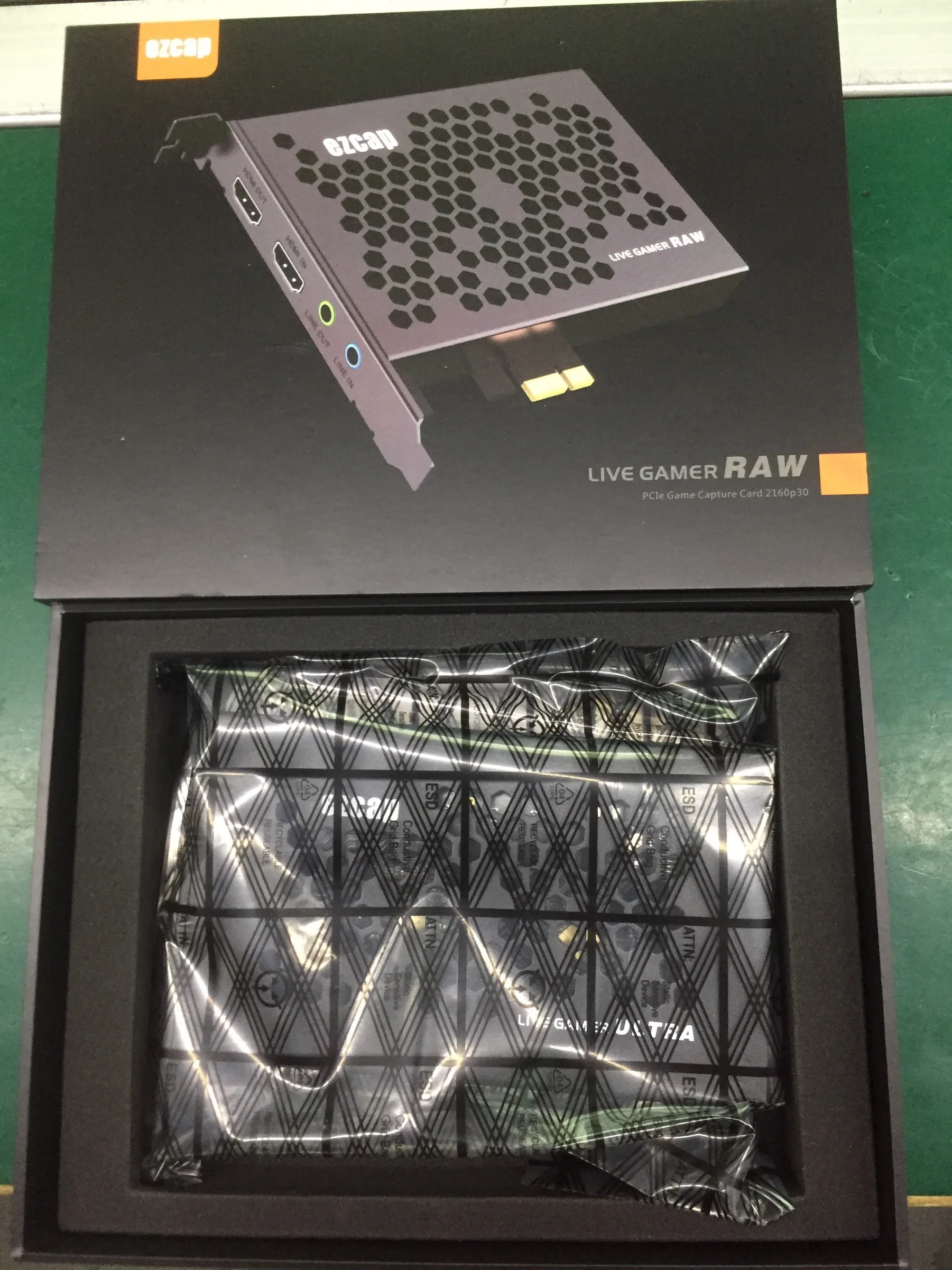

    - Package Contents: ezcap324 Live Gamer RAW,  Manual
    - Dimensions: 126 x 121 x 22 mm












    FEATURES

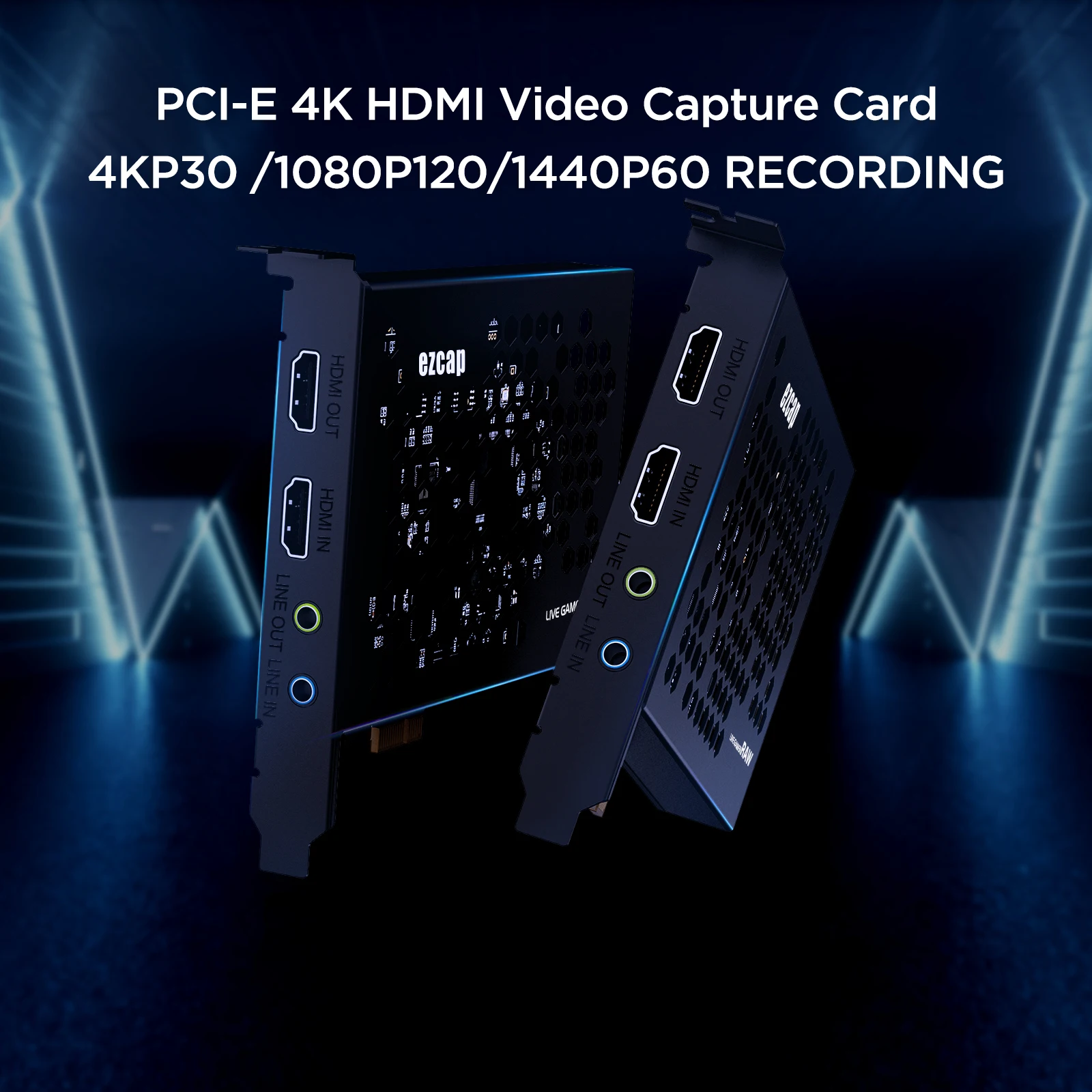

    - 2160p30, 1080p120 and 1440p60 HDMI input and pass-through.
    - 1080p120,  2160p30 and 1440p60 recording.




    - RGB real color video format up to 1080p30.

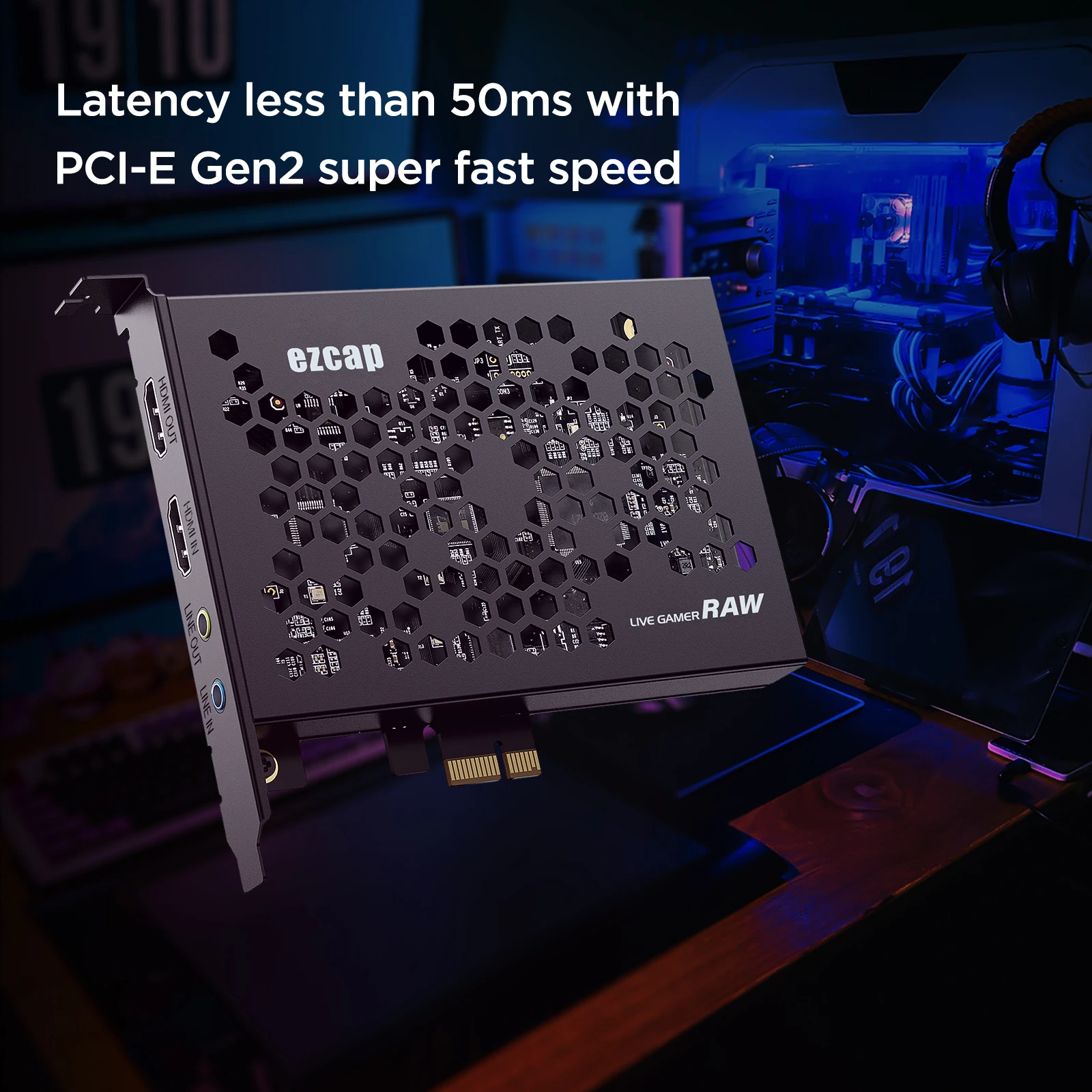

    - Latency less than 50ms.




    - UVC standard, manual driver installation is not needed.




    - Supports most of third party video capture softwares.
    - PCIe Gen2 super fast speed.
    - With Line in and Line out port.
