Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой
Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой
Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой
Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой
Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой
Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой
Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой

Наконечники паяльника 80 Вт Электрический паяльник пистолет паяльная станция электрический тепловой


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.59 $* 0.28 $*
Aug-15-2025 0.37 $* 0.57 $*
Jul-15-2025 0.45 $* 0.63 $*
Jun-15-2025 0.91 $* 0.43 $*
May-15-2025 0.31 $* 0.53 $*
Apr-15-2025 0.69 $* 0.42 $*
Mar-15-2025 0.66 $* 0.85 $*
Feb-15-2025 0.3 $* 0.49 $*
Jan-15-2025 0.7 $* 0.5 $*

Характеристики

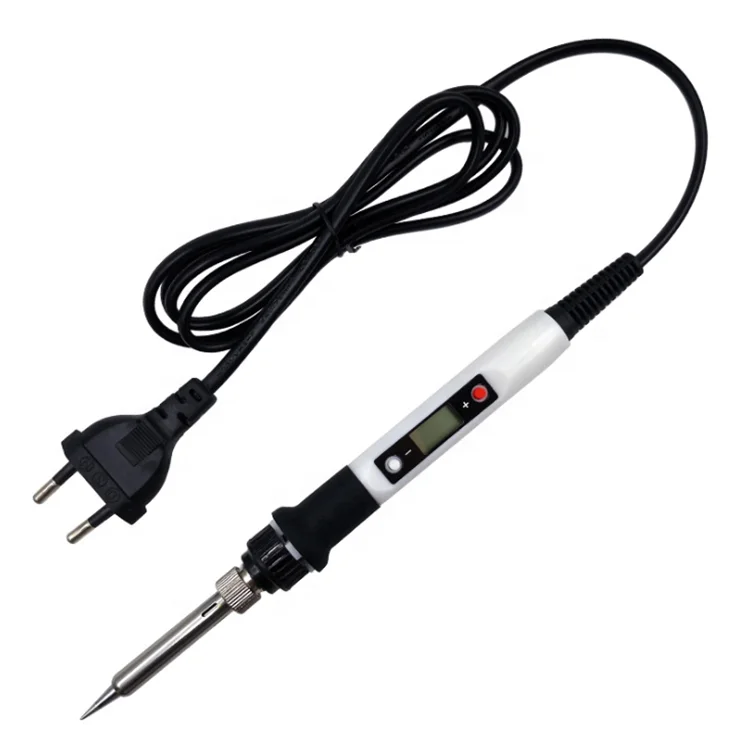

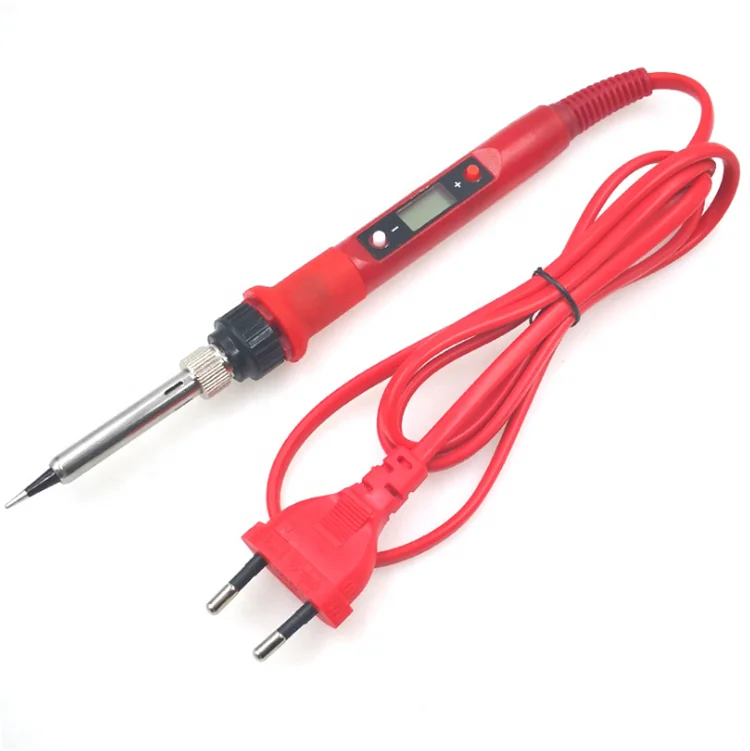

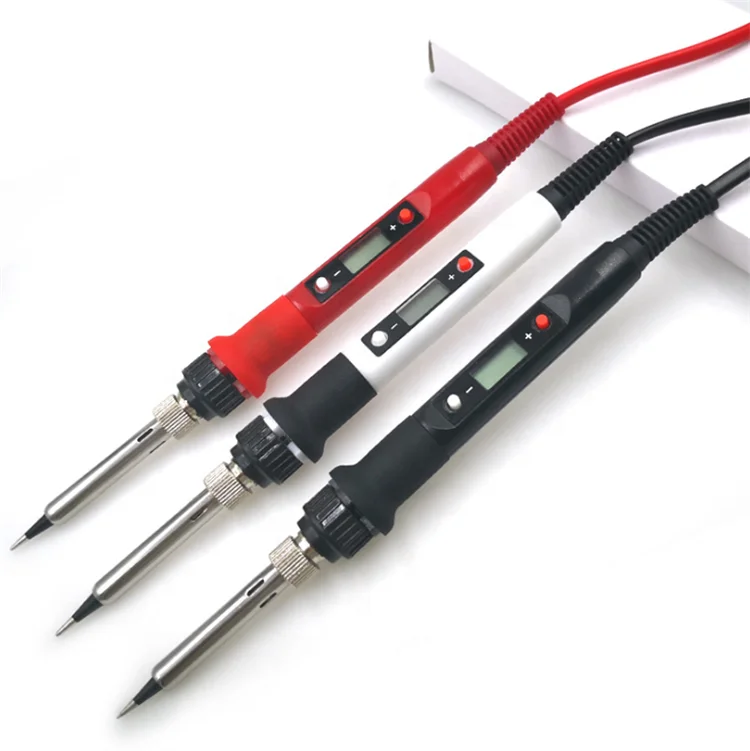

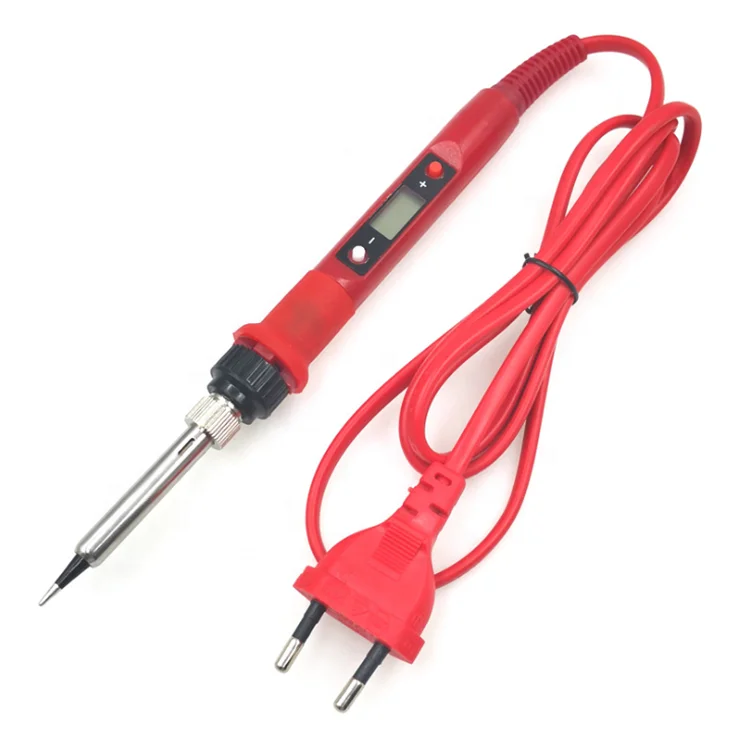

Product Description


Performance parameter
Working voltage: AC240-200V Working frequency: 50-60Hz
Heating element parameters: Resistance 140Q±15%, size 3.8×60mm
Output power: 80W
It refers to the instantaneous maximum power 120W and the average power 80W. The heat transfer power is related to the power of the heating core and the size and material of the soldering iron tip, and the thermal resistance from the heating core to the soldering tip is related. The output power of this soldering iron tip is the same as that of the ordinary 936 soldering station, and the 80W heating core power can only be reflected in the increase in the heating rate.
Temperature range: Celsius 480*C -180•G Fahrenheit 896°F-356°F
Tin time after power on: 18-20 seconds to tin
The test environment is 24 degrees at room temperature, the heating head is head B, and the working voltage is AC220. Due to the environment,
The influence of factors such as the type of heating head will have an impact of 1-30 seconds. For example, the time for changing a soldering iron tip to a cutter tip will become approximately 45 seconds. Temperature setting step: Celsius 1°C Fahrenheit 2°F
Anti-static function: adopt the national standard triangle safety plug, which can effectively discharge leakage and anti-static protection to ensure the safe use of electricity during your work. Temperature calibration range: Fahrenheit ±100°C Fahrenheit ±100°F
Soldering iron tip specification: compatible with 936 soldering iron, using 900M series heating tip.
Heating core: Printed ceramic heating core is used, which is 3 times the service life of ordinary heating core.


Instructions

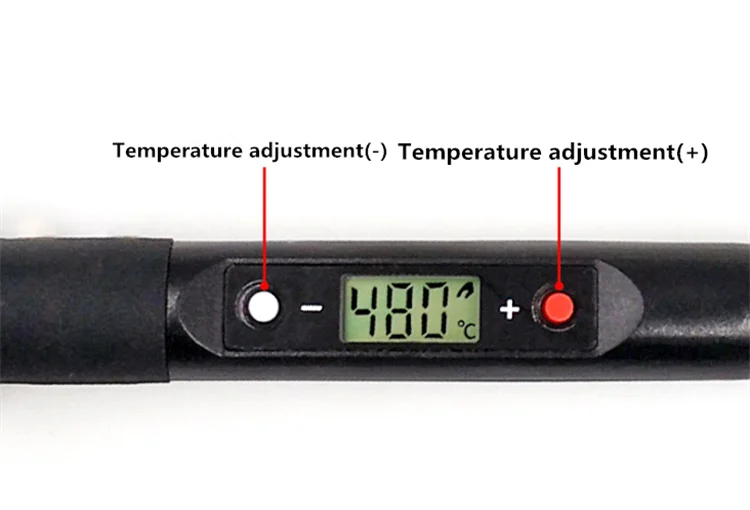

Setting temperature operation: When pressing the red "4" button, the temperature increases by 1 degree, and when pressing the "+" button for a long time, the temperature increases continuously. When the white "-" button is pressed once, the temperature decreases by 1 degree, and when the "-" button is pressed for a long time, the temperature decreases continuously.
When the button is not pressed for 3 seconds, the newly set temperature stability will be memorized, and the temperature will be kept at the next startup. When the ""F" or ""C" symbol flashes, it means that the heating core temperature has not reached the set degree.
The temperature of the soldering iron tip will not reach the set value until the heating core reaches the set temperature for about 30-50 seconds.
Temperature calibration operation:
1. Put the soldering iron tip on the thermometer after powering on for 90 seconds, and add solder (appropriate amount) to the soldering iron tip to make the thermocouple of the thermometer and the soldering iron tip fully contact.
2. After the thermometer shows that the temperature is stable (about 2-4 seconds), record the temperature of the thermometer.
3. Remove the soldering iron from the thermometer, and press "one" and "+" at the same time to enter the temperature calibration interface.
4. Enter the adjustment amount. (See example)
5. Press "1" and "+" at the same time to exit the temperature calibration interface.
For example, when the set temperature is 290°C and the actual measurement is 282°C, the calibration steps are as follows
1. Press "1" and "+" at the same time to enter the temperature calibration interface
2. Press the "+" key until the LCD displays 08"G
3. Press "1" and "+" at the same time to exit the temperature calibration interface. (Temperature calibration completed)
For example, when the set temperature is 290°C and the actual measurement is 300”C, the calibration steps are as follows
1. Press "1" and "+" at the same time to enter the temperature calibration interface
2. Press the "one" key until the LCD displays —10°C
3. Press "1" and "+" at the same time to exit the temperature calibration interface. (Temperature calibration completed)
When calibrating the temperature, it is best to choose 320 degrees, which can ensure a good linearity in the entire temperature control range.




Specification


item
value
Applicable Industries
Machinery Repair Shops, Home Use, Construction works
After Warranty Service
Online support
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Not Available
Machinery Test Report
Not Available
Marketing Type
Ordinary Product
Warranty of core components
Not Available
Core Components
other
Condition
New
Place of Origin
China
Brand Name
carewall
Input Voltage
220(V)
Output Temperature
180-450(℃)
Output Power
80w
Dimensions
53*26.34CM
Warranty
Unavailable
Weight (KG)
0.13KG
Power (kW)
80(W)
power
50-60Hz
