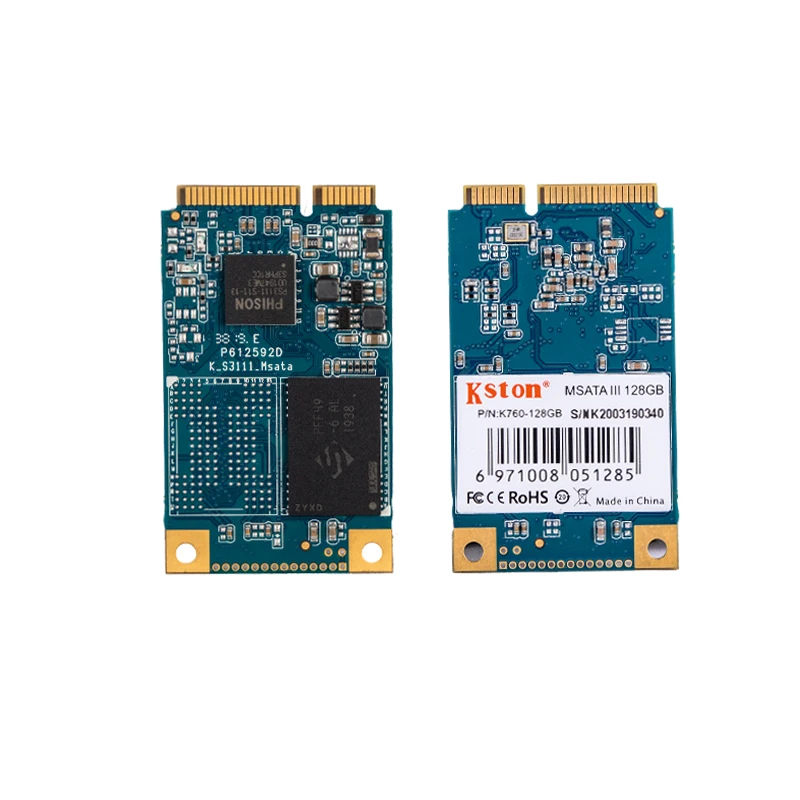

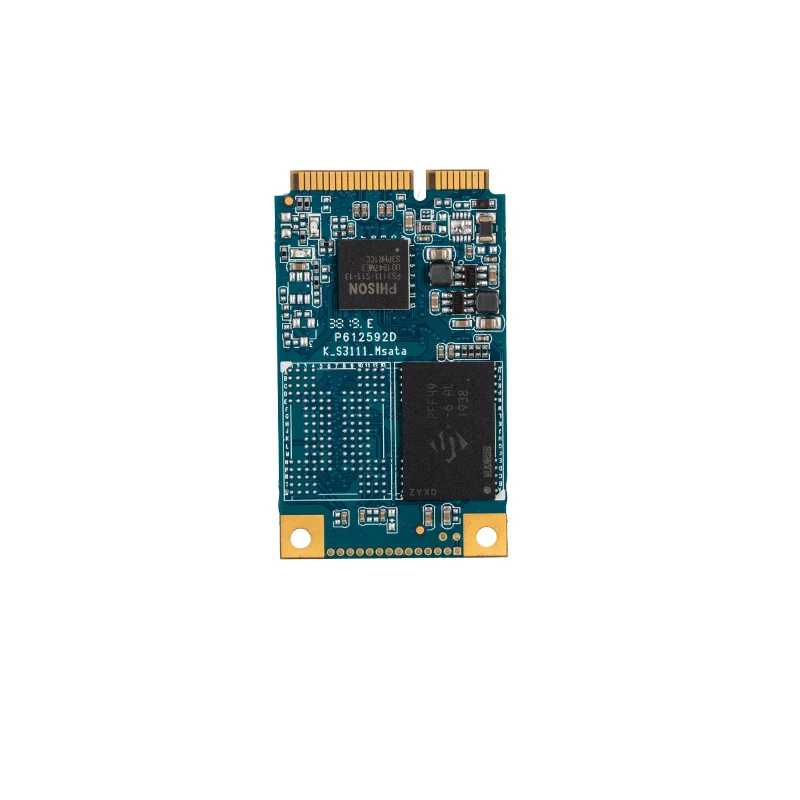

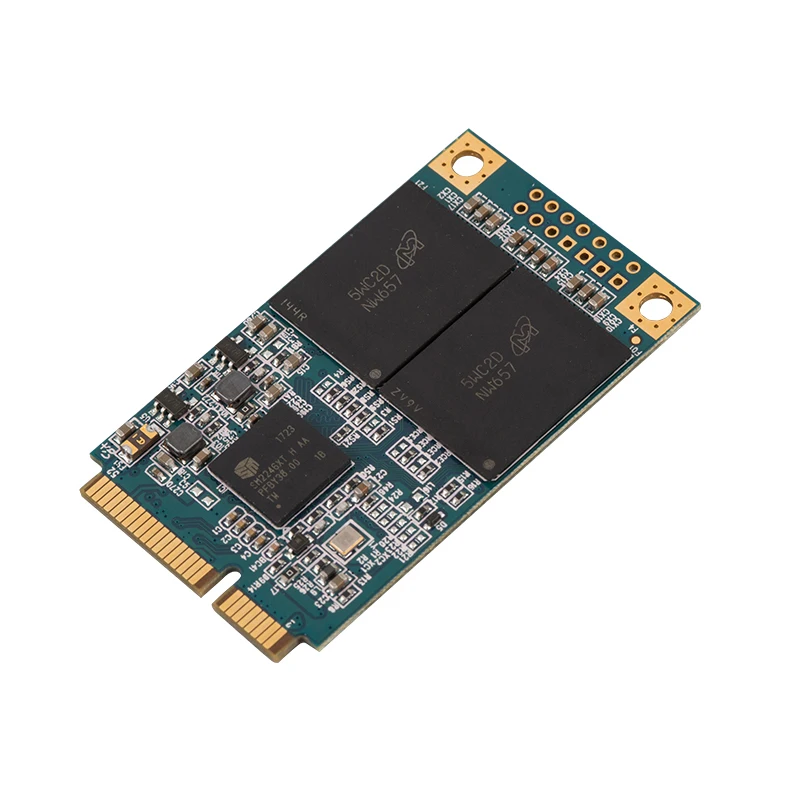

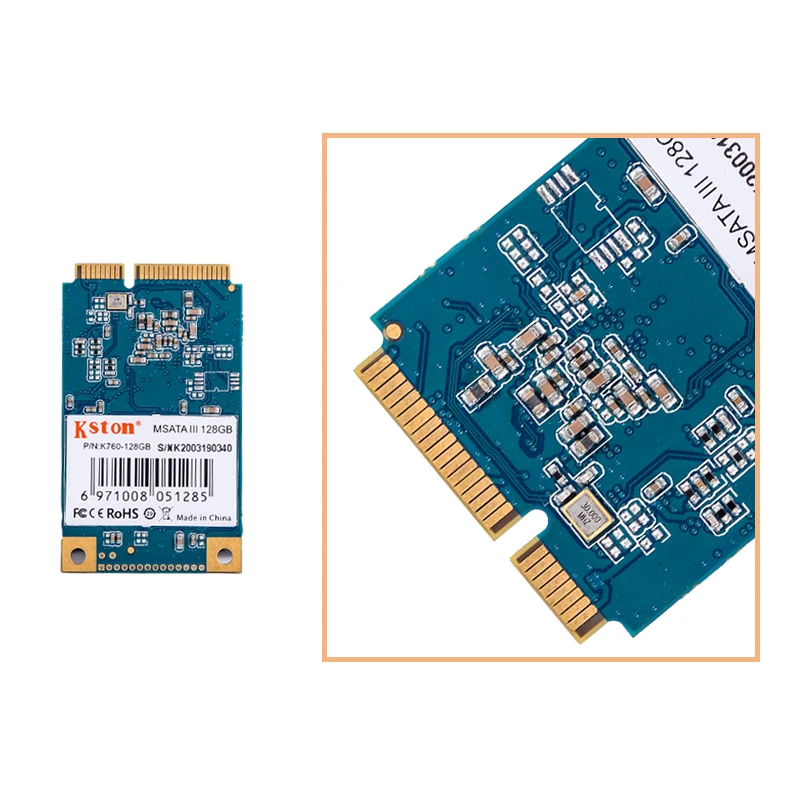

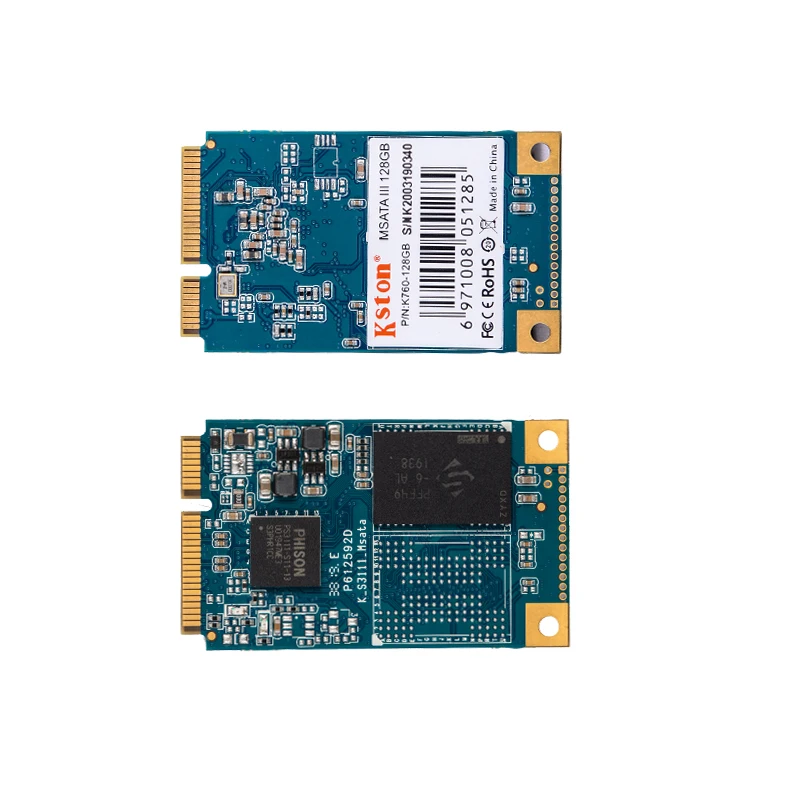

Kston ssd 32g 60g 120gb 128g 240gb 256g 48gb 512g full size mini industrial SSD

Model

K765

General

Form factor

MSATA

Interface

MSATA III

Performance

Capacity

32GB | 64GB | 128GB | 256GB

Sustained Read

300MB/S| 420MB/S | 480MB/S| 500MB/S

Sustained Write

240MB/S |370MB/S | 390MB/S| 410MB/S

Average Access time

0.01ms

OS support

Windows XP,Windows 7,Windows 2003,Windows 2008,DOS,linux,unix

Storage Media

NAND Flash

3DTLC

Power Consumption

input Voltage

5V+/_5%

Idle

0.42W|0.45W| 0.5W| 0.52W

Active

1.45W|1.48W| 1.82W| 2.8W

Reliability& Endurance

Write endurance

8years @100GBytes write and erase per day

Read endurance

unlimited

Wear-Leveling Algorithm

Dynamic and static wear-leveling

Data Retention

10years at 25ºC

MTBF

1,000,000hours

ECC

Supports BCH ECC 8bits or 15bits in 512 bytes

Bad Block Management

Auto Bad Block Management in system

Environment

Operating Temperature

Commerical Grade:0~70℃ /Industrial Grade:-20~75℃

Shock

1,500G(@0.5ms half sine wave)

Vibration

16.4G(10Hz-2000Hz)

Ambient Humidity

5-95%

Warranty

TLC:3years

Software and Management

Trim support

Yes

Smart support

Yes

NCQ support

Yes

RADIO support

Yes

Available unit

Available

NO EOL

Testing Platform

CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft
Windows 7 Professional 64-bit AHCI Driver: Server Express Chipset SATA AHCI Controller BIOS Settings: AHCI Mode

Testing Software

Crystal Disk Mark 5.2

HD Tune Pro5.0

ATTO Disk Benchmark

IOmeter 2008 AS_SSD Benchmark

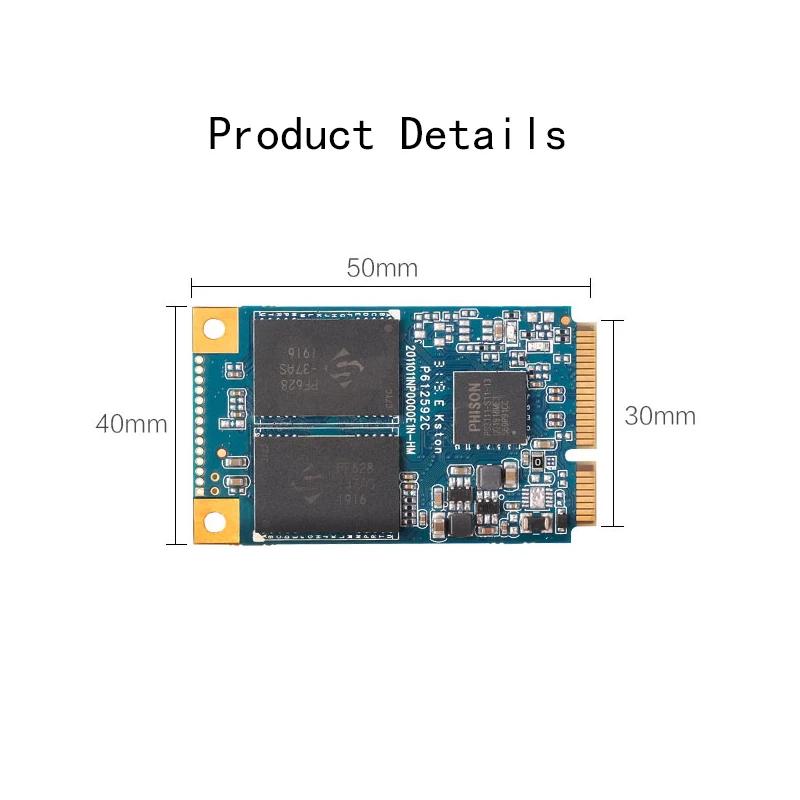

Physical Dimensions & Weight

Height(mm)

3.5

Width(mm)

30

Length(mm)

50

Weight(g)

TDB
