TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
Барбадос рынок 65 галлонов домашний эмалированный внутренний солнечный водонагреватель бак
- Категория: Solar Water Heaters >>>
- Поставщик: Dezhou,BTE,Solar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 536.63 $* | 563.78 $* |
| Aug-19-2025 | 531.38 $* | 558.35 $* |
| Jul-19-2025 | 446.77 $* | 468.56 $* |
| Jun-19-2025 | 522.40 $* | 548.14 $* |
| May-19-2025 | 455.30 $* | 478.17 $* |
| Apr-19-2025 | 513.31 $* | 539.7 $* |
| Mar-19-2025 | 509.25 $* | 534.12 $* |
| Feb-19-2025 | 504.17 $* | 529.96 $* |
| Jan-19-2025 | 500.41 $* | 525.37 $* |
Характеристики
Specification
Name | Specification | PJF -150L | PJF -200L | PJF -300L | ||
Flat plate collector | Quantity ( pc ) | 1 | 1 | 2 | ||
Collector dimension(mm) | 2000x1000x80mm | 2000x1250x80mm | 2000x1000x80mm | |||
Header tube(mm) | Φ22 x0.6mm | |||||
Riser Tube(mm) | Φ10*0.5mm | |||||
Integrated circulation Pipe | Corrugated Pipe | |||||
Welding | Laser welding | |||||
Absorber coating | Black Coating | |||||
Insulation material | Fiber glass + polyester fiber | |||||
Material | 3.2mm Low iron tempered textured glass | |||||
The rated pressure | 0.7MPa | |||||
Frame color | Silver/Black | |||||

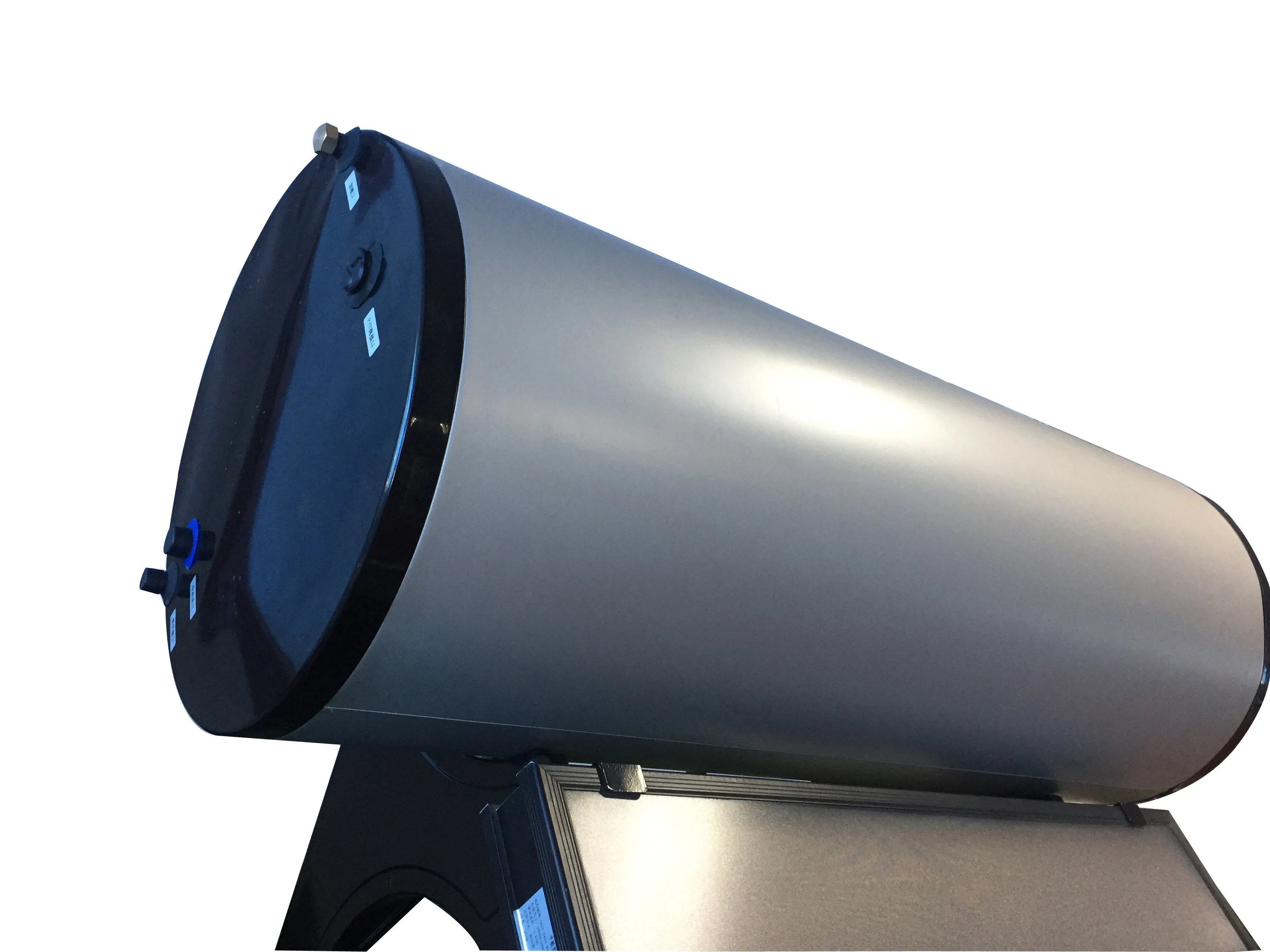

Water Tank | Insulation | Polyurethane in 50mm | ||||
Inner tank | Food grade stainless steel, SUS304-2B, 1.2mm thickness，,300L Water heater is 1.5mm inner tank | |||||
The rated pressure | <0.7Mpa | |||||
Electrical Heater | 1.5KW/3KW | |||||
Outside material | Galvanized steel plate, 0.4mm thickness | |||||
Support | Material | Galvanized Plate with Powder Coating | ||||
Spare Parts | Material | Negative Pressure Valve, Pressure Release Valve, T/P Valve And Magnisium Bar, Electric Element | ||||
20”container Quantity | 48 | 42 | 21 | |||

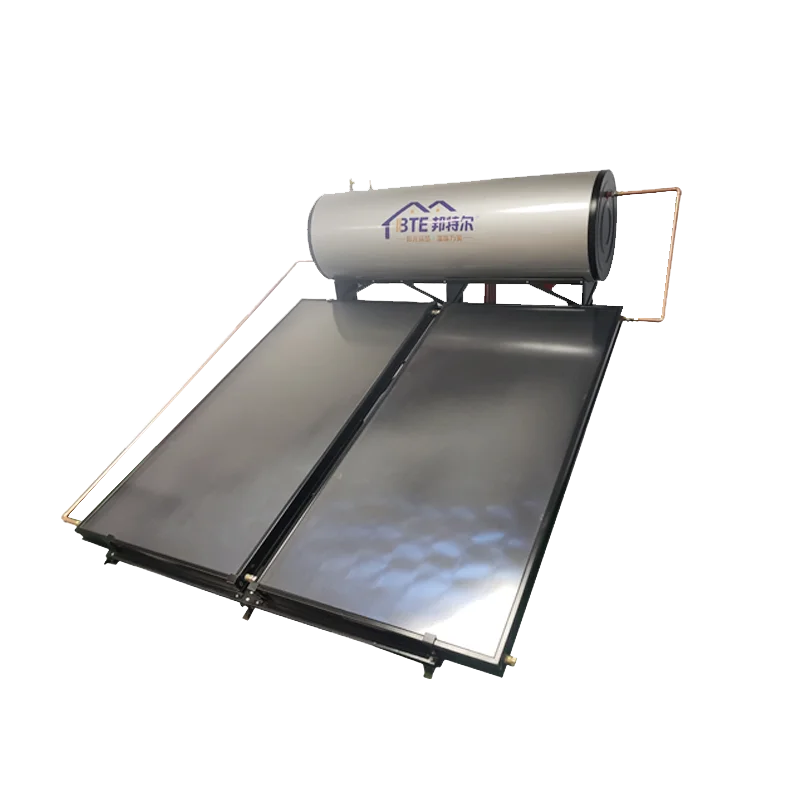

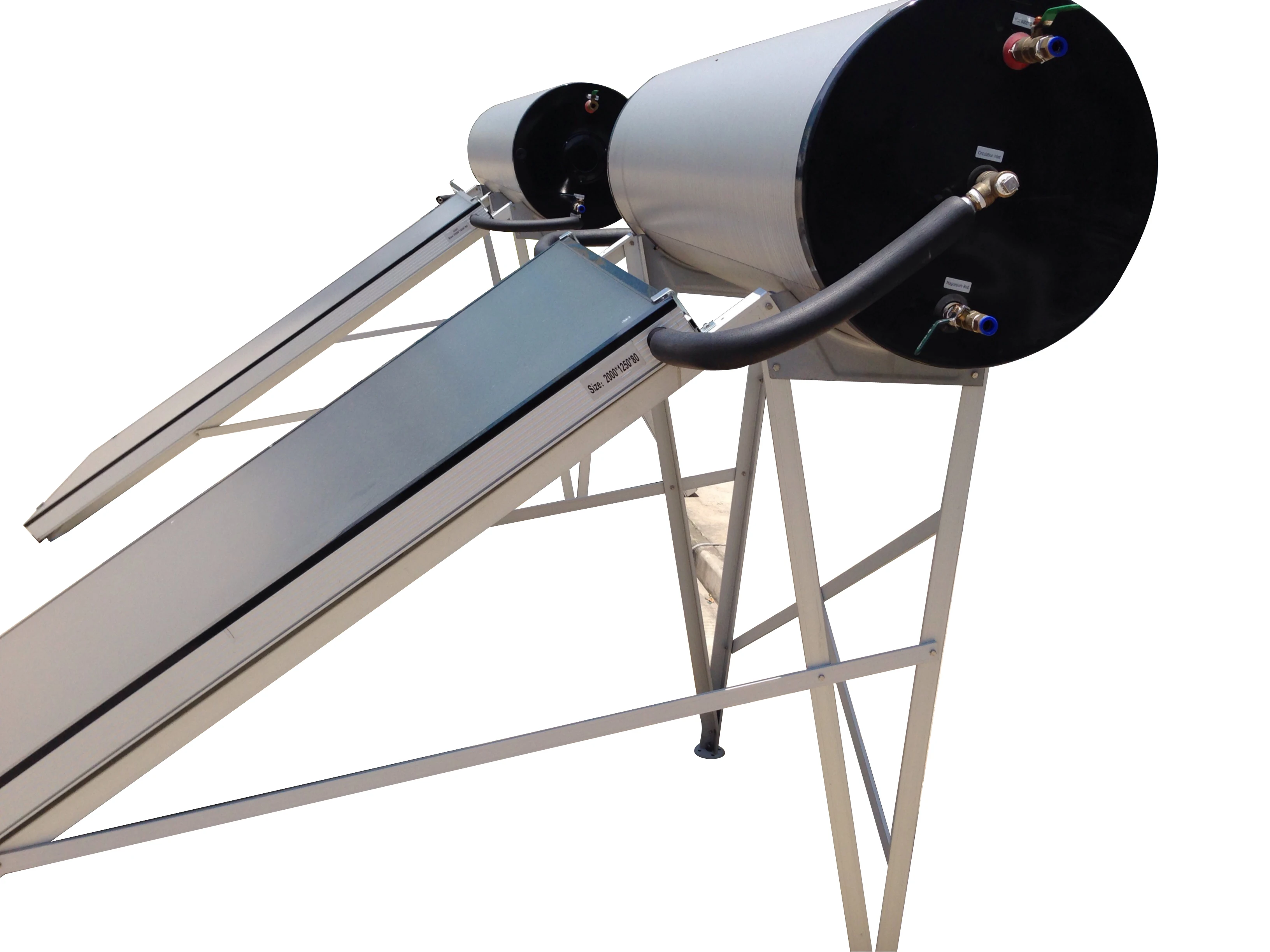

Working principle
1. There are two layers water tank, heat transfer fluid circulated between water tank and flat plate collectors naturally. Then it will be heated and transfer energy to water in inner tank.
2. Hot water from this kind of solar water heater is pressurized. It is easily installed on the house roof.
1. There are two layers water tank, heat transfer fluid circulated between water tank and flat plate collectors naturally. Then it will be heated and transfer energy to water in inner tank.
2. Hot water from this kind of solar water heater is pressurized. It is easily installed on the house roof.
BTE Advantages
1.Flat plate collectors with high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by BTE;
2.Flat plate collectors with Bonding heat transferring technology and laser welding technology;
3.Flat plate collectors with high quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
4.Enamel inner tank with magnesium rod show excellent anticorrosion performance;
1.Flat plate collectors with high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by BTE;
2.Flat plate collectors with Bonding heat transferring technology and laser welding technology;
3.Flat plate collectors with high quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
4.Enamel inner tank with magnesium rod show excellent anticorrosion performance;
BTE Solar Advantages
1. Highly efficient absorber of high performance with daily average efficiency over 76%;
2. BTE blue film absorber with automatic production line,can supply you stable high quality products;
3. Withstand pressure of 6 Bar, can be connected directly with city water or your big water tank;
4. Simple structure, easy to assembly and install in short time, no breakage;
5. Best insulation with polyurethane foam;
6. The solar water heater can be used all year round in the cold climate;
7. The solar water heater can be used together with auxiliary electric boost;
8. Long service life, can be used over 15 years;
1. Highly efficient absorber of high performance with daily average efficiency over 76%;
2. BTE blue film absorber with automatic production line,can supply you stable high quality products;
3. Withstand pressure of 6 Bar, can be connected directly with city water or your big water tank;
4. Simple structure, easy to assembly and install in short time, no breakage;
5. Best insulation with polyurethane foam;
6. The solar water heater can be used all year round in the cold climate;
7. The solar water heater can be used together with auxiliary electric boost;
8. Long service life, can be used over 15 years;
Products Advantages
Short delivery time within
2 weeks.
2 weeks.
All products tested 3 times before delivery and can offer 5 years warranty.
BTE has CE, Solar KeyMark and ISO9001 certification. Ranked the TOP 3 in the solar thermal world.
We can accept OEM & ODM orders. Solar Collectors have high efficiency and long working life.
PRODUCTS APPLICATION
Product limited time promotion and hot selling products
Product Compared
Production process
Flat panel solar collector production line
Water tank production line
Company Profile
Dezhou BTE Solar Co.,ltd was founded in 2009,located in sun city-Dezhou, which is an innovative company focused on the field of solar thermal applications and has a number of independently intellectual property rights of core technology.Relying on strong technical strength, the company has independently developed the high intelligent automatic production lines,and production efficiency has reached the international leading level.Based on the idea of industrial 4.0,it has built a global professional production line of flat plate solar collector and solar water heater,the efficiency of the whole production line can achieve on average speed of 55s/pc,reaching the international leading level.

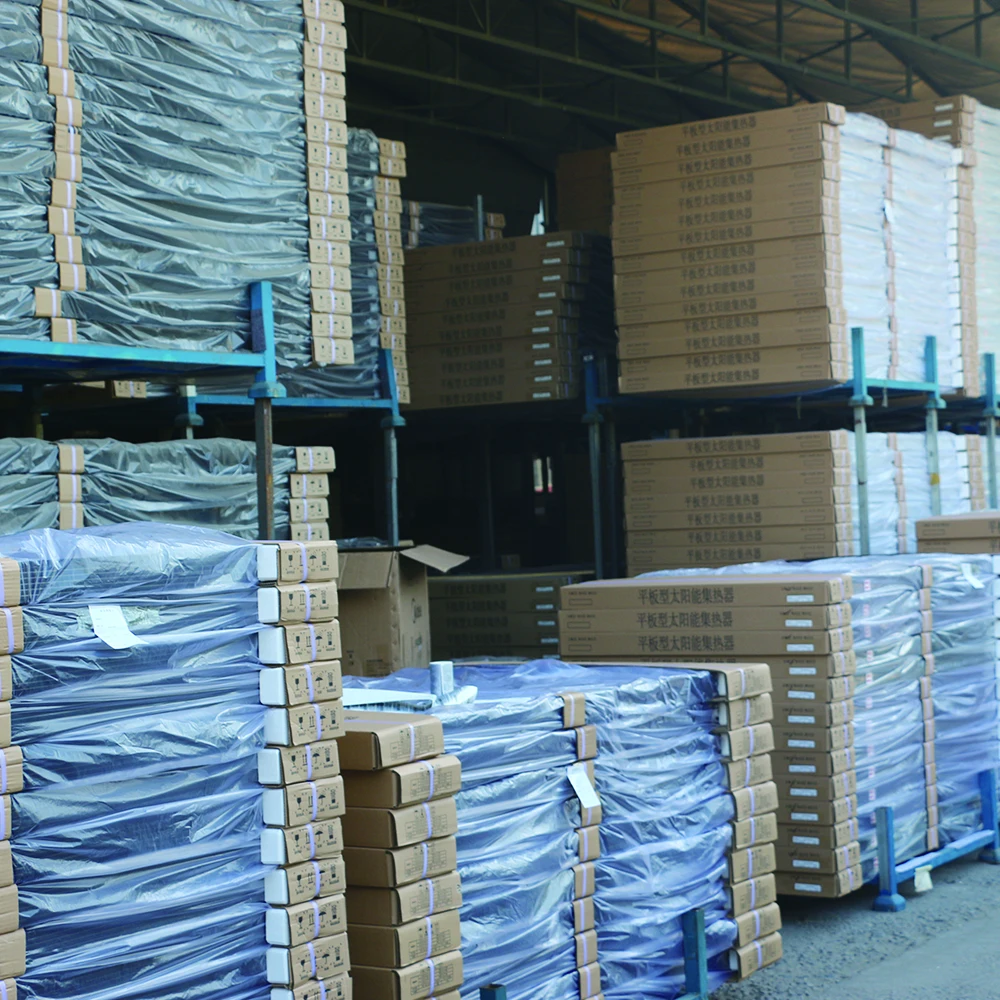

Packing & Delivery
Packing: LCL: Plywood wooden pallet/case
FCL: Export carton packing
FCL: Export carton packing
1. Is your company a trading company or factory?
We have own factory,Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case.
Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
We have own factory,Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case.
Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
