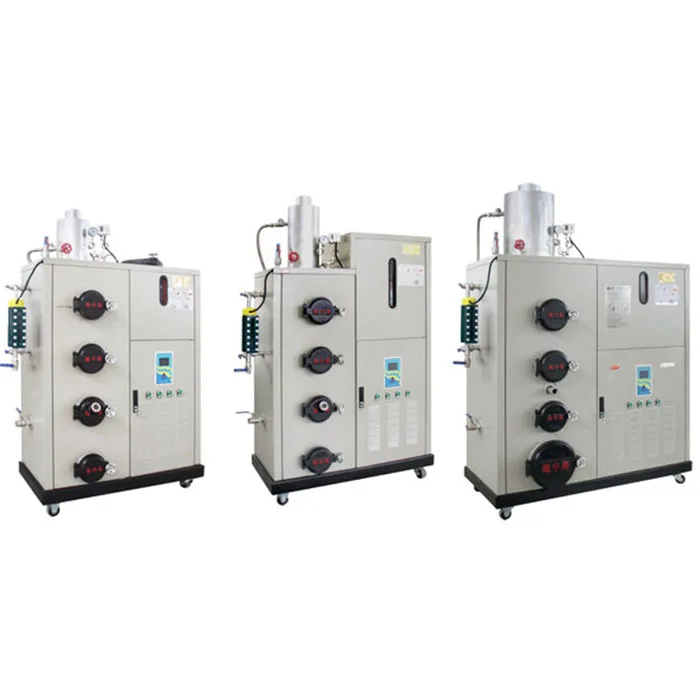

Biomass Pellet Steam Generator

Biomass steam generator is also known as a steam boiler or steam heating boiler. It is a biomaterial fuel-fired boiler. This series of biomass pellet steam generators consist of a boiler and auxiliary equipment. The boiler part is a vertical structure. It owns the following features: compact structure, small size, low noise, large heating area, high thermal efficiency, strong integrity, good stability, movable type, able to connect with soft or hard pipes, easy to install, etc.


Product Overview

---



Parameters of this wood pellet steam generator

---

Model	0.8-0.7-M	1-0.7-M	2-0.7-M
Rated evaporation (t/h)	0.08	0.1	0.2
Rated working pressure (MPa)	0.7
Rated steam temperature (℃)	176
Hydrostatic test pressure (Mpa)	1.05MPa/20min
Thermal efficiency	≥ 90%
Combustion	Automatic pressurized combustion
Dimension(mm)	1150*710*1720	1150*710*1900	1150*930*2183
Water capacity(L)	26	28	29.5
Pellet capacity (kg)	50	80	80
Fuel consumption (kg/h)	13	15	24
Electric consumption (W/h)	600	600	860
Weight (kg)	410	450	914
Weight with dust collector (kg)	440	480	977



Application of ABC Machinery wood pellet steam boiler

---

Biomass pellet steam generator is widely used in garment factories, dry cleaners, hotels, canteens, restaurants, mines, bean products factory, plating heating, chemical processing, food processing, schools, hospitals, hotels, restaurants, etc. and other places. It is also used in health care, bio-pharmaceutical industry, food industry and other places where need to sterilize apparatus and other stuff etc. It has functions of disinfection, drying, cooking, and heating etc.


Advantages of the Biomass Steam Heating Boiler

---

Safe and Reliable
The boiler has an automatic microcomputer system, automatic control of boiler operation, owning overpressure protection, and water scarcity functions. , biomass feed system uses rotary inclined into the material design concept, completely eliminate the phenomena of biomass fuel combustion backdraft, thereby really achieve the double insurance that body control the security and safety of the combustion control system.

Delicate Design
Due to continuous innovations and improvements, the products enhance practicality and novelty. Especially in the aspects of small size, without foundation, easy installation, beautiful appearance, soft colors, harmony with the environment, full of artistic sense.

Wide Range of Fuel
Biomass materials for combustion can use local materials. Solid biomass fuels use woods, branches, sawdust, top woods, skins and butts, husk, straw, rice straw, manure, and other waste products through mechanical processing a particulate with regular shape, rod, or block fuel. The advantage of it is low cost and wide range of sources.

Durable
Careful design, superior materials, and it using high technology to elaborate, with excellent corrosion resistance, durability, and ruggedness.
