Baofeng DM-1701 портативный радио двухдиапазонный иди и болтай walkie talkie baofeng Радио 136-174 МГц 400-480 приемопередатчик Walkie
- Категория: Walkie Talkie >>>
- Поставщик: Xiamen,Rongxiang,Rui,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.3 $* | 0.27 $* |
| Aug-20-2025 | 0.30 $* | 0.35 $* |
| Jul-20-2025 | 0.17 $* | 0.31 $* |
| Jun-20-2025 | 0.56 $* | 0.52 $* |
| May-20-2025 | 0.24 $* | 0.17 $* |
| Apr-20-2025 | 0.22 $* | 0.86 $* |
| Mar-20-2025 | 0.49 $* | 0.64 $* |
| Feb-20-2025 | 0.99 $* | 0.41 $* |
| Jan-20-2025 | 0.16 $* | 0.62 $* |
Характеристики
Products Description
Model :Baofeng DM-1701 | ||
Specification | ||
General | ||
Frequency Range | VHF: 136.000-174.00MHz;UHF: 400-470.00MHz(Dual band) | |
Storage Channel | 3000 Groups | |
Channel spacing | 2.5/5/6.25/10/12.5/20/25KHz | |
Rated voltage | DC 7.4V | |
Battery Capacity | 2000 m Ah (Li-ion Battery) | |
Frequency Stability | ±1.5ppm | |
Antenna Impedance | 50 Ω | |
Wok Mode | Same Frequency simplex Operation or Different Frequency simplex Operation | |
Dimension | 133mm*62mm*36mm | |
Transmitter | ||
Output Power | 1W/4W | |
Modulation Mode(W/N Band) | Analog:16KCF3E/11KCF3E Digital:4FSK | |
Maximum Frequency Deviation (W/N Band) | <5KHz(W) | |
<2.5KHz(N) | ||
Spurious Radiation | ≤7.5µW | |
Adjacent channel power | -65dB (W) ,-60dB (N) | |
Radiation | <-60 dB | |
Fsk Allowable Errorrate | <3 % | |
Signal To Noise Ratio | -45dB(W), -40dB(N) | |
Receiver | ||
Analog receive sensitivity | -122dBm (12dB SINAD) | |
Digital receive sensitivity | -120dBm (BER≤5%) | |
Audio Power | 1W | |
Intermodulation | ≥62dB (W), ≥58dB (N) | |
Adjacent channel Sensitivity (W/N Band) | ≥65dB (W), ≥60dB (N) | |
Audio Distortion | <10% | |
Receiving Current | ≤ 380m A | |
Features:
1. Tier 2 time slots
2. Clear Call Quality
3. Dual Band Repeater
4. VHF/UHF 136-174/400-470Mhz
5. 2200mAh High Capacity Battery
6. High Power/Low power(5W/1W)
7. 1024 Channels
8. ≥3km of Range
9. 21CM Dual Band Antenna
10. 8-Level Stepped Frequency Selection
11. Auto power saving function,Super-Long Standby
12. 14 hours usage time,up to 30 hours of standby time
13. Emergency Alarm
14. Flashlight
15. Individual/Group/All Call
16. Walkie-Talkie Detection
17. CTCSS/DCS
2. Clear Call Quality
3. Dual Band Repeater
4. VHF/UHF 136-174/400-470Mhz
5. 2200mAh High Capacity Battery
6. High Power/Low power(5W/1W)
7. 1024 Channels
8. ≥3km of Range
9. 21CM Dual Band Antenna
10. 8-Level Stepped Frequency Selection
11. Auto power saving function,Super-Long Standby
12. 14 hours usage time,up to 30 hours of standby time
13. Emergency Alarm
14. Flashlight
15. Individual/Group/All Call
16. Walkie-Talkie Detection
17. CTCSS/DCS

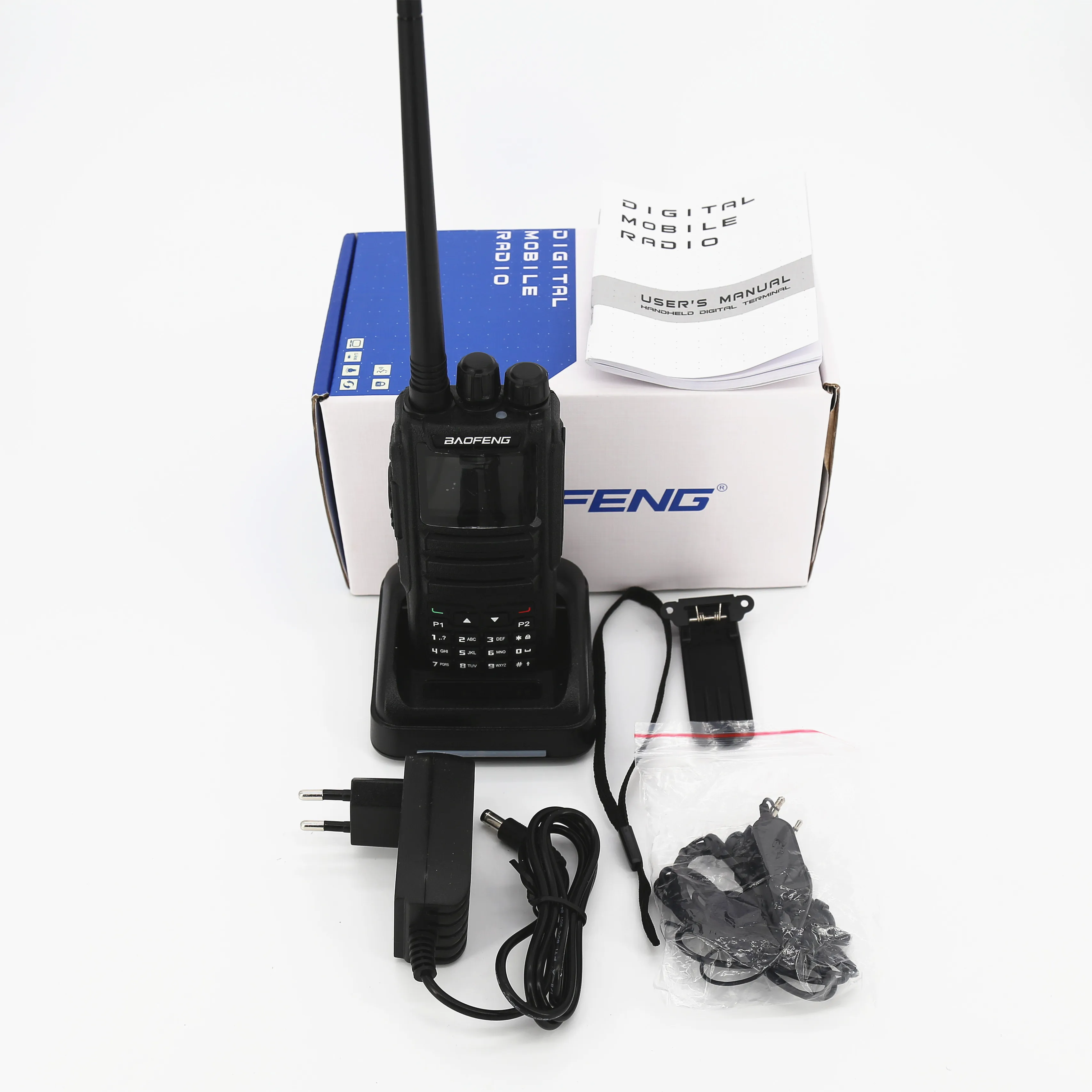

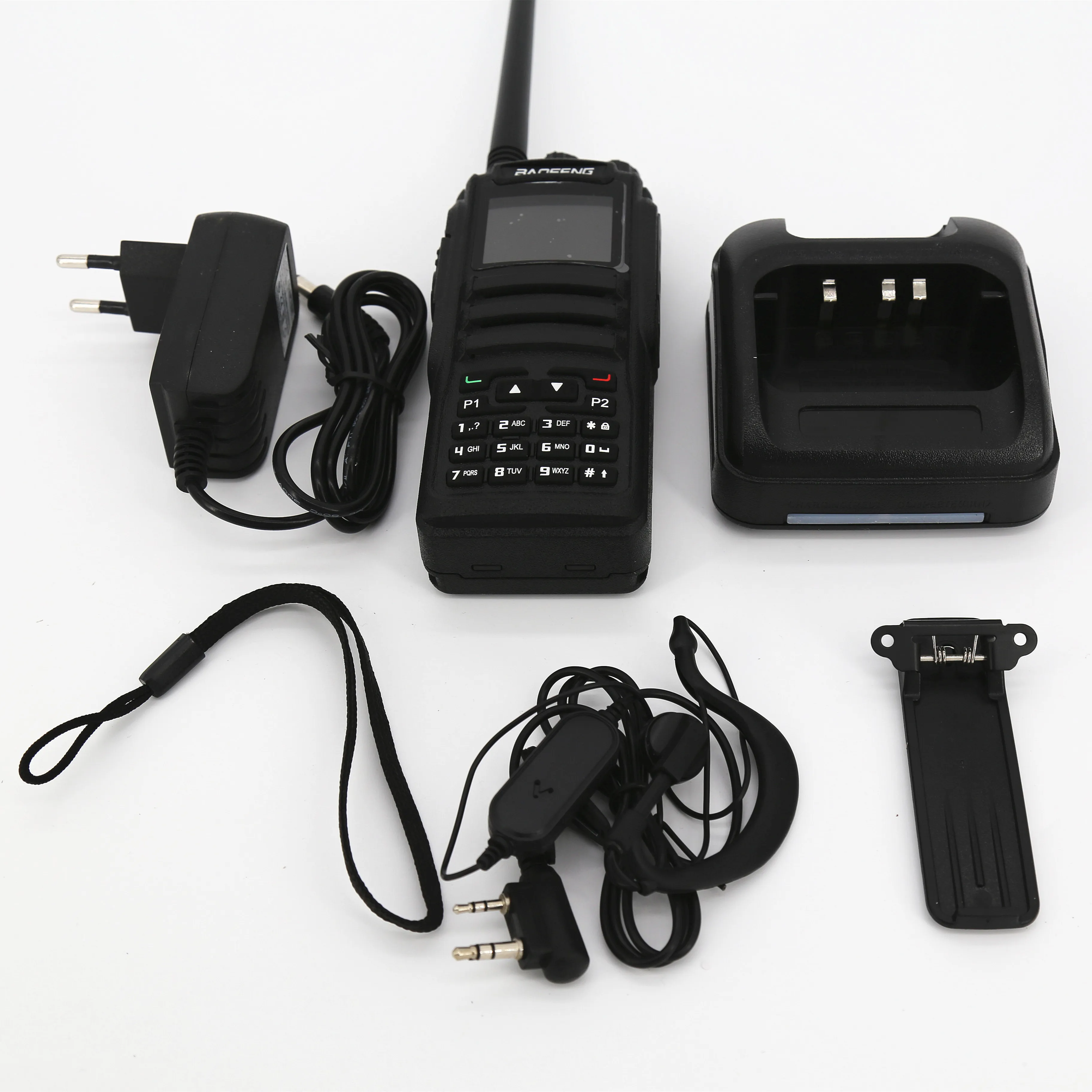

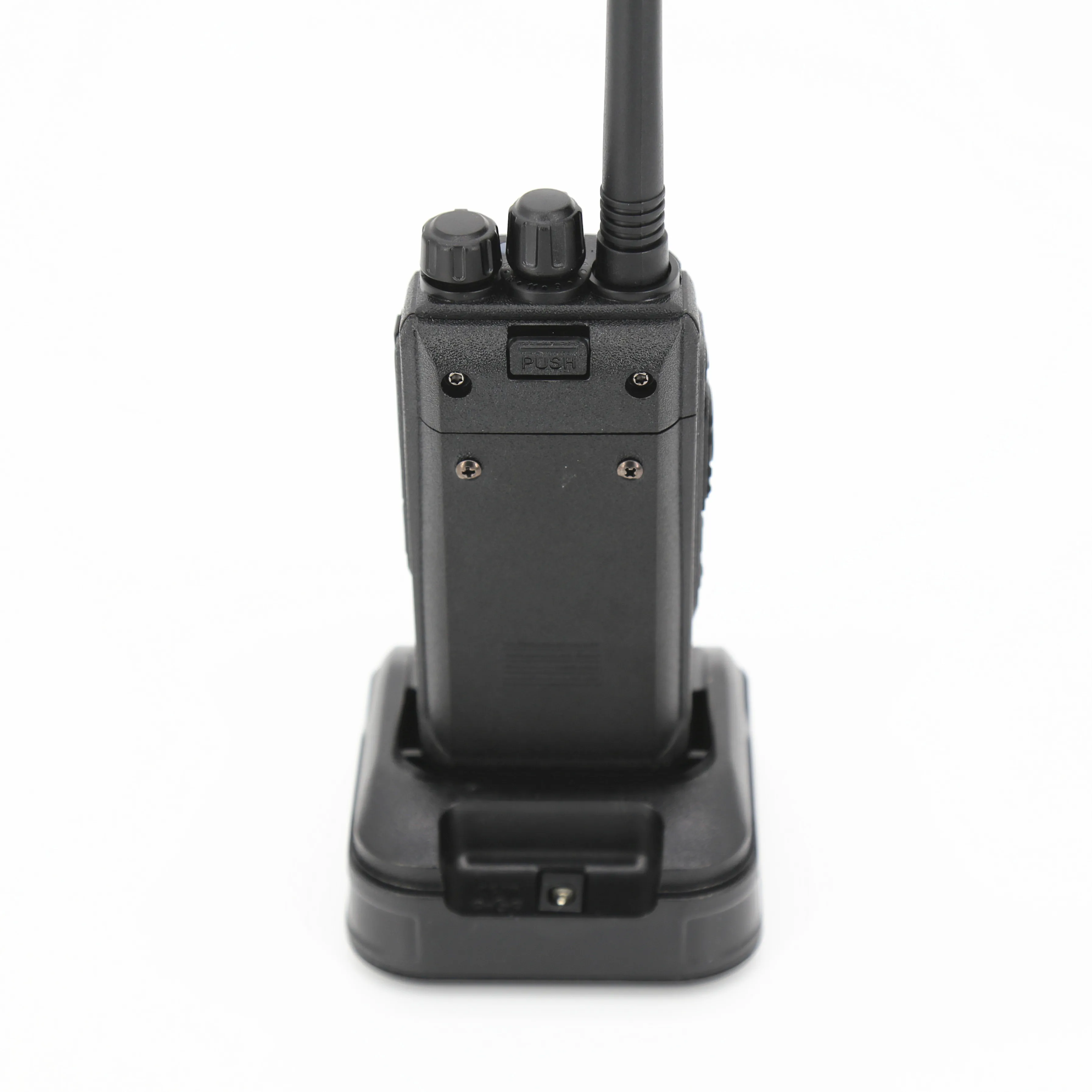

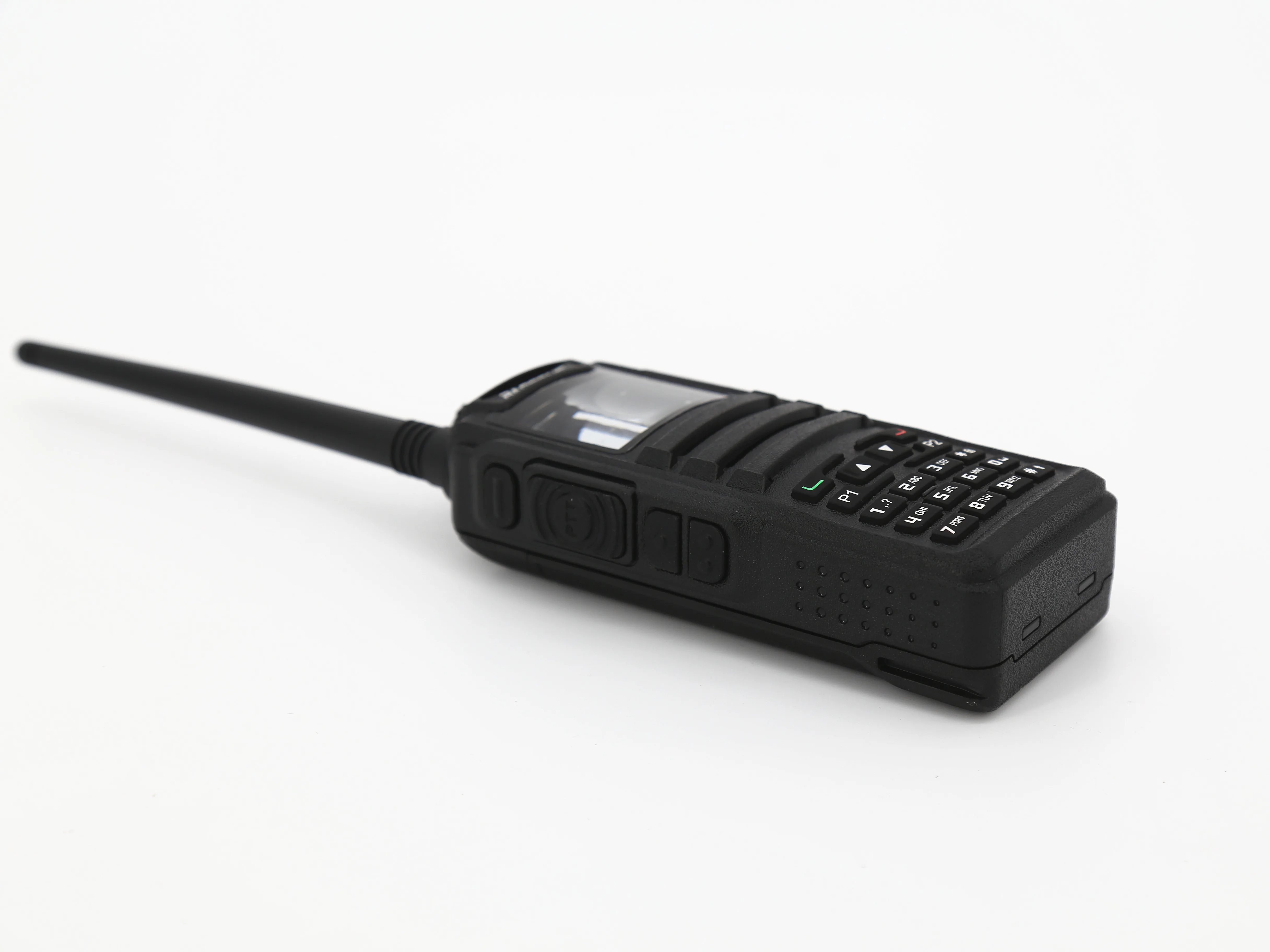

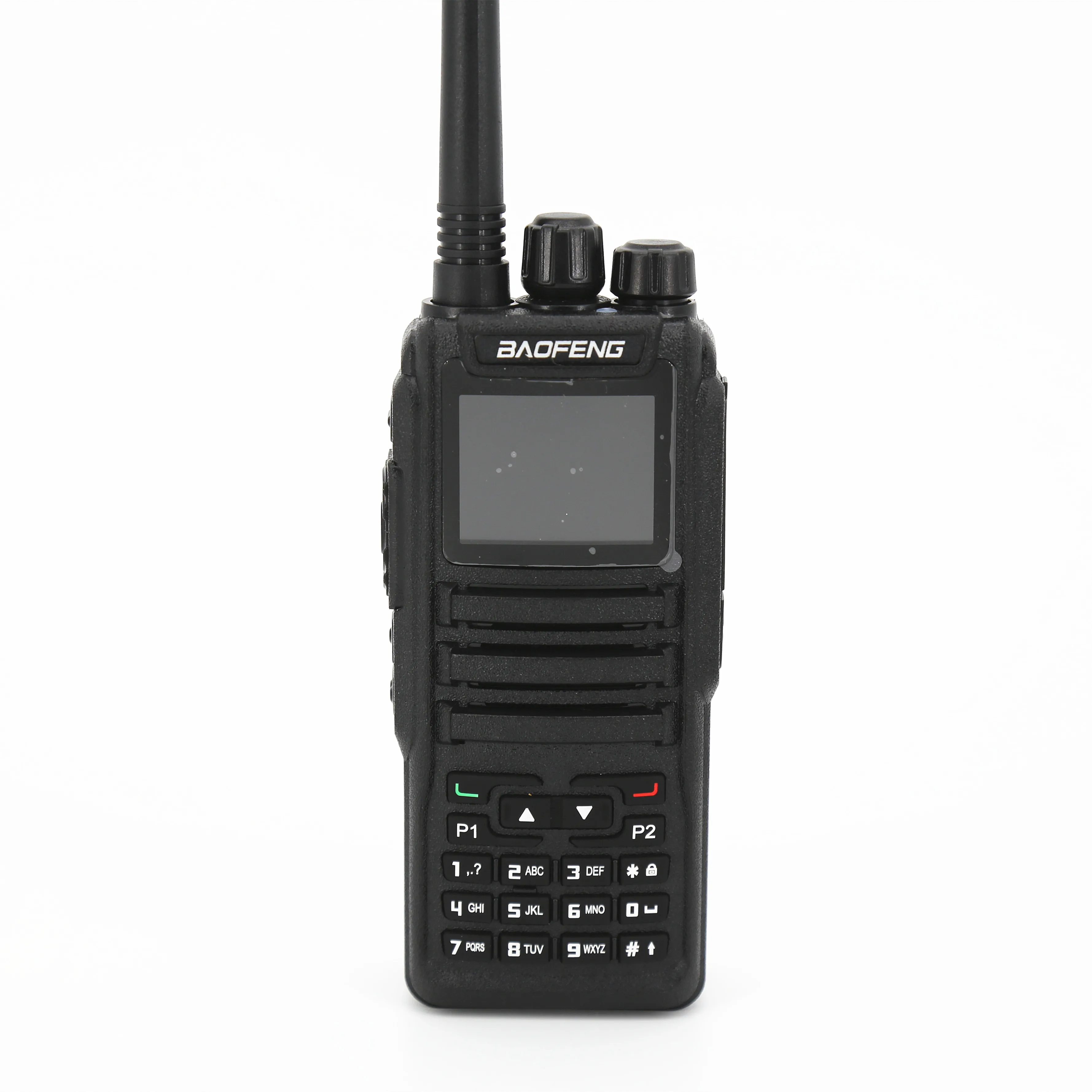

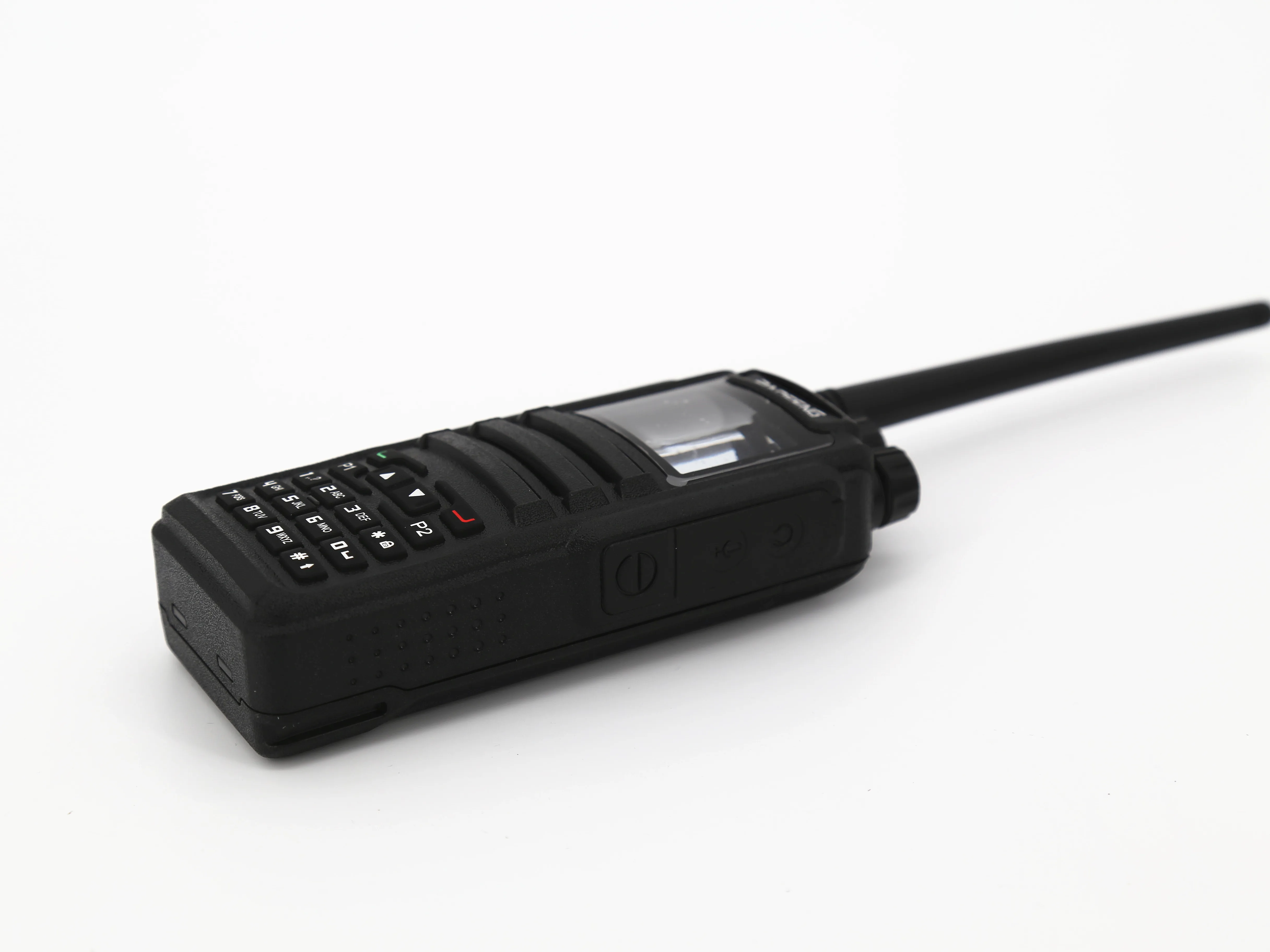

Details Images
Usage
characteristic
With flashlight, good sound quality, good appearance
Usage scenarios
With flashlight, good sound quality, good appearance
Usage scenarios
KTV, hotel, wedding, construction site, security, parking lot, company, etc
