Индивидуальная алюминиевая ламинированная пленка на батарейках в качестве упаковки для
- Категория: Composite Packaging Materials >>>
- Поставщик: Xiamen,Tob,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.18 $* | 0.92 $* |
| Aug-19-2025 | 0.52 $* | 0.45 $* |
| Jul-19-2025 | 0.58 $* | 0.4 $* |
| Jun-19-2025 | 0.83 $* | 0.34 $* |
| May-19-2025 | 0.86 $* | 0.44 $* |
| Apr-19-2025 | 0.17 $* | 0.3 $* |
| Mar-19-2025 | 0.10 $* | 0.30 $* |
| Feb-19-2025 | 0.35 $* | 0.62 $* |
| Jan-19-2025 | 0.65 $* | 0.90 $* |
Характеристики
TOB NEW ENERGY
Aluminum Laminated Film For Formed Pouch Cell Case
Existing Die model : No extra cost for die sinking.
| Existing Pouch Die Model | Remark |
| 34 50 | Single Pit |
| 41 76 | Single Pit |
| 57 101 | Single Pit |
| 43.5 121 | Single Pit |
| 75 90 | Single Pit |
| 91 101 | Single Pit |
| 147.5 235 | Single Pit |
| 17 24 | Double Pit |
| 41 75 | Double Pit |
| 42 75 | Double Pit |
| 42 77 | Double Pit |
| 51 77 | Double Pit |
| 52 77 | Double Pit |
| 56 81 | Double Pit |
| 67 90 | Single Pit |
| 101 201 | Double Pit. Max thickness is about 2.8mm for single |
| 128 137 | Double Pit |
Thickness can be adjustable up to about 5.5mm, please contact with us for confirming the thickness before place order | |
We also provide custom service to design the new pouch die according to your requirements, but you should pay for the die sinking cost.(There is no minimum order quantity limit for custom service.)
Materials Choose (Aluminum Laminated Film)
We can supply aluminum laminated film in the following thickness: 68μm, 88μm, 113μm, 122μm, 133μm, 153μm, etc.
The brands of aluminum laminated film from Chinese and Japanese are available for your choice.

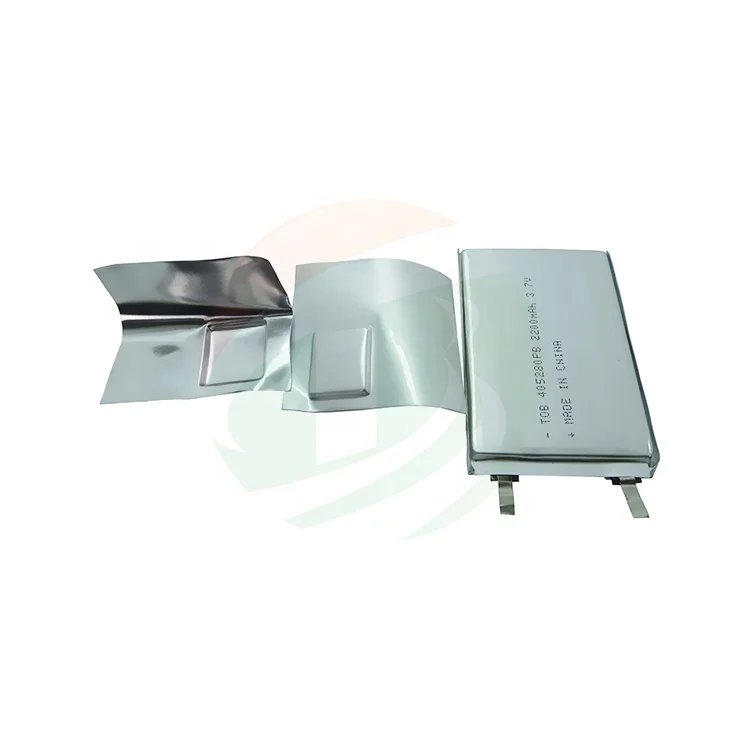

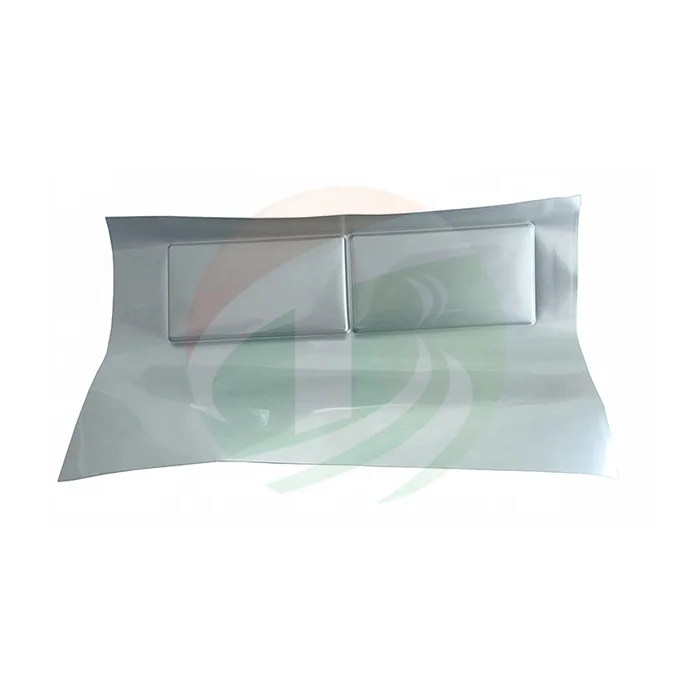

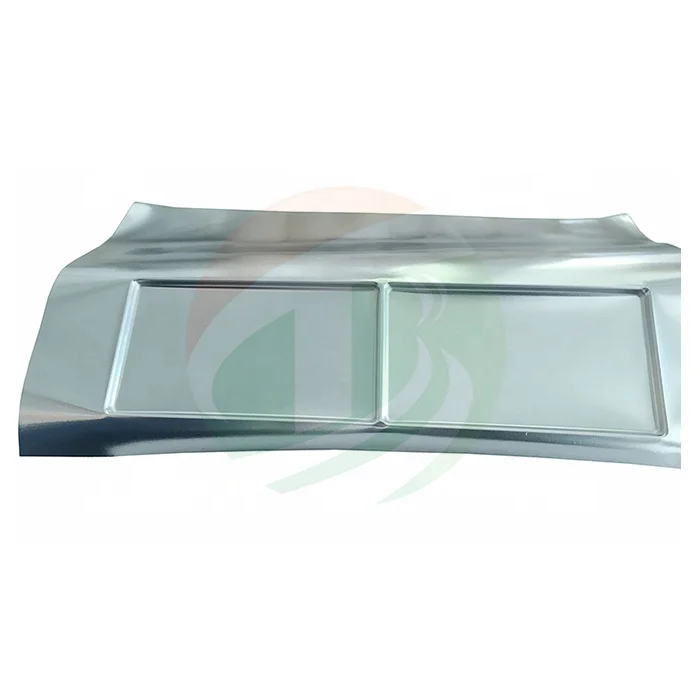

Product Display

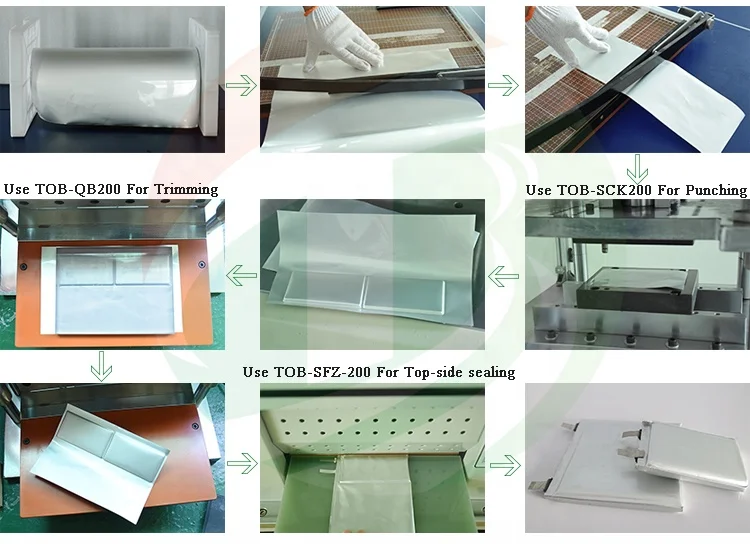

Our Working Process

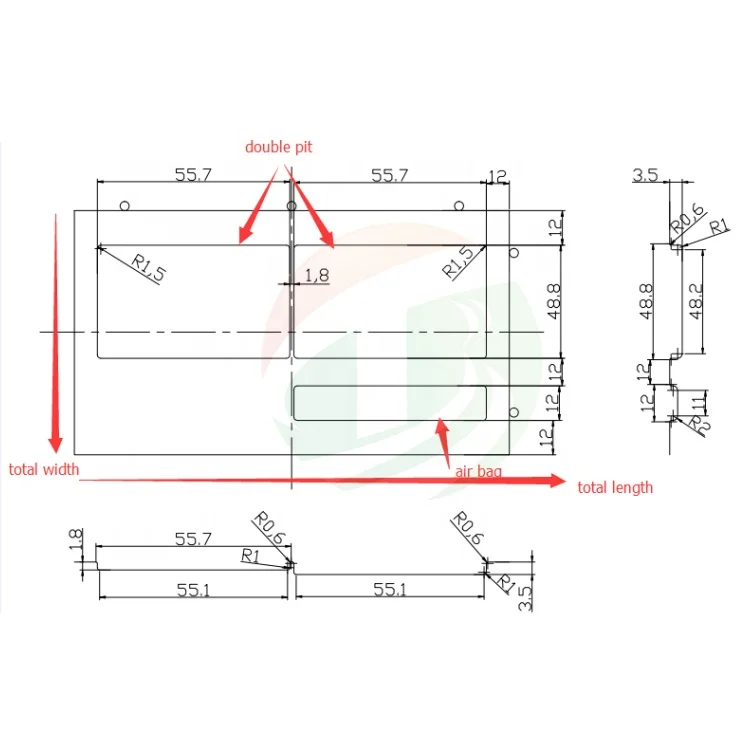

Pouch Die design

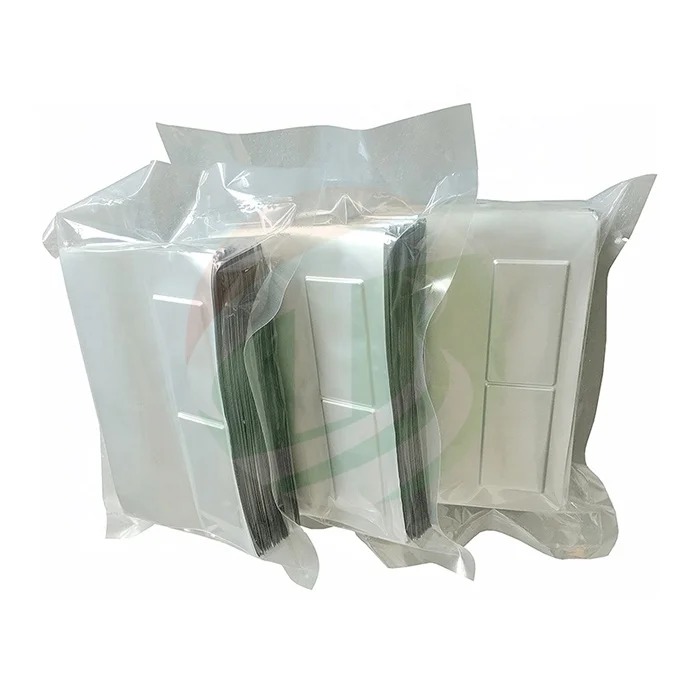

Packing Detail
