Телепогрузчик Socma Hntr40 поворотный вилочный погрузчик 4 тонны шероховатая

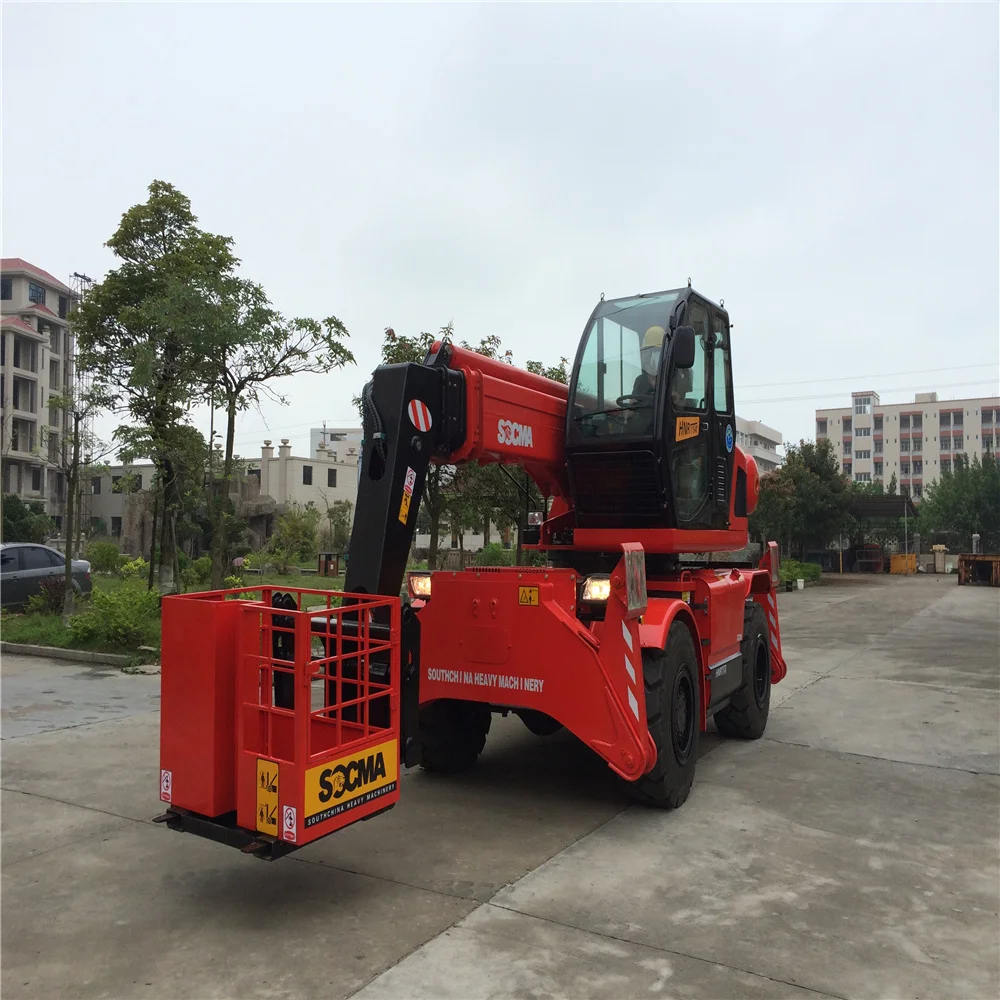

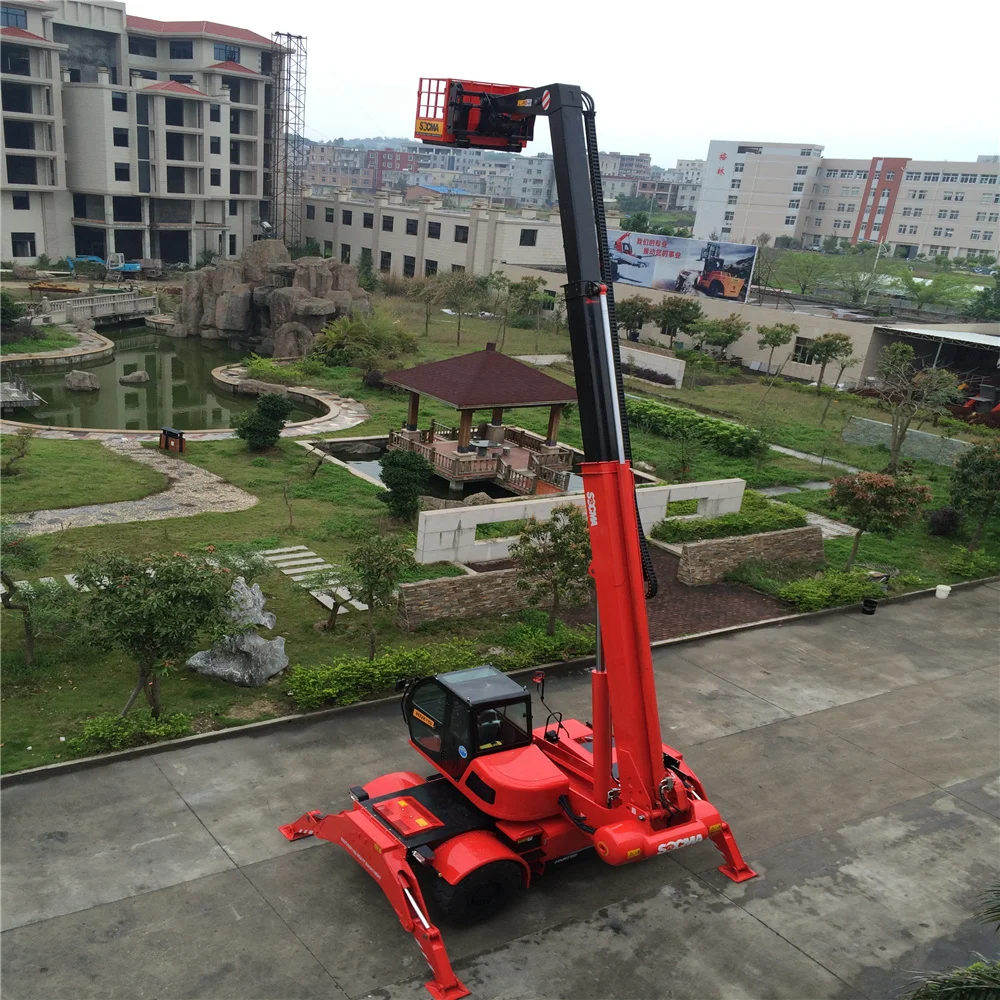

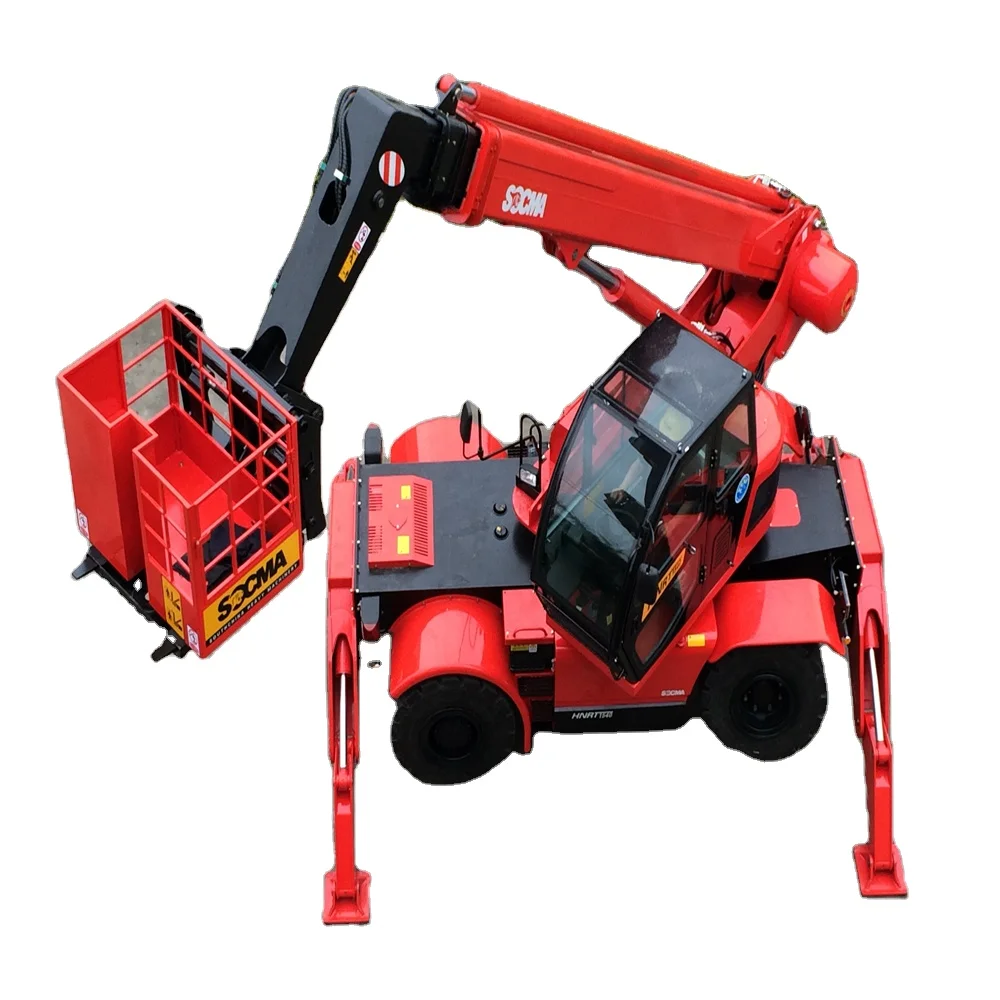

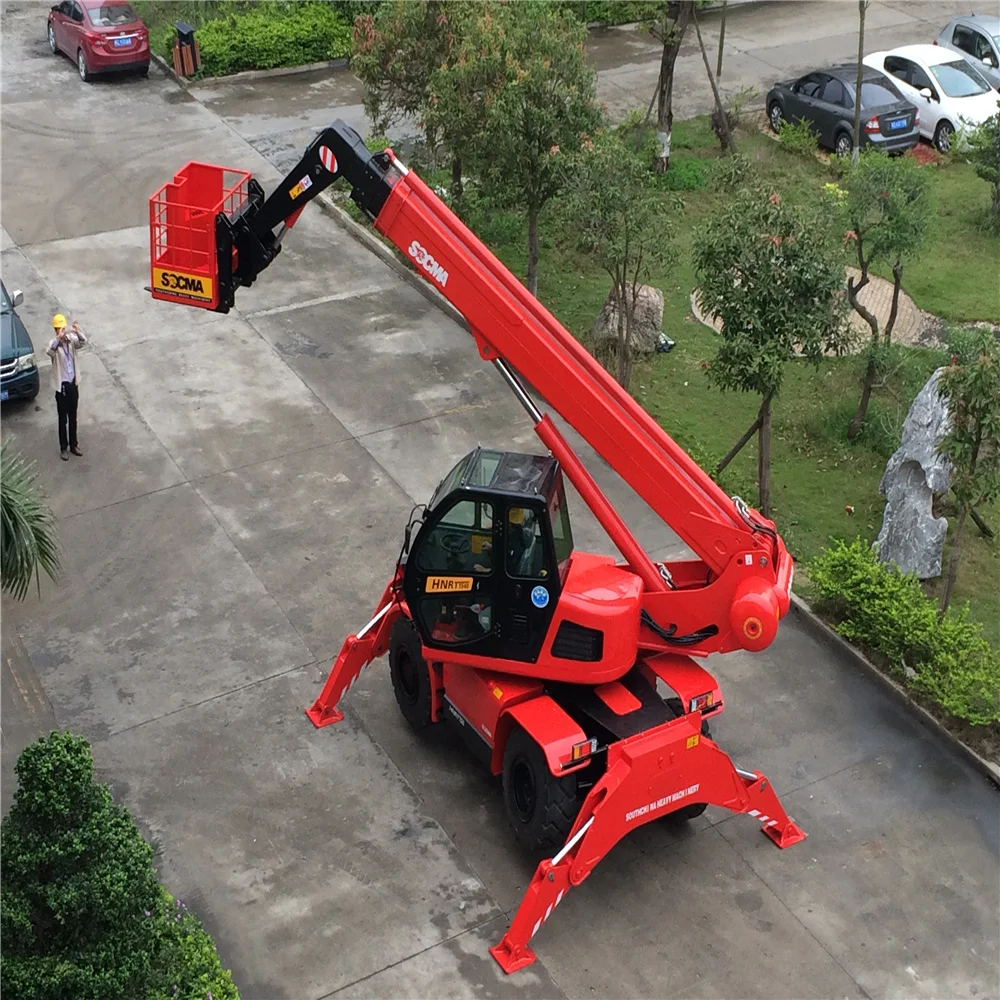

Socma 4 Ton Multi-purpose Rough Terrain Forklift Rotate Telehandler HNTR40

Products description

1,HNTR40 is a multi-purposed telescopic forklift with rough terrain ability. It is with three section boom with 360 degree rotate chassis, the max. Lifting height is 15m, max. Load capacity is 4000kg, max. Horizontal reach is 10500mm

2,Equipped with Dongfeng cumm.ins turbo-charged engine with common rail fuel system, the machine is powerful, energy-saving and environment-friendly. It can meet the high-efficient operation requirement

3,The power system is equipped with air-air intercooler, which reduces the inlet temperature of the engine, improve the volume of air inlet, increases the power of the engine

4,Equipped with hydro-static transmission, the machine is with good self-adaptability and operation ability. All of the hydraulic pump, main valve, hydraulic motor, rotary motor, central rotary joint,Hydraulic cylinder, pilot control valve adopts well-known brand.

5,Adopts full hydraulic load sensing steering system, the turning radius of rear axle is small, the steering of portable and flexible.

6,Hydraulic system is equipped with oil-return radiator and back pressure protection device, which guarantee the heat-balance for the machine

7,Adopts hydraulic balance valve control, which limit the speed of boom extension and withdrawing,preventing risk of  heavy cargo out of control when descending, front & rear out trigger adopts hydraulic lock control, guarantee the out trigger can be locked reliably, preventing the failure of out trigger during the heavy load operation, or the risk of falling during traveling

8, Diesel engine is placed on the lower chassis, the slewing platform can rotate 360 degree. The oil tube, electrical wire, and gas tube was connected through central swivel joint which realize the seamless connection up and down

 9,Use front wheel drive,rigid suspension, rear axle steering structure. Front spiral bevel gear and wheel rim planet reduce the speed and increase torque and the load capacity, prolong the lifespan.The rear axle adopts transversal hydraulic steering structure, the structure of steering axle is compact, with steering angle of 40°, which reduce the steering resistance and the wearing of tires,increases the traveling smoothness

10, Adopts L-shape swing platform, heavy slewing bearing with features of high support capacity, and resists the impact of outside intense impact.

11,Adopts long wheel base, box-type chassis, which provide good  rigidity and strength, and guarantee the high reliability of the chassis of telehandler

12,The operation device is 3-section box-type working boom, the telescopic boom use large section, high intense box-type structure, which meet the heavy load requirement

13, Adopts cascade high intense fork, which is more strong, more durable in prolong the lifespan

14, Adopts four clamp-disc brake, with rear gas storage tank, 18 times brake air pressure augmentation ratio, which features with better radiation, more reliable and safe brake

15, Adopts sectional deep heavy duty forklift tires, the rear axle can swing around the center, which features with good traction performance and passage capacity

16, Adopts adjustable steering wheel, aero seat, pilot control & distribution valve and working device oil tube, which features with portable and flexible control, more comfortable seating

 17, Adopts domestic high quality electrical components, maintenance-free battery, electric wire adoptsAnti flame retardant material, which features with high working reliability and durability, the cab equipped with fan, radio, warm & cooling A/C, reversing buzzer.

18,The multi-purposed LCD monitor supervise the working condition in all aspects including turning speed, oil pressure, oil temperature,water temperature, water level Etc.

19,The whole machine appearance is exquitsite, graceful and smooth, the luxurious wide view cab is equipped with sunroof, which features with low noise, good sealing and convenient for all around observation for the driver

20,The standard truck is equipped with fork, aerial working platform and arch manipulator, which is widely used in tunnel, port, construction site, industrial company, agricultural and animal husbandry, municipal fire-fighting for the work of load and unloading, stacking, short-distance transmutation and aerial working
