Ручная автоматическая волоконная ручная лазерная сварочная машина для обработки нержавеющей стали по льготной
- Категория: Laser Welders >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 8330.77 $* | 8747.37 $* |
| Aug-19-2025 | 8260.30 $* | 8673.77 $* |
| Jul-19-2025 | 6930.34 $* | 7277.39 $* |
| Jun-19-2025 | 8120.35 $* | 8526.27 $* |
| May-19-2025 | 7070.42 $* | 7424.91 $* |
| Apr-19-2025 | 7980.24 $* | 8379.14 $* |
| Mar-19-2025 | 7910.83 $* | 8306.74 $* |
| Feb-19-2025 | 7840.50 $* | 8232.52 $* |
| Jan-19-2025 | 7770.86 $* | 8159.51 $* |
Характеристики

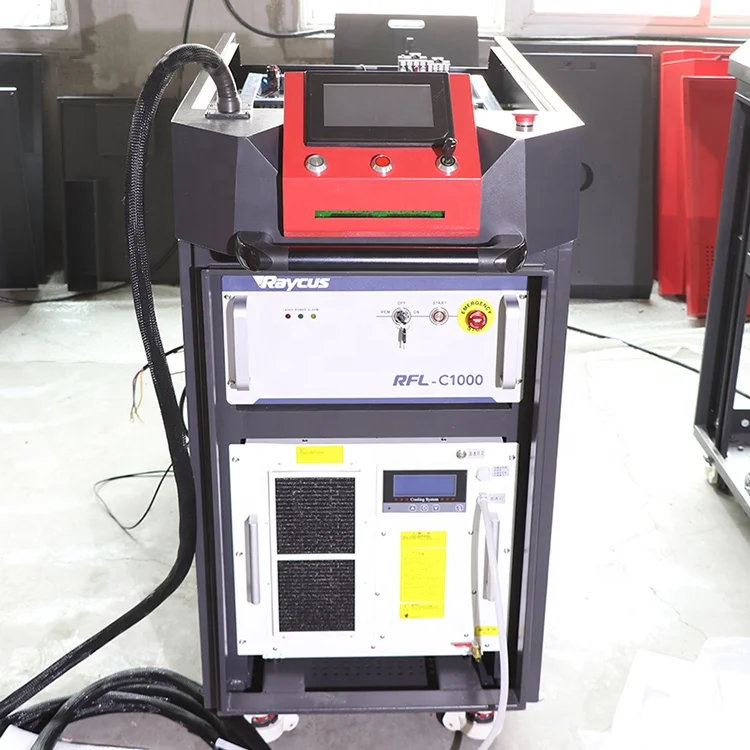

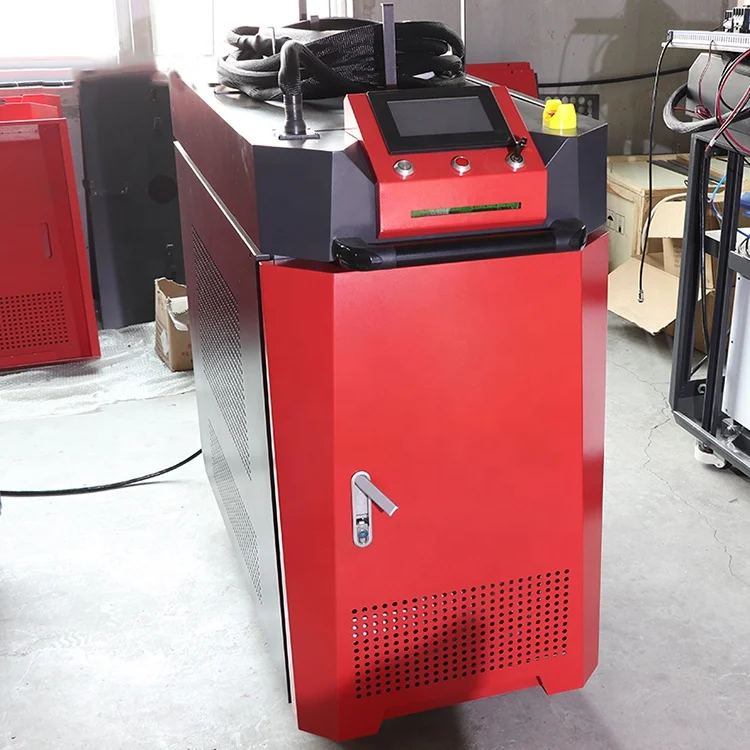

Product Description
Adopting hand - held swing welding head, the welder can be easily used without professional welding skills, which is suitable for small volume and multiple batches welding work.
Product Show
Fiber Laser
1000W BWT'S laser, long warranty of three years
High quality beam, high power stability, stable system
20μm fiber core diameter, higher electro-optical conversion efficiency
High quality beam, high power stability, stable system
20μm fiber core diameter, higher electro-optical conversion efficiency
Oscillating welding head
Customizable 2mm, 2.5mm, 3mm weld channel width
Special welding nozzle, can achieve any part, angle welding
Infrared positioning, more accurate welding position
Special welding nozzle, can achieve any part, angle welding
Infrared positioning, more accurate welding position
Dual temperature chiller
Intelligent temperature control, compressor cooling
LED screen, temperature display at all times
Simple to operate, stable performance, energy-saving and efficient
LED screen, temperature display at all times
Simple to operate, stable performance, energy-saving and efficient
Wire feeding device (optional)
Optional automatic wire feeding device
Software controlled, adjustable wire feed speed
Filling the welding seam and increasing the welding strength
Software controlled, adjustable wire feed speed
Filling the welding seam and increasing the welding strength
Overall size
Laser welding is a kind of processing method of welding materials with high energy density laser beam as heat source. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables.
Product Paramenters
NO. | Item | Parameter | Unit |
1 | Model name | Handle laser welding machine | |
2 | Model type | JQ-HW-1000W | |
3 | Laser Power | 1000 | W |
4 | Laser wavelength | 1070 | nm |
5 | Fiber core diameter | 50 | μm |
6 | Fiber length | 10 | m |
7 | Laser working mode | Continuous / Modulation | |
8 | Galvanometer width | 0.5-6 | mm |
9 | Galvo scan speed | ≤8000 | mm/s |
10 | Welding speed | 0-120 | mm/s |
11 | Refrigeration unit | Intelligent dual temperature chiller | |
12 | Working environment temperature range | 15-35 | ℃ |
13 | Humidity range of working environment | ＜ 70% non-condensing | |
14 | Welding material thickness | ≤5 | mm |
15 | Welding gap requirements | ≤0.5 | mm |
Sample
Company Profile
Laser change the world
Jinan Jinqiang Laser CNC Equipment Co., Ltd. was established in 2006. It is a high-tech industry focusing on laser application and sheet metal automation complete equipment research and development, production and sales. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding.
JQ Laser currently has more than 200 employees, technology research and development and after-sales service account for more than 50%; we have a professional quick response customer service team, providing 24-hour online and offline technical services in 12 languages.
Now JQ Laser exports to more than 100 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
Now JQ Laser exports to more than 100 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
Exhibition
EXHIBITION
Listening carefully to customers' needs and making laser tube cutting machines that meet the needs of most customers is the
product direction that Jinqiang Laser has been pursuing.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market
and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
product direction that Jinqiang Laser has been pursuing.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market
and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
Details&Parts
Certifications
New Outlook New Experience
Suitable for all kinds of industrial sheet metal processing.
