Сделано в Китае метрический размер 45x69x1 25 мм Стопорная шайба AW9 MB9 запорная
- Категория: Washers >>>
- Поставщик: Shandong,Hanke,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.44 $* | 1.79 $* |
| Jul-19-2025 | 1.90 $* | 1.9 $* |
| Jun-19-2025 | 1.22 $* | 1.28 $* |
| May-19-2025 | 1.66 $* | 1.38 $* |
| Apr-19-2025 | 1.87 $* | 1.62 $* |
| Mar-19-2025 | 1.77 $* | 1.92 $* |
| Feb-19-2025 | 1.65 $* | 1.6 $* |
| Jan-19-2025 | 1.41 $* | 1.86 $* |
Характеристики

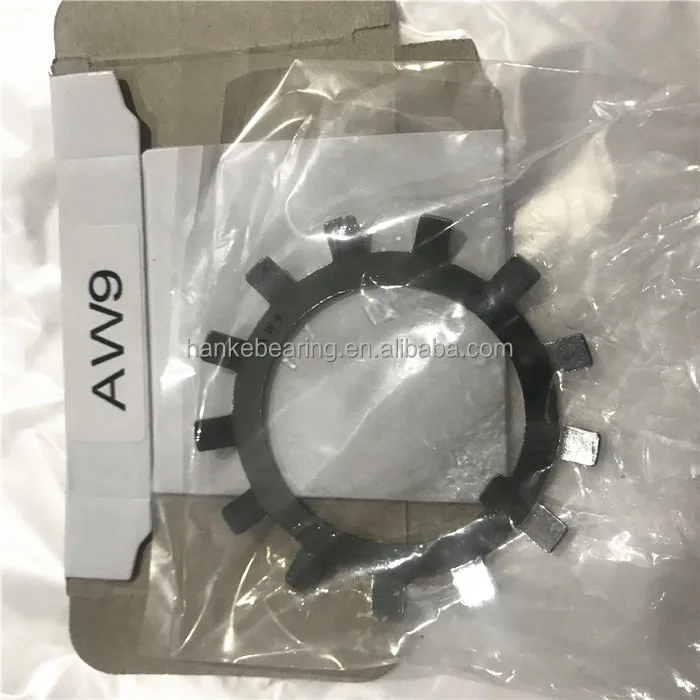

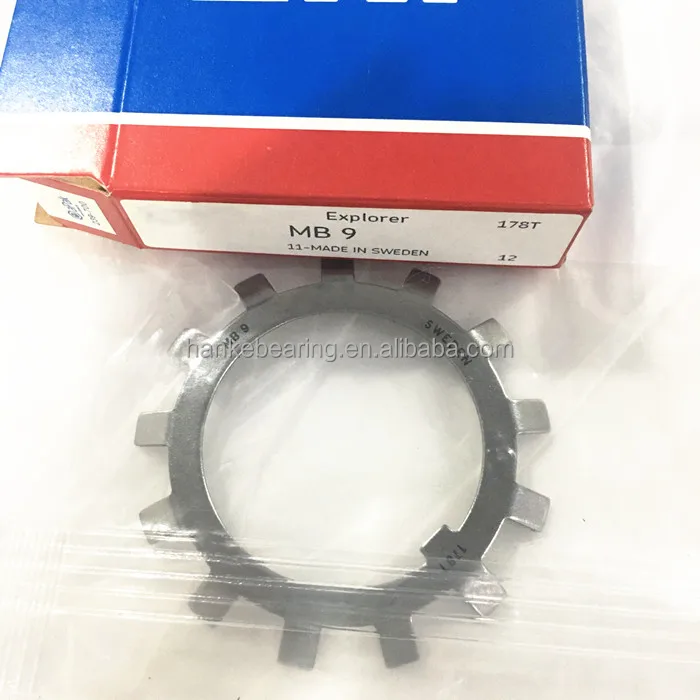

China made metric size 45x69x1.25mm Lock washer AW9 MB9 Locking washer AW09 MB9 bearing locking washer
PRODUCT DESCRIPTION
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely.
The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series
Benefits: Efficient, secure, inexpensive, removable and re-useable
The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series
Benefits: Efficient, secure, inexpensive, removable and re-useable
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Bearing NO. | AW9/MB9 lock washer |
2 | Inner diameter | 45mm |
3 | Outer diameter | 69mm |
4 | Width | 1.25mm |
5 | Compatible Lock Nut Number | KM9 |
6 | Weight | 0.015kg |
FEATURES
*Lock washers are specially designed to keep threaded fasteners from loosening. They prevent vibrations and some have external teeth to prevent rotation. These washers are often found in airplanes and in structural applications.
* Offered in alloy, carbon, and stainless steel
* Available in plain, zinc clear, and zinc yellow finishes
* External toothed washers are commonly used with bearing lock nuts
* Available in plain, zinc clear, and zinc yellow finishes
* External toothed washers are commonly used with bearing lock nuts
