Mainly suitable for the industrial waste, living garbage sorting out in copper, aluminum and other non-ferrous metals, for occasions, more sophisticated sorting can be widely used in garbage disposal, automobile dismantling, recycling of waste electrical appliance and other fields, and processing industry of non-ferrous metal materials processing and other industries
Direction for use
This Scrap Radiator Recycling Machine is specialized in recycling scrap radiators of air conditioners and car water tanks. It canseparate copper and aluminum,iron after radiators are crushed.The separating rate can reach 99.9 %;Scrap Radiator Recycling Machine consists of a Material Conveyor, a First Crusher, a Belt Conveyor, a Second Crusher, a Magnetic Separator with a Belt conveyor, a Vibrate Separator.
Description of application effect
1. The high-pressure energy is accomplished by the low-speed ratio reducer. The power is stronger, and the crushing strength is high. 2. The cutter heads are tightly connected, evenly broken and uniform in size. 3. The magnetic pole is adjustable to ensure the parabola is maximized, the resistance is reduced, and the force of the non-ferrous metal is increased to maximize the effect. 4. Strong magnetic force can separate large-size non-ferrous metals such as beverage cans, bottle caps, aluminum packaging, etc. 5. Strong magnetic rare earth permanent magnet roller, low energy consumption and convenient maintenance. 6. There are many sorting types, and the sorting speed can be adjusted to be used for different strength sorting of various materials. 7. Fully automated sorting and recycling operations, reducing labor, high metal recovery rate, simple structure, and low maintenance cost.

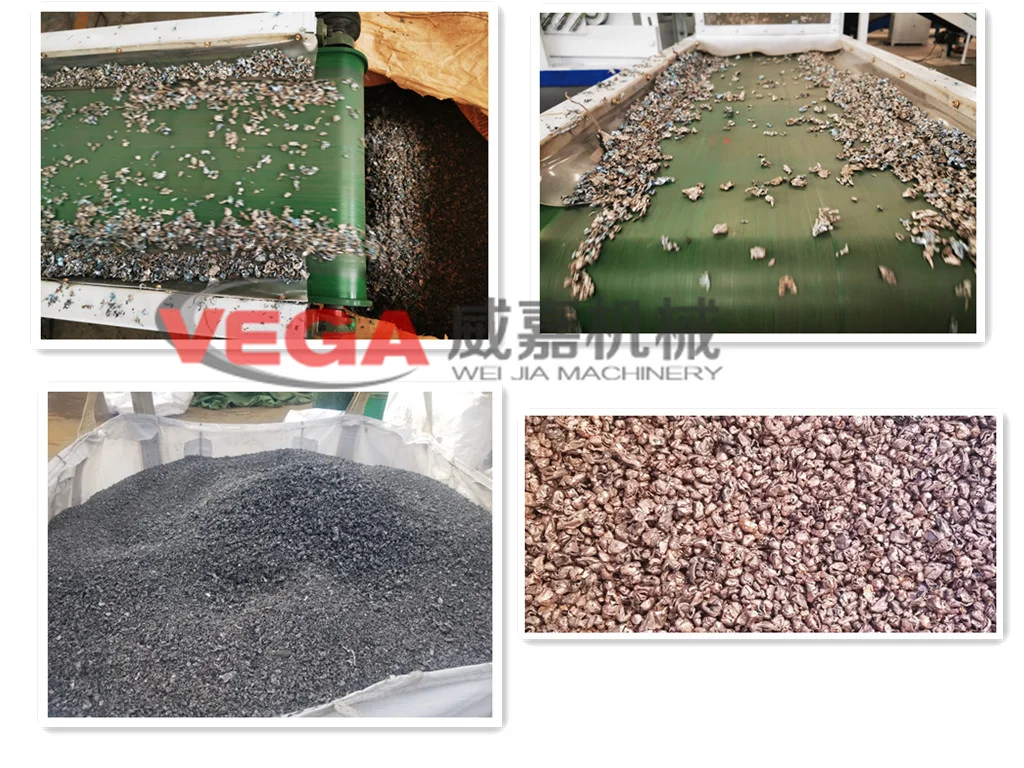

Detailed Images

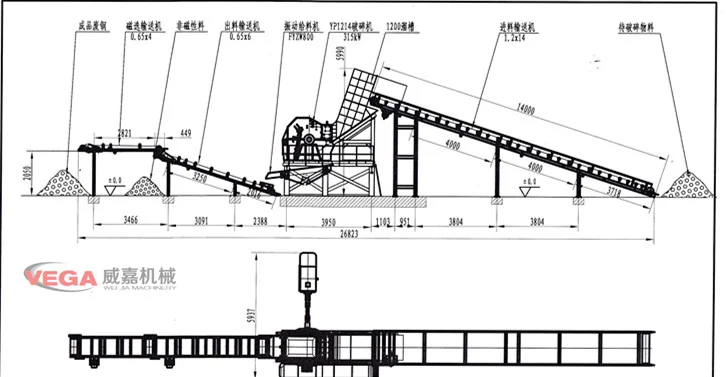

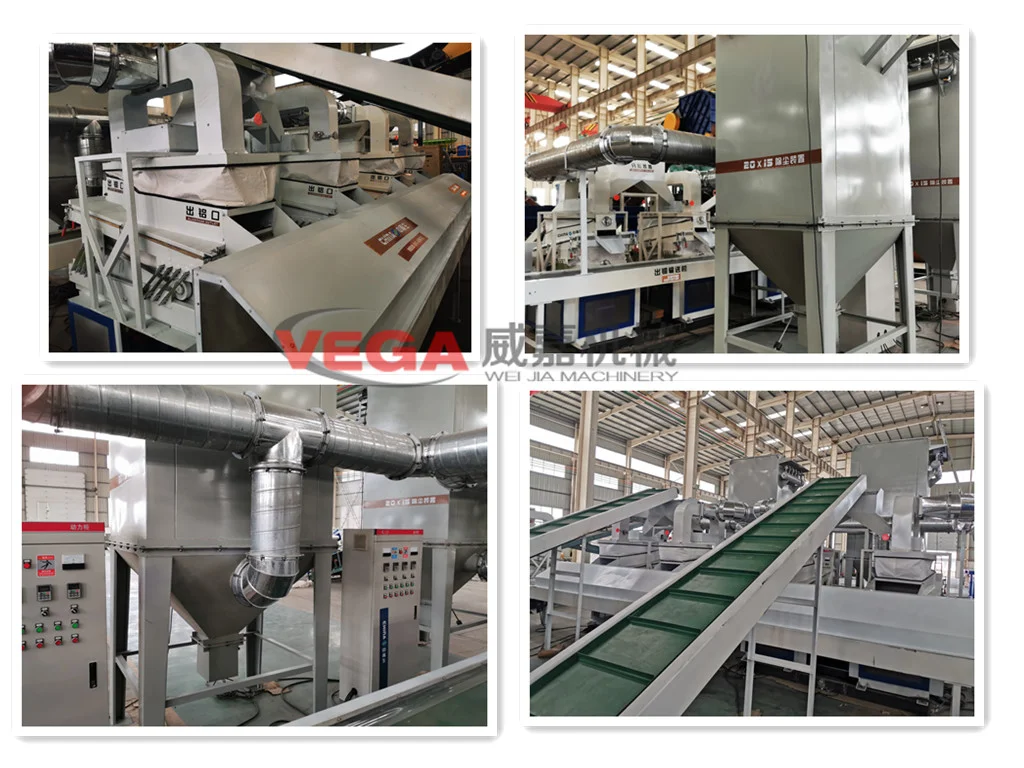

For the whole set of equipment, the raw materials need to be smashed by a shredder, which can be smashed twice by a heavy-duty transport machine, separated by a copper-aluminum separator, and includes equipment such as dust removal.
Different models and sizes
Model
Bandwidth
Motor power（KW）
size （ MM）
weight （KG）
SC-30
300
3.2
2080*1117*1285
900
SC-40
460
4
3760*1357*1285
1100
SC-65
650
6
3760*1650*1285
2000
Packing&Shipping
FAQ
Kindly let me know the following answer from you if you have any inquiry: 1 What's your exactly feed material ? 2 Capacity you need per hour? 3 Any requirments of the output size/shape? 4 Any limited of your voltage? 5 Any photos of raw material will be help us a lot.
