Размагничивающий промышленный маленький 12V DC удерживающий электромагнитный Круглый Магнитный
- Категория: Lifting Magnets >>>
- Поставщик: Guangzhou,Sary,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.34 $* | 6.42 $* |
| Jul-16-2025 | 5.82 $* | 5.10 $* |
| Jun-16-2025 | 6.71 $* | 6.3 $* |
| May-16-2025 | 6.53 $* | 6.86 $* |
| Apr-16-2025 | 5.28 $* | 5.55 $* |
| Mar-16-2025 | 6.1 $* | 6.94 $* |
| Feb-16-2025 | 6.81 $* | 6.78 $* |
| Jan-16-2025 | 6.73 $* | 6.67 $* |
Характеристики
Instructions for use ：
Electromagnets must meet the following conditions to achieve maximum suction:
1 、 The object to be sucked in must have good magnetic permeability.
2 、 Correct use of power supply, rated voltage.
3 、 The object to be sucked must be flat and clean.
4 、 The object to be sucked must be larger than or equal to the surface of the magnet
5 、 The object to be sucked must be larger than 8mm. (As the thickness decreases, the suction decreases)
6 、 The object to be sucked in must close, the middle cannot be interspersed with objects or gaps
!!! Contrary to all conditions, the suction will be reduced, not the maximum suction. !!! Please pay attention when you want to buy. Refused to dispute at your own risk.

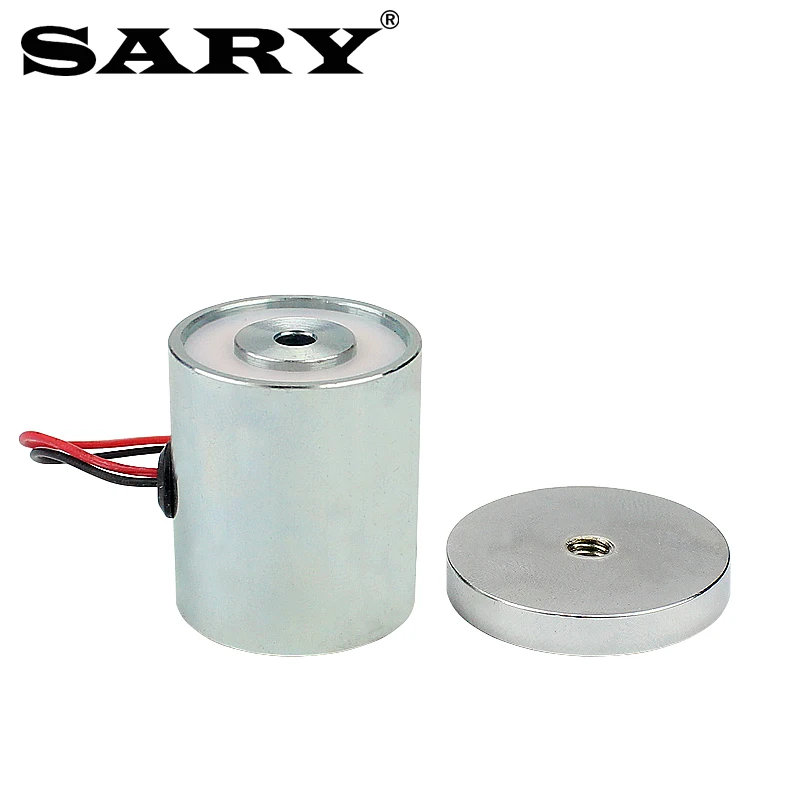

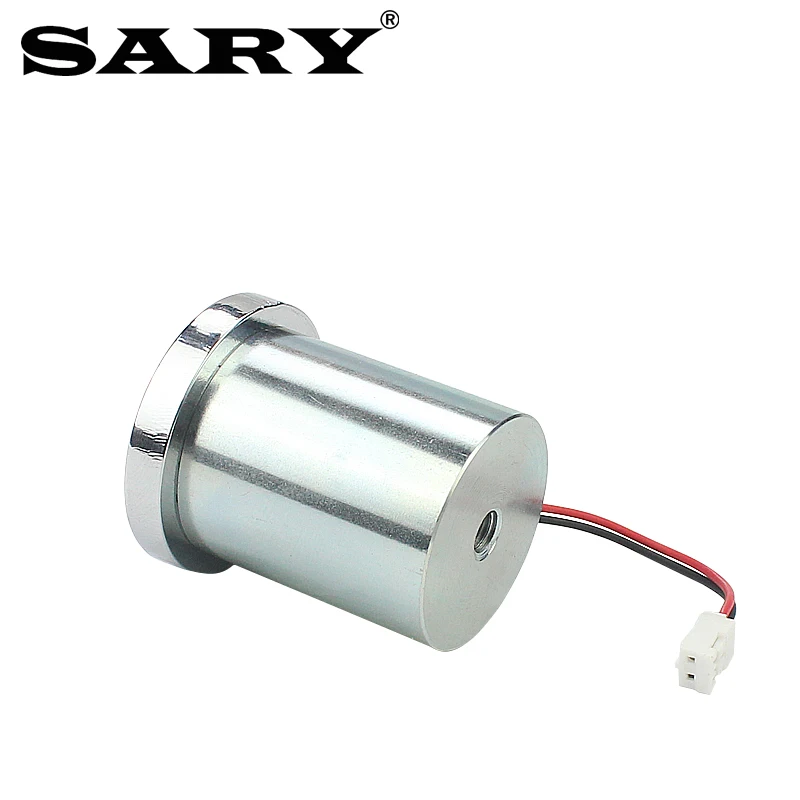

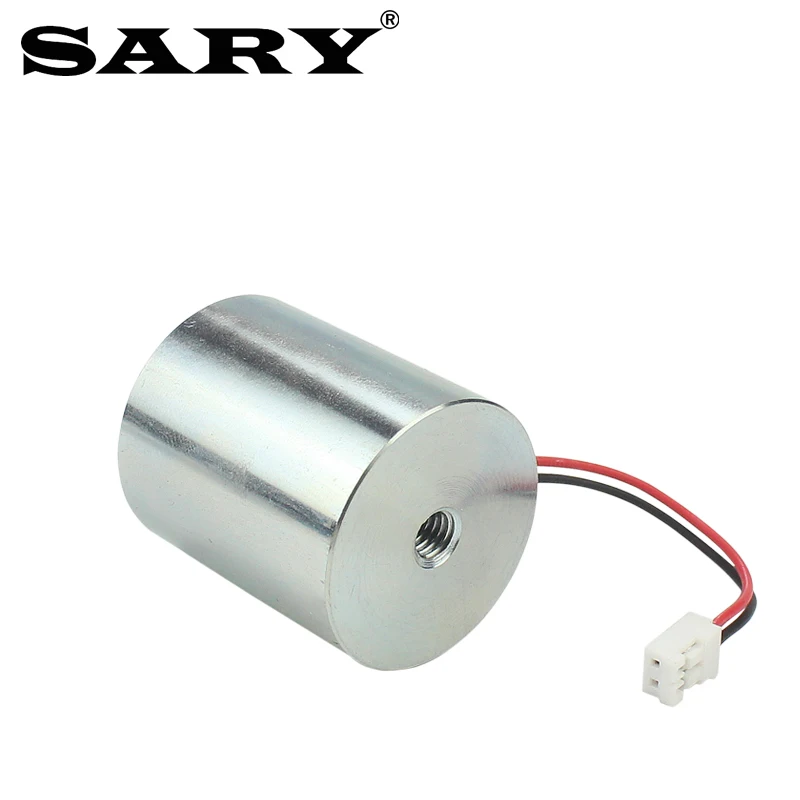

Model: LY-2529
Input voltage: DC 12 V /0.6A
Power consumption: 7.2W
Holding force: 7KG / 70N
Operating mode: no magnetic force when the power is on, magnetic force when the power is off
Material: metal
Color: Silvery
Diameter: 25mm
Center diameter: 12mm
Height: 29mm
Thread size: M5
Electric lifting magnet.
Powerful and compact.
Smooth and flat surface.
Low consumption and reliable.
Ambient temperature within 130 degrees.
Widely used in automations: assembly line, sorting machine, mechanical arm, experimental plant, etc
Electromagnet in working state electromagnetic would produce a certain amount of heat, electricity more often the higher temperature, which is a normal phenomenon.
Connection method:
the red wire is connected to the negative pole of the power supply, and the black wire is connected to the positive pole of the power supply
