Характеристики





back part moulding machine
counter molding machine
shoe backpart moulding machine

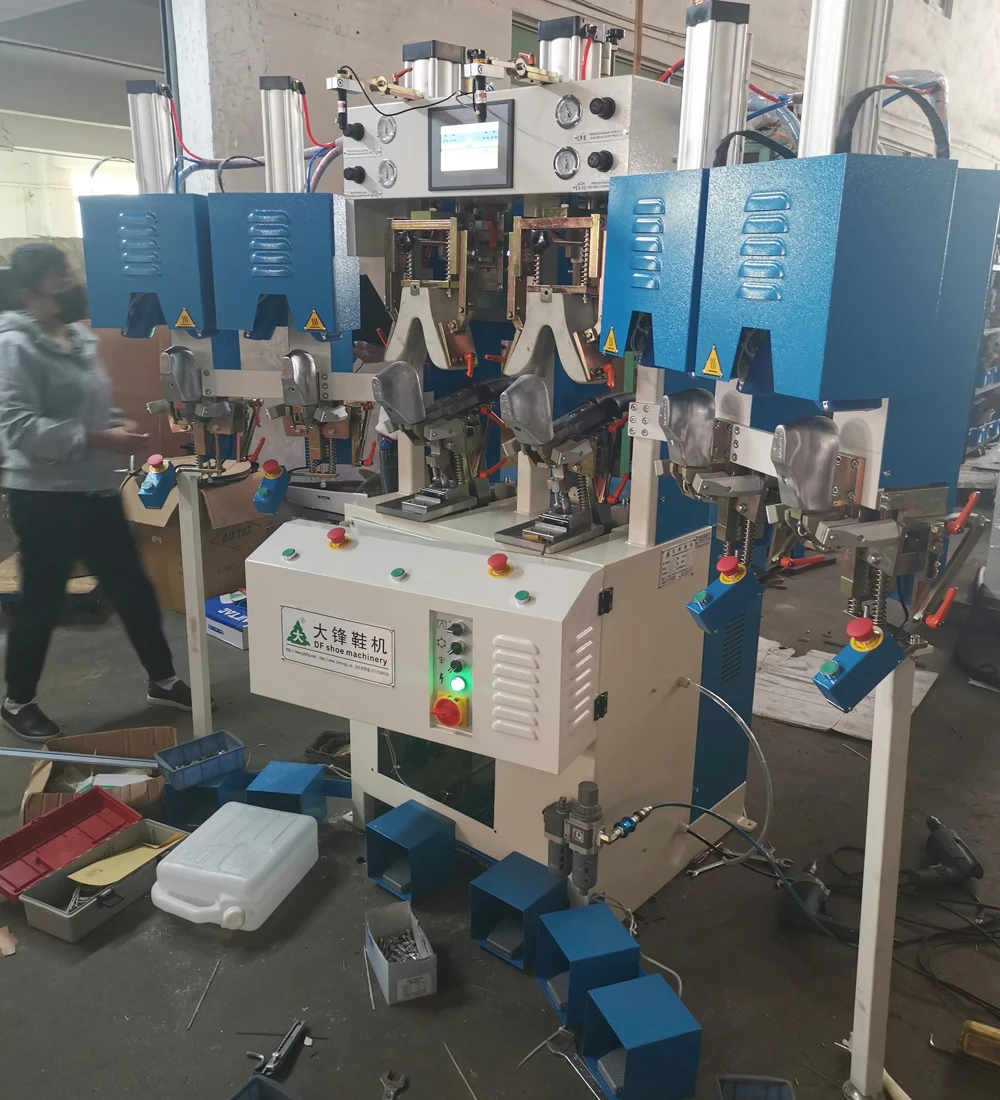

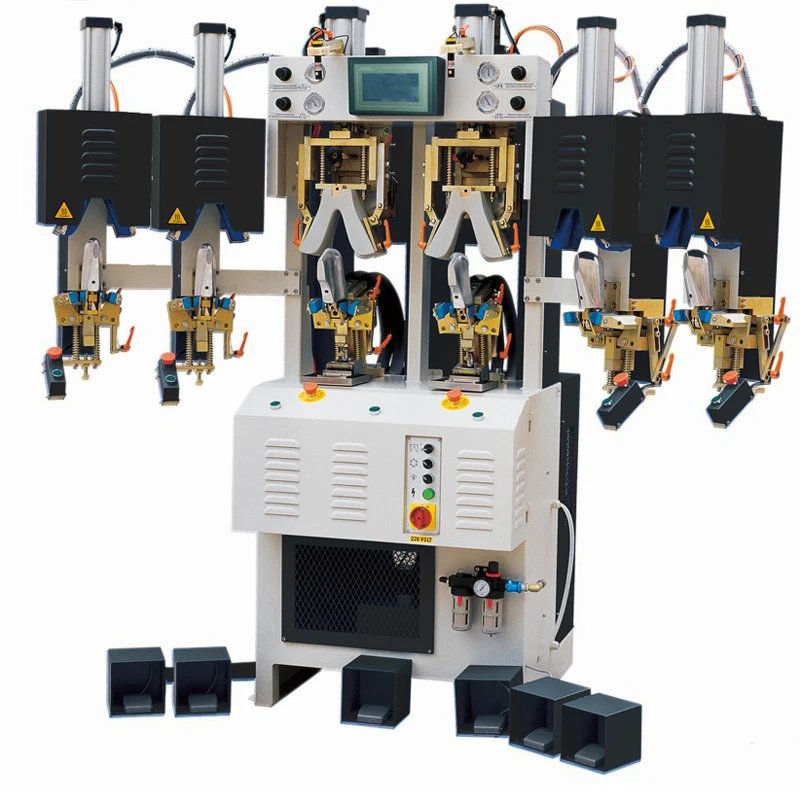

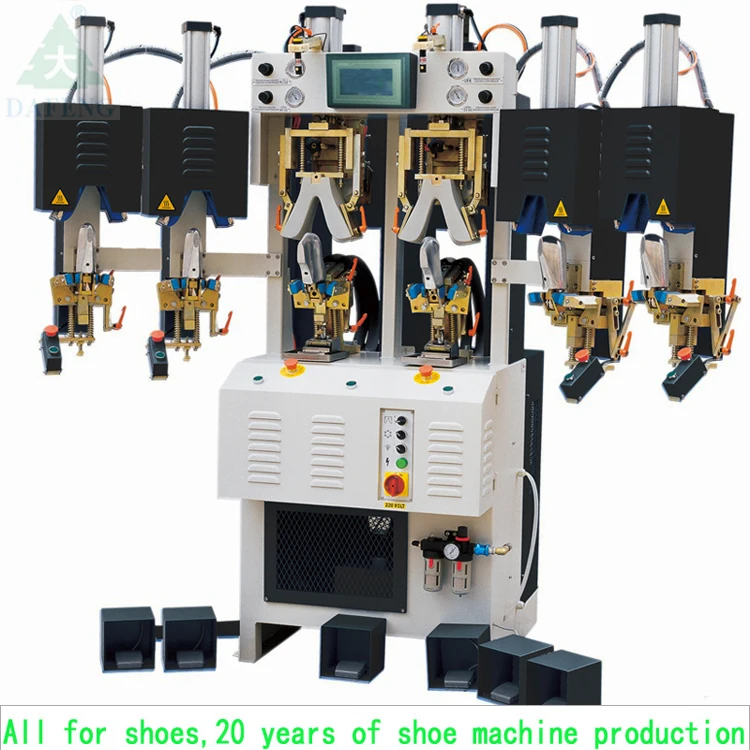

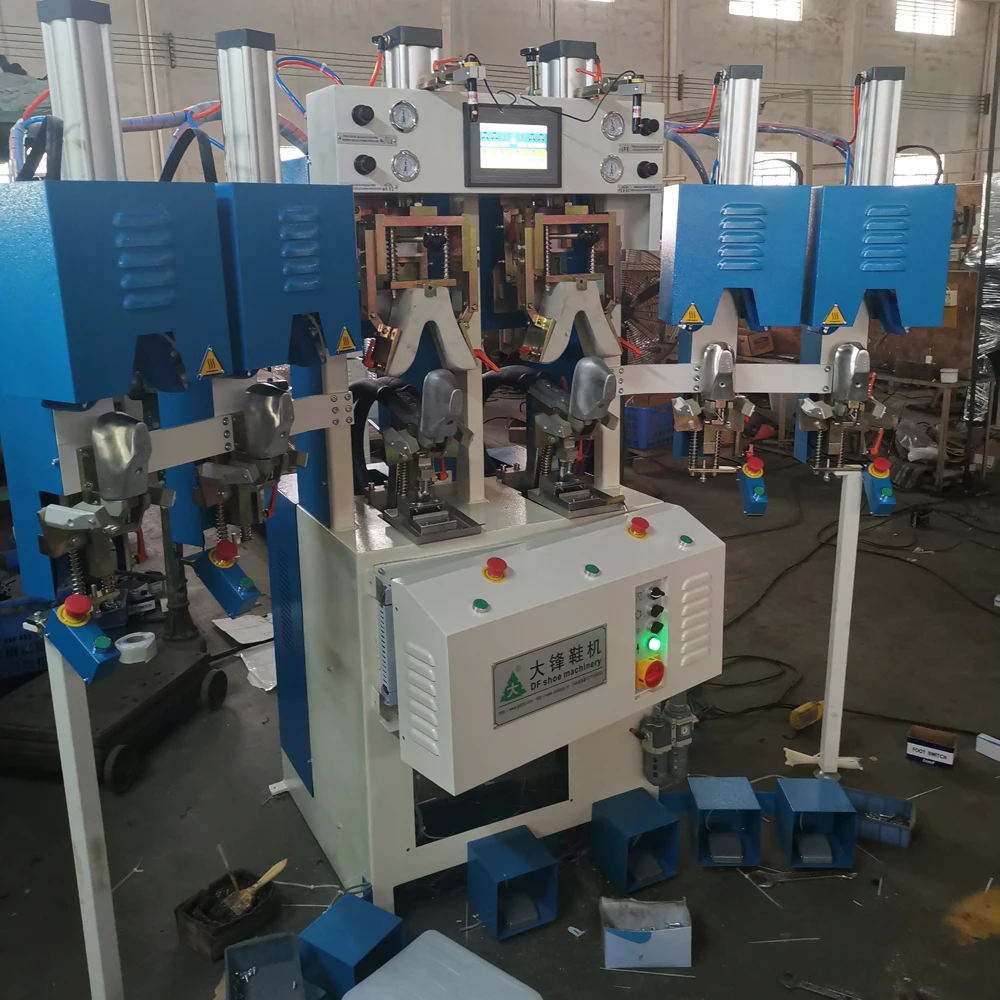

two cold and four hot shoe backpart counter moulding machine
In order to meet customers' request, we offer this new counter moulding machine. The ALFA 202 is with two pre-heated stations plus two cold stations. Equipped with chilled moulds and plates for folding over seat edges for standard flat lasting, but with possibility to change working upper to deal or good year flanging in very short time. Only need to change the flanging wipers,this machine has a special mechinical quick change support and select the specific process on the control panel. Mod. ALFA 202 machine keeps features of mod .684CF2HP that is:
◆Control panel introduce any kind of set data values of machine cycle, hot and cold mould temperature and also receive warning in case of malfunctions.
◆Cold moulds are always made with the shape of customers' sample last.
◆Complete adjustment for outer and inner moulds, flanging wipers and pincer gives the possibility to use of baby size to men size including skating boots.
◆Optical projector or pneumatic positioning upper equip with wipers for molds.
◆The operating cycle is marked by the column moving up to the rubber cushion, then it gets close to make closing wiper movement and ironing over seat edges. Mod. AIFA 202 is a complete machine with full fanction. Including wipers for normal shoe and working shoe.
◆Two stations are equipped with heated moulds and plates for folding over seat edges .
◆Four stations are equipped with chilled moulds and plates for folding over seat edges plus two pre-heated stations with upper pulling pincers.
◆Safety photoelectric switch system.
◆Independent pre-heated station with upper pulling switch


MODEL
Dimensions(LWH)
Packing size(LWH)
Weight
Production
Power
Voltage
DF-863B
 900X2050X2000mm
 1000X2150X2250mm
820KG
2200Pairs/8H
3.2kw
220v


shoe machine application




shoe manufacturing process






Why Choose Us




Company Profile


About us-Professional shoe machine manufacturer
Guang dong Da feng shoe making machine since the date of the establishment,Uphold the "integrity, quality, service,communication"principle, To continue to meet the real needs of target customers, The true mission of customer satisfaction,Forgeahead and Intentions, Force Venture Street brand shoes, Service.
Da feng shoe making machine is a research and development, production, sales, service, agent for the integrated company, Products covered Measuring machine,folding machine,splitting machine,toe lasting machine, Vacuum vulcanizing forming machine ,upper binding machine,attaching machine,nailing machine,heat setter,chilling machine,molding machine,steaming machine,pounding machine,bootleg flattening machine,upper flatten machine,cutting machine,NIR conveyor Etc. And provide Mold, Accessories Etc。
We Can provide the relevant equipment, technical guidance, staff training, service, material supply and other services
Thank customers for their support and concern ,Da feng shoes machinery will be a more reasonable price, Better quality, Better services, And you work together to create brilliant.





project case




FAQ


Q1: Are you factory or trading company?
A1: We are factory with 18 years experience in producing shoe machines.
Q2: What is your MOQ of your Product?
A2: MOQ is 1 set.
Q3: What's your payment term?
A3: We accept TT advance payment, CAD or DP through bank, or Letter of Credit .
Q4: What's your after-sales service?
A4: All machines has one year warranty service, any parts damaged (except easy wearing or electronic parts used over 3 months) can be claimed from us. We have exclusive agents and local technical team in India,Vietnam, Bangladesh, Cambodia etc more than 8 countries , every single customer has their communication group chat through whatsapp or wechat with our sales and technicians, any machine problem will be promptly replied. For complete line
project, we offer the global installation service to make sure your project starts successfully.
Q5: What is the product package?
A5: To be packed in wooden case or pallet, suitable for long distance shipment and adaptation to climate change, well protected against moisture and shocks.
Q6: Do you test all your goods before delivery?
A6: Yes, our procedure is to pass the QC check 100% before delivery.
Q7:Why can i trust you and place order with you?
A7: Our company established since 2005, so far we have served more than 2000 clients from more than 40 ountries/areas, cooperate with many famous brand like Nike, Adidas, Hush Puppies, Lotto,Zara, H&M etc. We are awarded china Top 10 shoe machine manufacturer, DAFENG offer complete solution for More than 200 shoe factories, well-know for the quality and service.
