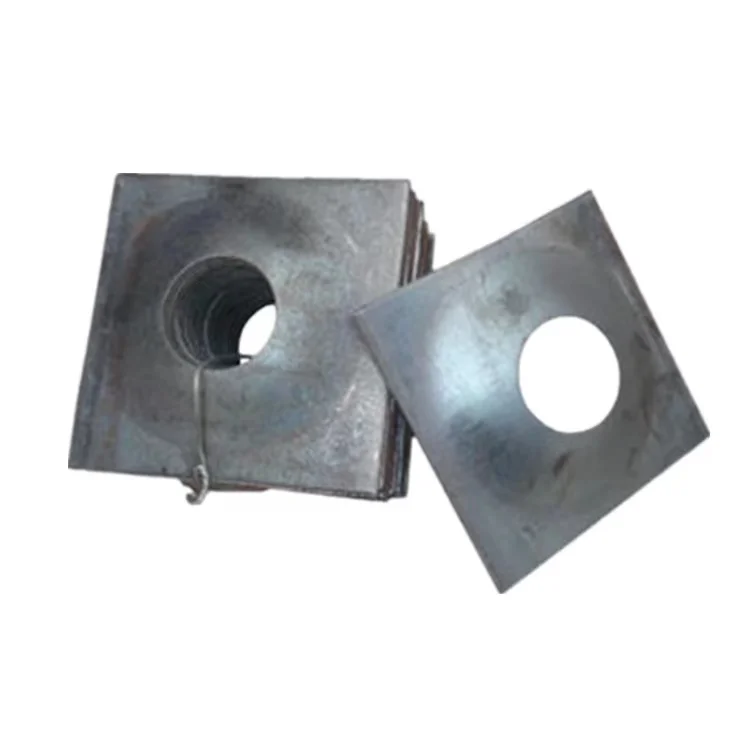

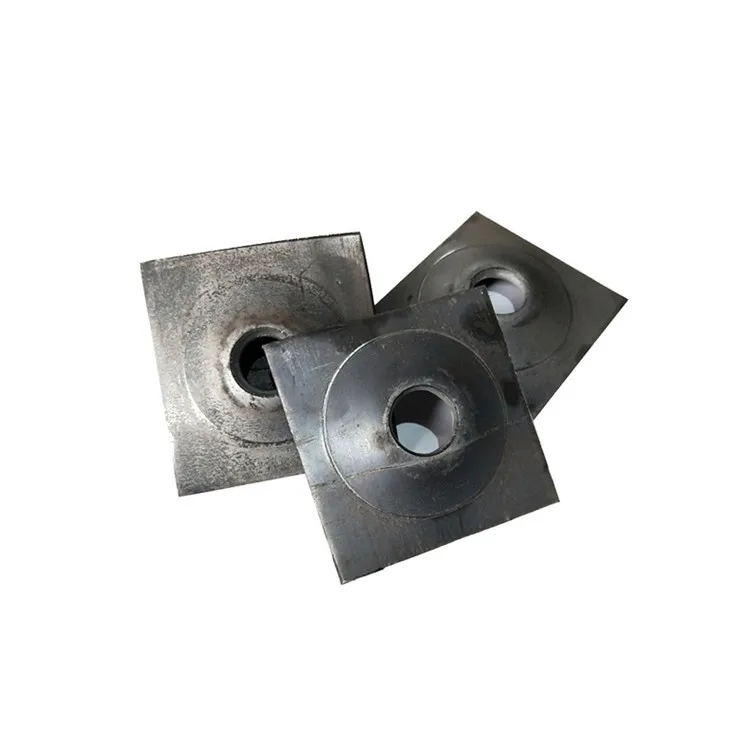

Кровельная опорная фрикционная Болтовая установка стальная купольная пластина для подземной

Описание и отзывы

Трекер стоимости

Характеристики











Dia.	33mm	39mm	42mm	47mm
Thickness	2.5mm	2.5mm	2.5mm	3.0mm
Ring Dia.	6mm	6.5mm	7.0mm	7.5mm
Slot Size	10mm	15mm	17mm	20mm
Min.Yield Strength	78Kn	88Kn	95Kn	124Kn
Min.breaking Strength	103Kn	116Kn	123Kn	160Kn
Max.Breaking Strength	117Kn	132Kn	140Kn	186Kn
Elongation	>16%	>16%	16%	16%
Anchoring	4-7tons	5-8tons	5-8tons	6-12tons
Domed Plate	150*150*4mm	150*150*4mm	150*150*5mm	150*150*5mm



Split Set rock bolts (friction bolts) are manufactured to a highest standard of quality.

Rigid standards of quality are achieved by exhaustive quality control,

testing and inspection procedures. Detailed drawings specify materials, dimensions, and tolerances.

Every Split Set is identified with model number, length, factory, rolling date, and heat lot of the steel.









































Friction anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles,

its also widely used in the railway system, metro project, etc. It can be installed in sites with weak rocks,

loose soil, weathered layer, sand with stone layer and so difficult to create a hole in complex formations.





]
