Фабрика 8-канальный сетевой видеорегистратор 1080P AHD камера автомобиля DVR CCTV MDVR 2 ТБ HDD запись GPS 4G/такси/автобус камеры системы Мобильный


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.35 $* 0.72 $*
Aug-18-2025 0.38 $* 0.19 $*
Jul-18-2025 0.74 $* 0.82 $*
Jun-18-2025 0.92 $* 0.41 $*
May-18-2025 0.5 $* 0.0 $*
Apr-18-2025 0.61 $* 0.47 $*
Mar-18-2025 0.69 $* 0.7 $*
Feb-18-2025 0.0 $* 0.69 $*
Jan-18-2025 0.79 $* 0.78 $*

Характеристики



Product Description

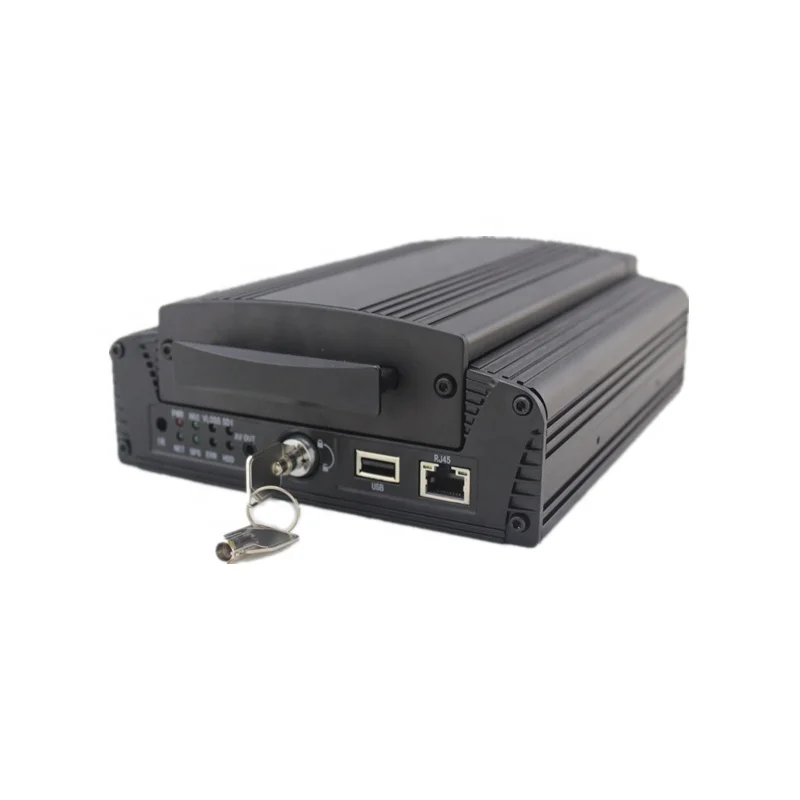

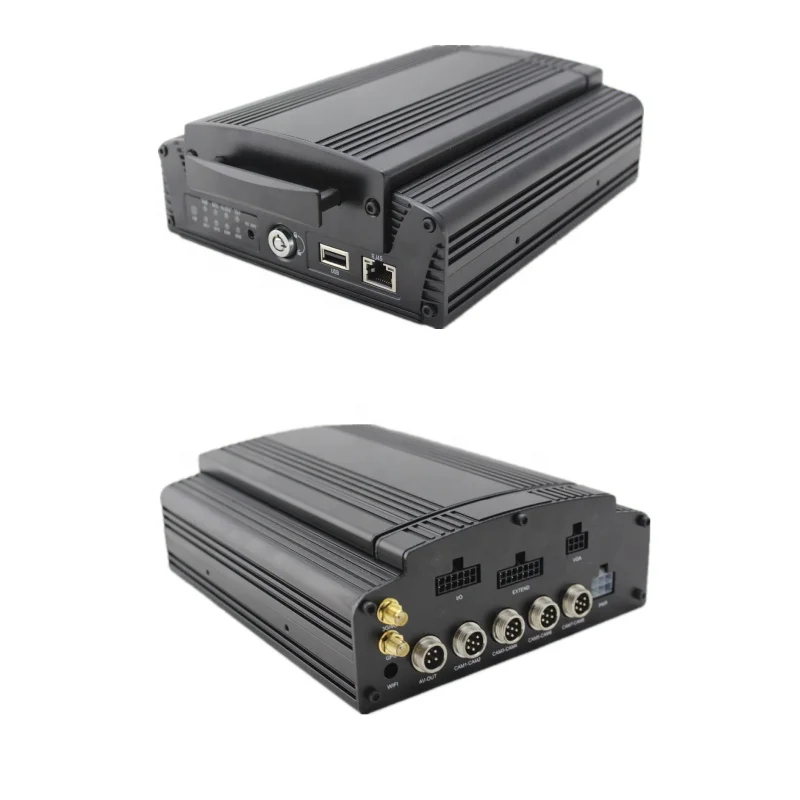

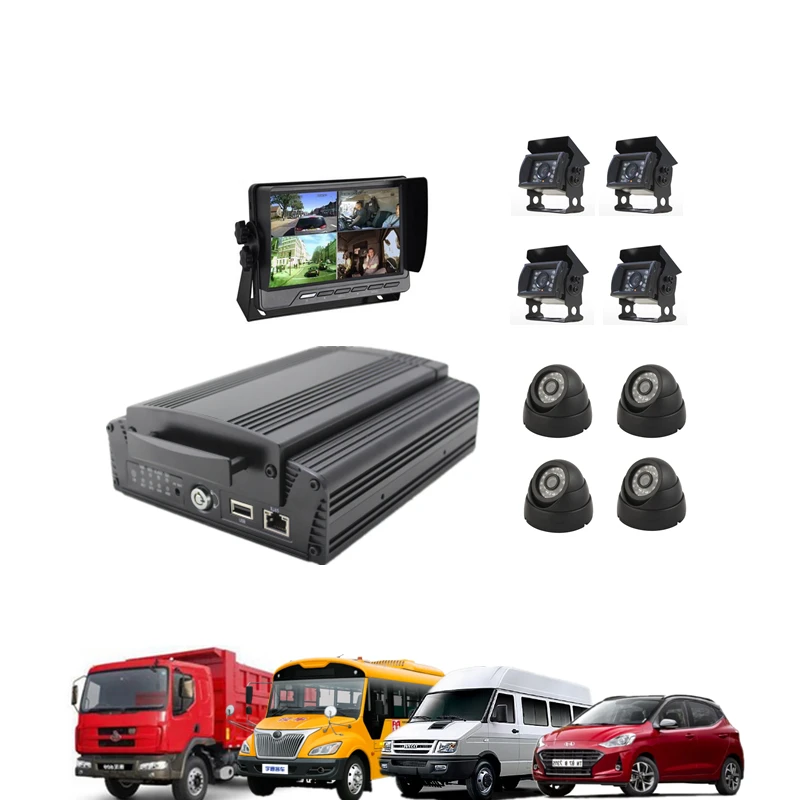

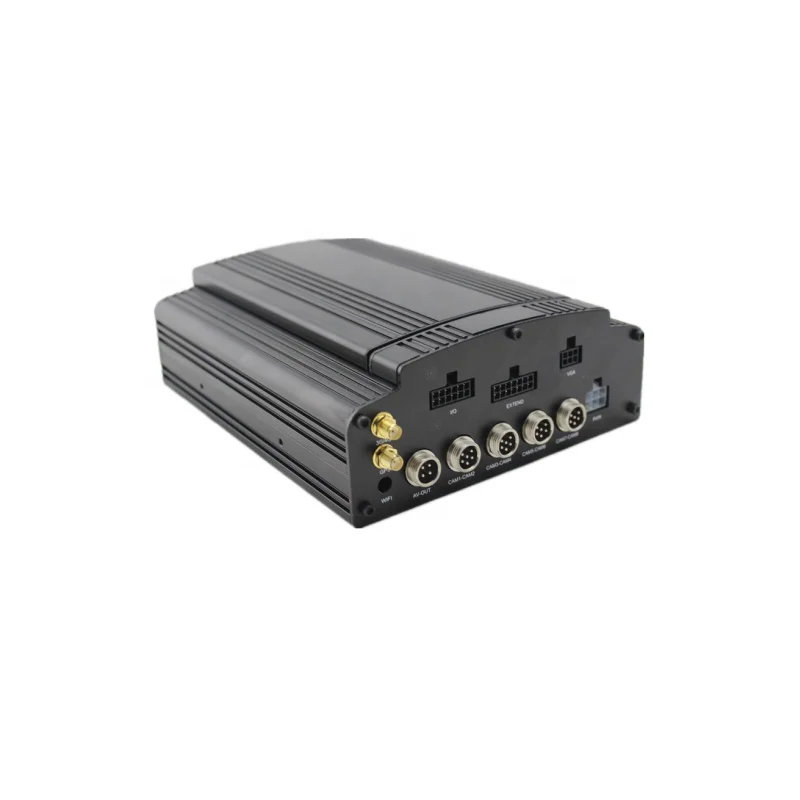

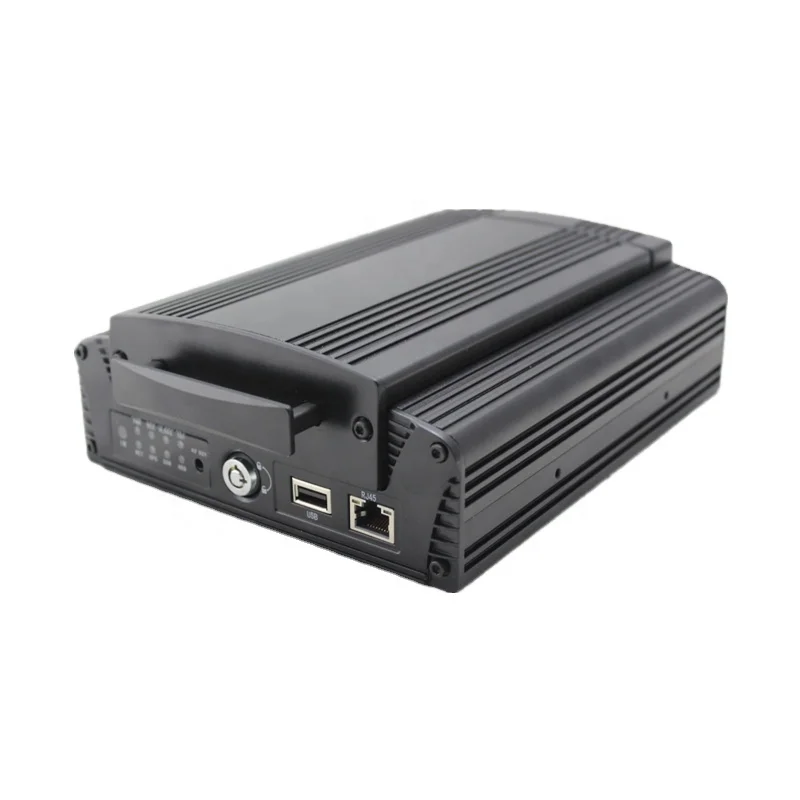

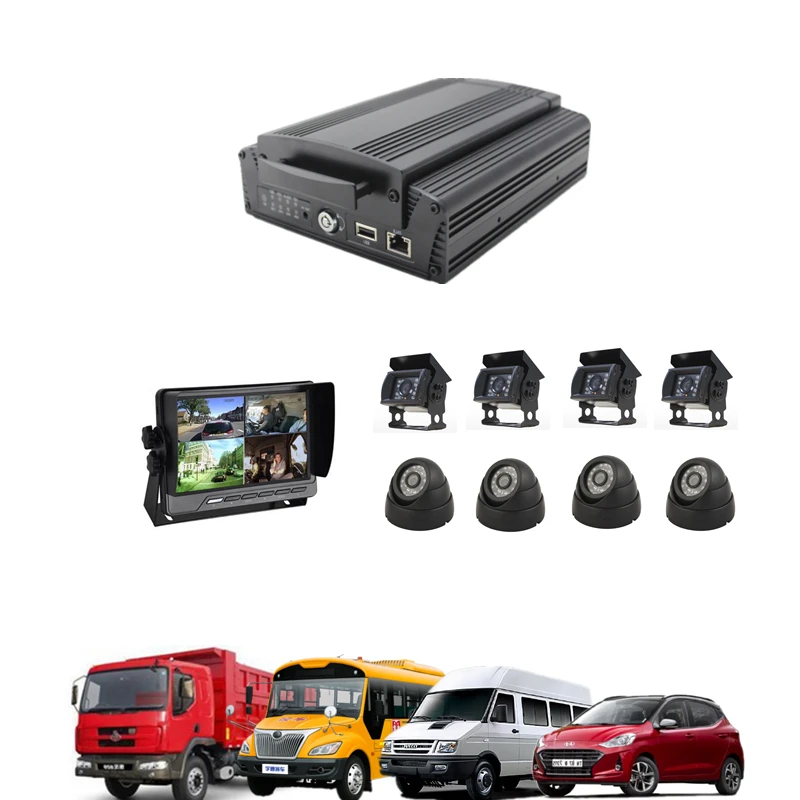

Factory 4 Channel 1080P HD Car Special Vehicle CCTV MDVR 2TB HDD Recording GPS 4G WiFi Truck Camera System Car Mobile DVR Set



HIS Solution,H.264 Compression,support 8ch 1080P AHD input.
Hybrid DVR ,8 channel AHD input,CVI,TVI or CVBS optional
Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
10-36V wide voltage with low power consumption.
Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.HDD+SD Card Storage ( Support
Max 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
Support HDD heating functions,can work in harsh environment.
Support GPS/BD/G-Sensor Extension module;
Realize real time monitor through 3G/4G;
Support to connect OBD on the vehicles
Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
Support IOS/Android Phone Remote monitor


Specification


Item
Parameter
OS
Linux
Language
English/Chinese/Customized
Video Compression
H.264 Compression
OSD
Overlays information such as date time and vehicle ID
GUI
Graphical User Interface
Setup system parameters with the remote control.
Video Record
System
Video Input
8CH AHD input,CVI,TVI or CVBS
aviation connector, 1.0Vp-p, 75Ω
Video Onput
1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
Preview
Support 1 channel and 4 channels preview.,
Support Manual/Alarm Trigger full screen preview
Resolution
1080P/720P/D1/HD1/CIF, MAX:8 channels of 1080P
Image Quality
0-7 levels, 0 is the highest level.
Video Standard
PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
1080P:4Mbps-8Mbps,multi level video quality optional
Record Mode
The default setting is auto recording after power on.
Timed recording, alarm trigger recording and manual recording are supported.
Audio
Audio Input
8CH Aviation Plug Input
Audio Output
2CH,headphone connect at front panel, BNC Connect on Back panel
Compression
G.726 compression, 8KB/s speed
Alarm Input
6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output
2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera
Wireless Transmission
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;
Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Position
Support Built GPS/BD Module
HDD
Max 2.5” 2TB HDD
Storage
SD Card
Max 128GB SD Card Mirror Recording Keep Data Safety
Update
Support USB Updating, SD Card Updating,OTA Remote Updating
File Format
H.264
File System
Special FAT32 File System
USB
USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay
Video Search
Search By Record Time/Record Type etc
Playback
Max support 4CH Replay /Stop/Fast/Slow at same time
Support forward and backward play at the speed of: x 2,x4,x8,x16.
Security
User/Admin 2 Level Different Password
Optional Functions
Voice Call
Support voice call each other
TTS Voice Broadcast
Support TTS voice broadcast function.
Serial Expand
Support LED Advertisement Panel,Oil Sensor,
POS,Bus Station Broadcaster,Car OBD,ect.external device
Voltage & Power
Power Management
Wide Voltage.Support Timed/Delay off
Input Voltage
DC:+10V - +36V
Output Voltage
+12V~1.5A,+5V~1.5A
Power
Working <5W
Working Environment
Temperature
-20℃ - +70℃
Humidity
20% - 80%
Ohters
Size
218 (D)* 161(W)* 65(H) mm
Net Weight
2.2 Kg




Packing & Delivery




Company Profile








Recoda is one of the most professional vehicle surveillance system developer & manufacturer in china nowadays.

RECODA specializing in R&D, manufacturing and distribution of mobile DVR for bus , taxi , truck ,Vans,police Car... Vehicle Cameras,Vehicle PTZ cameras,Police portable DVR and other Auto accessories.
Aiming at the great potential civil security and surveillance market, Recoda considers customers diverse requirements in designing, manufacturing, inspection and delivery. Currently, all our products are exported to America, Europe and other Asian countries.

Shenzhen Recoda owns a strong R&D team with over 10 years developing experience and over 8 years professional knowledge, We have a highly dynamics and innovative engineering team committed to the breakthrough on the surveillance technology and full trained technical staff for back up, support and provide, a speedy and reliable after sale service to the customer products.

RECODA has approved with Europen CE and ROHS ,US FCC ,IEC Security test .we also in strict with ROHS standard during manufacturing

Our ultimate goal is to provide superior Total Solution for Surveillance System with powerful features. we guarantee punctual delivery, competitive price and prompt response. We welcome your any inquiries and look forward to establishing long-term good business relation with you in the future.




FAQ


1. who are we?
We are based in Guabgdong, China, start from 2009,sell to Southeast Asia(15.00%),South America(13.00%),Eastern Europe(12.00%),Western Europe(10.00%),South Asia(8.00%),Domestic Market(8.00%),Mid East(7.00%),Africa(6.00%),North America(5.00%),Eastern Asia(5.00%),Oceania(3.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Body Worn Camera,Body Camera Docking Station,Vehicle Camera,Vehicle PTZ Camera,Mobile DVR

4. why should you buy from us not from other suppliers?
Focus on development and manufacture of mobile DVR and body cameras for 10 years, have 50,000 systems installed all over the world.
We welcome customized requirements on software and firmware

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
