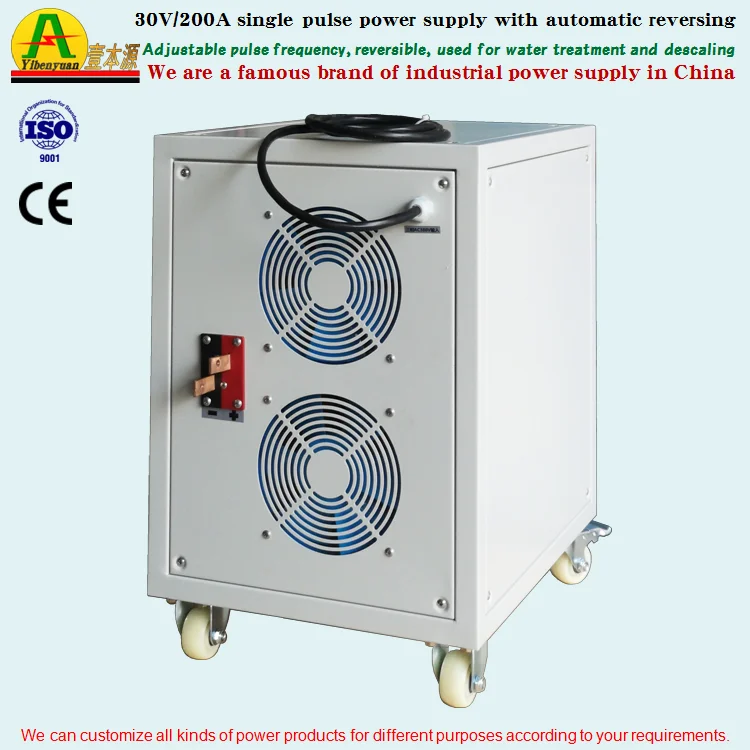

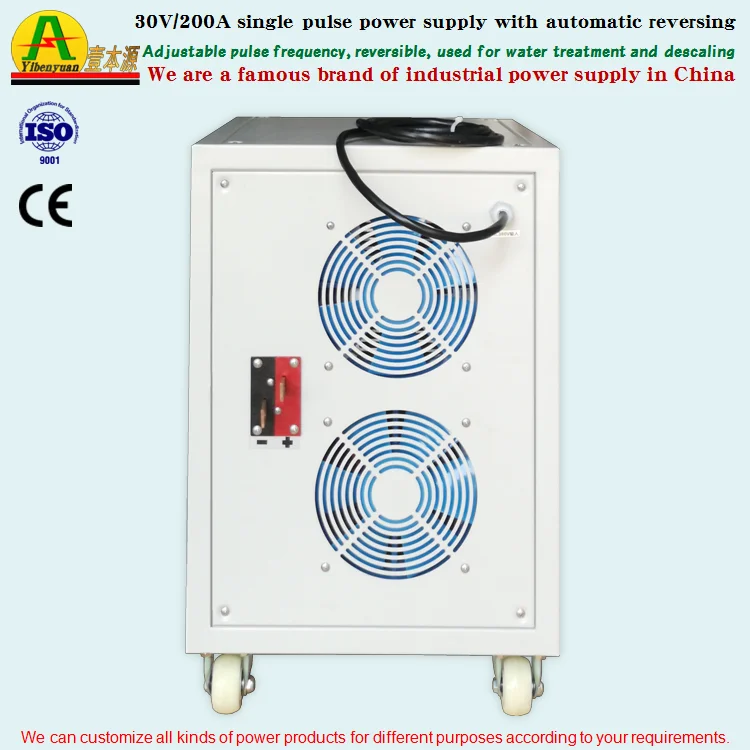

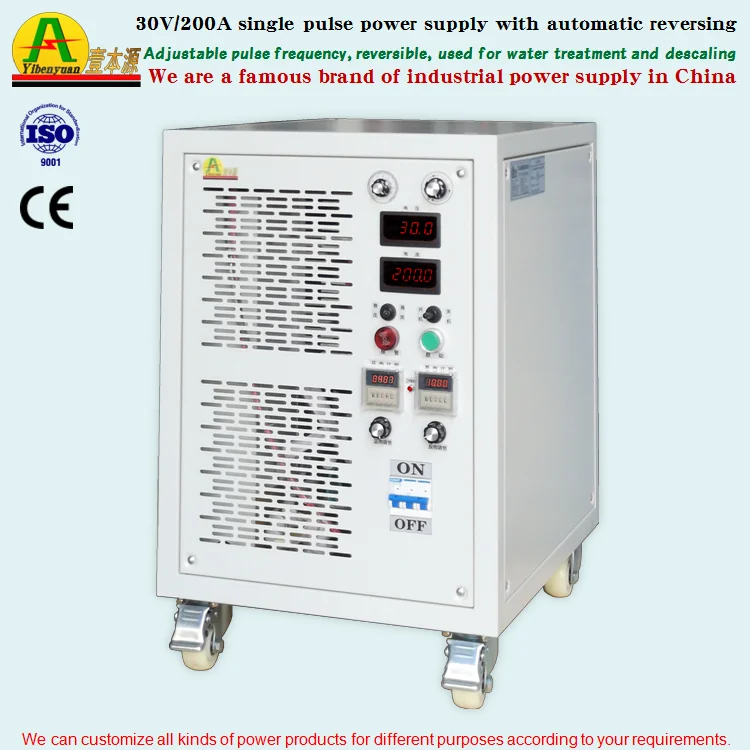

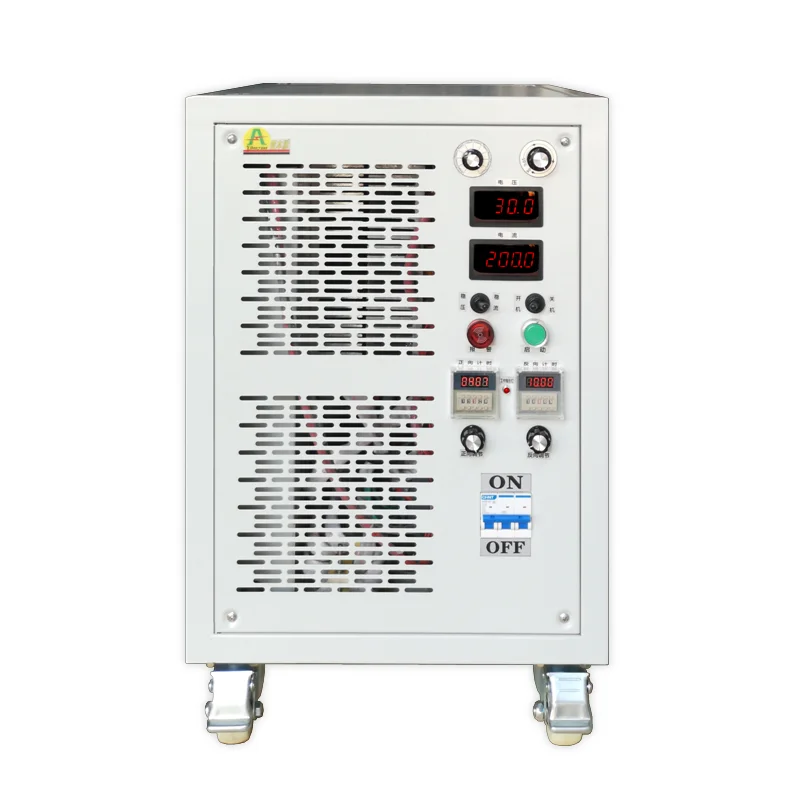

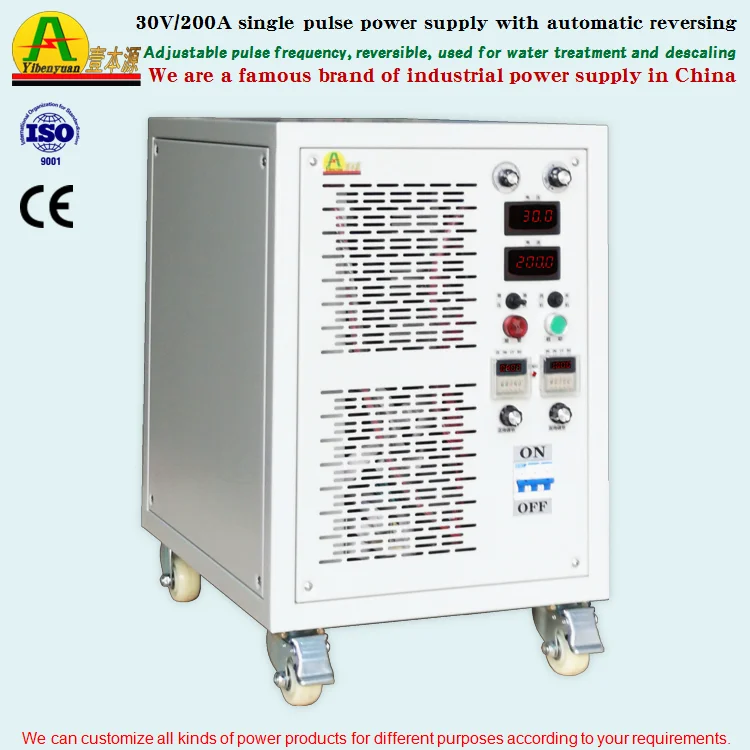

30V200A single pulse power supply, 25V300A with automatic commutation DC pulse power supply for sewage treatment and descaling























30V200A single pulse power supply, 25V300A with automatic commutation DC pulse power supply for sewage treatment and descaling

Scope of application:
Water treatment, descaling, electrolysis, electrochemistry, anodic oxidation, etc...
product description:
1. The product has a beautiful appearance, a firm structure, and the surface of the shell is sprayed with powder, which is firm and corrosion resistant. The bottom is equipped with rollers, which can be easily moved.
2. This power supply adopts the world's advanced control system PWM technology and a stable and reliable circuit topology design control circuit, and is controlled by German imported Infineon brand modules (IGBT). The main transformer is wound with nanocrystalline magnetic core and pure copper wire, which has good heat dissipation, sufficient power, low power consumption, long-lasting durability and stable performance. The main components such as the rectifier bridge and the rectifier tube are made of high-quality materials from all over the world.

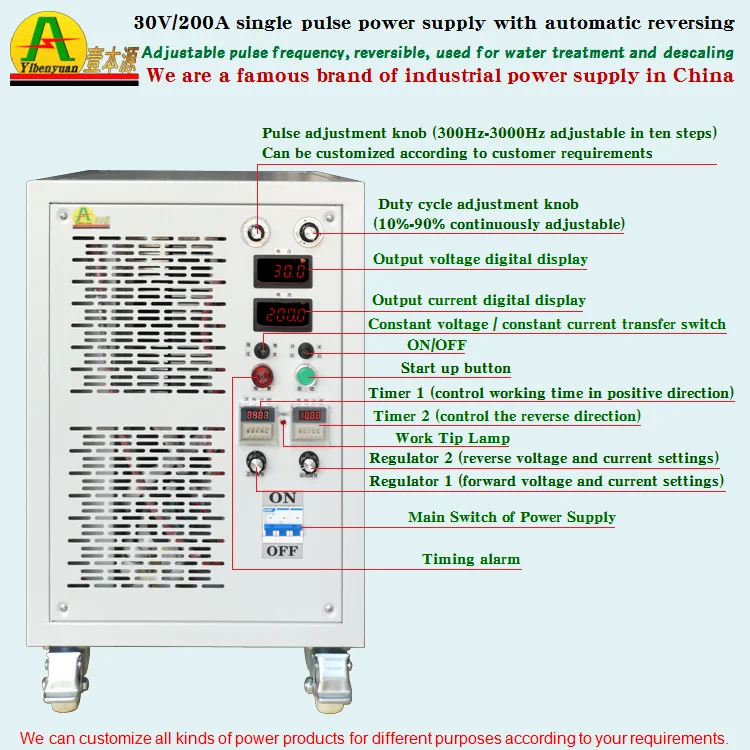

3. Constant voltage/constant current can be switched, voltage and current can be continuously adjusted from 0 to the maximum value. It has automatic protection functions for phase loss, overheating, overvoltage, overcurrent, short circuit and other faults.
4. This power supply adopts electronic commutation technology and is controlled by a timer. The power supply can automatically cycle forward and reverse according to the set time during operation. The power supply is a DC single pulse power supply, the pulse frequency is adjustable in ten levels from 300HZ to 3000HZ, and the duty cycle is continuously adjustable from 10% to 90%.
5. The internal control circuit board is completely sealed and strictly isolated from the environment to prevent acid mist or dust pollution, prevent short circuits caused by the entry of small insects, and greatly improve the safety and service life of the product.
6. The product uses generous materials, sufficient power, and large design margins for electronic components and important parts, which can ensure that the product can maintain full load and long-term continuous operation.
