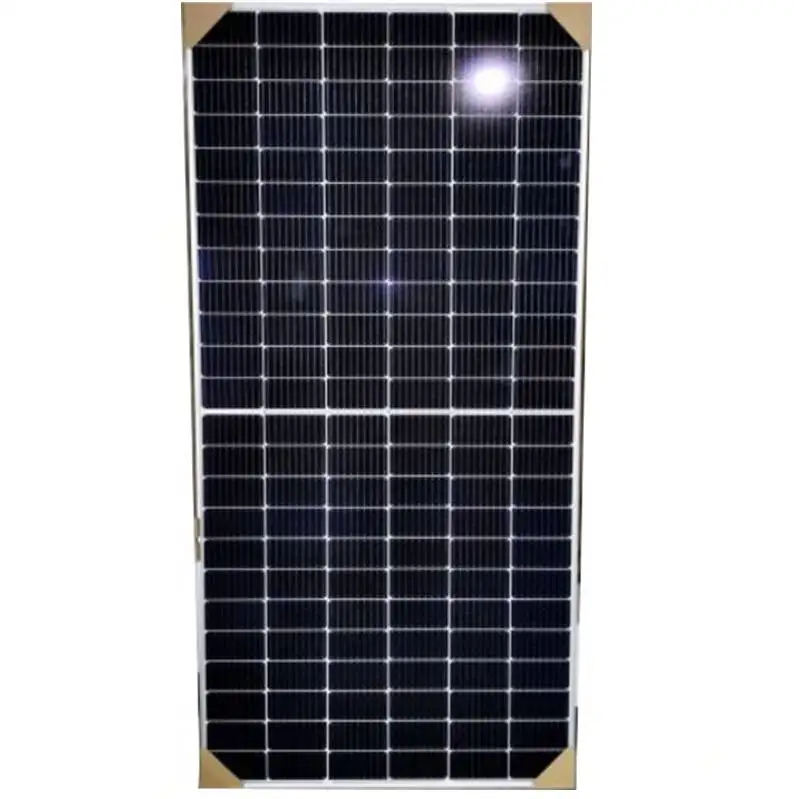

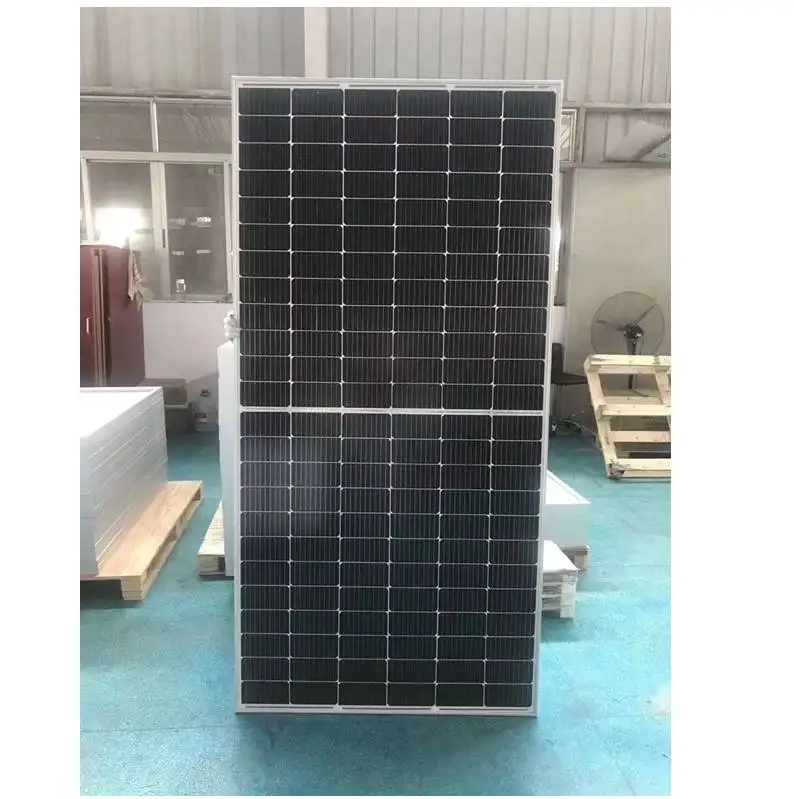

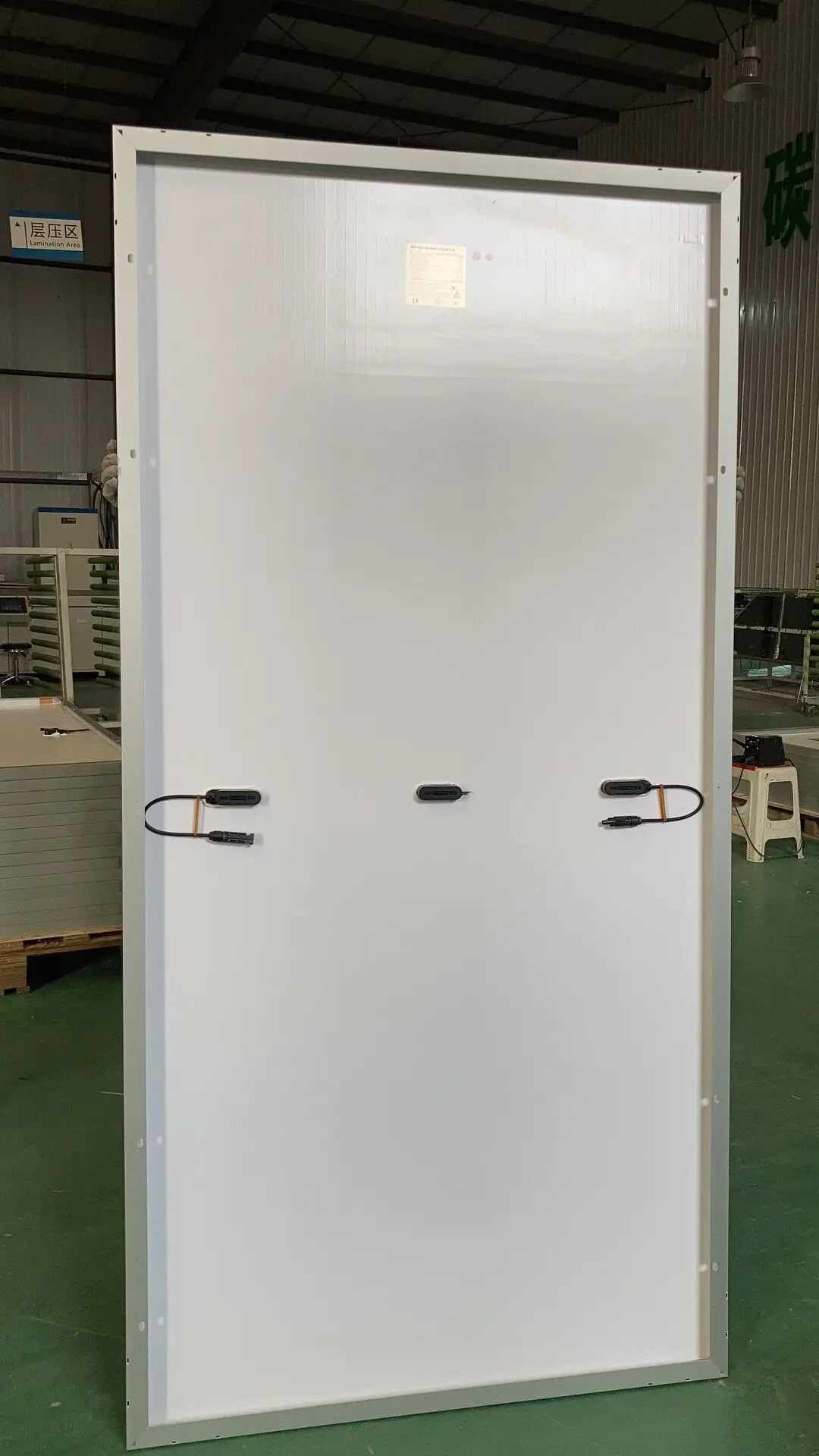

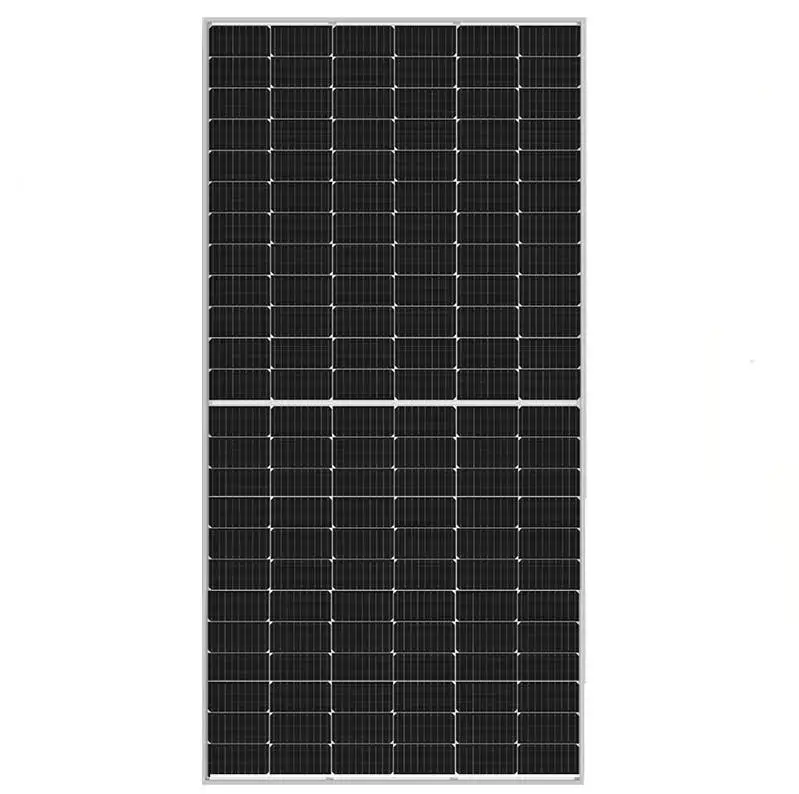

Низкая цена за ватт 440 Вт комплект солнечных панелей для
- Категория: Solar Panels >>>
- Поставщик: Tangshan,Jingxin,Science,And,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.52 $* | 0.35 $* |
| Aug-19-2025 | 0.29 $* | 0.63 $* |
| Jul-19-2025 | 0.19 $* | 0.91 $* |
| Jun-19-2025 | 0.94 $* | 0.89 $* |
| May-19-2025 | 0.29 $* | 0.38 $* |
| Apr-19-2025 | 0.19 $* | 0.91 $* |
| Mar-19-2025 | 0.97 $* | 0.93 $* |
| Feb-19-2025 | 0.14 $* | 0.84 $* |
| Jan-19-2025 | 0.74 $* | 0.75 $* |
Характеристики
| ELECTRICAL DATA(STC) | |||||
| Peak Power Watts-Pmax(Wp) | 430W | 435W | 440W | 445W | 450W |
| Power Output Tolerance-P MAX (W) | 0~+5W | ||||
| Maximum Power Voltage-V MPP (V) | 38.2 | 38.5 | 38.9 | 39.2 | 39.6 |
| Maximum Power Current-l MPP (A) | 11.25 | 11.30 | 11.31 | 11.35 | 11.36 |
| Open Circuit Voltage-VOC (V) | 46.98 | 47.35 | 47.85 | 48.21 | 48.71 |
| Short Circuit Current-l SC (A) | 12.04 | 12.09 | 12.10 | 12.15 | 12.16 |
| Module Efficiencyηm (%) | 19.4 | 19.6 | 19.8 | 20.1 | 20.3 |
| STC | Irradiance 1000w/m2,module temperature 25℃,air mass 1.5 | ||||
| TEMPERATURE RATINGS | |
| Nominal Operating Cell Temperature (NOCT) | 44℃(±2℃) |
| Temperature Coefficient of PMAX | - 0.39%/℃ |
| Temperature Coefficient of VOC | - 0.29%/℃ |
| Temperature Coefficient of ISC | 0.05%/℃ |
| MECHANICAL DATA | |
| Solar cells | Monocrystalline 166×83mm |
| Cell orientation | 144cells (6×24) |
| Module dimensions | 2108×1048×40mm |
| Weight | 26kgs |
Glass | 3.2mm (0.13 inches), HighTransmission, AR Coated Tempered Glass |
| Frame | Silver anodized alunnium alloy |
| Backsheet | White |
| J-Box | IP67 rated (3 or 6 diodes) |
| Cables | Photovoltaic Technology cable 4.0mm2 (0.006 inches2), 300mm (11.82 inches) |
| Connector | MC4 or MC4 Compatible |
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Tangshan city, Hebei province.Near Beijing and Tianjin.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Do you provide free sample?
A: Sorry, we can supply the sample,but it is not free charge.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do OEM.
5. Q: How about the package?
A: Plywooden box pallet or carton box pallet.
6. Q: Do you accept custom design on size and package?
A: Yes, if the size and package are reasonable.
