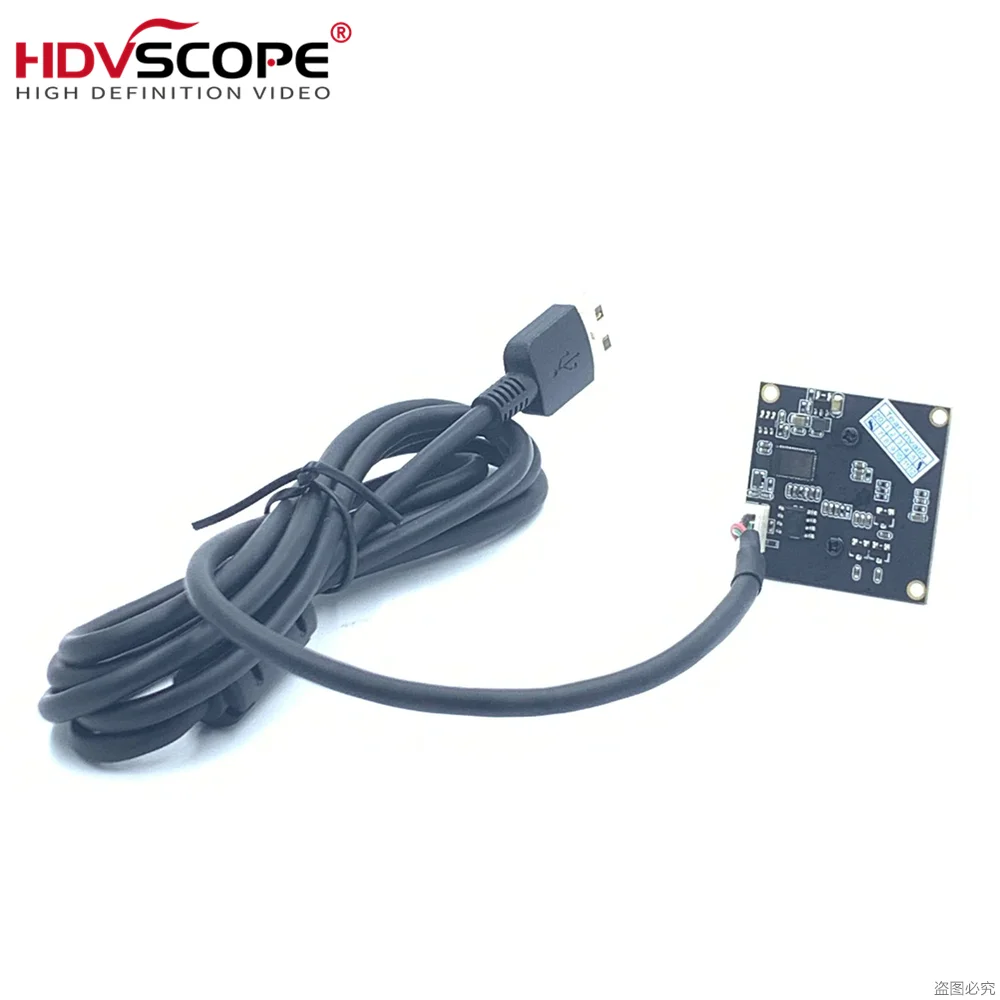

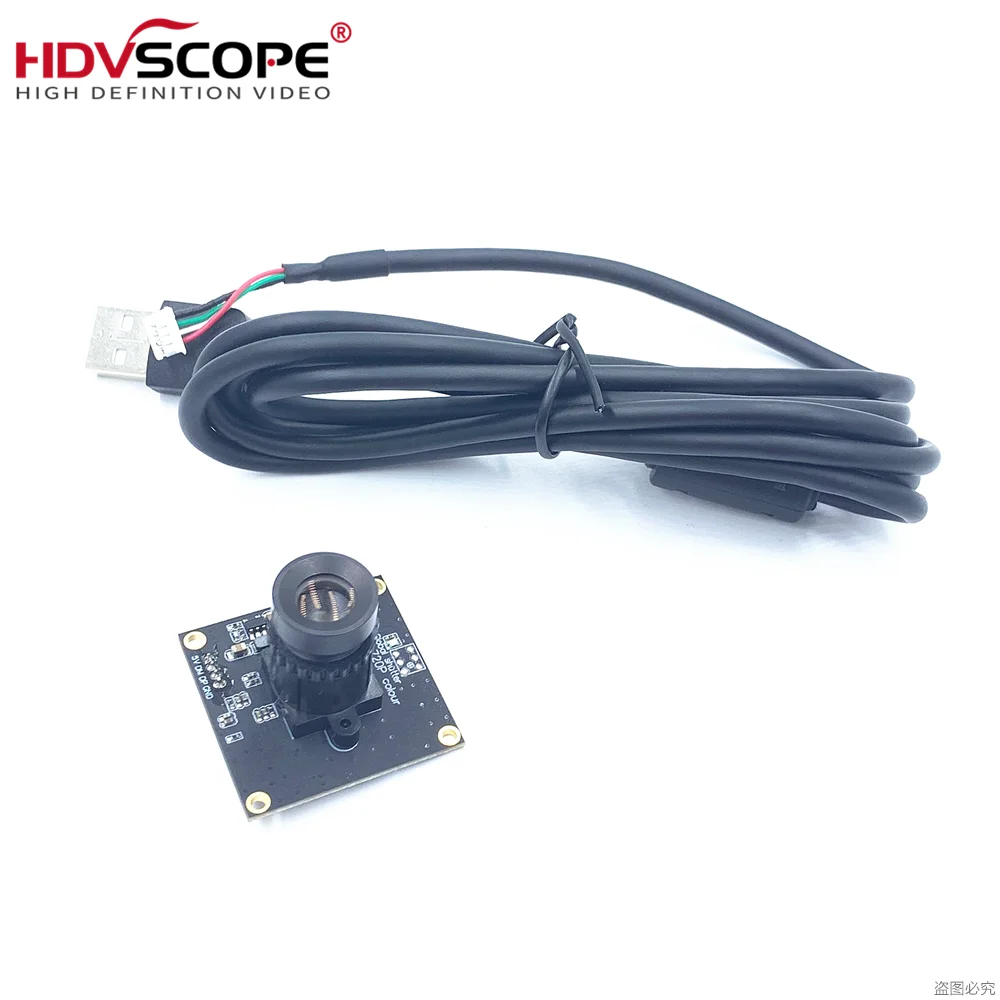

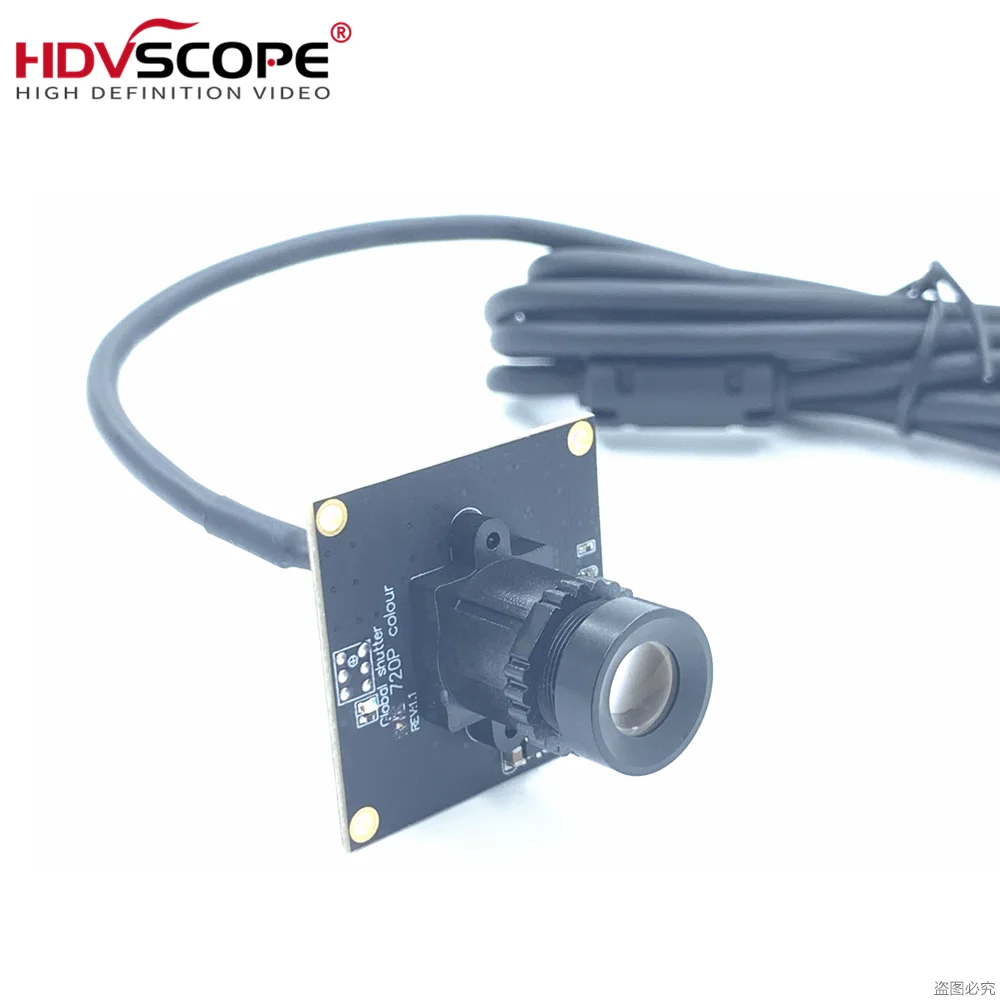

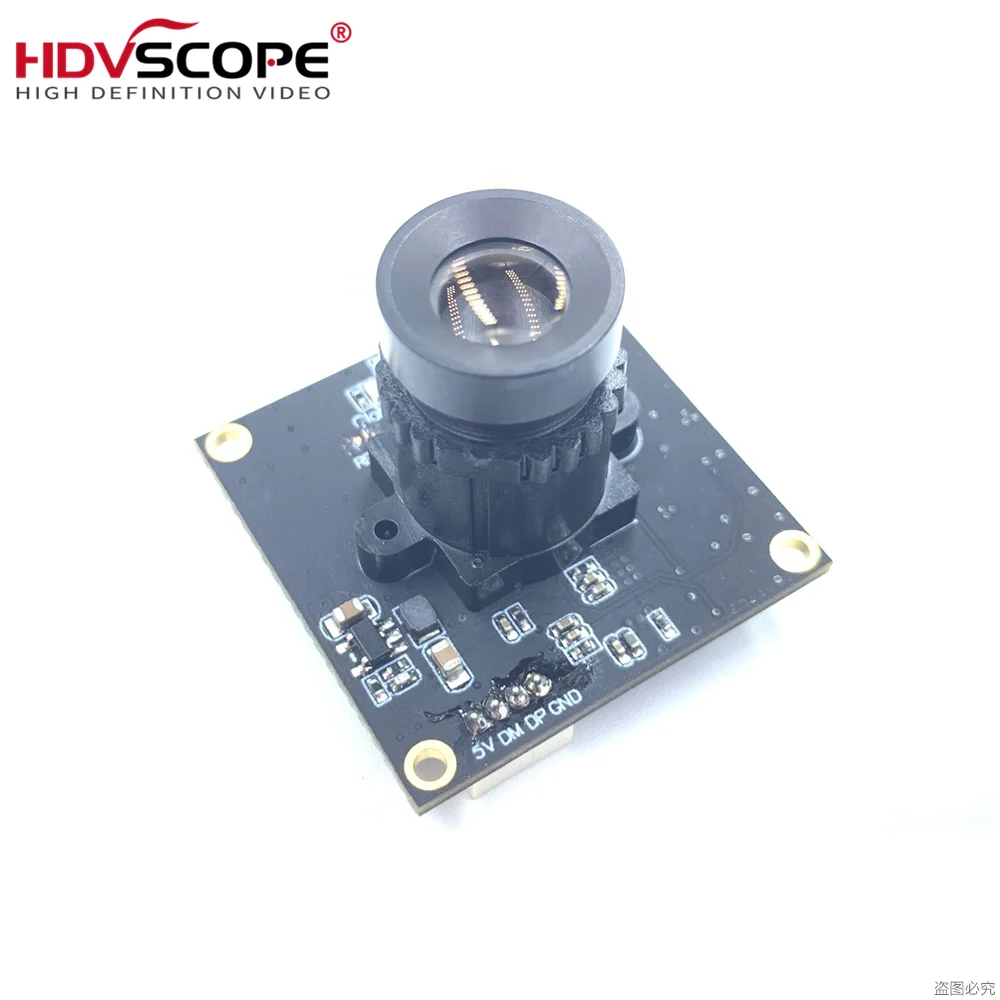

720p Global shutter 1/4 inch OV9782 1 Mp Color 120fps USB Camera Module High-speed photograph Linux automotive applications



Order Symbol:

• HDV-USB100MP32-L2.1     1MP USB Camera with 2.1mm Wide Angle Lens


• HDV-USB100MP32-L2.8     1MP USB Camera with 2.8mm Wide Angle Lens


• HDV-USB100MP32-L3.6     1MP USB Camera with 3.6mm Lens


• HDV-USB100MP32-L4.2     1MP USB Camera with 4.2mm Lens


• HDV-USB100MP32-L6        1MP USB Camera with 6mm Lens


• HDV-USB100MP32-L8        1MP USB Camera with 8mm Lens


• HDV-USB100MP32-L12      1MP USB Camera with 12mm Lens


• HDV-USB100MP32-L16       1MP USB Camera with 16mm Lens

Features:

• Image sensor 1/4" OV9782 1MP Color CMOS


• Audio Optional


• Free Driver USB 2.0 (UVC)


• USB2.0 HIGH SPEED, compression USB1.1



• Manual focus


• View angle: 15-170 degree optional


• Compression YUY2 & MJPEG & H.264


• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;


• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system


• Standard 1.8m cable, Can be connected through 10 meters USB cable


• Dimension:32*32mm


• USB Power: 5V±10%DC,50mA

         Advantages:

• Best Global Shutter Efficiency


• Low Dark Current/Hot Pixels


• High Linear Full Well


• Low Operational Power


• Small Form Factor


• Improved image quality for fast moving objects


• Total Noise Floor Reduction, SNR Improvement


• High Dynamic Range


• Ideal for battery powered applications


• Applications:

• Barcode Scanning


• 3D Scanning


• Virtual/Augmented Reality


• Positional Tracking


• Gesture Recognition


• Machine Vision


• Biometric Scanning

• Application Products:


• Barcode Scanners


• Head Mounted Displays


• Biometric Scanners


• Virtual Reality/Augmented Reality Glasses


• Drones


• AR/VR/MR


• Artificial Intelligence


• Robotic

USB Series	Model	HDV-USB100MP32-L3.6
	Name	Global shutter 1MP color usb camera module
Camera	Image sensor	1/4" OV9782 color Sensor
	Resolution	1MP (1280*720 pixels)
	Pixel Size	3.0 µm x 3.0 µm
	S/N ratio	39dB
	Dynamic range	70dB
	Lens Standard	3.6mm Board Lens F1.2
	Effective Pixels	1280x720@ 120fps MJPEG / 5fps YUY2 1024 x 768@ 120fps MJPEG / 5fps YUY2 800 x 600@ 120fps MJPEG / 20fps YUY2 640x480@ 120ps MJPEG / 30fps YUY2 320x240@ 120fps MJPEG / 30fps YUY2
	Syetem	Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3; Android System
	Image area	3896 um X 2453 um
	Exposure	Auto / Manual(Shutter Speed & AGC Control)
	White Balance	Auto / Fixed / Indoor / Initial / Outdoor
	Gamma Characteristic	Auto r>=0.45
	Manual Function	White Balance, Brightness,Contrast,Hue,Saturation,Gain
	Miscellaneous	Mirror / Flip / Back Light / Flickerless
	Cable Length:	1.8m, 2-10m for optional purchase-USD0.5/m
Industrial Standard	Power source	DC 5V (3.6-5V) / 80mA (USB Power)
	Operating current	85mA
	Operating Temperature	-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
	Interface Type	USB format(Complies with USB 2.0)
	Measurement (mm)	32*32mm
	Weight (Approx.g)	110g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1

Packing List:

1pc cctv camera

1set screws

1pc manual

1pc color box



Single Size: 95*65*55mm(LXWXH)
