DC клетки серии автоматическое сцепление обгонный подшипник DC5476A-N
- Категория: Other Roller Bearings >>>
- Поставщик: Shandong,Huafei,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.15 $* | 5.94 $* |
| Aug-18-2025 | 5.27 $* | 5.44 $* |
| Jul-18-2025 | 4.80 $* | 4.11 $* |
| Jun-18-2025 | 5.17 $* | 5.92 $* |
| May-18-2025 | 4.49 $* | 4.57 $* |
| Apr-18-2025 | 5.36 $* | 5.7 $* |
| Mar-18-2025 | 5.23 $* | 5.14 $* |
| Feb-18-2025 | 4.14 $* | 4.87 $* |
| Jan-18-2025 | 4.55 $* | 4.27 $* |
Характеристики
Product Description
Description

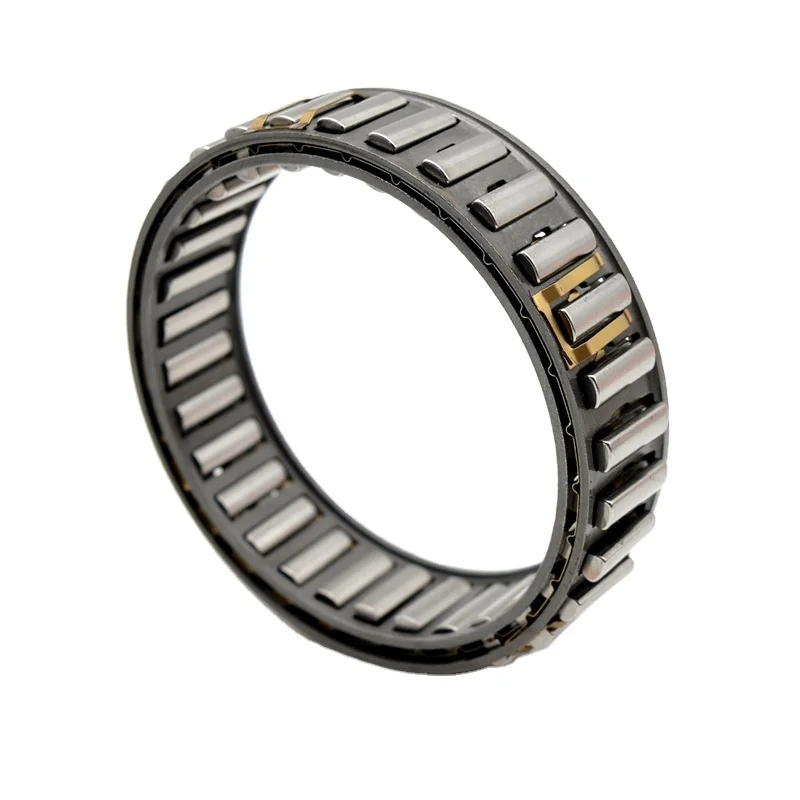

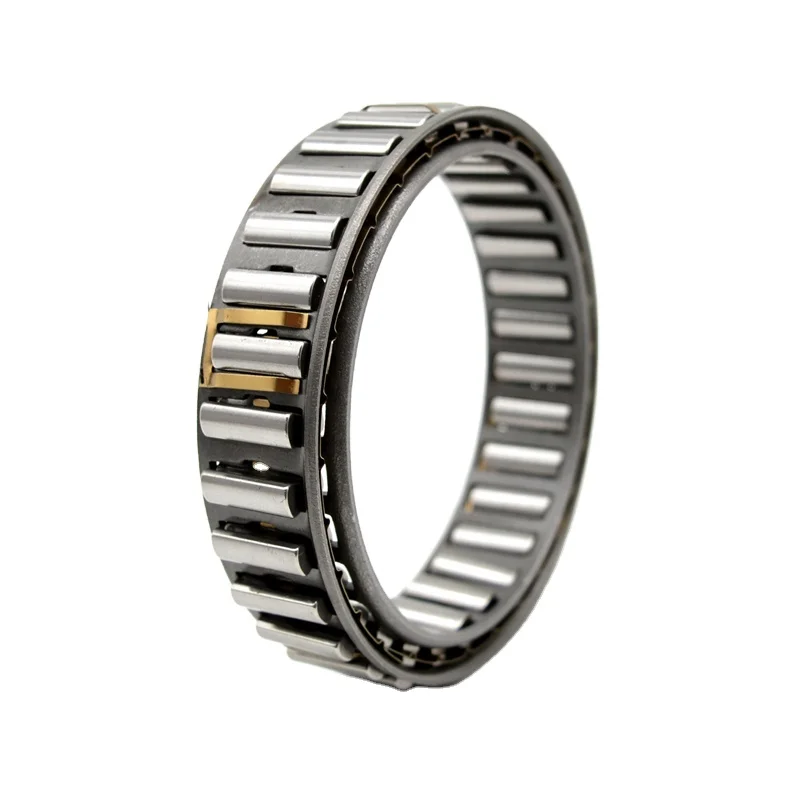

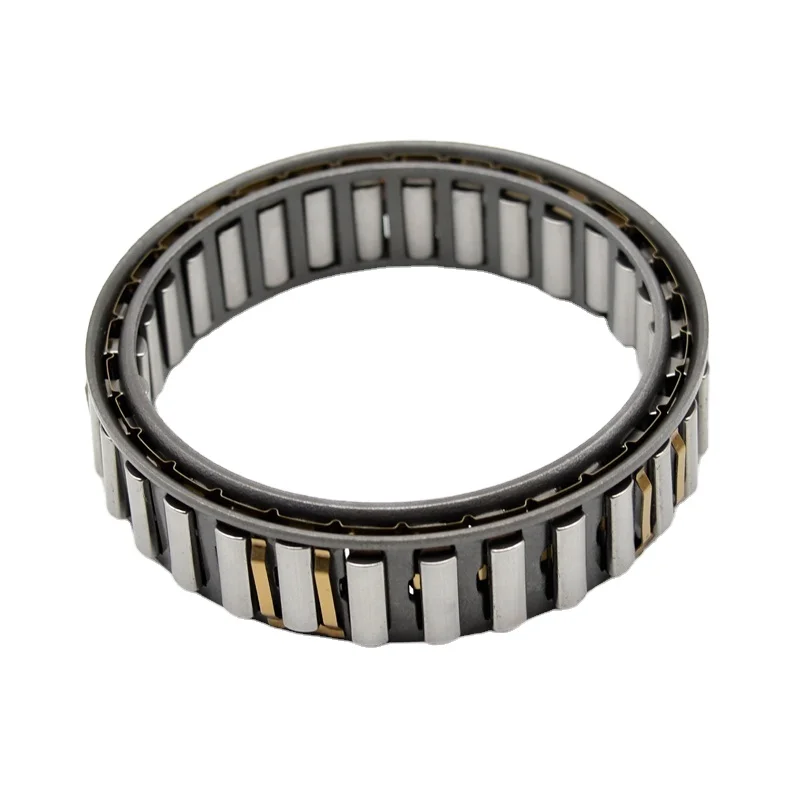

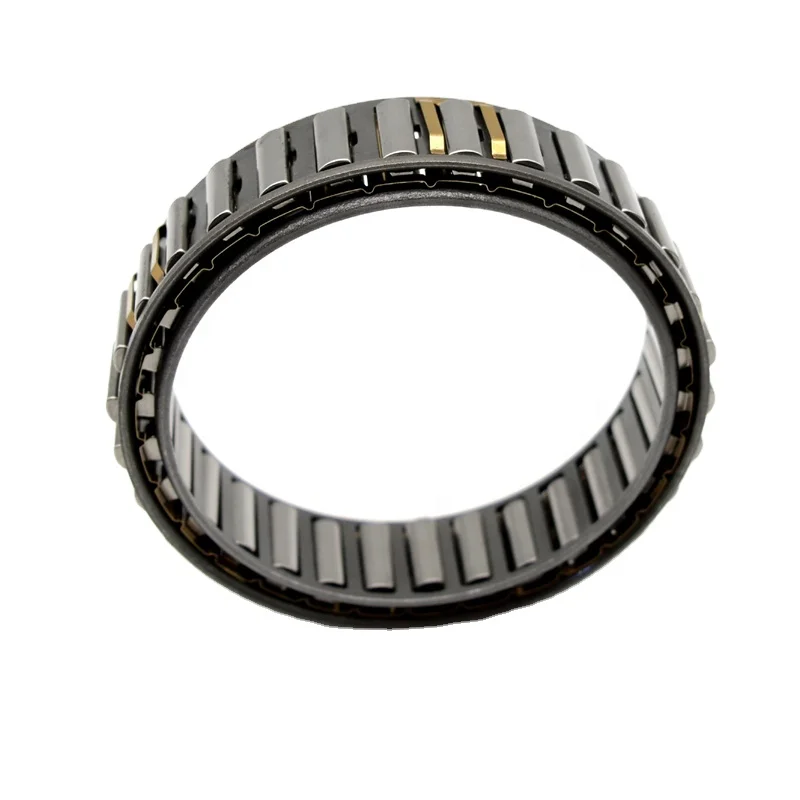

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages. We can offer standard inner and outer races,as shown on the following pages. Alternatively, races can be made in case
hardened steel shafts,or housings,to the specification below. Surface hardness of the finshed contact surface should be HRC 60 to 62, for a depth of 0,6 mm minimun. Core hardness to be HRC35 to 45.Surface roughness not to exceed 22CLA.Maximum taper between races: 0.007mm for 25mm width.
Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages. We can offer standard inner and outer races,as shown on the following pages. Alternatively, races can be made in case
hardened steel shafts,or housings,to the specification below. Surface hardness of the finshed contact surface should be HRC 60 to 62, for a depth of 0,6 mm minimun. Core hardness to be HRC35 to 45.Surface roughness not to exceed 22CLA.Maximum taper between races: 0.007mm for 25mm width.
Specification
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining |
Type | one way bearing |
Brand Name | SHJZ |
Model Number | DC5476A-N DC4972(4C)-N DC5476A-N |
Place of Origin | Shandong,China |
Precision Rating | P0,P4,P5,P6,P2 |
Seals Type | open |
Product name | Overrunning Clutch Bearing |
Application | Automotive.tractor.construction Machinery.rolling Mill |
Package | Plastic Bag+ Box+ Carton + Pallet |
CERTIFICATE | ISO9001 |
Service | OEM Customized Services |
Feature | Long Life |
Lubrication | Oil Grease |
Material | Chrome Steel/GCr15 Stainless Steel |
Vibration | V1 V2 V3 V4 |
Sample | Availabe |
尺寸 Size | 极限速度 Overrunning speeds | 模块空间 Sprag space | |||||||||||||
Tkn1) [Nm] | Nimax2) [min-1] | NZ [min~1] | +0.008 °a -0.005 [mm] | 0c ±°°13 [mm] | [mm] | 6min [mm] | 0dmin [mm] | 0bmin [mm] | |||||||
DC2222G-N | 63 | 8600 | 4300 | 22,225 | 38,885 | 8,33 ±0.075 | 10,0 | 50 | 15 | ||||||
DC2776-N | 119 | 6900 | 3400 | 27,762 | 44,422 | 8,33 ±0.075 | 13,5 | 58 | 18 | ||||||
DC3034-N | 124 | 6300 | 3100 | 30,340 | 47,000 | 8,33 ±0.075 | 13,5 | 62 | 20 | ||||||
DC3175(3C)-N | 159 | 6000 | 3000 | 31,750 | 48,410 | 8,33 ±0.075 | 13,5 | 63 | 21 | ||||||
DC3809A-N | 275 | 5000 | 2500 | 38,092 | 54,752 | 8,33 ±0.075 | 16,0 | 71 | 25 | ||||||
DC4127(3C)-N | 224 | 4600 | 2300 | 41,275 | 57,935 | 8,33 ±0.075 | 13,5 | 75 | 27 | ||||||
DC4445A-N | 363 | 4300 | 2100 | 44,450 | 61,110 | 8,33 ±0.1 | 16,0 | 79 | 29 | ||||||
DC4972(4C)-N | 306 | 3800 | 1900 | 49,721 | 66,381 | 8,33 ±0.1 | 13,5 | 86 | 33 | ||||||
DC5476A-N | 525 | 3500 | 1700 | 54,765 | 71,425 | 8,33 ±0.1 | 16,0 | 92 | 36 | ||||||
DC5476A(4C)-N | 525 | 3500 | 1700 | 54,765 | 71,425 | 8,33 ±0.1 | 16,0 | 92 | 36 | ||||||
DC5476B(4C)-N | 769 | 3500 | 1700 | 54,765 | 71,425 | 8,33 ±0.1 | 21,0 | 92 | 36 | ||||||
DC5476C(4C)-N | 990 | 3500 | 1700 | 54,765 | 71,425 | 8,33 ±0.1 | 25,4 | 92 | 36 | ||||||
DC5776A-N | 604 | 3300 | 1600 | 57,760 | 74,420 | 8,33 ±0.1 | 16,0 | 98 | 38 | ||||||
