DHD 340 буровая Для раскопок и бурения для скважин на воду перфораторная коронка с погружным

DHD 340 буровая Для раскопок и бурения для скважин на воду перфораторная коронка с погружным

Категория: Mining Machine Parts >>>
Поставщик: Beijing,The,Drill,Store,Machinery,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.20 $*	0.91 $*
Aug-19-2025	0.9 $*	0.74 $*
Jul-19-2025	0.91 $*	0.17 $*
Jun-19-2025	0.11 $*	0.6 $*
May-19-2025	0.61 $*	0.30 $*
Apr-19-2025	0.70 $*	0.96 $*
Mar-19-2025	0.37 $*	0.18 $*
Feb-19-2025	0.75 $*	0.12 $*
Jan-19-2025	0.2 $*	0.60 $*

Характеристики

Product overview

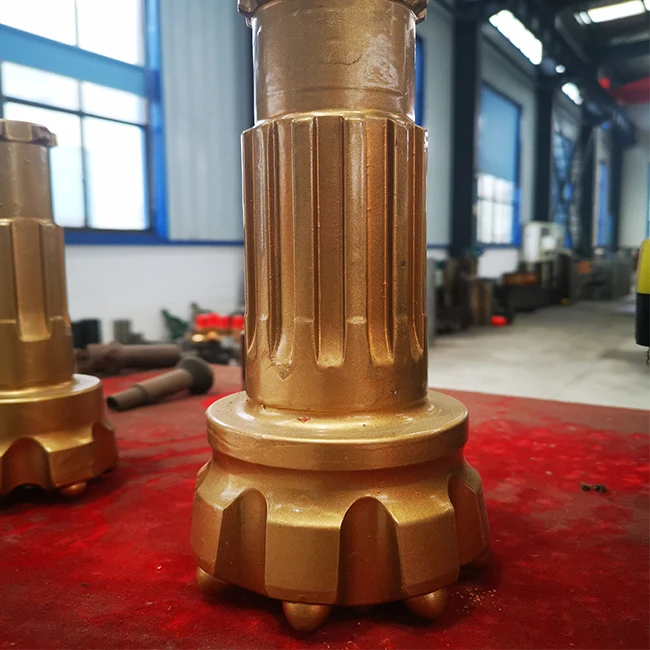

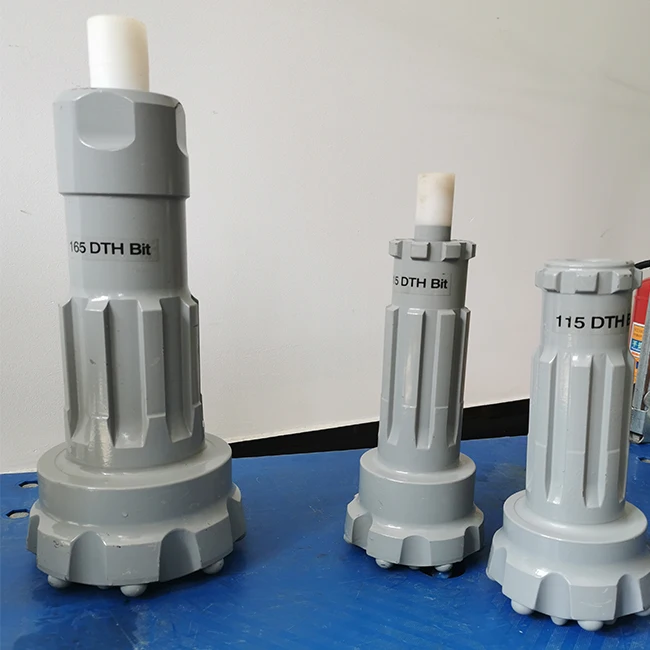

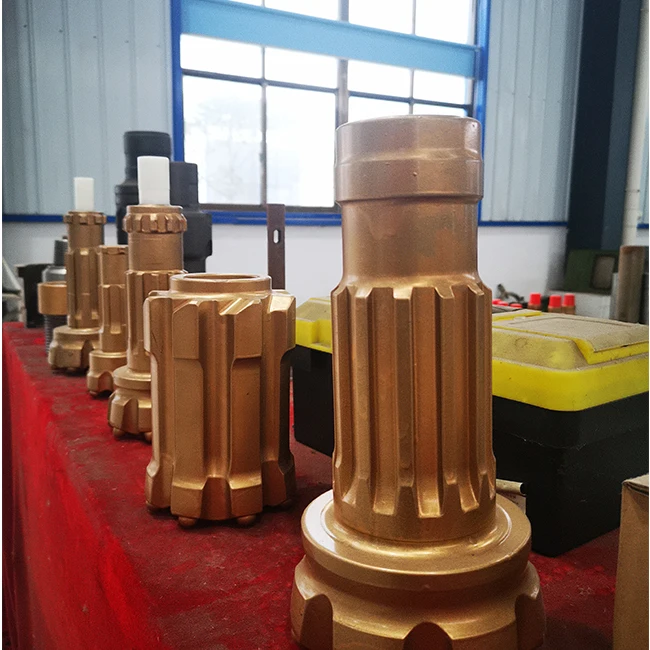

High Air Pressure DTH Hammer and DTH Hammer Bit

* New products designed based on mining condition in china, improving by advanced technology from global market.
* Superior materials, advanced process,guaranteed quality.
* Faster drilling rate.
* Hardness can be enhanced to expand the lifespan of hammer, and lower the cost.
* Huge impulse with low consumption of electricity.
* The modern theory is adopted in the structural design, which makes the stress.
* Wave duration longer, the stress amplitude is lower, and the piston life is long.

Product details

Specification

Model	Thread Connection	OD(mm)	Rec.Hole Size	Shank Style	Working Pressure(Bar)
CD35	API 2 3/8" Reg	φ82mm	φ90-φ105	DHD3.5 CD35	1.0-1.5Mpa
CD45	API 2 3/8" Reg	φ99mm	φ110-φ135	Cop44 DHD340 CD45	1.0-2.5Mpa
CSD4	API 2 3/8" Reg	φ99mm	φ110-φ135	SD4 CSD4	1.0-2.5Mpa
CQL40	API 2 3/8" Reg	φ99mm	φ110-φ135	QL40 CQL40	1.0-2.5Mpa
CD55	API 2 3/8" Reg API 3 1/2" Reg	φ125mm	φ135-φ155	Cop54 DHD350R CD55	1.0-2.5Mpa
CSD5	API 3 1/2" Reg	φ125mm	φ135-φ155	SD5 CSD5	1.0-2.5Mpa
CQL50	API 3 1/2" Reg	φ125mm	φ135-φ155	Cop54 QL50 CQL50	1.0-2.5Mpa
CD65	API 3 1/2" Reg	φ148mm	φ155-φ190	Cop64 DHD360 CD65	1.0-2.5Mpa
CSD6	API 3 1/2" Reg	φ148mm	φ155-φ190	SD6 CSD6	1.0-2.5Mpa
CQL60	API 3 1/2" Reg	φ148mm	φ155-φ190	Cop64 QL60 CQL60	1.0-2.5Mpa
CD85	API 4 1/2" Reg	φ185mm	φ195-φ254	Cop84 DHD380 CD85	1.0-2.5Mpa
CSD85	API 4 1/2" Reg	φ185mm	φ195-φ254	SD8 CSD8	1.0-2.5Mpa
CQL80	API 4 1/2" Reg	φ185mm	φ195-φ254	QL80 CQL80	1.0-2.5Mpa
CSD10	API 4 1/2" Reg API 5 1/2" Reg API 6 5/8" Reg	φ225mm	φ254-φ311	SD10 CSD10	1.0-2.5Mpa
CN100	API 6 5/8" Reg	φ225mm	φ254-φ311	NUMA100 CN100	1.0-2.5Mpa
CSD12	API 6 5/8" Reg	φ275mm	φ305-φ445	SD12 CSD12	1.0-2.5Mpa
