Домашний аппарат для сжигания отходов медицинская
- Категория: Waste Treatment Machinery >>>
- Поставщик: Zhengzhou,Jinma,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 13599.58 $* | 14279.29 $* |
| Aug-19-2025 | 13485.99 $* | 14159.89 $* |
| Jul-19-2025 | 11314.5 $* | 11880.90 $* |
| Jun-19-2025 | 13256.60 $* | 13919.40 $* |
| May-19-2025 | 11542.14 $* | 12119.55 $* |
| Apr-19-2025 | 13028.62 $* | 13679.87 $* |
| Mar-19-2025 | 12914.35 $* | 13560.39 $* |
| Feb-19-2025 | 12799.54 $* | 13439.69 $* |
| Jan-19-2025 | 12685.25 $* | 13319.33 $* |
Характеристики
50-100 kg/hr hazardous waste Incinerator
Product Overview of Smokeless Waste Incinerator:
Smokeless incinerator equipment has the following characteristics: well-designed, small footprint; simple operation, easy maintenance; energy saving, safe and reliable; low price and long operating life.
1. Combustion with diesel.
2. Ignition method: automatic ignition.
4. Operation mode: continuous operation.
5. Exhaust gas treatment method: high temperature + high temperature jet vortex combustion + secondary combustion + cyclone dust collector + chimney.
6. Incineration temperature: 600-900℃ (adjustable temperature control)
7. Inner pressure of furnace: adopt negative pressure design, no backfire
8. Design average calorific value: 2500Kcal/Kg
Smokeless incinerator equipment has the following characteristics: well-designed, small footprint; simple operation, easy maintenance; energy saving, safe and reliable; low price and long operating life.
1. Combustion with diesel.
2. Ignition method: automatic ignition.
4. Operation mode: continuous operation.
5. Exhaust gas treatment method: high temperature + high temperature jet vortex combustion + secondary combustion + cyclone dust collector + chimney.
6. Incineration temperature: 600-900℃ (adjustable temperature control)
7. Inner pressure of furnace: adopt negative pressure design, no backfire
8. Design average calorific value: 2500Kcal/Kg

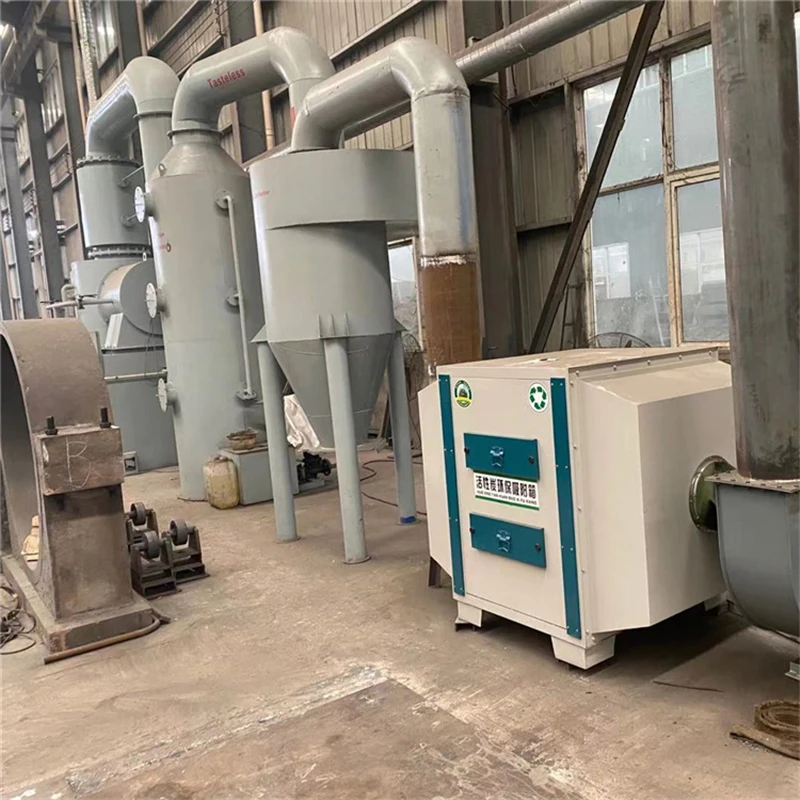

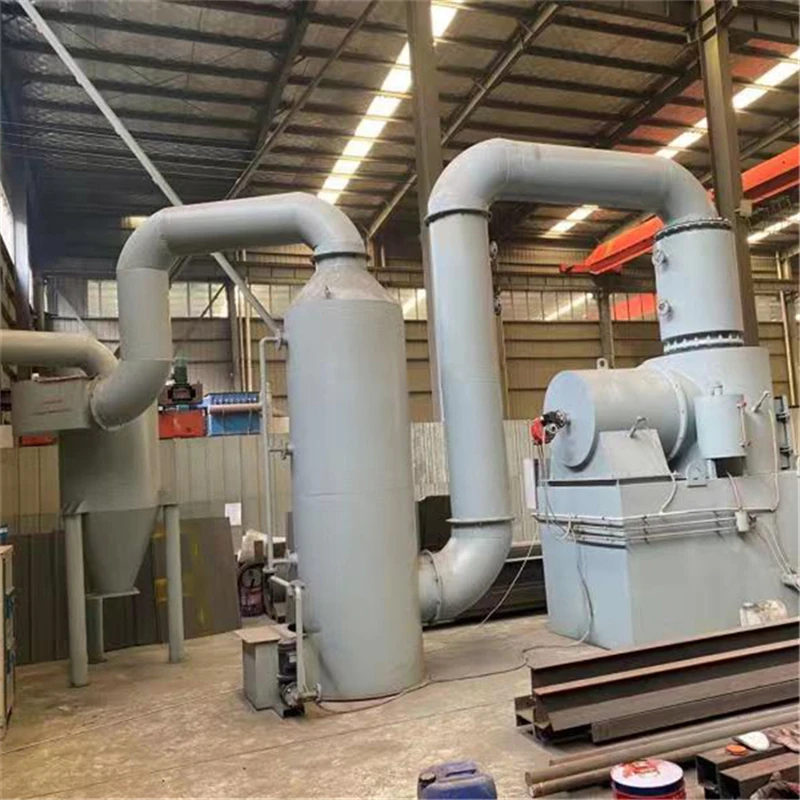

Composition of smokeless dust incinerator:
Furnace body primary combustion chamber, secondary combustion chamber, cyclone dust collector, chimney, flue, piping system, high pressure blower, negative pressure induced draft fan, primary burner, secondary burner, electric control cabinet, temperature display device, Testing equipment, etc.
Furnace body primary combustion chamber, secondary combustion chamber, cyclone dust collector, chimney, flue, piping system, high pressure blower, negative pressure induced draft fan, primary burner, secondary burner, electric control cabinet, temperature display device, Testing equipment, etc.
Combustion process and brief description:
The waste is manually put into the primary combustion chamber of the furnace body, and automatic temperature control starts primary combustion. According to the principle of three T (temperature, time, vortex) combustion, it is fully oxidized, pyrolyzed, and burned in the furnace body combustion chamber. The flue gas from incineration enters the second combustion chamber, and the harmful substances of unburnt ash in the flue gas are further destroyed in the second combustion chamber. In order to completely decompose the unburnt embers and meet the emission requirements, the second combustion chamber is equipped with a burner to support combustion, and a unique secondary air supply device is arranged to ensure that the flue gas fully contacts with oxygen at high temperature, while ensuring that the flue gas is in the second The residence time of the combustion chamber is adjusted according to the oxygen content of the flue gas at the outlet of the second combustion chamber. Control the temperature in the second combustion chamber and remove the larger particles of dust through the dust collector, so that its incineration efficiency and destruction removal rate are more than 99%, so that it achieves the effect of no odor, no foul odor, and no smoke, and reaches the national emission standard. It enters the chimney and is discharged into the atmosphere. The ash produced after combustion is manually taken out, sieved, transferred and buried.
The waste is manually put into the primary combustion chamber of the furnace body, and automatic temperature control starts primary combustion. According to the principle of three T (temperature, time, vortex) combustion, it is fully oxidized, pyrolyzed, and burned in the furnace body combustion chamber. The flue gas from incineration enters the second combustion chamber, and the harmful substances of unburnt ash in the flue gas are further destroyed in the second combustion chamber. In order to completely decompose the unburnt embers and meet the emission requirements, the second combustion chamber is equipped with a burner to support combustion, and a unique secondary air supply device is arranged to ensure that the flue gas fully contacts with oxygen at high temperature, while ensuring that the flue gas is in the second The residence time of the combustion chamber is adjusted according to the oxygen content of the flue gas at the outlet of the second combustion chamber. Control the temperature in the second combustion chamber and remove the larger particles of dust through the dust collector, so that its incineration efficiency and destruction removal rate are more than 99%, so that it achieves the effect of no odor, no foul odor, and no smoke, and reaches the national emission standard. It enters the chimney and is discharged into the atmosphere. The ash produced after combustion is manually taken out, sieved, transferred and buried.
The advantages of smokeless dust incinerator:
Design life: The incinerator can meet the needs of all-weather operation, continuous operation and intermittent operation, the annual operation time is not less than 8000 hours, and the design life is more than 10 years.
The outer shell of the furnace body is a steel structure, the inner wall is a refractory casting material with different properties, the inner layer is a high temperature resistant casting material, which can withstand a high temperature of 1790 ℃, and the middle is a light refractory material, which can not only ensure that the combustion temperature is sufficient, but also Keep the shell at a low temperature to prevent burns. The refractory is cast as a whole, which is not easy to fall off and is not easy to corrode.
Design life: The incinerator can meet the needs of all-weather operation, continuous operation and intermittent operation, the annual operation time is not less than 8000 hours, and the design life is more than 10 years.
The outer shell of the furnace body is a steel structure, the inner wall is a refractory casting material with different properties, the inner layer is a high temperature resistant casting material, which can withstand a high temperature of 1790 ℃, and the middle is a light refractory material, which can not only ensure that the combustion temperature is sufficient, but also Keep the shell at a low temperature to prevent burns. The refractory is cast as a whole, which is not easy to fall off and is not easy to corrode.
