Система управления литий-ионными аккумуляторами BMS8T 600A 4S-8S (BMS) контактор постоянного тока зарядное устройство 60A 1500
- Категория: Other Consumer Electronics >>>
- Поставщик: Chargery,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 705.18 $* | 719.0 $* |
| Jul-17-2025 | 572.47 $* | 583.15 $* |
| Jun-17-2025 | 694.84 $* | 708.48 $* |
| May-17-2025 | 688.92 $* | 702.36 $* |
| Apr-17-2025 | 549.62 $* | 560.69 $* |
| Mar-17-2025 | 677.68 $* | 691.42 $* |
| Feb-17-2025 | 672.17 $* | 685.84 $* |
| Jan-17-2025 | 666.31 $* | 679.92 $* |
Характеристики
Our Advantages
Two core technology
High power and high efficiency charger and power supply adopt ZVS/ZCS and Synchronous Rectification realize 94% of high efficiency, output voltage and current control by MCU make all charge parameters can be programmed.
High accuracy BMS adopt 12 bit or 16 bit ADC measure cell voltage, charge and discharge current and battery temperature.
Chargery BMS and Charger communicate each other, avoid cutting off charging by Open DCC or relay, this feature can save charging time and extend battery life, at the same time don't need install DCC or relay to cut off charging when any cell reach the highest voltage.
Chargery Profile
CHARGERY is almost unique company in the UAV (RC model, big drones) and EV (e-bike, e-motocycle, e-scooter) market, we developed high power AC charger and BMS at same time.
From 2006, we focus on developing high power (up to 60A 3000W) charger, balance charger (AC input, DC input and AC/DC dual input) and 800A BMS for up to 24S LiPo/LiFe/ LiTO battery.
Chargery charger can charge any chemical battery including LiPo, LiFe, Li-ion, LiTo, NiMh, NiCD and Pb (Lead acid, VRLA battery), cell count, charge current, end voltage and end current can be programmed. and realize anti-spark and reverse polarity protection when high voltage battery connect to charger or inverter(loader).
Chargery BMS can handle up to 800A charge and discharge current, special designed DCC (DC contactor) is built-in surge suppressing circuit
From 2006, we focus on developing high power (up to 60A 3000W) charger, balance charger (AC input, DC input and AC/DC dual input) and 800A BMS for up to 24S LiPo/LiFe/ LiTO battery.
Chargery charger can charge any chemical battery including LiPo, LiFe, Li-ion, LiTo, NiMh, NiCD and Pb (Lead acid, VRLA battery), cell count, charge current, end voltage and end current can be programmed. and realize anti-spark and reverse polarity protection when high voltage battery connect to charger or inverter(loader).
Chargery BMS can handle up to 800A charge and discharge current, special designed DCC (DC contactor) is built-in surge suppressing circuit
Product Description
Video
BMS update video: https://www.youtube.com/watch?v=4nrYUm1uhAs
BMS installation video: https://www.youtube.com/watch?v=ic_Ulh8DOlk
current calibration video: https://www.youtube.com/watch?v=bCM_cau0TD0
Owner manual
BMS24T manual: http://chargery.com/doc/Chargery_BMS24T_specification_V4.2.pdf
BMS16T manual: http://chargery.com/doc/Chargery_BMS16T_specification_V4.2.pdf
BMS8T manual: http://chargery.com/doc/Chargery_BMS8T_specification_V4.2.pdf
DC Contactor manual: http://chargery.com/doc/Chargery%20DC%20contactor%20manual%20V1.1.pdf
C10325 charger manual: http://chargery.com/doc/Chargery%20C10325%20manual%20V1.1.pdf
C3060 charger manual: http://chargery.com/doc/Chargery%20C3060%20charger%20manual%20V1.0.pdf
C6830 charger manual: http://chargery.com/doc/Chargery%20C6830%20charger%20manual%20V1.0.pdf
C4012B charger manual: http://chargery.com/doc/Chargery_C4012B_specification_V1.30.pdf
BMS update instructions: http://chargery.com/uploadFiles/Chargery%20BMS%20V4.0%20update%20instructions.pdf
Update tool and firmware: http://chargery.com/update.asp
Features:

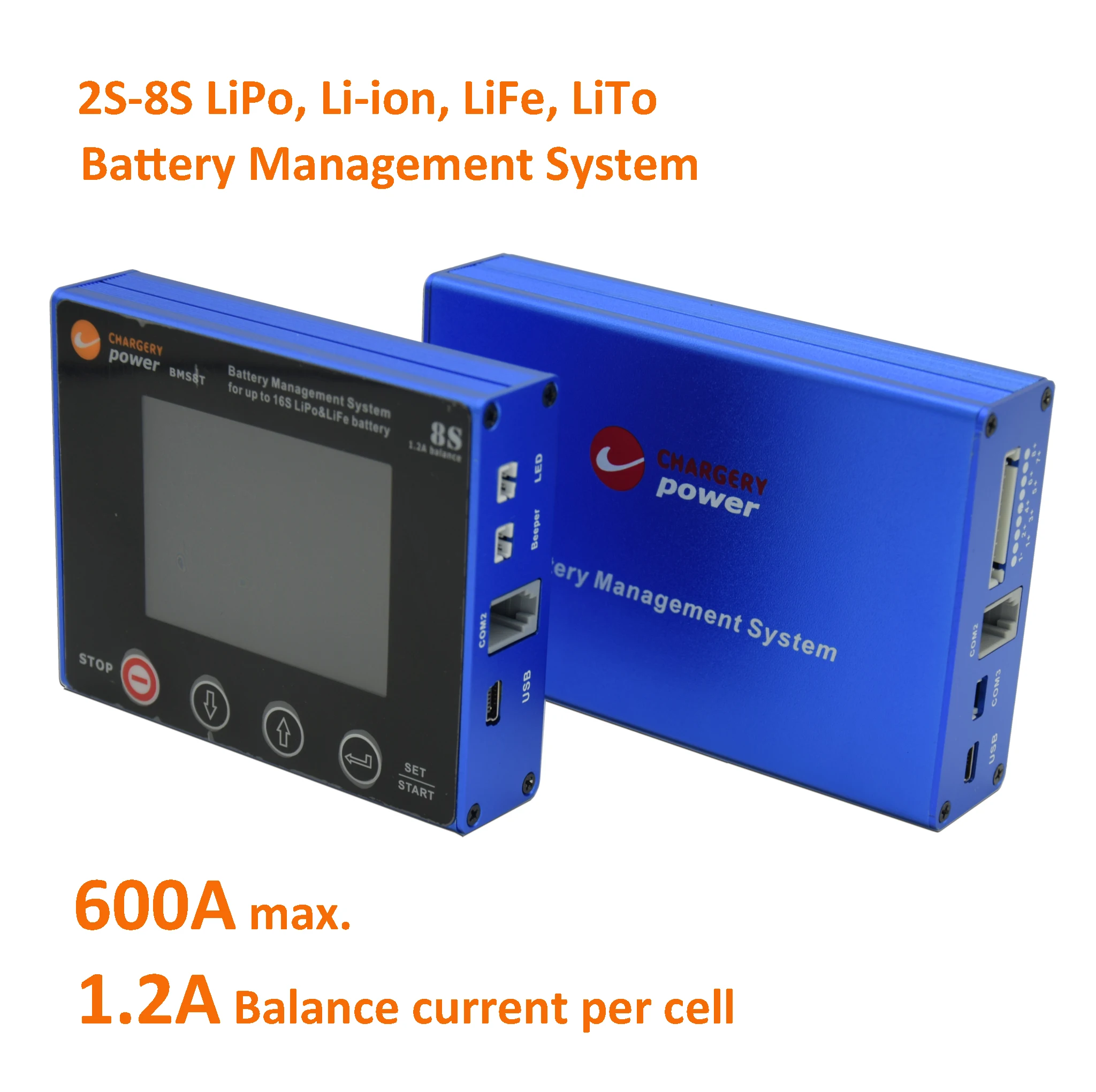

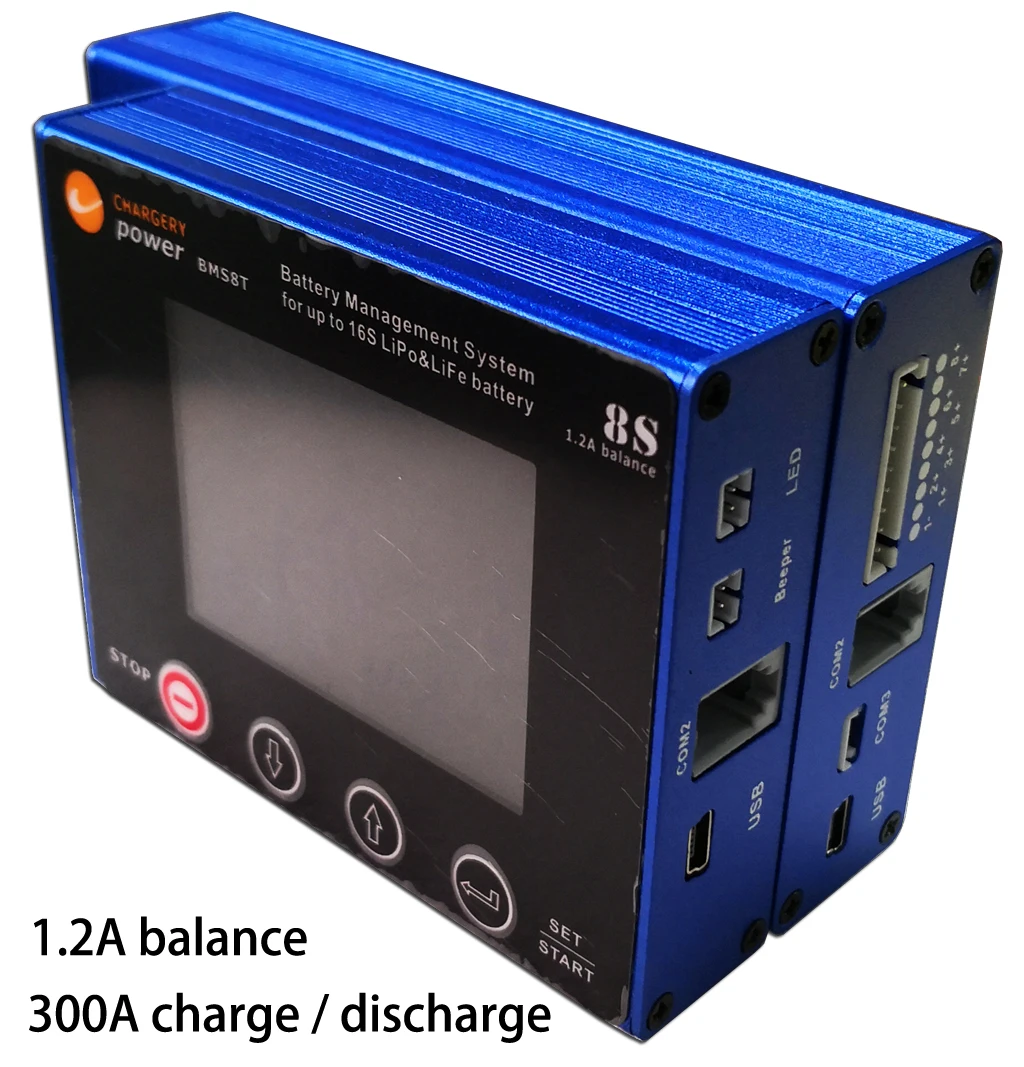

1. The BMS8T uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 8S LiPo battery.
2. Supports regenerative braking, during braking operation it can charge the battery pack and the discharge power (Wh) will increase in response to the braking power.
3. Charge/discharge current up to 600A. Larger current support can be custom ordered.
4. 1.2A per cell balance current is very useful for large capacity battery pack, this feature can restore all cell voltage balance in the shortest time. Over temperature protection ensures the system safety during balancing.
5. BMS8T calculates and displays the charge and discharge power (Wh), generally the battery rated power is rated voltage multiplied by rated battery capacity.
6. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC and temperature and so on.
7. BMS8T features maximum safety protections, within the range parameters that can be setup, BMS8T will alarm and cutoff charge or discharge according to users’ setup, out of range parameters and triggered absolute maximum settings BMS8T will force cutoff charge / discharge to protect the battery.
8. Minimize the power consumption by draw current from all cells or external power supply.
9. Dual power design, the unit can be powered by all the cells or an external power supply.
10. Detect cell count at any time, and compare with the count detected when switched on first time. If inconsistent, the device will alarm and cutoff charge or discharge according to user setup, this is a safety feature is if a cell becomes loose.
11. Sound alarm and LED alarm will be triggered if any warning events occur, it will wait several seconds, then disconnect charge / discharge if required. The delay time can be programmed.
12. The Charge and Discharge relays are controlled independently.
13. Two temperature sensors monitor battery temperature for different positions on the pack.
14. Supports upgrading the firmware program by USB port.
15. BMS8T provide users the maximum flexibility, key parameters can be programmed.
16. BMS8T displays battery SOC as a dial gauge. Cell count, battery pack voltage and battery gauge (%) temperature is displayed simultaneously.
17. In case the battery pack is not to be charged / discharged and put into storage mode, Press STOP button enter into Sleep Mode to save energy consumption, Charge / Discharge are disabled and the LCD back light is turned off. Press any key to resume normal work mode.
18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to activate.
2. Supports regenerative braking, during braking operation it can charge the battery pack and the discharge power (Wh) will increase in response to the braking power.
3. Charge/discharge current up to 600A. Larger current support can be custom ordered.
4. 1.2A per cell balance current is very useful for large capacity battery pack, this feature can restore all cell voltage balance in the shortest time. Over temperature protection ensures the system safety during balancing.
5. BMS8T calculates and displays the charge and discharge power (Wh), generally the battery rated power is rated voltage multiplied by rated battery capacity.
6. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC and temperature and so on.
7. BMS8T features maximum safety protections, within the range parameters that can be setup, BMS8T will alarm and cutoff charge or discharge according to users’ setup, out of range parameters and triggered absolute maximum settings BMS8T will force cutoff charge / discharge to protect the battery.
8. Minimize the power consumption by draw current from all cells or external power supply.
9. Dual power design, the unit can be powered by all the cells or an external power supply.
10. Detect cell count at any time, and compare with the count detected when switched on first time. If inconsistent, the device will alarm and cutoff charge or discharge according to user setup, this is a safety feature is if a cell becomes loose.
11. Sound alarm and LED alarm will be triggered if any warning events occur, it will wait several seconds, then disconnect charge / discharge if required. The delay time can be programmed.
12. The Charge and Discharge relays are controlled independently.
13. Two temperature sensors monitor battery temperature for different positions on the pack.
14. Supports upgrading the firmware program by USB port.
15. BMS8T provide users the maximum flexibility, key parameters can be programmed.
16. BMS8T displays battery SOC as a dial gauge. Cell count, battery pack voltage and battery gauge (%) temperature is displayed simultaneously.
17. In case the battery pack is not to be charged / discharged and put into storage mode, Press STOP button enter into Sleep Mode to save energy consumption, Charge / Discharge are disabled and the LCD back light is turned off. Press any key to resume normal work mode.
18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to activate.
19. Communicate with CHARGRY charger, don't need install any relay to cut off charging
20. Communicate with external device with integrated RS232, RS485, or CAN

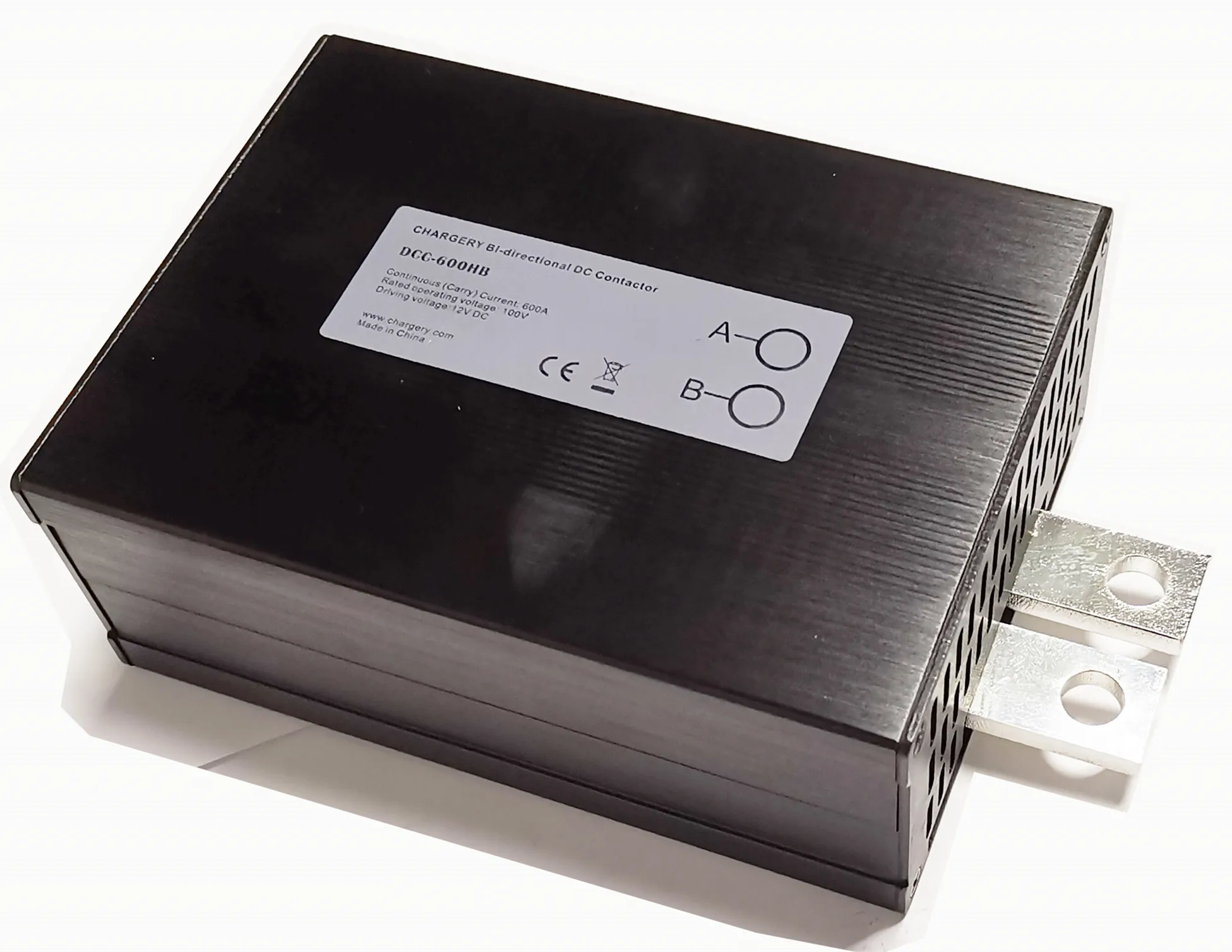

Optional DCC Contactor----delivery default here is DCC on common port and with ISO Board. if need DCC on separate port, please buy on DCC contactor detail pages.
* Bi-directional connection, one DCC can be used in a Common port such as a Solar system, instead of two SSR's (Solid State Relays) or conventional relays.
* The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable.
* Over temperature protection. If internal temperatures over heat, the contactor will shut off.
* One Intelligent cooling fans turned on automatically
* The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable.
* Over temperature protection. If internal temperatures over heat, the contactor will shut off.
* One Intelligent cooling fans turned on automatically

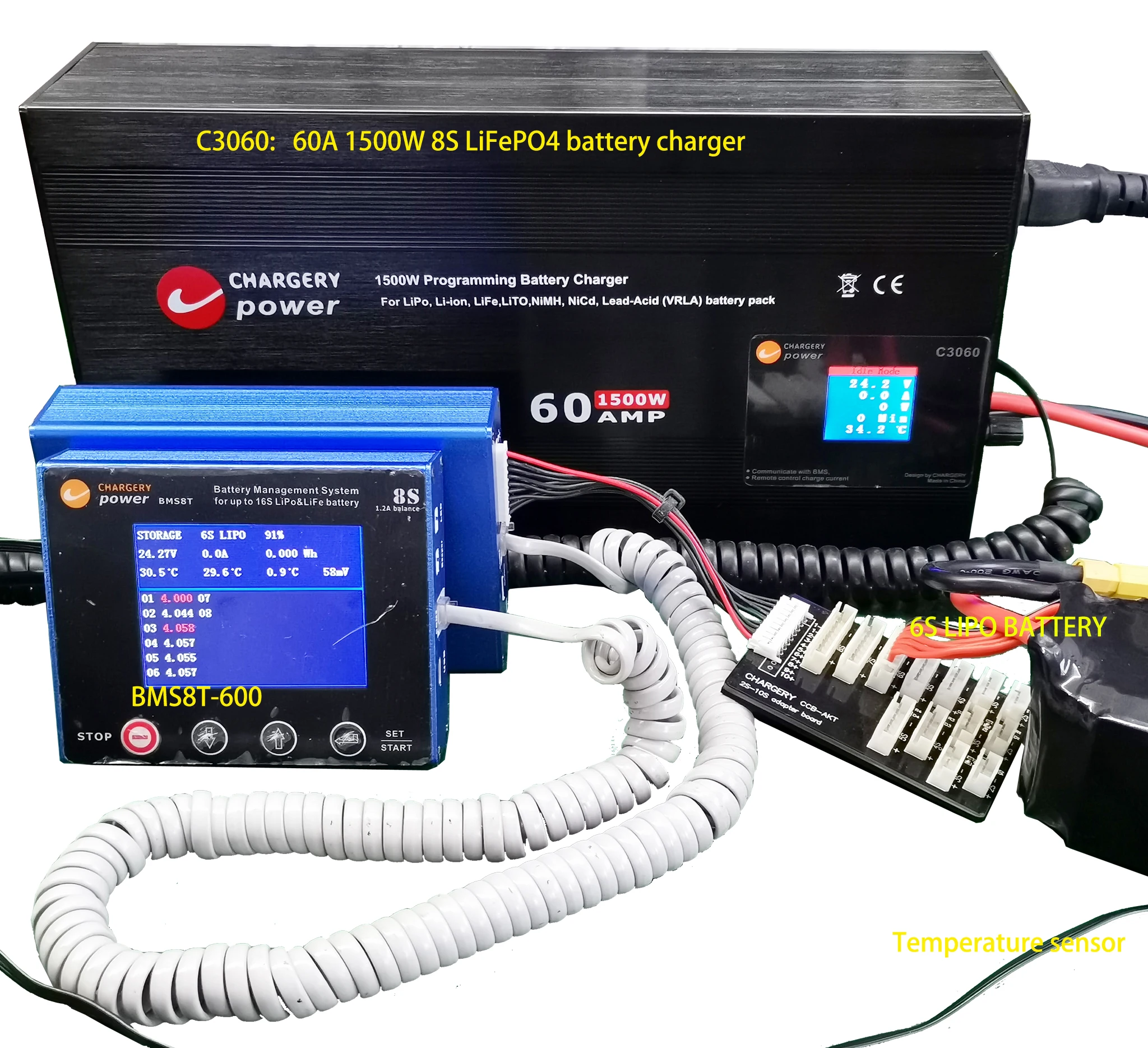

BMS and Charger

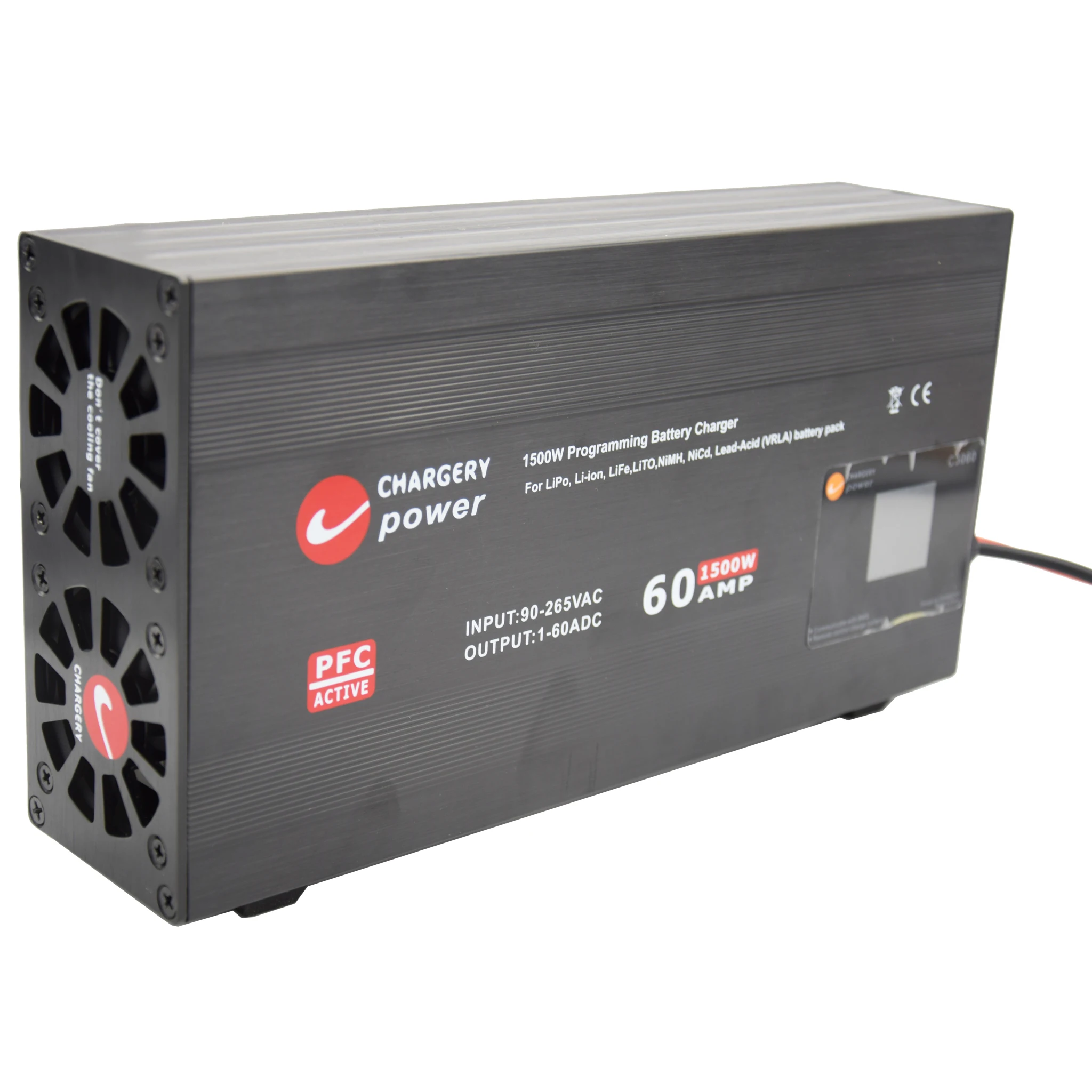

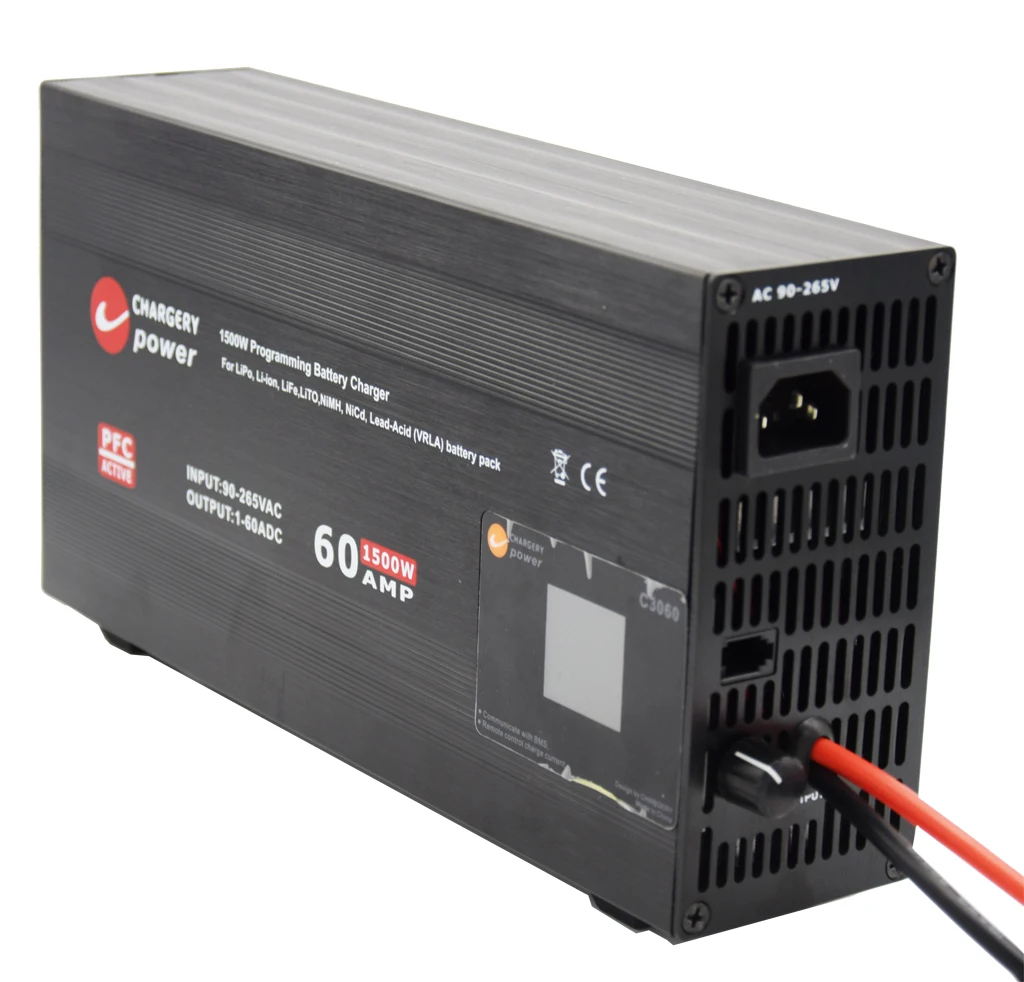

Buy BMS and charger combo can save 30usd. The charger C3060B can charge 1S-8S LiPo/LiFe battery at 1-60A 1500W.
Specification
BMS Main module size: | 122×80×28 (L×W×T, mm) or 4.8×3.2×1.1 (L×W×T, inch) |
BMS Display module size: | 96×80×24 (L×W×T, mm) or 3.8×3.2×0.95 (L×W×T, inch) |
BMS Main module weight: | 270 g excluding accessories |
BMS Display module weight: | 130 g excluding accessories |
Mental enclosure: | oxidized aluminum alloy shell |
Max charge / discharge current: | up to 600A |
Model | BMS8T-100 | BMS8T-300 | BMS8T-600 |
Maximum charge/discharge current | 100A | 300A | 600A |
Package information
* BMS main unit: 1pcs
* BMS LCD unit: 1pcs
* Standard accessories: 1 set
* Current shunt: 1pcs
* BMS LCD unit: 1pcs
* Standard accessories: 1 set
* Current shunt: 1pcs
* DCC-600HB including ISO board: 1pcs
* C3060B: 1pcs
* Standard accessories: 1 set
* Cables: BMS to DCC, BMS to charger, AC cable and so on.
* C3060B: 1pcs
* Standard accessories: 1 set
* Cables: BMS to DCC, BMS to charger, AC cable and so on.
Important information
* Shunt is calibrated before delivery
* Each cell volatage is calibrated before delivery
* Watch video before installation
* Read Owner manual carefully before operation
* Each cell volatage is calibrated before delivery
* Watch video before installation
* Read Owner manual carefully before operation
* SOC must be calibrated after setup AH and WH.
FAQ
Q1: Can you deliver orders to our country?
We can deliver to most countries of the world. If you are not sure about that, please feel free to contact us.
Q2: Are you a factory or only a trading company?
We are a factory, combination of production and sales. We have factory in china, which provide you with a lower price and a more stable supply.
We are a factory, combination of production and sales. We have factory in china, which provide you with a lower price and a more stable supply.
Q3: What is lead time and delivery time and freight?
The lead time is 1-10 days, the delivery time is 7-15days by Express includes Fedex, TNT, DHL and UPS.
The freight depends on your destination, model, quantity and weight.
Q4: Can you use your label on our products and the customized package?
yes. OEM or ODM is available for our customers all around the world.
Q5: What if the products is broken or damaged?
if any production is broken or damaged, please send us the broken product image or video, we will check it and send you new one to be replaced.
Q6: How to connect battery, DCC and charger to your BMS?
If don't find suitable connection diagram on the product manual, please send us your battery configuration, DCC type or Relay datasheet, charger manual and load type (inverter or others), we will make a special diagram for you.
Q7: Warranty service
Before purchasing and operating, please read carefully product manual, video or contact us for more details.
if the product don't work as it should be, please send us image or video, in the 12 months or 24 months of warranty periods based on different product, we will check and fix all problems. the repair is free.
More questions please feel free to contact us.
