Оптовая продажа с завода система управления литий-ионными аккумуляторами BMS16 V2.0 8S -16S (BMS) ток заряда/разряда 300
- Категория: Other Consumer Electronics >>>
- Поставщик: Chargery,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 88.46 $* | 90.55 $* |
| Jul-17-2025 | 71.2 $* | 72.19 $* |
| Jun-17-2025 | 86.11 $* | 88.14 $* |
| May-17-2025 | 86.6 $* | 88.60 $* |
| Apr-17-2025 | 68.23 $* | 69.71 $* |
| Mar-17-2025 | 84.93 $* | 86.84 $* |
| Feb-17-2025 | 83.56 $* | 85.54 $* |
| Jan-17-2025 | 83.48 $* | 85.24 $* |
Характеристики
Our Advantages
Two core technology
High power and high efficiency charger and power supply adopt ZVS/ZCS and Synchronous Rectification realize 94% of high efficiency, output voltage and current control by MCU make all charge parameters can be programmed.
High accuracy BMS adopt 12 bit or 16 bit ADC measure cell voltage, charge and discharge current and battery temperature.
Chargery BMS and Charger communicate each other, avoid cutting off charging by Open DCC or relay, this feature can save charging time and extend battery life, at the same time don't need install DCC or relay to cut off charging when any cell reach the highest voltage.
Chargery Profile
CHARGERY is almost unique company in the UAV (RC model, big drones) and EV (e-bike, e-motocycle, e-scooter) market, we developed high power AC charger and BMS at same time.
From 2006, we focus on developing high power (up to 60A 3000W) charger, balance charger (AC input, DC input and AC/DC dual input) and 800A BMS for up to 24S LiPo/LiFe/ LiTO battery.
Chargery charger can charge any chemical battery including LiPo, LiFe, Li-ion, LiTo, NiMh, NiCD and Pb (Lead acid, VRLA battery), cell count, charge current, end voltage and end current can be programmed. and realize anti-spark and reverse polarity protection when high voltage battery connect to charger or inverter(loader).
Chargery BMS can handle up to 800A charge and discharge current, special designed DCC (DC contactor) is built-in surge suppressing circuit
From 2006, we focus on developing high power (up to 60A 3000W) charger, balance charger (AC input, DC input and AC/DC dual input) and 800A BMS for up to 24S LiPo/LiFe/ LiTO battery.
Chargery charger can charge any chemical battery including LiPo, LiFe, Li-ion, LiTo, NiMh, NiCD and Pb (Lead acid, VRLA battery), cell count, charge current, end voltage and end current can be programmed. and realize anti-spark and reverse polarity protection when high voltage battery connect to charger or inverter(loader).
Chargery BMS can handle up to 800A charge and discharge current, special designed DCC (DC contactor) is built-in surge suppressing circuit
Product Description
Video
BMS16 installation video: https://www.youtube.com/watch?v=ic_Ulh8DOlk
BMS16 current calibration video: https://youtu.be/3Ed0kZCEjUE
Owner manual
BMS16 manual: http://chargery.com/doc/Chargery_BMS16_specification_V2.0.pdf
BMS24T manual: http://chargery.com/doc/Chargery_BMS24T_specification_V4.2.pdfBMS16T manual: http://chargery.com/doc/Chargery_BMS16T_specification_V4.2.pdf
BMS8T manual: http://chargery.com/doc/Chargery_BMS8T_specification_V4.2.pdf
DC Contactor manual: http://chargery.com/doc/Chargery%20DC%20contactor%20manual%20V1.1.pdf
C10325 charger manual: http://chargery.com/doc/Chargery%20C10325%20manual%20V1.1.pdf
C3060 charger manual: http://chargery.com/doc/Chargery%20C3060%20charger%20manual%20V1.0.pdf
C4012B charger manual: http://chargery.com/doc/Chargery_C4012B_specification_V1.30.pdf
Features:
1.The BMS16 uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 16S LiPo battery (68V)

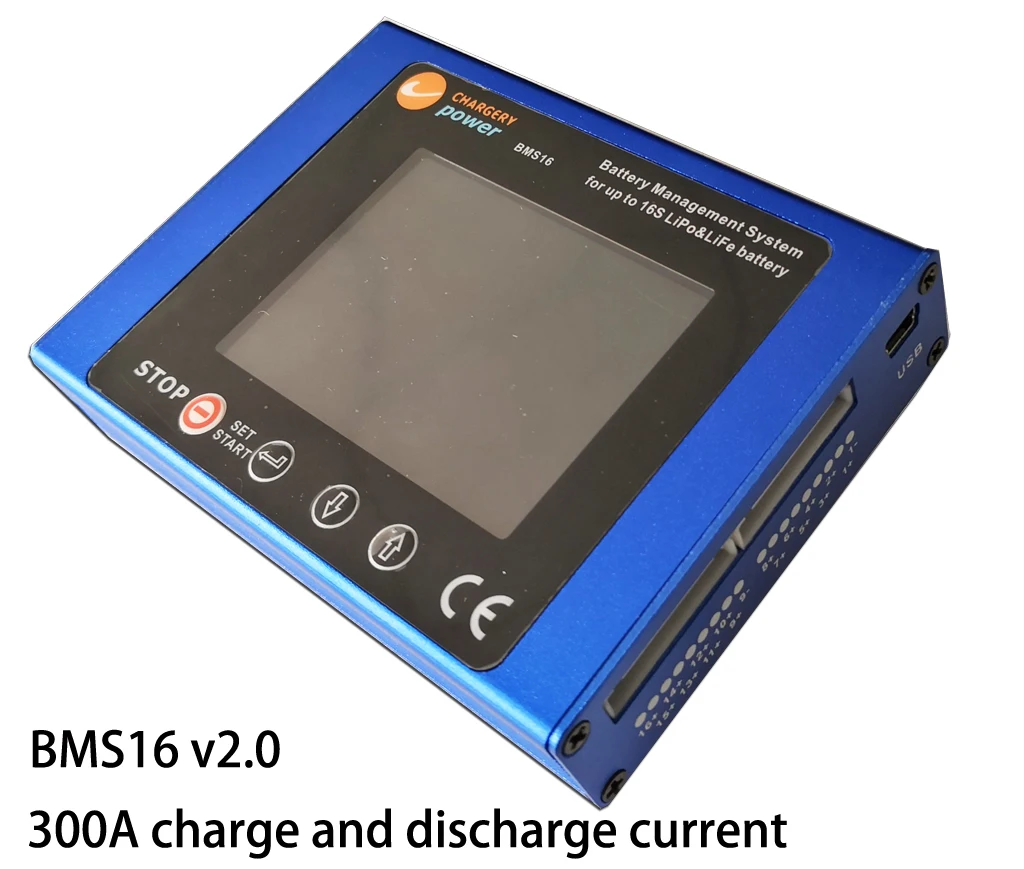

2. Charge/discharge current up to 300A continue, 600A burst.
3. BMS16 calculate and display the charge and discharge power (Wh), generally the battery rated power is rated voltage
multiply rated battery capacity.
multiply rated battery capacity.

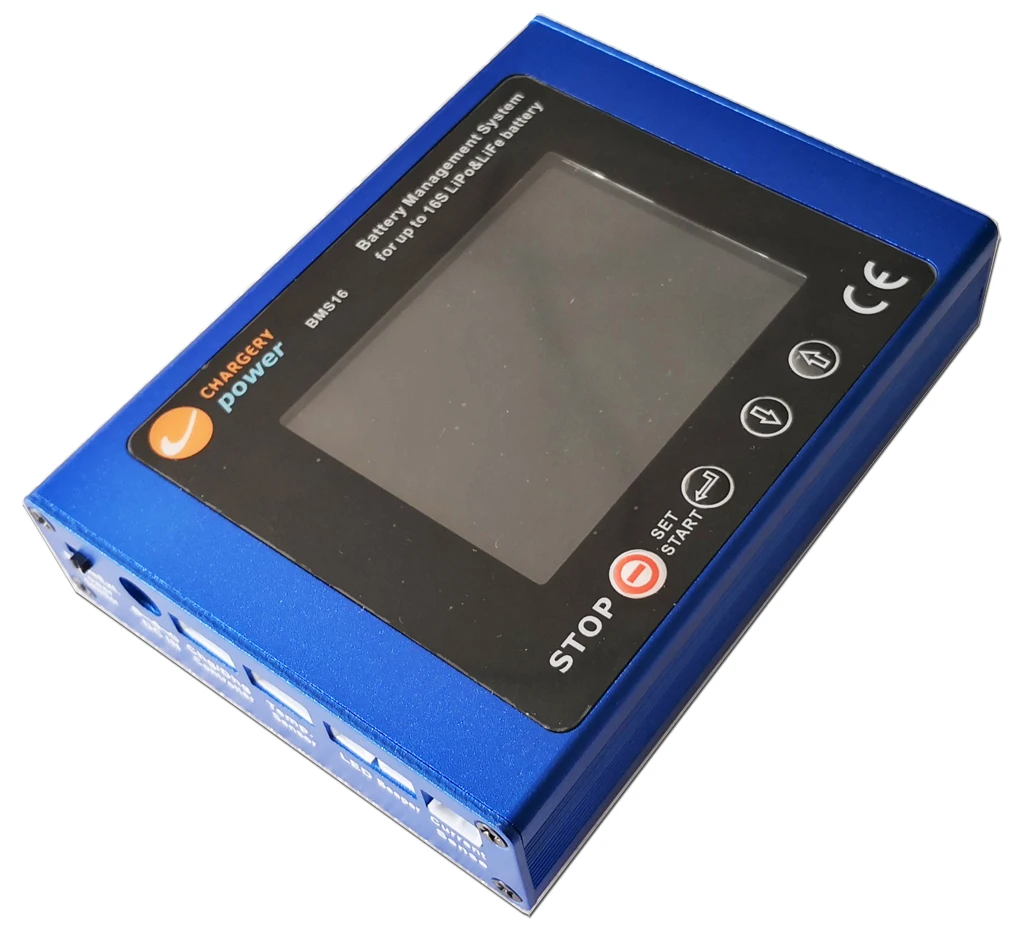

4. TFT LCD screen that provides rich information including current, voltage, power, capacity, control status, SOC and temperature and so on.
5. BMS16 features a maximal safety protection, within the range parameters can be setup, BMS16 will alarm and cutoff charge or discharge according to users’ setup, out of range of parameters, and trigged absolute
maximum ratings BMS16 will force to cutoff charge or discharge to prevent the battery from fire.
maximum ratings BMS16 will force to cutoff charge or discharge to prevent the battery from fire.
6. Minimize the power consumption by draw current from all cells or external power supply.

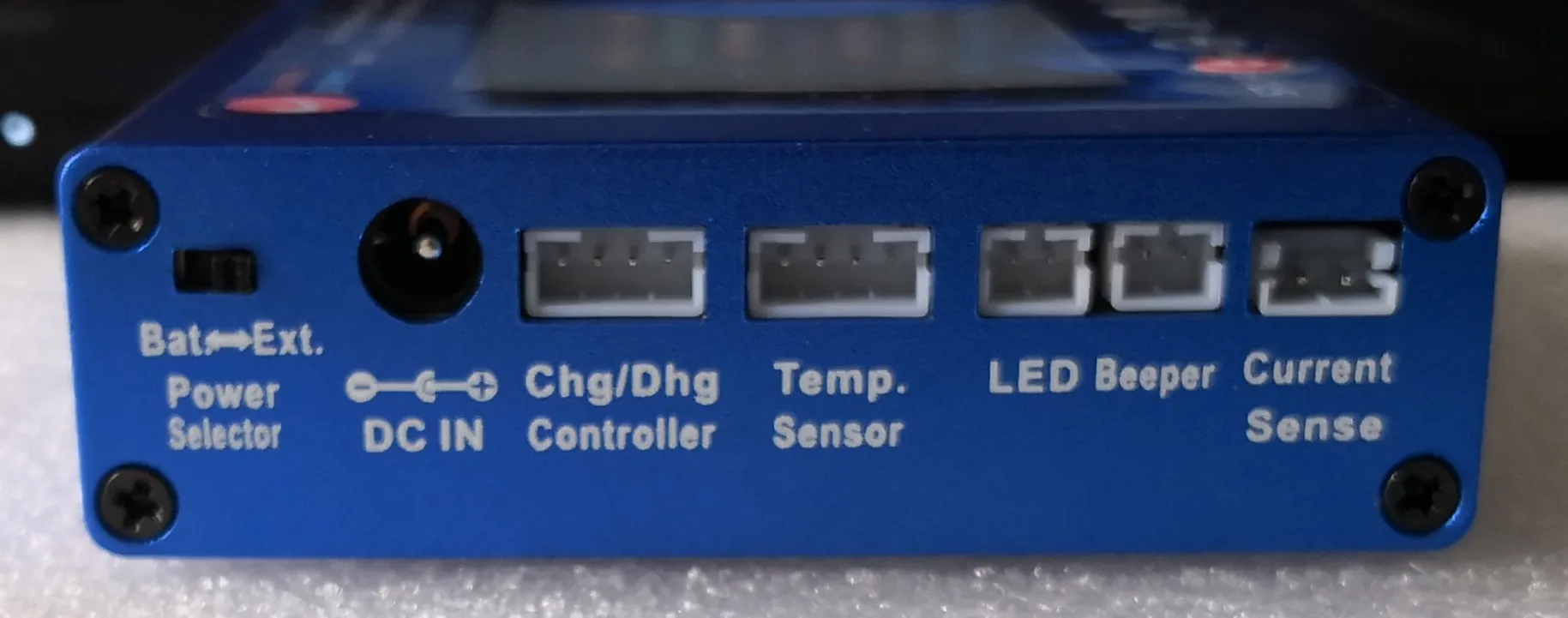

7. Dual power design, the unit can be powered by all cells or external power supply.
8. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not uniformity, the device will alarm and cutoff charge or discharge according to users’ setup, the feature can prevent any cell connection from loosing.
9. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several
seconds cut off or NOT charge or discharge. The delay time can be programmed.
seconds cut off or NOT charge or discharge. The delay time can be programmed.
10. Charge relay and discharge relay are controlled
independently.
independently.
11. Two temperature sensors monitor battery temperature on different location.

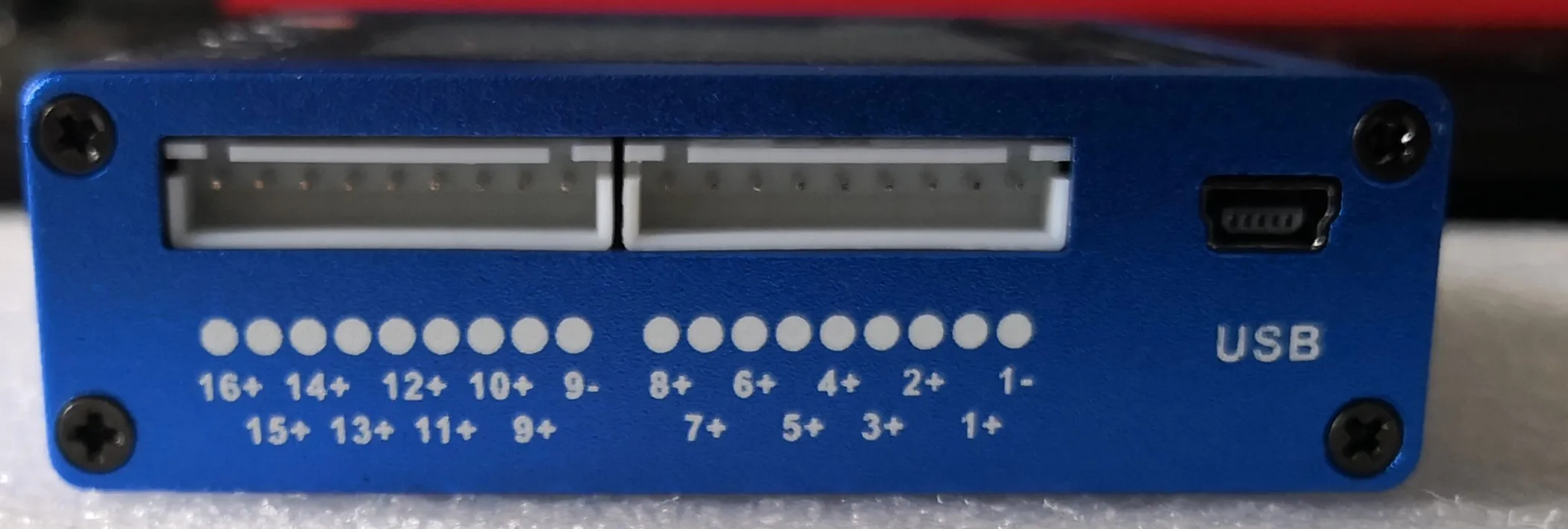

12. Supports upgrading the firmware
program by USB port.
program by USB port.
13. BMS16 provide users the maximal flexibility, key parameters can be programmed.
14. BMS16 display battery
SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.
SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.
15. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode to
save energy consumption. Charge and Discharge is cut off, LCD back light is off. Press any key to resume normal work mode.
save energy consumption. Charge and Discharge is cut off, LCD back light is off. Press any key to resume normal work mode.
16. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to resume “ON”.
Specification
Size: | 105*80*24 ( L*W*T, mm) |
Weight: | 190 g excluding accessories |
Mental enclosure: | oxidized aluminum alloy shell |
Max charge / discharge current: | up to 300A |
BMS pacakge
* BMS: 1pcs
* Standard accessories: 1 set

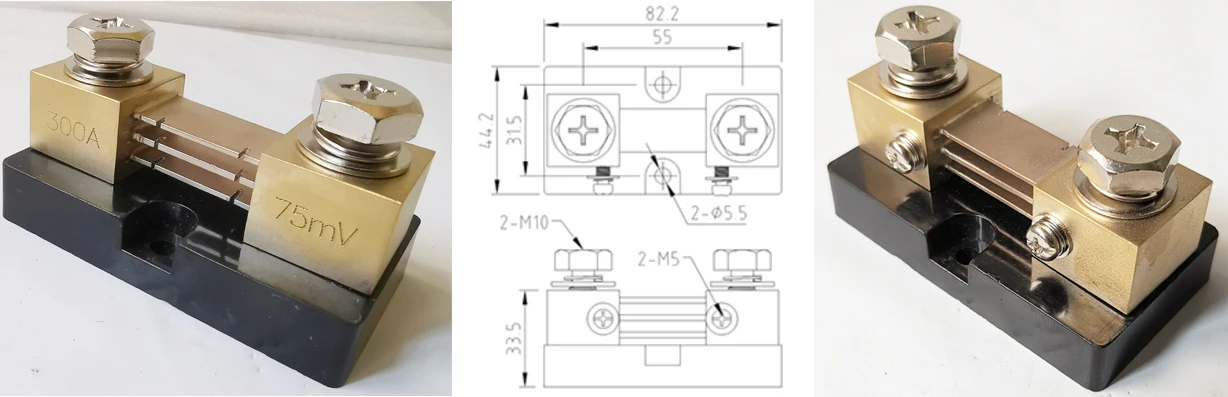

* Current shunt: 1pcs
* Standard accessories: 1 set
* Current shunt: 1pcs
Important information
* Shunt is calibrated before delivery
* Each cell volatage is calibrated before delivery
* Watch video before installation
* Read Owner manual carefully before operation
* Each cell volatage is calibrated before delivery
* Watch video before installation
* Read Owner manual carefully before operation
* SOC must be calibrated after setup AH and WH.
FAQ
Q1: Can you deliver orders to our country?
We can deliver to most countries of the world. If you are not sure about that, please feel free to contact us.
Q2: Are you a factory or only a trading company?
We are a factory, combination of production and sales. We have factory in china, which provide you
with a lower price and a more stable supply.
We are a factory, combination of production and sales. We have factory in china, which provide you
with a lower price and a more stable supply.
Q3: What is lead time and delivery time and freight?
The lead time is 1-10 days, the delivery time is 7-15days by Express includes Fedex, TNT, DHL and UPS.
The freight depends on your destination, model, quantity and weight.
Q4: Can you use your label on our products and the customized package?
yes.OEM or ODM is available for our customers all around the world.
Q5: What if the products is broken or damaged?
if any production is broken or damaged, please send us the broken product image or video, we will check it and send you new one to be replaced.
Q6: How to connect battery, DCC and charger to your BMS?
If don't find suitable connection diagram on the product manual, please send us your battery configuration, DCC type or Relay datasheet, charger manual and load type (inverter or others), we will make a special diagram for you.
Q7: Warranty service
Before purchasing and operating, please read carefully product manual, video or contact us for more details.
if the product don't work as it should be, please send us image or video, in the 12 months or 24 months of warranty periods based on different product, we will check and fix all problems. the repair is free.
More questions please feel free to contact us.
