Sanland Прямая продажа с завода 5-200 МГц 30 дБ усиление малошумный обратный модуль усилитель сигнала кабельного
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Shenzhen,Sanland,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.32 $* | 6.88 $* |
| Jul-16-2025 | 5.42 $* | 5.51 $* |
| Jun-16-2025 | 6.66 $* | 6.60 $* |
| May-16-2025 | 6.88 $* | 6.14 $* |
| Apr-16-2025 | 5.73 $* | 5.42 $* |
| Mar-16-2025 | 6.78 $* | 6.80 $* |
| Feb-16-2025 | 6.70 $* | 6.5 $* |
| Jan-16-2025 | 6.51 $* | 6.24 $* |
Характеристики
Products Description

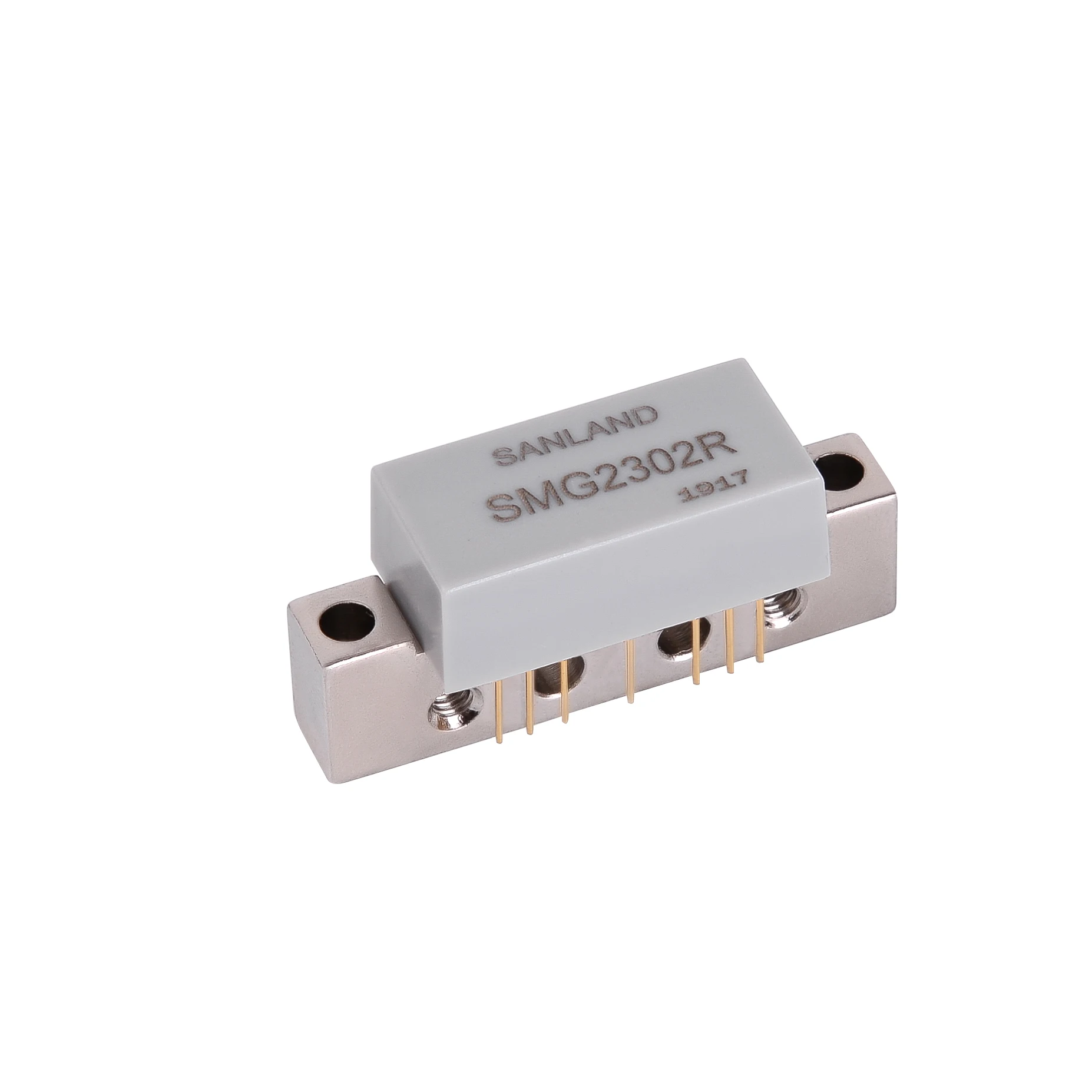

The SMG2302R is a hybrid reverse amplifier module.The part employs Si dies and is operated from 5MHz to 200MHz with supply voltage +24V( DC).
Specification
Symbol | Parameter | Unit | Min. | Typ. | Max. | Conditions |
Gp | Power Gain | dB | 29.5 | - | 31 | f=10MHz |
Gp | Power Gain | dB | - | 30.5 | - | f=200MHz |
SL | Slope Cable Equivalent | dB | -0.5 | - | +0.5 | f=5-200MHz |
FL | Flatness Of Frequency Response | dB | - | - | ±0.5 | f=5-200MHz |
S11 | Input Return Loss | dB | - | - | -20 | f=5-200MHz |
S22 | Output Return Loss | dB | - | - | -20 | f=5-200MHz |
CTB | Composite Triple Beat | dB | - | - | -66 | 17 channels flat Vo=50dBmV |
CSO | Composite Second Order Distortion | dB | - | - | -65 | |
Xmod | Cross Modulation | dB | - | - | -60 | |
F | Noise Figure | dB | - | 4.3 | - | f=200MHz |
ltot | Total Current Consumption | mA | 130 | 160 | - | V=+24V |
Series Products
Company Profile
Shenzhen Sanland Technology Co.,Ltd
* Founded in Shenzhen in 2002
* Certificated ISO9001 and ISO14001 in 2005
* One of the leading suppliers of CATV module,RF integrated circuits and FTTH solutions in the world
Why is Sanland
1. Satisfied Price
We have own factory producing the products,which allow us to offer the factory direct price to you.
2. L/T is as short as you requested
The production schedule can be adjusted to meet your urgency.We have stock for regular customers even.
We have own factory producing the products,which allow us to offer the factory direct price to you.
2. L/T is as short as you requested
The production schedule can be adjusted to meet your urgency.We have stock for regular customers even.
3. Rich experience of OEM & ODM co-operation
RD person reaches 15 now and the OEM&ODM experience reaches 20 years now.
RD person reaches 15 now and the OEM&ODM experience reaches 20 years now.
4. Strict Quality Control System
All process are based on SOP. You can see there is QC process after every production process,to make sure the product you receive is 100% good.
All process are based on SOP. You can see there is QC process after every production process,to make sure the product you receive is 100% good.
FAQ
1.What’s your MOQ?
Usually our MOQ is 100pcs for CATV amplifier modules, and 50pcs for optical receiver modules.
Usually our MOQ is 100pcs for CATV amplifier modules, and 50pcs for optical receiver modules.
2. Can you provide samples?
Yes we can provide samples for interested customers for testing performance or sales situation, and usually customer should cover the freight for samples,because we need to show sincerity for each other.
Yes we can provide samples for interested customers for testing performance or sales situation, and usually customer should cover the freight for samples,because we need to show sincerity for each other.
3. What’s your payment terms?
100% payment in advance.We can accept payment ways,such as T/T,Paypal, West Union,etc.
100% payment in advance.We can accept payment ways,such as T/T,Paypal, West Union,etc.
4. How about the after-sale services?
Customer can contact us anytime after sales if there is any problem because of our products' quality. we promise product exchange after our check on the defect products.
5. How about the shipping?
Our customer can inform us their preference, any kind express is OK as long as China has.
Our customer can inform us their preference, any kind express is OK as long as China has.
