Автономный разряд электромобиля CHAdeMO батарея автомобиля для домашнего устройства
- Категория: Charging Stations >>>
- Поставщик: Shanghai,Mida,EV,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3927.77 $* | 4123.35 $* |
| Aug-18-2025 | 3894.44 $* | 4089.55 $* |
| Jul-18-2025 | 3267.68 $* | 3430.15 $* |
| Jun-18-2025 | 3828.42 $* | 4019.34 $* |
| May-18-2025 | 3333.51 $* | 3500.43 $* |
| Apr-18-2025 | 3762.76 $* | 3950.11 $* |
| Mar-18-2025 | 3729.73 $* | 3915.81 $* |
| Feb-18-2025 | 3696.67 $* | 3881.37 $* |
| Jan-18-2025 | 3663.36 $* | 3846.77 $* |
Характеристики
Product Description
Feature for V2H solution:
1. V2H device was developed base on CHAdeMo vehicle application.
2. So far,our invert output range 3-10KWA,110/220V,50/60Hz,Max 32A.
3. 2017 Nissan leaf and Mitsubishi i-Mev support V2H function.
4. Portable type,suitable for family use or on board inside vehicle for camping,emergency power supply etc.
5. We have a special version can support car charging.
6.We also accept customized design requirements
Discharge device chademo V2H soulution
| EV Power Station:Specification | |
| When supplying power to household(V2H) | |
| Input voltage range | DC 150-450V |
| Input current range | DC 0-30A(Limited by cable specifications) Single-phase three-wire system(AC 100V x two-phase) |
| Output voltage | AC100V(±6%),50Hz/60Hz AC200V(±6%),500Hz/60Hz(Max±2%) |
| Output current range | AC 0-18A |
| Peak power output | 4kw(Single-phase,AC 100V-3KW x two-phase) |
| Conversion efficiency | 90% or more (at rated output) |
| External dimension | 650mm(W)*470mm(D)*740(H)(excluding projecting parts) |
| Weight | 25.5kg |

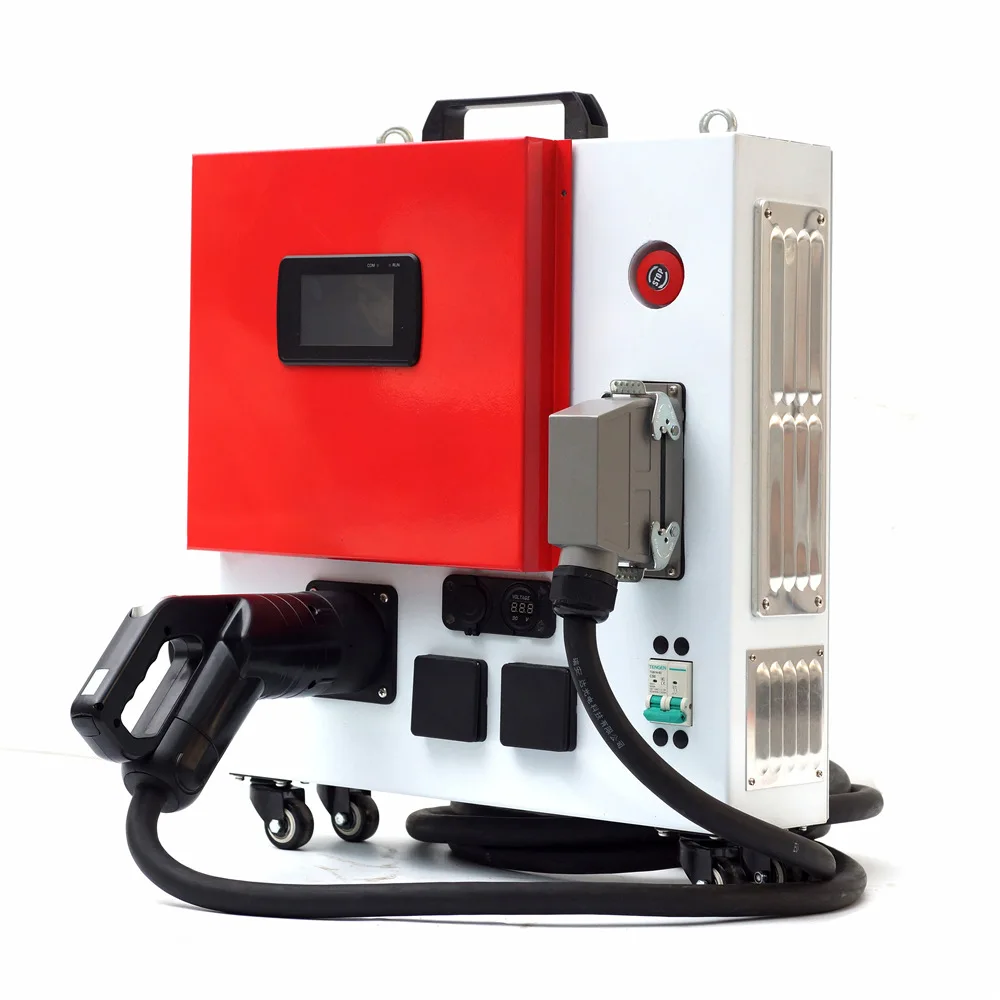

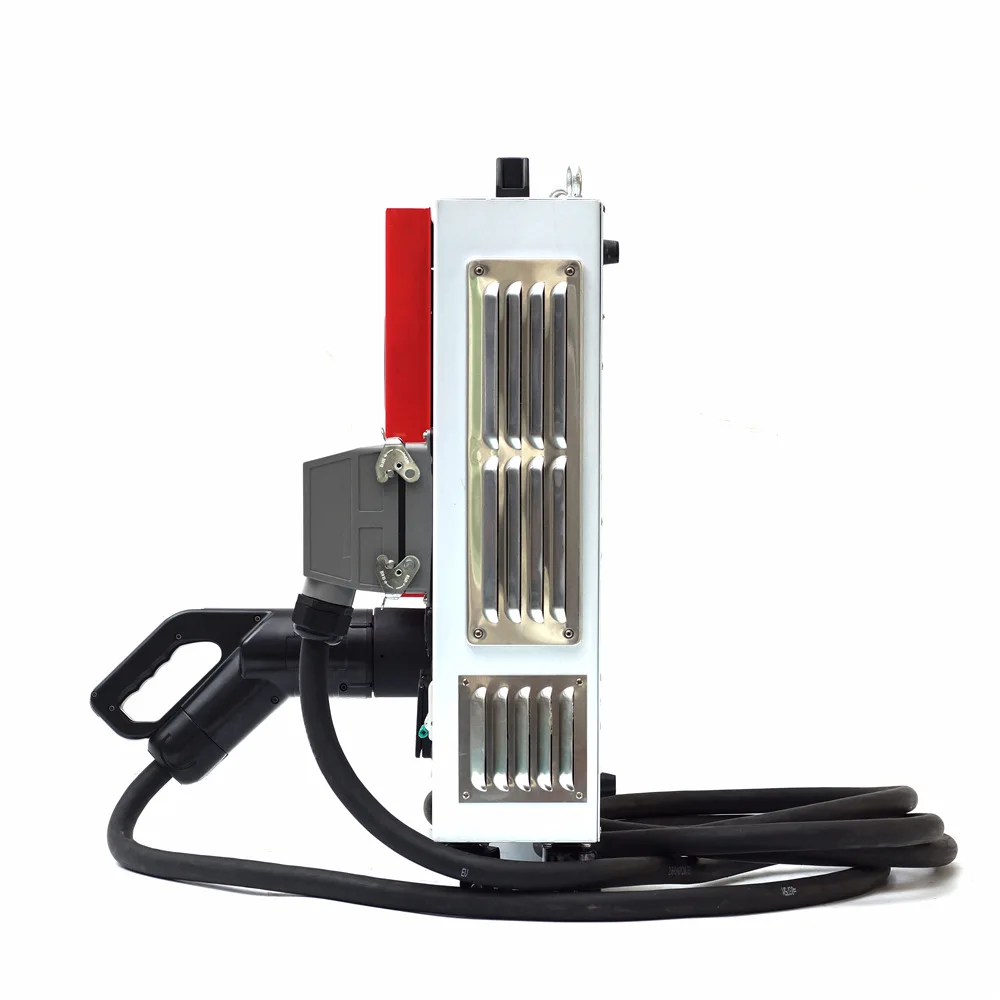

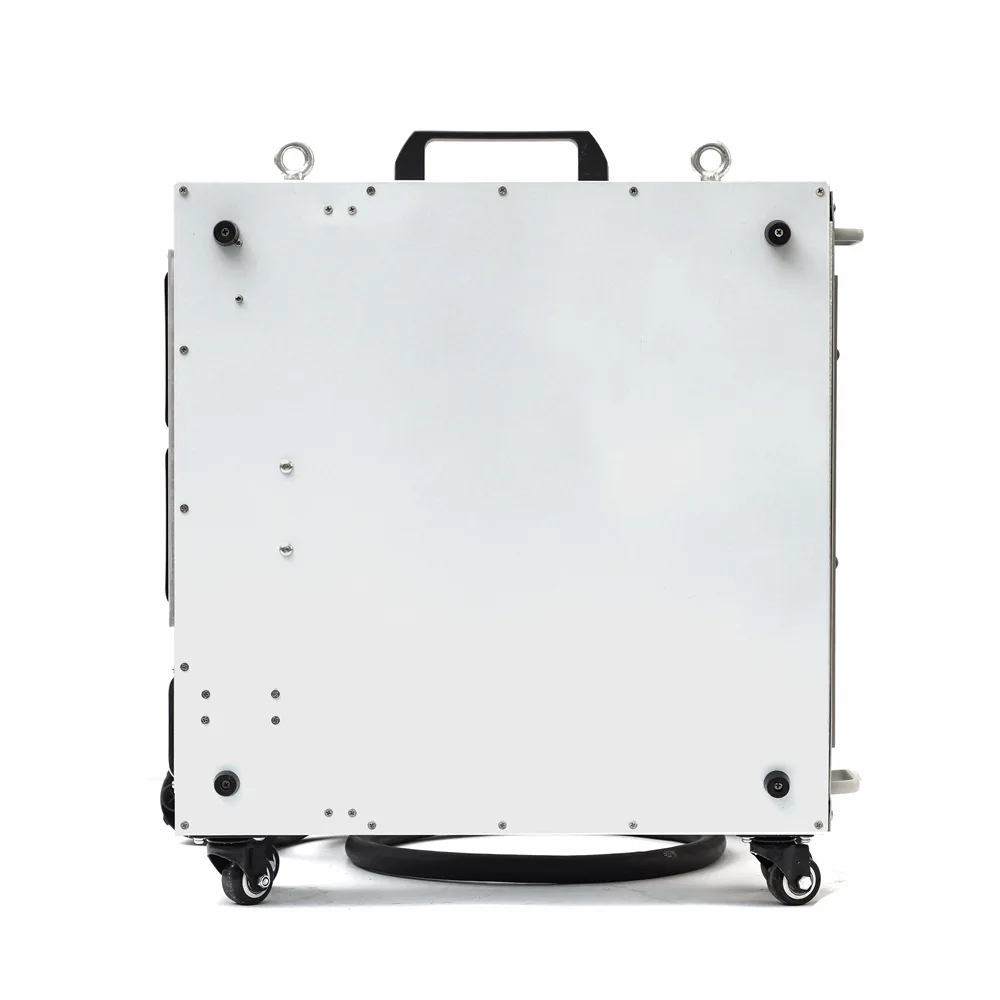

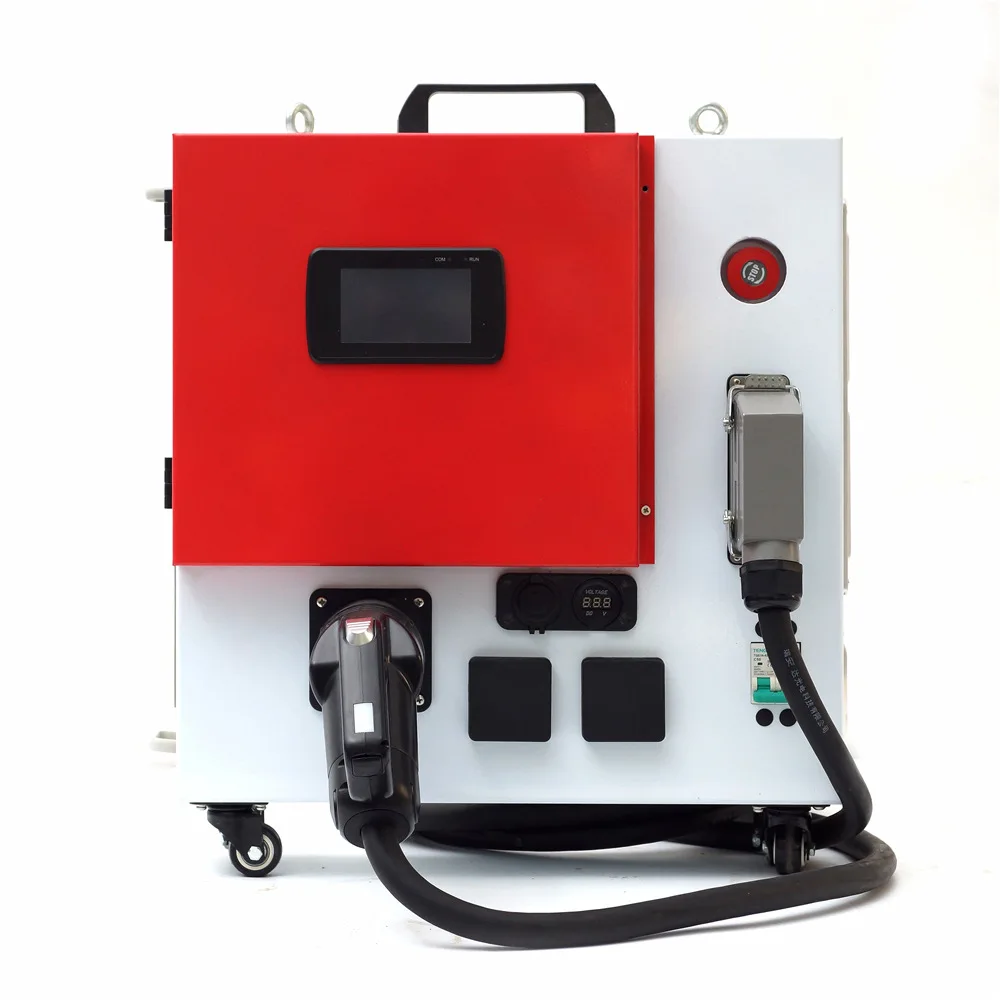

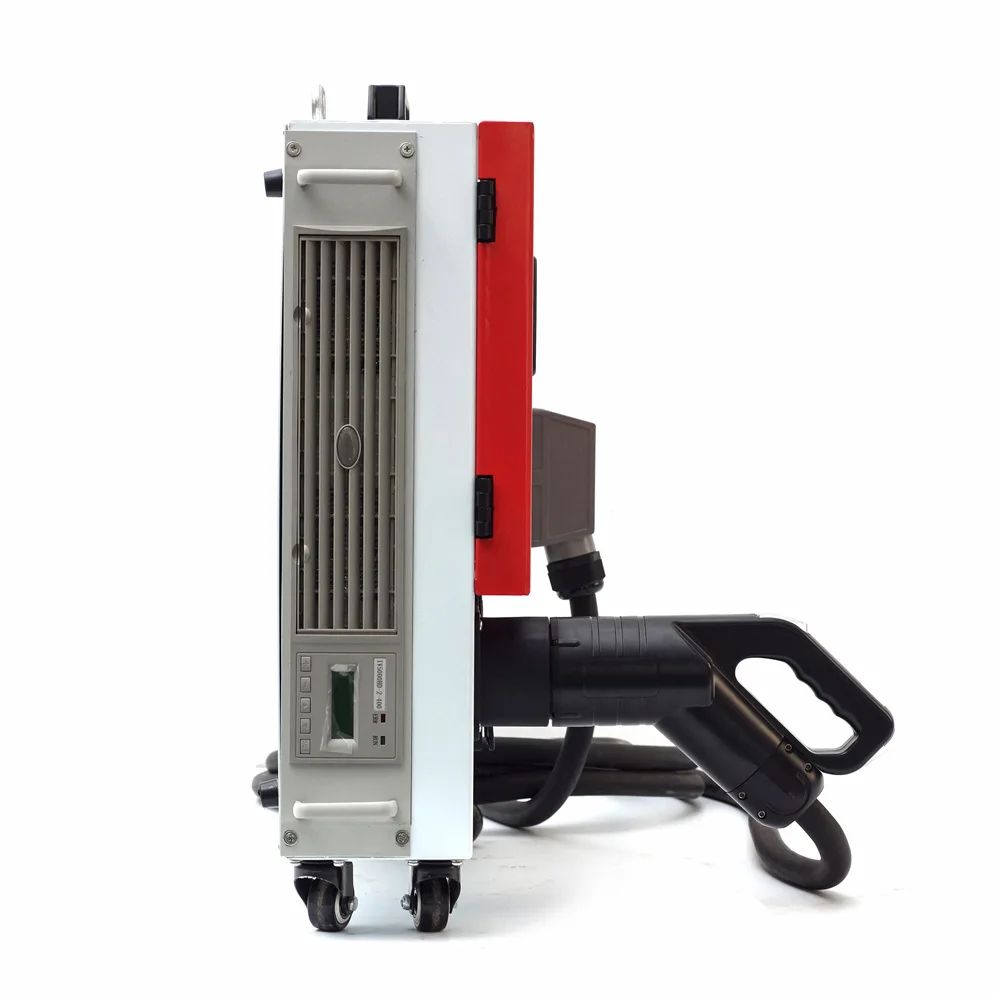

Detailed Images
