49 дюймовый сенсорный ЖК-дисплей ИК-сенсорный экран для самостоятельной проверки игровой

Описание и отзывы

Трекер стоимости

Характеристики



Product Parameters

Product Name :	Touch Screen Monitor	Display Type:	Active Matrix TFT LCD, LED Backlight
Diagonal Dimension:	49.0" Diagonal	P/N:	GT-TM-4902E-IR-HD
Active Area:	1073.78mm(H) x 604mm(V)	Display Size:	1118.4mm(W) x649.7mm(H),Thickness: 77 mm)
Aspect Ratio:	16:9	Resolution:	1920*1080 @60Hz
Brightness:	400 cd/m²	Contrast Ratio:	1200:1
Display Colors:	16.7M	Response Time:	8 ms
Regular Sizes:	32",43",49",55"	Video Formats:	VGA, DVI, HDMI
Touch Technology:	Infrared Touch	Touch Points:	20 points
Touch Voltage:	5V	Touch Chip:	EETI,ILITEK,WEIDA
Touch Interface:	USB	Touch System:	Windows,Android,linux
Power Consumption :	Display Only: 75W(Typ.)	View Angle:	L/R:89/89;U/D:89/89 (Typ.)(CR≥10)
Temperature:	Operating: 0°C to 40°C	Temperature:	Storage: -20°C to 60°C
Humidity:	Operating: 20% to 80%	Humidity:	Storage: 10% to 90%
MTBF:	50,000 Hours	Explosion-proof :	IK08
Warranty:	1 Year	OSD:	Digital OSD
Surface Treatment:	AG,AR,AF(optional)	Agency Approvals:	FCC,CE,CB,HDMI,CCC
Weight (approx.):	Net weight: 18.5 kg(Typ.); Shipping: (21 kg (reference)

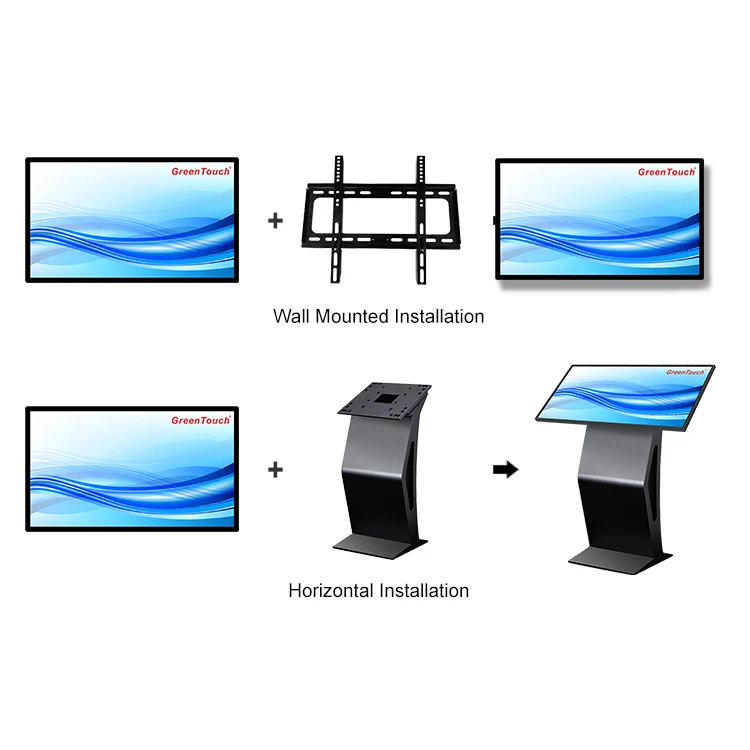

Mounting Options:	400MMX400MM wall-mounted installation; mobile bracket installation; K-type base

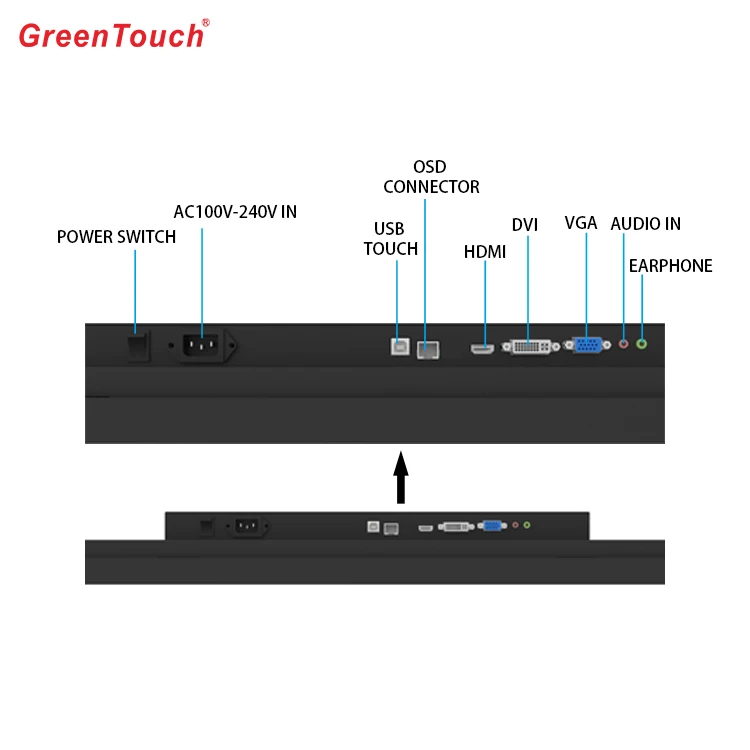

Video Signal Connector:	Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector.



Engineering Drawing:GT-TM-4902E-IR-HD
