Характеристики
Product Description

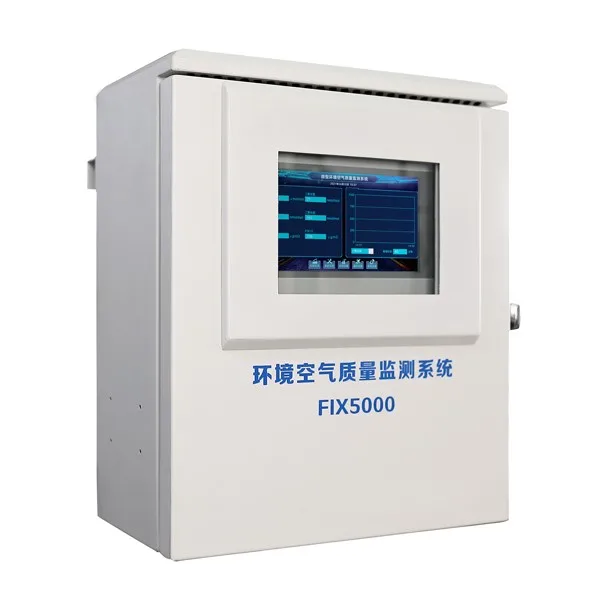

The FIX5000-AQI mini environment air quality monitoring system is a modular design that can perform high-precision and multi-parameter measurement of atmospheric environmental pollution. The system uses high-precision, high-resolution imported gas sensors and high-performance particulate matter and weather sensors. It has the characteristics of small size, light weight, simple design, high cost performance, multi-parameter high integration, and convenient installation. The system is widely used in urban air quality monitoring and industrial air emission pollution monitoring, and can simultaneously measure various environmental pollution gases, particulate matter, and meteorological parameters in the air. The system supports an external communication interface with data storage and data export functions. The measurement data can be transmitted to the monitoring center in real time through the wireless data acquisition and transmission terminal, and can be remotely controlled through a web browser. Gas, particulate matter, meteorological parameters and other measurement modules can be selected according to the needs of users. It is a new, low-cost and intelligent monitoring equipment. It is an ideal equipment for environmental monitoring management departments to monitor air quality.
Main Features
Gas parameter measurement: The original imported high-performance sensor has the characteristics of high accuracy, long life and good stability. It can monitor 1-6 kinds of toxic and harmful gases at the same time. The sensor can be flexibly configured in any combination, plug and play, to adapt to different industries Monitoring requirements in the field; the gases that can be measured are: O3, SO2, NO2, CO, TVOC, etc.
Particulate matter measurement: can monitor PM2.5 and PM10 particulate matter parameters;
Temperature and humidity measurement: can monitor the temperature and humidity parameters in the ambient air; (optional)
Wind speed and wind direction measurement: can monitor wind speed and wind direction parameters; (optional)
Meteorological parameter measurement: can monitor atmospheric pressure, environmental noise, light parameters; (optional)
Solar power system: optional solar power system can be used to directly supply power to the system, without mains access; (optional)

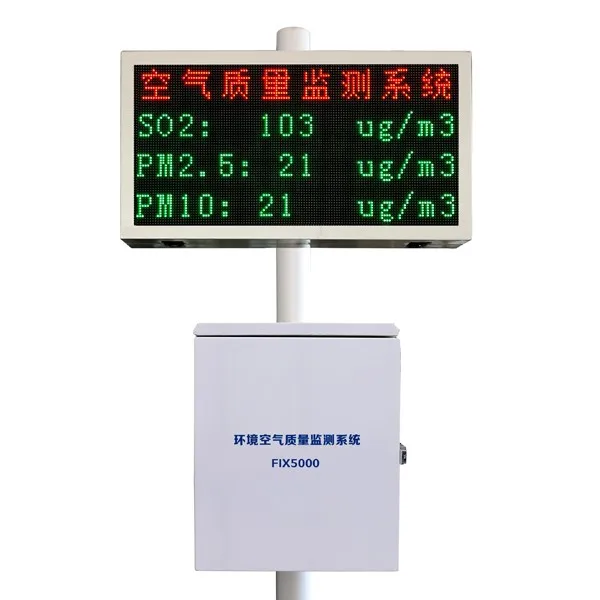

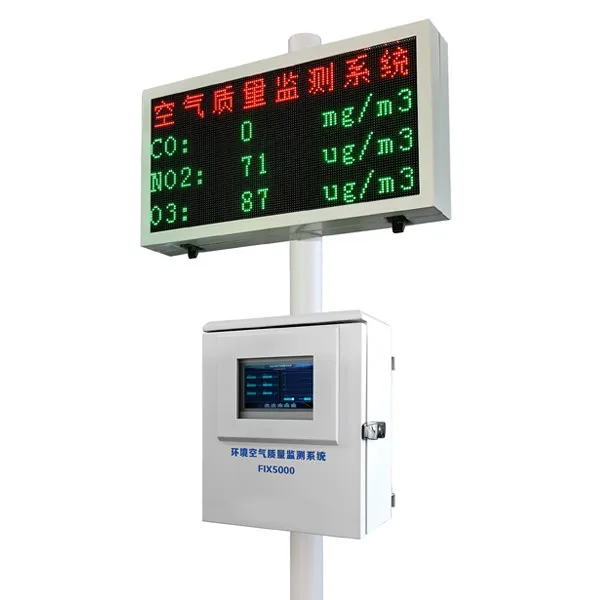

LED display billboard: The monitoring data is transmitted to the LED display billboard via wired or wireless means for intuitive display of measurement parameters. (Optional)
Particulate matter measurement: can monitor PM2.5 and PM10 particulate matter parameters;
Temperature and humidity measurement: can monitor the temperature and humidity parameters in the ambient air; (optional)
Wind speed and wind direction measurement: can monitor wind speed and wind direction parameters; (optional)
Meteorological parameter measurement: can monitor atmospheric pressure, environmental noise, light parameters; (optional)
Solar power system: optional solar power system can be used to directly supply power to the system, without mains access; (optional)
LED display billboard: The monitoring data is transmitted to the LED display billboard via wired or wireless means for intuitive display of measurement parameters. (Optional)
◆ The system has stable performance, small size and high cost performance, suitable for grid online monitoring;
◆ Modular product design, pump suction monitoring, fast response, with filter function, convenient for later maintenance;
◆ The large 7-inch touch color display screen perfectly displays the monitoring parameters;
◆ Original imported four-electrode gas sensor and three-level point calibration function to ensure the accuracy and stability of the measurement;
◆ With data storage and data export functions, it can store 20 million groups of data with date and time identification;
◆ The design of rain-proof and dust-proof enclosure and double-layer protection chassis ensures safety;
◆ Support 4-20mA, RS485, TCP/IP and other data output methods, and support "HJT212-2017 Pollutant Online Monitoring (Monitoring) System Data Transmission Standard";
◆ Optional functions are complete, modules such as gas, particulate matter, weather, solar power system, LED display board, etc. can be flexibly selected and combined in any combination.
◆ Modular product design, pump suction monitoring, fast response, with filter function, convenient for later maintenance;
◆ The large 7-inch touch color display screen perfectly displays the monitoring parameters;
◆ Original imported four-electrode gas sensor and three-level point calibration function to ensure the accuracy and stability of the measurement;
◆ With data storage and data export functions, it can store 20 million groups of data with date and time identification;
◆ The design of rain-proof and dust-proof enclosure and double-layer protection chassis ensures safety;
◆ Support 4-20mA, RS485, TCP/IP and other data output methods, and support "HJT212-2017 Pollutant Online Monitoring (Monitoring) System Data Transmission Standard";
◆ Optional functions are complete, modules such as gas, particulate matter, weather, solar power system, LED display board, etc. can be flexibly selected and combined in any combination.
Technical Parameters
Name | Mini environment air quality monitoring system |
Model | FIX5000-AQI |
Detecting gas and range | ①Sulfur dioxide SO2 Measuring range: 0～500ppb, 2000ppb Detection principle: electrochemical Resolution: 1ppb ②Nitrogen dioxide NO2 Measuring range: 0～500ppb, 2000ppb Detection principle: electrochemical Resolution: 1ppb ③Ozone O3 Measuring range: 0～500ppb, 2000ppb Detection principle: electrochemical Resolution: 1ppb ④Carbon monoxide CO Measuring range: 0～5ppm, 20ppm, 50ppm Detection principle: electrochemical Resolution: 0.01ppm ⑤TVOC Measuring range: 0～5ppm, 20ppm, 50ppm Detection principle: PID photoion(optional) Resolution: 0.01ppm |
Particulate matter monitoring | ①PM2.5 Measuring range: 0～500μg/m3 Detection principle: light scattering ②PM10 measuring range: 0～2000μg/m3 Detection principle: light scattering |
Weather monitoring | Wind speed, wind direction, temperature, humidity, atmospheric pressure, environmental noise, light (optional) |
Combination method | ① 1-10 kinds of gas factors ② Particulate matter PM2.5, PM10 ③ 6-8 kinds of meteorological factors (optional) The total number of the above ①-③ types of monitoring factors does not exceed 20 types (optional combination) |
Sampling method | Pump suction |
Installation method | Wall-mounted, ground pole type |
Indication error | Depends on the specific detection factor |
Power supply | AC180-250V 50Hz |
Signal output | ① RS-485 digital output (ModbusRS485) ② 2 groups of relay switch output |
Signal transmission | ① RS-485 digital transmission (ModbusRS485) ② Support HJ212 protocol ③ Support network port TCP/IP transmission: TCP/IP protocol, can be transmitted within 90 meters of the network cable, and long-distance real-time transmission through networking (optional) ④ Support optical fiber transmission: the maximum transmission distance is 20 kilometers to 40 kilometers (optical cable single-mode multi-core transmission, optical fiber MODEM must be configured), and networking (optional) ⑤ Support short-distance RTU433 wireless transmission: the transmission distance is 0 to 2 kilometers, depending on the transmission power and the site environment (optional) ⑥ Support GPRS wireless transmission: no distance limitation, through mobile, China Unicom or telecommunications signal transmission (optional) |
Display | 7" touch screen(optional) |
Calibration | Support 2-4 level calibration function |
Data record | Automatic storage of data, continuous storage of more than 20 million groups of data with date and time (optional) |
Working temperature | -20℃～+60℃ |
Working humidity | 0～85%RH |
Dimensions | 350mm*420mm*190mm |
Shell material | SPCC (stainless steel is customizable) |
Protection | IP55 |
Weight | 20-30Kg |
FIX5000-AQI Standard Configuration
Item Name | Quantity |
System host | 1 |
SO2 sensor | 1 |
NO2 sensor | 1 |
O3 sensor | 1 |
CO sensor | 1 |
PM2.5/PM10 sensor | 1 |
Water vapor dust filter | 1 |
24V micro air pump (2L) | 1 |
Flowmeter | 1 |
Installation column | 1 |
User manual | 1 |
Certificate / Warranty Card | 1 |
FIX5000-AQI Optional Accessories
Item Name | Quantity |
TVOC sensor | 1 |
Wind speed and wind direction sensor | 1 |
Temperature and humidity sensor | 1 |
Atmospheric pressure sensor | 1 |
Noise sensor | 1 |
Light sensor | 1 |
Rain sensor | 1 |
Communication module | 1 |
LED display board | 1 |
Solar power system | 1 |
Application
