                                   4G 1080P hard disk MDVR with digital tachograph

HB-DV05 hard disk MDVR, implement videos stored in traditional vehicle video recorder and 3G/4G function such as video transmission, on the basis of the integration of the integrated GPS positioning monitoring and automobile black box, can be widely used in automotive GPS real-time monitoring, vehicle video surveillance, traffic status records and real-time state to remote monitoring, etc.

DV05 can realize 8 channel video&audio, each channel maximum support AHD 1080P image solutions. With built-in high performance image processor and advanced H.264 video compression technology, it provides AHD video recording, storage and playback solution.

Hard disk and SD card as storage medium information record in the driver's driving, driving video, GPS data and alarm data. Equipment adopted professional hard disk shock heating technology scheme and hard disk, and according to the size of vehicle standard single DIN embedded installation design, security equipment with stable and reliable work. Fits public transport, logistics, fleet management and yellow machinery.



Mobile digital video recorders

- 4G

- Digital tachograph
- Built-in printer
- GPS track and video surveillance in real time
- Geo-fence
- ACC status detection
- Over speed alarm
- Power cut alarm
- Low voltage alarm
- Abnormal GPS antenna alarm
- SOS alarm (SOS button)
- Cut fuel and power(Relay, Support mechanical valves)
- Dual Channel Audio / Video
- 8 Camera Channels totales
- Resolution: D1 / AHD 720P / AHD 1080P (Option)
- Audio monitor (Via camera)
- Local video storage (Via SD Card and hard disk)
- ADAS (Option)

- DMS (Option)



HB-DV05 4G 1080P hard disk MDVR with digital tachograph
Function		Parameter	Note
Communication	4G	Option	The module varies by region or project.
Positioning	Mode	GPS/BDS	Support to provide single GPS module or change according to project requirements.
	Sensitivity	Capture: -148dBm Track: -162dBm
	Start Time	36s
Black box	Driving record	1 s/data can store 48 hours of records.	Record vehicle speed, Vehicle status and driving time.
	Location record	60 s/data can store 360 hours of records.	Record the position coordinates and average speed of the vehicle.
	Accident doubt	Store 20 second record (0.2 s/data, total 100 data) before parking.	Record the speed, time, status and location of the vehicle.
	Fatigue driving	Record the start/end time and location information of fatigue driving.	Related parameters can be set.
	Driver ID info	Record driver information.	Realized by RFID or Ibutton.
	Mileage statistics	Record driving mileage	Accuracy: 0.1 km
	Device info	Record of device: VIN, Vehicle plate, Pulse coefficient, Initial installation time/mileage.
	Device log	Record device on/off and parameter modification data.	The last 100 data, loop coverage.
Audio and video	Video formats	PAL/NTSC
	Compress standard	H.264
	Image resolution	1080P/720P /960H/D1/CIF@30fps
	Playback quality	1080P/720P /960H/D1/CIF@30fps
	Compound mode	Multi mode
	Decoding ability	8 channels simulate camera + 1 channel digital camera	Real-time
	Video quality	Level 1 to 8 optional
	Audio compress	G711,G.726 ed
	Recoord mode	Sound and video sychronously recorded
Video input	DMS	1 Channe DMS camera(720)
	ADAS	1 Channe ADAS camera(720)
	Mode AHD	6 Channeles analog camera (1080P)
	IPC	1 Channel digital camera	Connect IPC camera
Video output	CVBS	1 Channel CVBS	Connect 7-inch LCD display
	Output image	1/4/9 screens synchronously channel display
	Output format	PAL/NTSC
Storage and playback	Storage medium	SD Card	Singel SD acrd, Max. 256GB, class 10
		Hard disk	Singel HDD/SSD, Max. 2TB
	Video query	Support retrival according to channel, video type, alarm type
	Local playback	8 Channels display, playback by time
	Local backup	U disk automatically backups
	Storage capacity	1080P: 0.75G/Hour/Channel  720P: 0.63G/Hour/Channel  960H: 0.42G/Hour/Channel
Activity safety	DMS	1. Yawn while and fatigue drive behavior monitor and upload  2. Monitor and upload the behavior that calling while driving 3. Monitor and report smoking behavior while driving  4. Driving out of sight warning and reporting 5. Camera occlusion alarm
	ADAS	1. Lane departure prewarning and upload alarm and voice prompt 2. Automatically judge lane departure change 3. Warning if vehicle is too close
Hardware	Working voltage	9V-36V
	Working current	350~1500mA
	Working temperature	-30℃~+70℃
	Storage temperature	-40℃~+85℃
	Battery	1000mA 3.7V	GPS Standby time: 10 minutes
	Size	188 * 176 * 60mm
	Protection level	IP54
	Weight	1000g

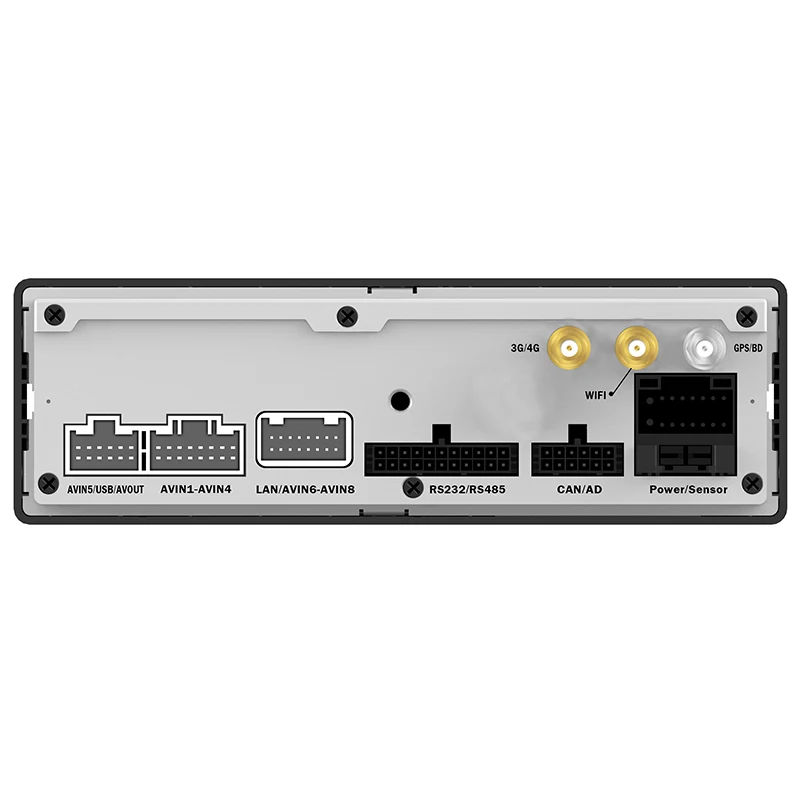

Interface	ACC detection	1
	Digital input	8
	Digital output	2
	Analog input	2
	CANBUS	1	J1939
	SOS alarm	1	Connect the SOS button.
	Serial port	2	RS232 port, connect external accessories.
	USB port	1
	LED Display screen	1
	SIM card	1
	SD card	1
	Hard disk	1
	Communication antenna	1	External antenna
	GPS antenna	1	External antenna
