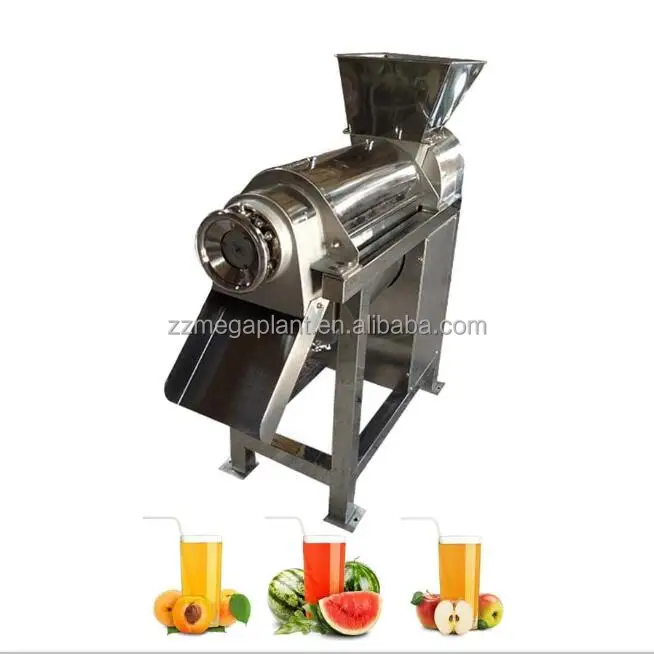

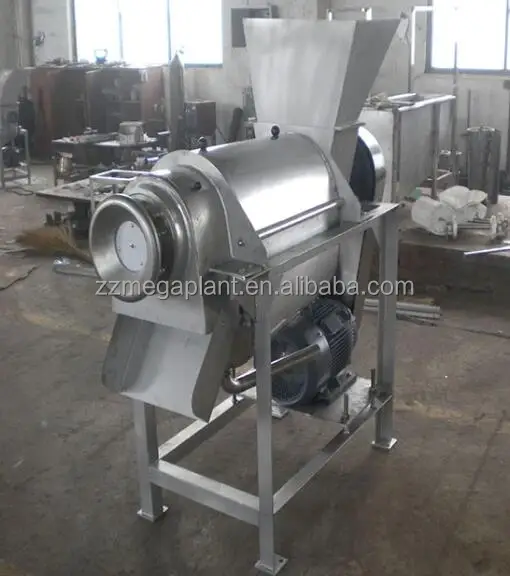

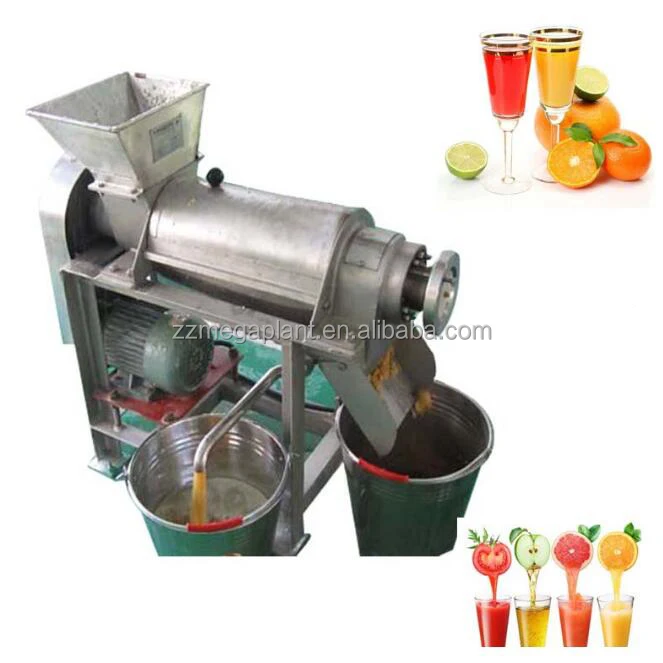

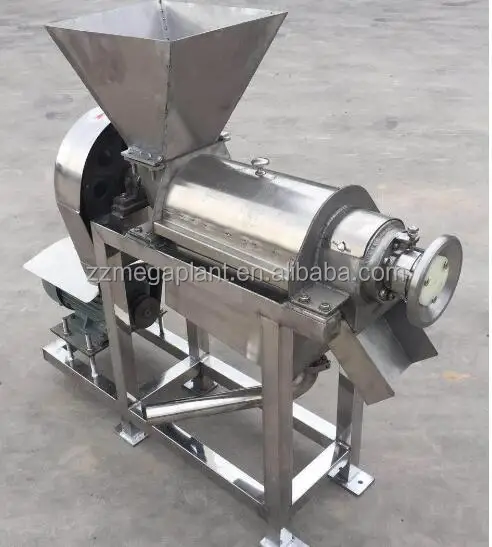

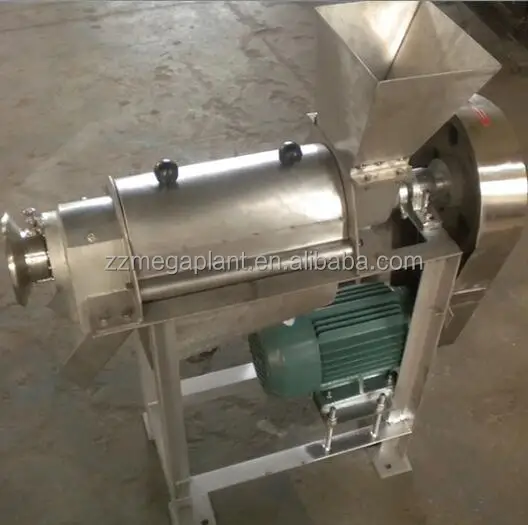

screw juice machine/spiral fruit juicer/screw extractor





Working principle of screw juice machine/spiral fruit juicer/screw extractor



The main component of the device is the spiral. The spiral along the slag exit direction, the bottom diameter gradually increased and the pitch gradually reduced, when the material is pushed by the spiral, due to the spiral cavity volume reduction, the formation will press the material.





Advantages of screw juice machine/spiral fruit juicer/screw extractor



1.The main part which contact the fruits is made of stainless steel,is very health and safe .

2.The machine can process pineapple,orange,apple,pear,malt,grape,mango,and other fruits

(Containing certain moisture)

3.This machine also can process some vegetables,like

Cabbage,radish,spinach,carrot, lettuce, celery,and other vegetables (the moisture content should

be at least 50%)



Specification of screw juice machine/spiral fruit juicer/screw extractor



Model	MCG-Z500	MCG-Z1000	MCG-Z1500	MCG-Z2000
Capacity	500kg/h	1000kg/h	1500kg/h	2000kg/h
Screw diameter	φ88	φ120	φ175	φ247
Screw speed	380r/min	380r/min	380r/min	380r/min
Motor	1.5kw	2.2kw	4kw	11kw
weight	88kg	144kg	240kg	440kg
Size	780*380*780mm	910*320*950mm	1300*700*1300mm	1530*680*1800mm





Screw juicer machine screen





 If raw material is too big, you should use a crushing juicer machine





Package and delivery of screw juice machine/spiral fruit juicer/screw extractor





If any interest in our screw juice machine/spiral fruit juicer/screw extractor, pls contact me freely.
