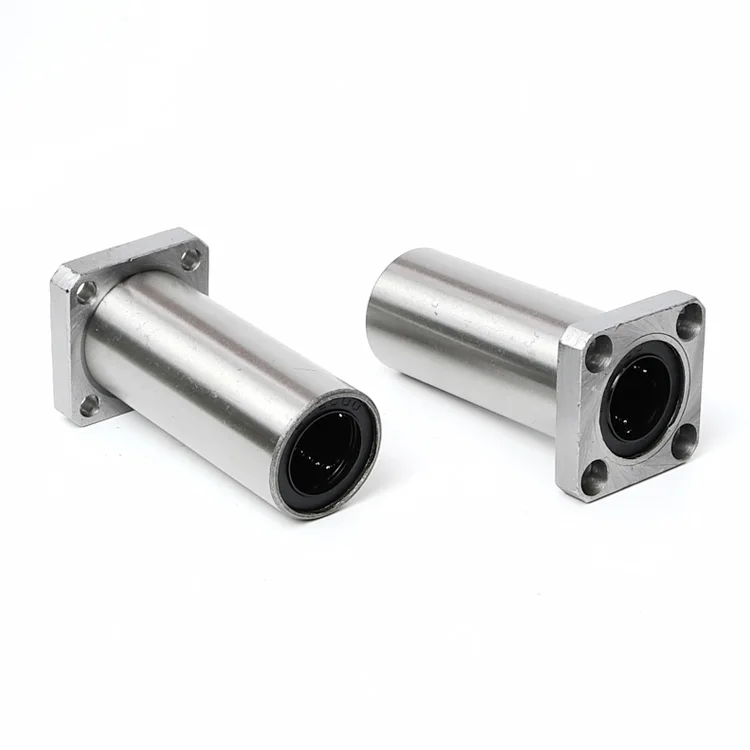

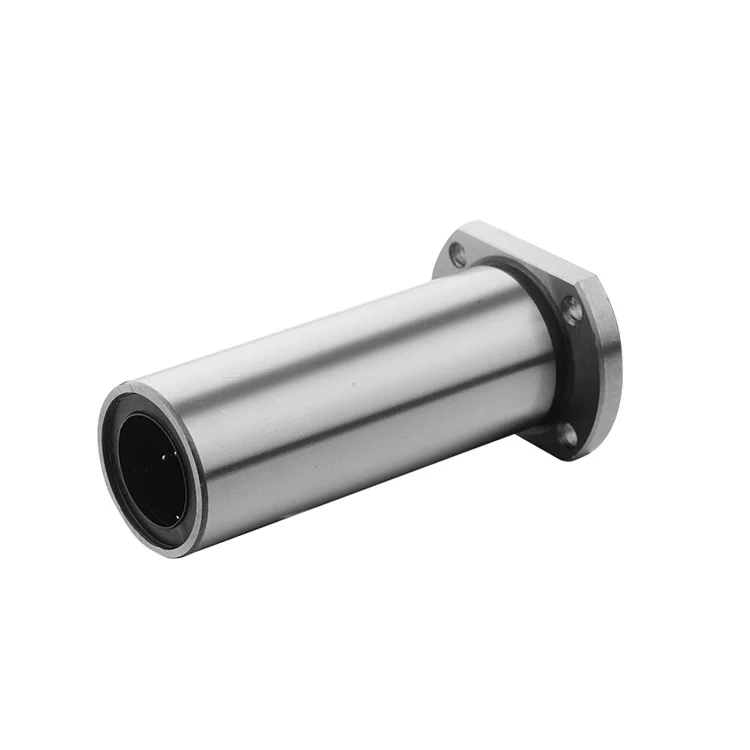

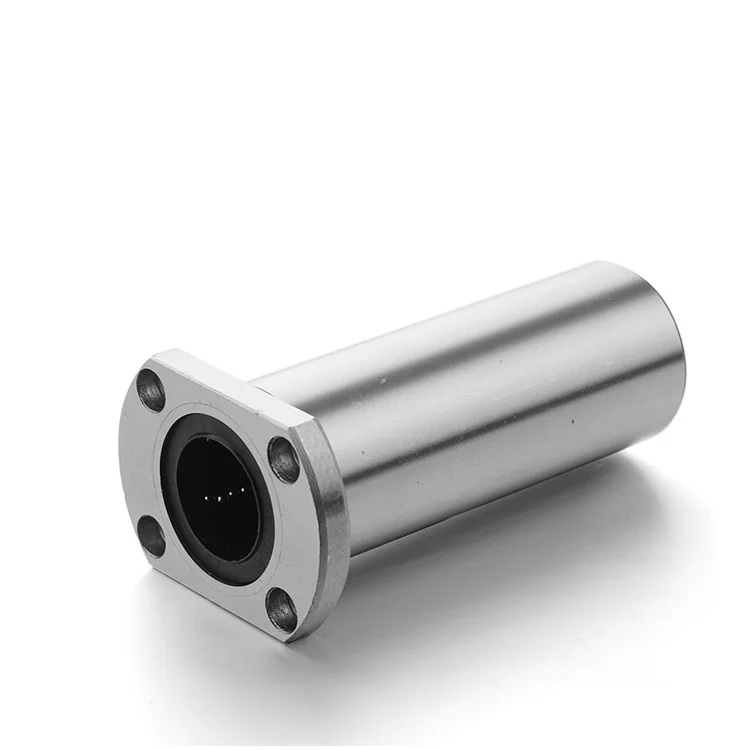

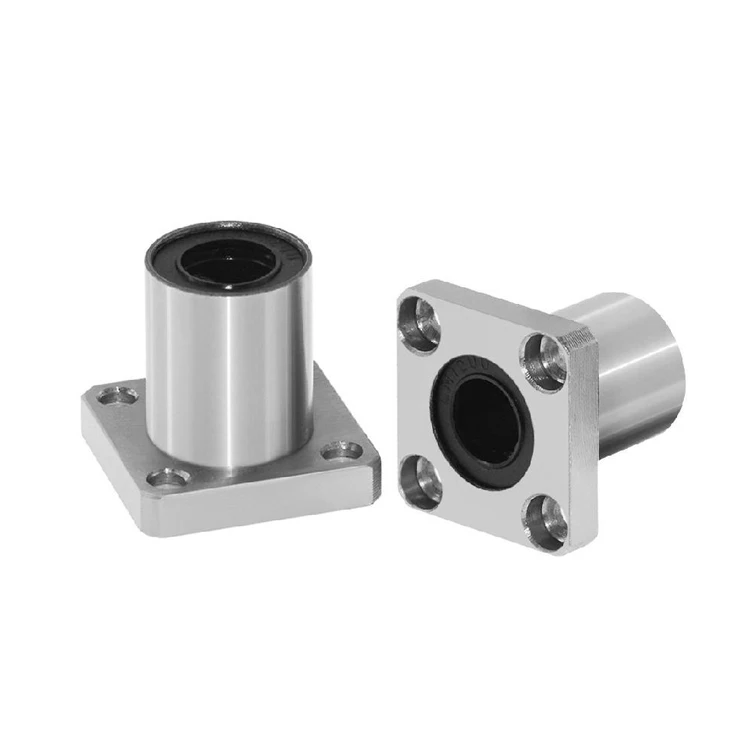

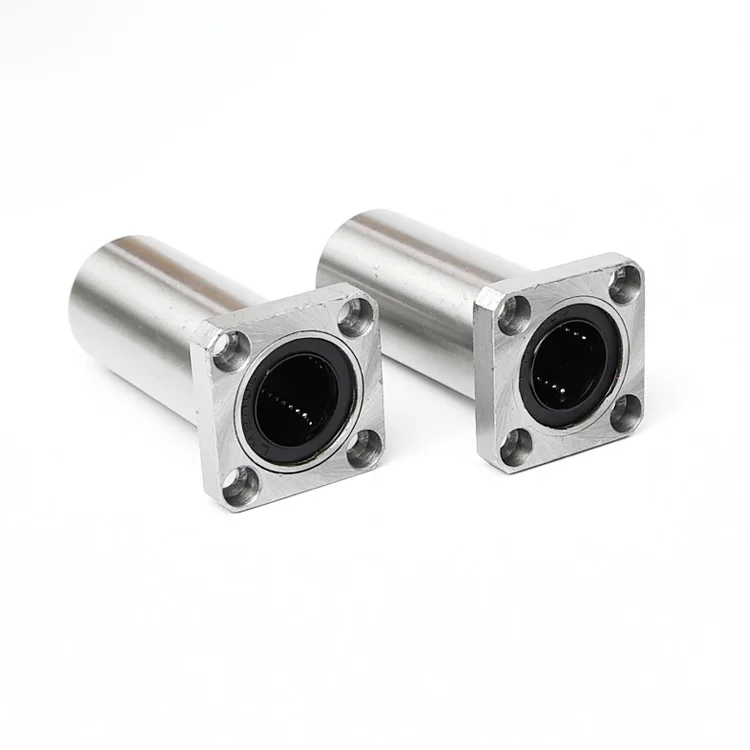

LMF6LUU LMK6LUU LMH6LUU круговой фланец линейный шарикоподшипник втулка для 6 мм линейного движения вала

LMF6LUU LMK6LUU LMH6LUU круговой фланец линейный шарикоподшипник втулка для 6 мм линейного движения вала

Категория: Linear Bearings >>>
Поставщик: Foshan,Guanjia,Bearing,Co.,Ltd.

Цена:1,10 $ - 1,20 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	1.15 $*	1.87 $*
Jul-17-2025	1.11 $*	1.25 $*
Jun-17-2025	1.90 $*	1.1 $*
May-17-2025	1.50 $*	1.67 $*
Apr-17-2025	1.67 $*	1.35 $*
Mar-17-2025	1.90 $*	1.93 $*
Feb-17-2025	1.3 $*	1.83 $*
Jan-17-2025	1.14 $*	1.91 $*

Характеристики

LMF6LUU LMK6LUU LMH6LUU Circular Flange Linear Ball Bearing Bushing for 6mm Linear Motion Shaft of 3D Printer

Linear bearing application for (where linear bearing are used) :

Linear bearing is more and more widely used in electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, tool machinery, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industries.

♣ Classification of Linear bearing

(1) Standard type, clearance adjustment type linear bearing, open type linear bearing, extended type linear bearing, general type linear bearing

(2) Flange type linear bearing can be divided into: round flange type, flange type, oval flange type, guide round flange type, guide flange type, guide oval flange type, extended round flange type.

linear bearing series.jpg

Product Description

Shaft Ø	Model No	Weight	inner(mm)		outer(mm)		Length		Flange			Monting hole			Basic load rating
Shaft Ø	Model No	Weight	dr (mm)	Tolerance µm	D(mm)	Tolerance µm	L (mm)	Tolerance µm	Df	t	w	X	Y	Z	Dynamic Co N	Static Co N
6	LMH6UU	21	6	0-9	12	0-11	19	0-200	28	5	18	3.5	6	3.1	206	265
8	LMH8UU	33	8		15	0-11	24		32	5	21	3.5	6	3.1	274	216
10	LMH10UU	64	10		19	0-13	29		40	6	25	4.5	7.5	4.1	372	549
12	LMH12UU	68	12		21		30		42	6	27	4.5	7.5	4.1	510	784
13	LMH13UU	84	13		23		32		43	6	29	4.5	7.5	4.1	510	784
16	LMH16UU	112	16		28		37		48	6	34	4.5	7.5	4.1	774	1180
20	LMH20UU	167	20	0-10	32	0-16	42		54	8	38	5.5	9	5.1	882	1370
25	LMH25UU	325	25		40		59	0-300	62	8	46	5.5	9	5.1	980	1570
30	LMH30UU	388	30		45		64		74	10	51	6.6	11	6.1	1570	2740
35	LMH35UU	524	35	0-12	52	0-19	70		82	10	60	6.6	11	6.1	1670	3140
40	LMH40UU	836	40	0-12	60	0-19	80		96	13	70	9	14	6.1	2160	4020
