Лидер продаж 1 2 T OPS IP-камера для распознавания лица умная камера захвата анализ полового возраста сеть видеонаблюдения устройство
- Категория: Surveillance & IP Camera >>>
- Поставщик: Deepano,(Shanghai),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 131.2 $* | 138.74 $* |
| Aug-18-2025 | 130.9 $* | 137.24 $* |
| Jul-18-2025 | 109.93 $* | 114.69 $* |
| Jun-18-2025 | 128.22 $* | 134.32 $* |
| May-18-2025 | 111.45 $* | 117.48 $* |
| Apr-18-2025 | 125.56 $* | 131.0 $* |
| Mar-18-2025 | 124.68 $* | 130.11 $* |
| Feb-18-2025 | 123.42 $* | 129.17 $* |
| Jan-18-2025 | 122.29 $* | 128.30 $* |
Характеристики

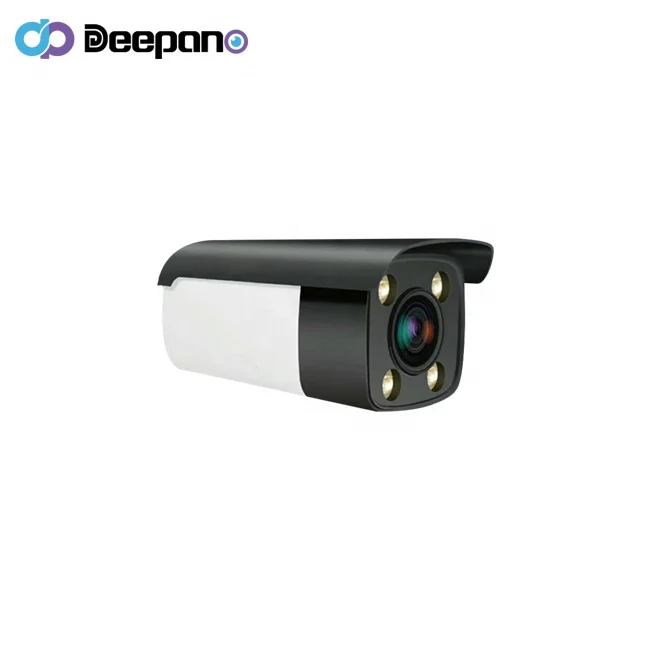

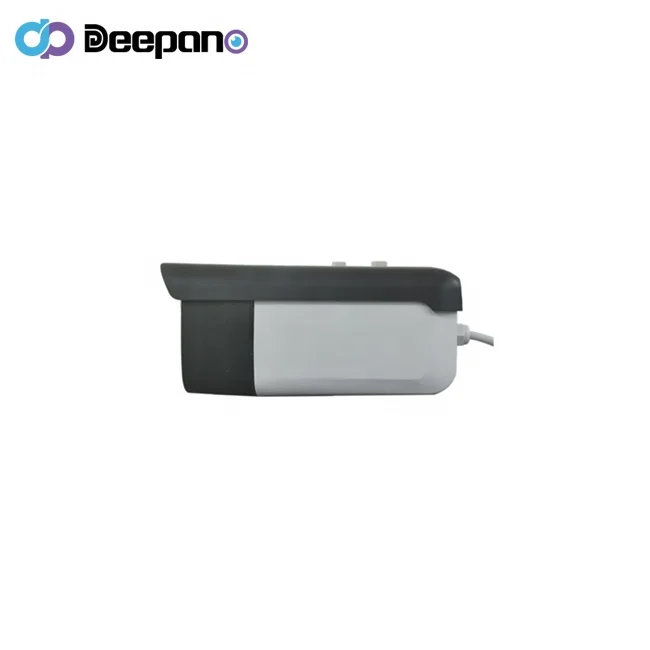

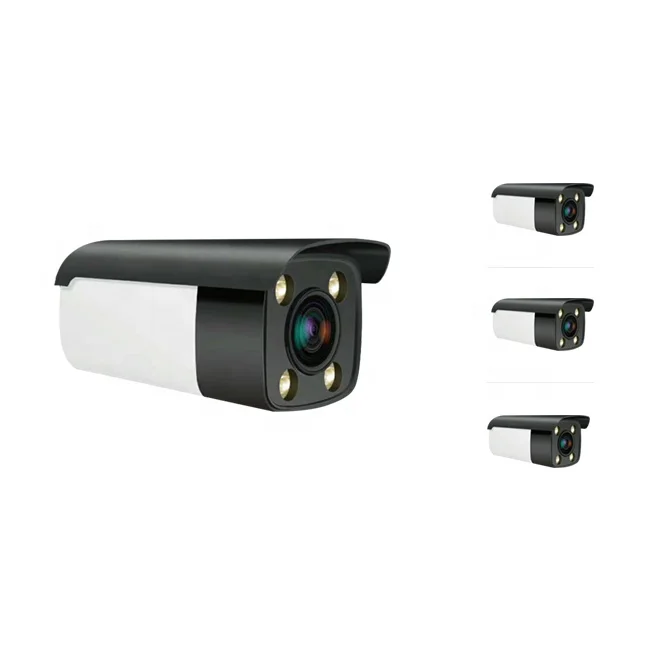

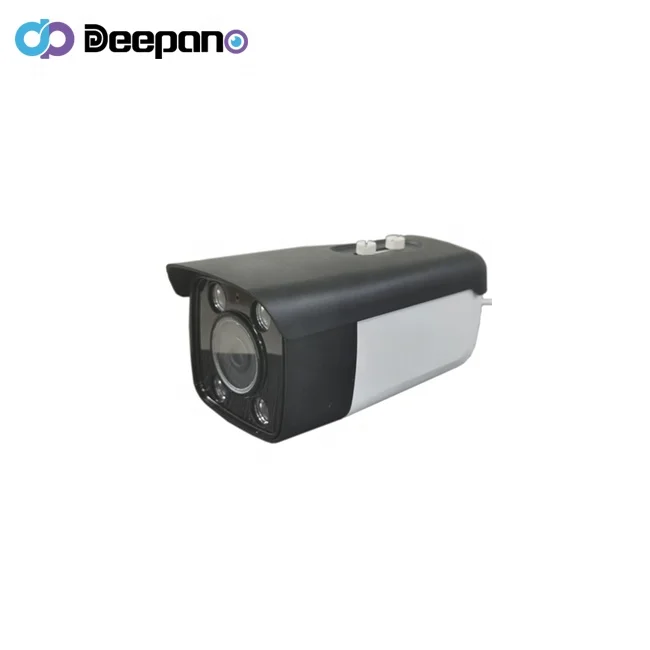

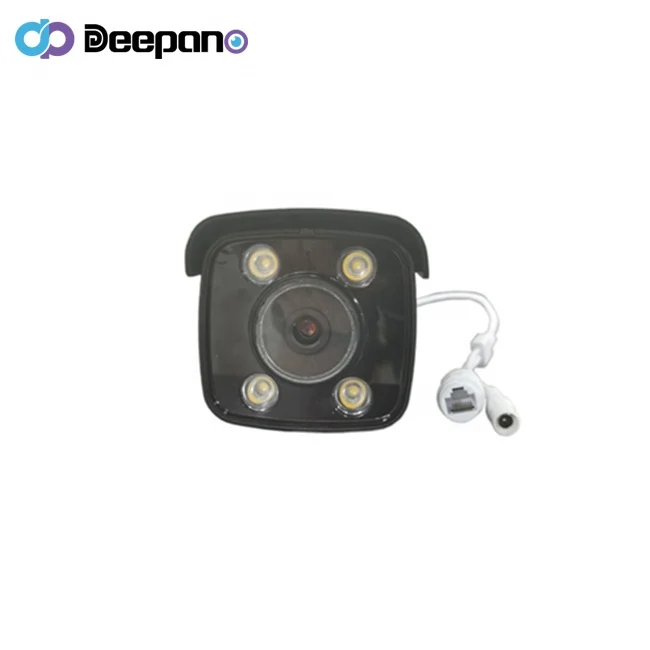

Face recognition network camera (T1-FRA2M), is use of industry's advanced AI chip, it mainly has functions such as face capture, face tracking, face key points advance, face age analysis, gender analysis, and face recognition. It can be used in scenarios such as smart retail, smart business, smart buildings, and smart government with its three industry solutions: smart monitoring, people counting and automatic attendance.
Specification
Function | Specification | |
Hardware and interface | Supply voltage | DC 12V/2A (Support POE power supply) |
Operating Temperature | -25°C～ 70°C | |
Storage temperature | -45°C～85°C | |
Communication interface | Ethernet interface | |
Communication agreement | HTTP、TCP/IP、IPv4、RTSP、SOCKET、MQTT | |
CPU | Quad CPU + Quad VPU | |
RAM | 1GB LPDDR3 | |
Flash | 8GB EMMC | |
Storage | Support Micro SD | |
CNN computing power | 1.2T OPS | |
Resolution | 1920*1080 | |
Pixel | 200 Million | |
Image and sound | Image sensor | Sony IMX307 |
Lens parameter | Focal length 6mm | |
Video streaming | 1080P@30fps | |
ISP | AR9201 Integration (Max support 4K 60fps) | |
Video compression standard | H.265 /H.264 /MJPEG | |
Dimension &Weight | Dimension (mm) | 85*80*165 |
Weight | 800g | |
Power interface | 5.5mm round port | |
Power consumption DC | Max: 6W |
Features & Functions
Adavantages:
* Face Recognition
Face library of 50,000 people; Able to capture 30 people at the same time, the frame rate reaches 25 frames per second.
* Clear video
Support 1080P@30fps real-time transmission, smooth image, support strong light suppression, night capture.
* Excellent algorithm performance
High-performance NPU with deep learning algorithm improves the detection rate of target face
Face library of 50,000 people; Able to capture 30 people at the same time, the frame rate reaches 25 frames per second.
* Clear video
Support 1080P@30fps real-time transmission, smooth image, support strong light suppression, night capture.
* Excellent algorithm performance
High-performance NPU with deep learning algorithm improves the detection rate of target face
Algorithm Paramenters
Function | Algorithm support | Description |
Face Recogniton | Face Recognition | Local recognition of 50,000 people |
Algorithm accuracy | The world's first place in LFW recognition accuracy in 2017: >99.82%; Within one-thousandth false recognition rate, the pass rate is 99%, and within one-thousandth false recognition rate, the pass rate is 96% | |
Angle request | Rotate left and right in the plane ±45°, deflection left and right ±45°, deflection back and forth ±30° | |
Minimum face pixel | Interpupillary distance 50 pixels or more | |
Face attribute recognition | Optimal face gender, age and whether to wear glasses, eye/mouth opening and closing, face value, face quality score, face blur | |
Face capture | Snapshots | More than 30 people/frame |
Capture frame rate | 25fps | |
Snapshot of the region of interest | Support | |
Capture rate | First place in FDDB face detection algorithm in 2017, 7 out of 1,000 In the case of false detection rate, the detection rate reaches 97% | |
Smallest face | 30*30 | |
Adaptation angle | Rotate left and right in the plane ±90 degrees, deflection back and forth ±45 degrees | |
Image spec | ISP image processing | Support automatic white balance, automatic exposure; Support 3D noise reduction; Support 120dB HDR; Support web-side adjustment of brightness, contrast, saturation, maximum exposure time, HDR, etc.; Support Face AE; |
Sensor input | IMX 307 1080P@30fps MIPI input Other sensors can be customized, the highest support: 4K@30fps MIPI input | |
Video output | H.265: 1080P@30fps (720P@30fps, VGA@30fps can be selected) Scalable: H.264, MJPEG | |
Fill light | Built-in high-efficiency white light array lamp, low power consumption, normal face capture at night | |
Image | Maximum image size | 1920*1080 |
Image settings | Brightness, contrast, saturation, sharpness, AGC | |
Backlight compensation / glare suppression | Support | |
Interface | Storage interface | Support SDXC 4.0 standard Micro SD (TF) card, MAX 128G |
Network Interface | 10/100M network adaptive, RJ45 adapter | |
Audio port | Support 1 audio input, 1 output | |
Alarm interface | Support 2 alarm inputs, 2 outputs |
Product packaging
Application scenarios
Office
Supermarket
Store
Park
Hotel
Community
FAQ
1. How long is the product’s warranty?
Answer: 1 year from the date you make orders.
2. How many faces records the device can store?
Answer: 50000 faces
Answer: 1 year from the date you make orders.
2. How many faces records the device can store?
Answer: 50000 faces
