Глубокий цикл SAKO 200AH 12V LiFePO4 батарея 12 8 V литиевый аккумулятор BMS защита 3000 раз для солнечной
- Категория: >>>
- Поставщик: Shenzhen,King,Sako,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 464.78 $* | 487.97 $* |
| Aug-18-2025 | 460.17 $* | 483.33 $* |
| Jul-18-2025 | 386.3 $* | 405.20 $* |
| Jun-18-2025 | 452.99 $* | 475.29 $* |
| May-18-2025 | 394.35 $* | 414.41 $* |
| Apr-18-2025 | 445.96 $* | 467.66 $* |
| Mar-18-2025 | 441.49 $* | 463.25 $* |
| Feb-18-2025 | 437.68 $* | 459.30 $* |
| Jan-18-2025 | 433.60 $* | 455.90 $* |
Характеристики
Details Images

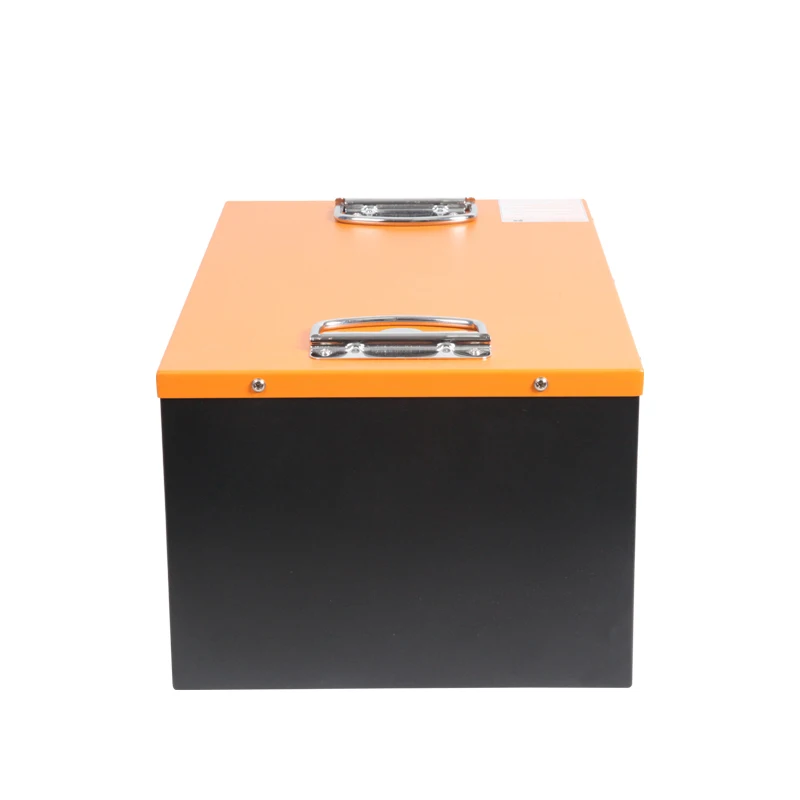

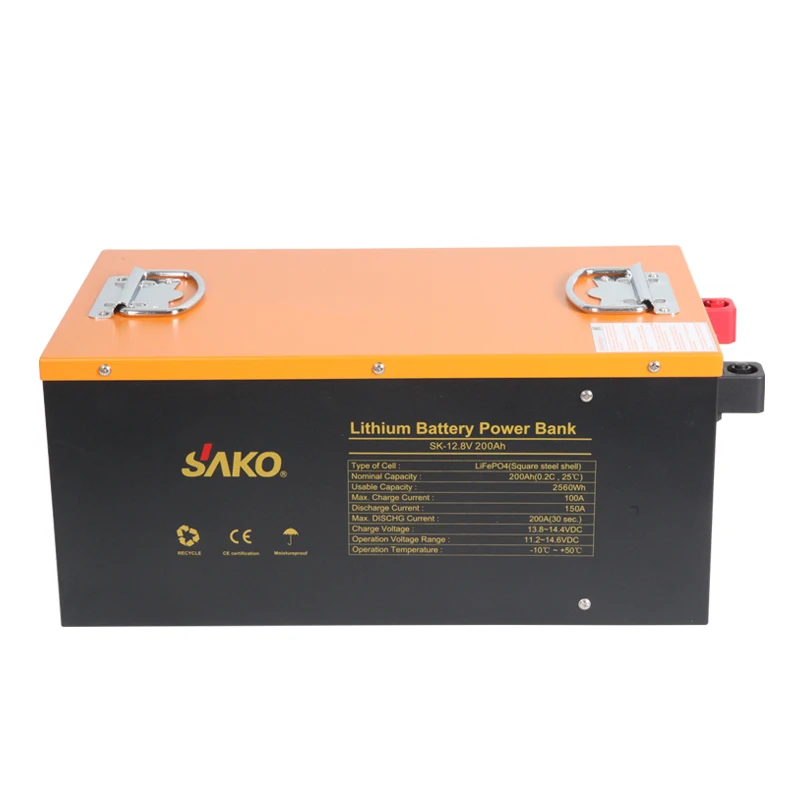

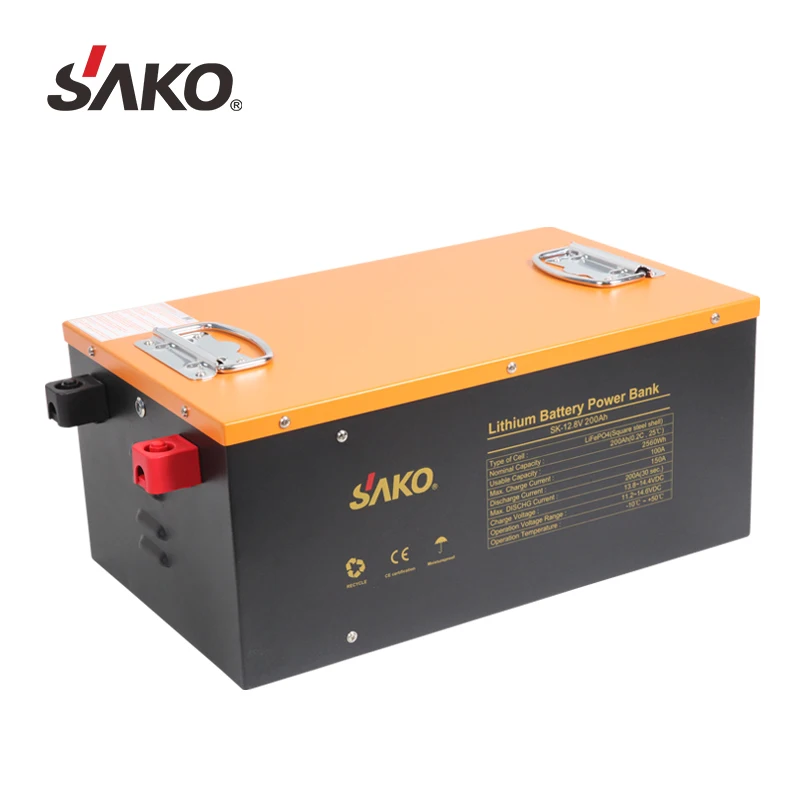

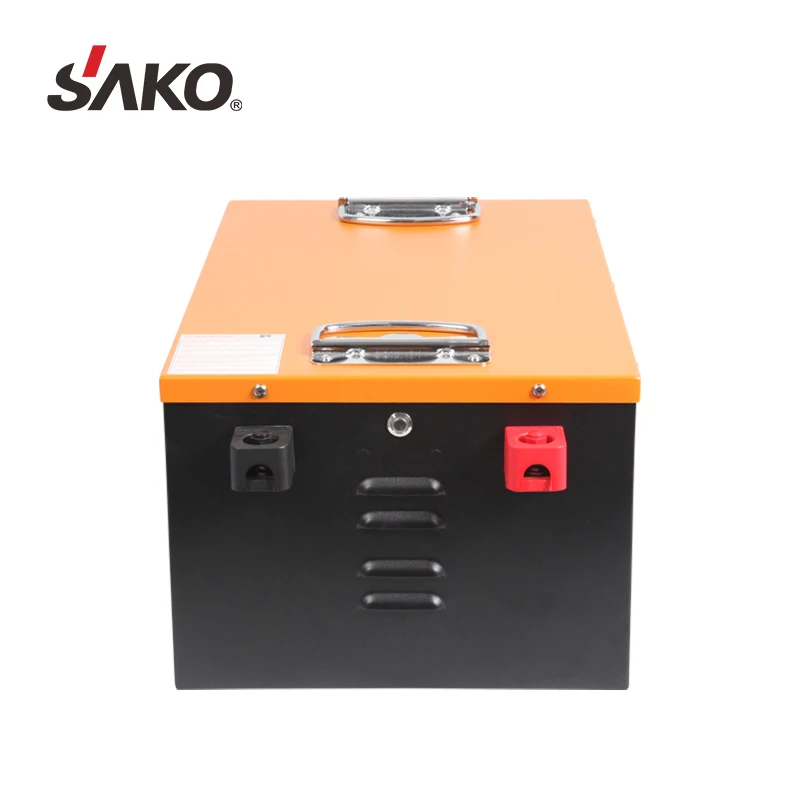

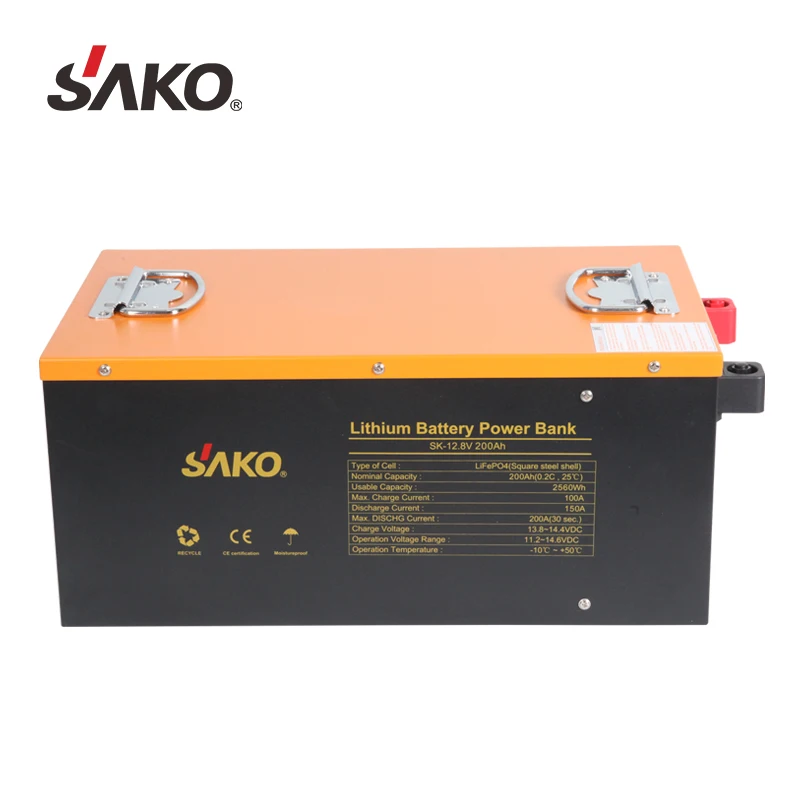

Deep cycle SAKO 200AH 12V LiFePO4 battery 12.8V 200AH lithium battery BMS protection 3000 times cycle for solar system
Main Features
12V,24V, 48V LiFePO4 pack, safe and reliable
Top brand cell such as CATL
Cells cycles times: ≧3000
3 years warranty, 5 years life design.
With intelligent BMS system to optimize the performance
Built in 1.2A cell equalizer, can balance all cells in short time with cell difference as small as 0.05V.
Max discharge current up to 200A, compatible with Solar system
Excellent standby self-consumption as low as 4mA
Wall amounted or horizontal design for option, easy installation.
All around protection and unattended operation
Optional for LCD display or communication (CAN/RS485/RS232) Automatically output cut off after 30days no charge and discharge to ensure security, also can cut off output by manual operation
12V,24V, 48V LiFePO4 pack, safe and reliable
Top brand cell such as CATL
Cells cycles times: ≧3000
3 years warranty, 5 years life design.
With intelligent BMS system to optimize the performance
Built in 1.2A cell equalizer, can balance all cells in short time with cell difference as small as 0.05V.
Max discharge current up to 200A, compatible with Solar system
Excellent standby self-consumption as low as 4mA
Wall amounted or horizontal design for option, easy installation.
All around protection and unattended operation
Optional for LCD display or communication (CAN/RS485/RS232) Automatically output cut off after 30days no charge and discharge to ensure security, also can cut off output by manual operation
Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecommunication power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on | Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecommunication power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on | |||||||||
MODEL | 12V100AH | 12V200AH | 24V100AH | 24V200AH | 48V100AH | |||||
Battery Type | LiFePO4 | |||||||||
Normal Battery Voltage(Vdc) | 12.8V | 12.8V | 25.6V | 25.6V | 51.2V | |||||
Normal Capacity(25℃，0.2C)（WH） | 1280WH | 2560WH | 2560WH | 5120WH | 5120WH | |||||
Voltage window (Vdc) | 11.2～14.6V | 11.2～14.6V | 22.4～29.2V | 22.4～29.2V | 44.8～58.4V | |||||
Folat Charge Voltage(Vdc) | 13.8V | 13.8V | 27.6V | 27.6V | 55.2V | |||||
Max.continue discharge current（A） | 100 | 150 | 100 | 150 | 100 | |||||
Max.pulse discharge current（A） | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | |||||
Max.continue charge current（A） | 100 | 100 | 100 | 100 | 100 | |||||
Case design | Horizontal design | Wall mounted or Horizontal design (Optional) | ||||||||
Cycle life(+25℃ 0.2C） | ≧3000 Cycles | |||||||||
Cell Equalizer Current(A) | 1~5A Max. | |||||||||
Terminal | M6 | |||||||||
Storage temperature | 0℃～30℃ | |||||||||
IP degree | IP20 | |||||||||
Storage duration | 6 months at 25℃ | |||||||||
Safety standard | UN38.3,IEC62619,CE | |||||||||
Display (Optional) | None or LCD display (Optional) | |||||||||
Communication Port (Optional) | CAN/RS485/RS232 (Optional) | |||||||||
PROTECTION | ||||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、Overtemperature protection | |||||||||
AMBIENT | ||||||||||
working Temperature | -10℃～+50℃ | |||||||||
Humidity | 0~95% ( no condensation) | |||||||||
Sea Level(m) | ≤1500 | |||||||||
DIMENSION | ||||||||||
L×W×H (products size) mm | 350*185*189 | 429*261*189 | 429*261*189 | 521*488*218 | 540*370*228 | |||||
L×W×H (package size) mm | 410*255*230 | 490*331*229 | 490*331*229 | 581*558*258 | 600*440*268 | |||||
Weight(NW Kg) | 17.0Kg | 33.0Kg | 33.0Kg | 58.0Kg | 58.0Kg | |||||
Weight(GW Kg) | 17.5Kg | 33.5Kg | 33.5Kg | 58.5Kg | 58.5Kg | |||||
20FT QTY( UNIT) | 1100 set | 600 set | 600 set | 330 set | 330 set | |||||
Recommend Products
Buyer Feedback
Company Profile
Our Partners
Product packaging
FAQ
Q 1.Would you accept to use our logo ?
A:All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
Q 2.We want to know month capacity.
A:20000-30000PCS per Month.
Q 3.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q 4. What kind of certificate you have ?
A:CE/TUV/CE/ISO/CB/UL/ROHS certificates.etc.
Q5. Are you a factory or trading company?
Yes,we are factory, supplying OEM/ODM service.
Q 6.How to pay for solar controller?
A:We accept paypal, western union, T/T. If you have any good payment, we also can accept.
Q 7.How to choose suitable inverter?
A:If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
Q8.How do I choose the size of the inverter?
A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Q9.what can you buy from us?
A:Solar Gel Battery,Lead Acid Battery,Solar Off-grid System,Lithium Battery,Battery Balancer,Solar Panel
A:All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
Q 2.We want to know month capacity.
A:20000-30000PCS per Month.
Q 3.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q 4. What kind of certificate you have ?
A:CE/TUV/CE/ISO/CB/UL/ROHS certificates.etc.
Q5. Are you a factory or trading company?
Yes,we are factory, supplying OEM/ODM service.
Q 6.How to pay for solar controller?
A:We accept paypal, western union, T/T. If you have any good payment, we also can accept.
Q 7.How to choose suitable inverter?
A:If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
Q8.How do I choose the size of the inverter?
A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Q9.what can you buy from us?
A:Solar Gel Battery,Lead Acid Battery,Solar Off-grid System,Lithium Battery,Battery Balancer,Solar Panel
