Лидер продаж роликовая машина для брикетирования с низкой

Product Application

Briquette machine is suitable for civil and industrial coal/ BBQ/ charcoal production. It features in excellent technical performance, compact structure, reasonable assembly process, special alloy rollers, and long life-span. In addition, it also solves the troubles of low molding pressure and low strength problem in briquette production, and can be the ideal machine in this field.

Raw material can be pressed

1.Coal powder/coal fine/coal dust
2.Charcoal powder/charcoal fine/charcoal dust
3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/
4.Activated carbon/carbon black
5.All kinds of metal powder/Manganese/magnesium/copper/iron
6.Iron oxide/aluminum oxide/clay
7.Some other type powder.

Description

The finished briquette won't be broken when dropped from 150-150cm height.

Meanwhile, it is easy for combustion, no smell and last longer when burning.the final product shape and the size can be design according to you.also,our engineer will suggest you the best size and shape for you.

Request for the raw material

1)feeding size to briquette machine should controlled less than 5mm.
2)Material moisture control in 8-10%.
3)Material with any metal objects can't be allowed,or else they will damage the roller surface of machine.

Technical Data

Main Features

1. Good price with CE ISO certificate.
2. Different type:roller type,hydraulic type, high pressure type coal briquette machine
3. Strong structure,high briquetting ratio because the briquette machine excellent design
it can be the single machine or whole production line.
4. Since the system out of the briquettes have desulfurization, reducing sulfur emissions, it is also conducive to environmental protection, the State Environmental Protection Agency emission reduction industry, civilian machinery
5. The device is superior technical performance, compact structure, reasonable assembly process, forming rolls made of special 65Mn, 9Cr2Mo, alloy materials, long life

Machine Parts

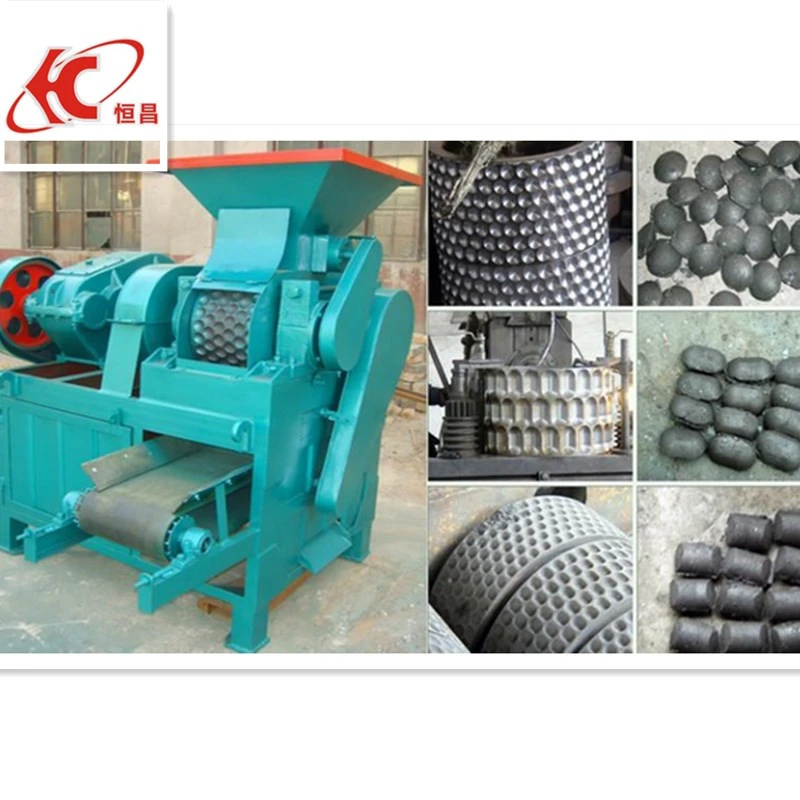

Name: Briquette machine roller

Roller Material: 65Mn, 9Cr2Mo

Our briquette roller adopts 65Mn/9Cr2Mo material and can make sure 1 year running under normal operating.

Machine Parts

Name: Briquette Machine Gear

Gear is the driving part of the briquette machine.

Machine Parts

Name: Briquette machine output screen

We design a output screen to separate the unformed fine size and send it back to briquette machine again.
