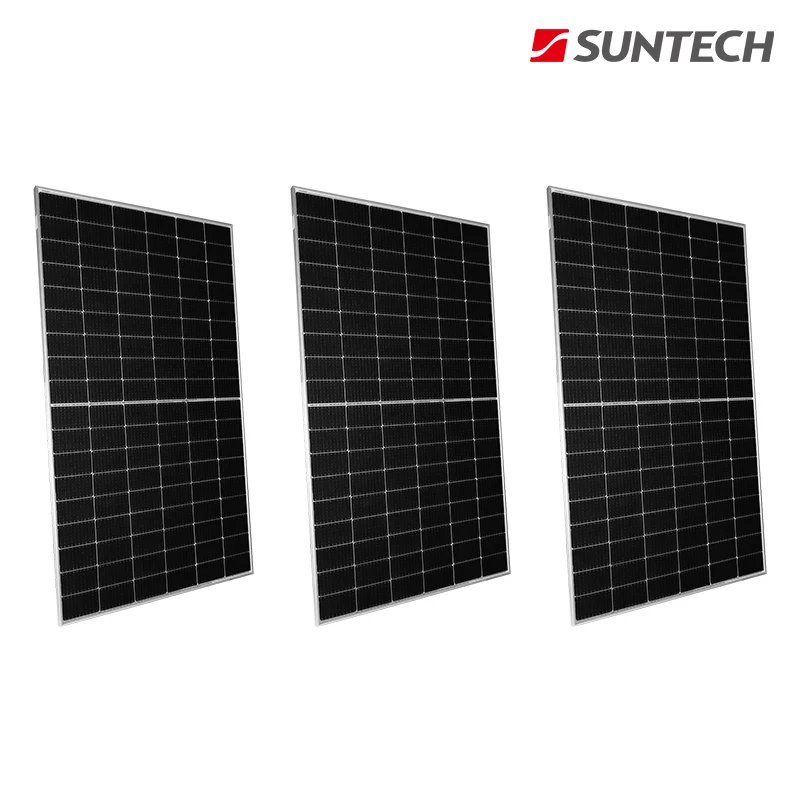

400W Perc солнечных батарей 108 половина-Cell и он имеет высокую эффективность солнечной батареи модули


Поделиться:


Цена:103,20 $ - 105,60 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 131.57 $* 134.24 $*
Jul-15-2025 106.57 $* 108.19 $*
Jun-15-2025 129.17 $* 132.47 $*
May-15-2025 128.42 $* 131.20 $*
Apr-15-2025 102.27 $* 104.11 $*
Mar-15-2025 126.61 $* 129.77 $*
Feb-15-2025 125.15 $* 128.89 $*
Jan-15-2025 124.83 $* 126.37 $*

Характеристики









Electrical Characteristics
STC
STPXXXS-C54/Umhb
Maximum Power at STC (Pmax)
410W
405W
400W
395W
390W
Optimum Operating Voltage (Vmp)
31.59V
31.38V
31.18V
30.98V
30.76V
Optimum Operating Current (Imp)
12.98A
12.91A
12.83A
12.76A
12.69A
Open Circuit Voltage (Voc)
37.45V
37.24V
37.04V
36.84V
36.62V
Short Circuit Current (Isc)
13.88A
13.81A
13.73A
13.66A
13.59A
Module Efficiency
21.00%
20.70%
20.50%
20.20%
19.90%
Operating Module Temperature
-40 °C to +85 °C
Maximum System Voltage
1000 V DC( IEC )
Maximum Series Fuse Rating
25 A
Power Tolerance
0/+5 W


NMOT
STPXXXS-C54/Umhb
Maximum Power at NMOT (Pmax)
309.6W
306.0W
302.3W
298.6W
294.9W
Optimum Operating Voltage (Vmp)
29.2V
29.0V
28.8V
28.6V
28.4V
Optimum Operating Current (Imp)
10.62A
10.56A
10.50A
10.44A
10.38A
Open Circuit Voltage (Voc)
35.2V
35.0V
34.8V
34.6V
34.4V
Short Circuit Current (Isc)
11.16A
11.10A
11.04A
10.98A
10.93A




Temperature Characteristics
Nominal Module Operating Temperature (NMOT)
42 ± 2 °C
Temperature Coefficient of Pmax
-0.36%/°C
Temperature Coefficient of Voc
-0.304%/°C
Temperature Coefficient of Isc
0.050%/°C


Mechanical Characteristics
Solar Cell
Monocrystalline silicon 182 mm
Number of Cells
108 (6 × 18)
Dimensions
1724 × 1134 × 35 mm (67.9 × 44.6 × 1.4 inches)
Weight
22.1 kgs (48.7 lbs.)
Front Glass
3.2 mm (0.13 inches) tempered glass
Frame
Anodized aluminium alloy
Junction Box
IP68 rated (3 bypass diodes)
Output Cables
4.0 mm2,Portrait: (-) 350 mm and (+) 160 mm in length;or customized length
Connectors
MC4 compatible


Packing Configuration
Container
20’ GP
40’ HC
Pieces per pallet
31
31
Pallets per container
6
26
Pieces per container
186
806
Packaging box dimensions
1755×1130×1245 mm
Packaging box weight
735 kg

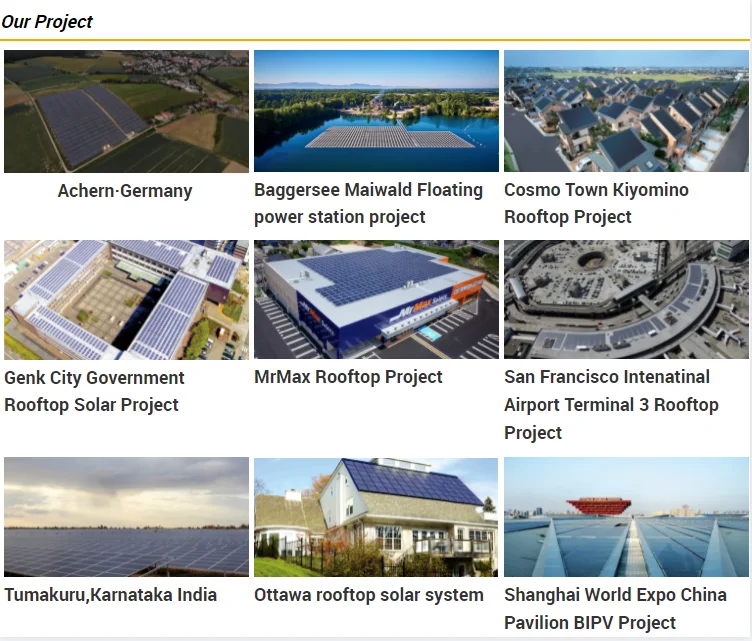

Our Project


Achern·Germany
Baggersee Maiwald Floating power station project
Cosmo Town Kiyomino Rooftop Project


Genk City Government Rooftop Solar Project
MrMax Rooftop Project
San Francisco Intenatinal Airport Terminal 3 Rooftop Project


Tumakuru,Karnataka India
Ottawa rooftop solar system
Shanghai World Expo China Pavilion BIPV Project
















1.We are a manufacturer with OEM/ODM services, maintaining stable cooperation with first-line brand suppliers.
2. Reply in 24 hours.
3. Customized solar panels, solar cells, solar systems and solar-related products.
4. Every solar panel and solar-related product will be tested before delivery.
5. Delivery on time and excellent after-sales service.
6. High quality, reliable price.
