2021 новый дизайн цифровой усилитель низкой мощности класса D для
- Категория: Sound Equipment\/Amplifiers\/Speaker >>>
- Поставщик: Enping,Aoda,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.91 $* | 0.60 $* |
| Aug-19-2025 | 0.63 $* | 0.52 $* |
| Jul-19-2025 | 0.75 $* | 0.77 $* |
| Jun-19-2025 | 0.47 $* | 0.18 $* |
| May-19-2025 | 0.14 $* | 0.77 $* |
| Apr-19-2025 | 0.87 $* | 0.50 $* |
| Mar-19-2025 | 0.2 $* | 0.28 $* |
| Feb-19-2025 | 0.46 $* | 0.7 $* |
| Jan-19-2025 | 0.21 $* | 0.2 $* |
Характеристики
Product Description
| Model | SP2600-EQAS | SP2600-EQBS | SP2800-EQAS | SP2800-EQBS |
| Output power(8Ω) | 2×400W | 2×400W | 2×500W | 2×500W |
| Output power(4Ω) | 2×600W | 2×600W | 2×800W | 2×800W |
| Crosover | 50Hz~2K Hz | 50Hz~200 Hz | 50Hz~2K Hz | 50Hz~200 Hz |
| Output Circuit Type | Class D | Class D | Class D | Class D |
| Input Impedance | 10KΩ | |||
| THD 20Hz ~ 20KHz(8Ω) | 0.10% | |||
| Slew Rate | 40V/usec | |||
| Signal-to-noise ratio | 103dB | |||
| Damping coefficient(8Ω) | >400 | |||
| Radiator | High/Low Automatic Control | |||
| Safeguard | DC protection/Overloading protection/Soft start/Short circuit protection | |||
| Weight | 2.2Kg | 2.2Kg | 2.6Kg | 2.6Kg |
| Dimension (mm) | 313×133×71 | 256×146×71 | ||
| Power Range | (115V/230V)Can offer different voltage according to client's requirement. | |||

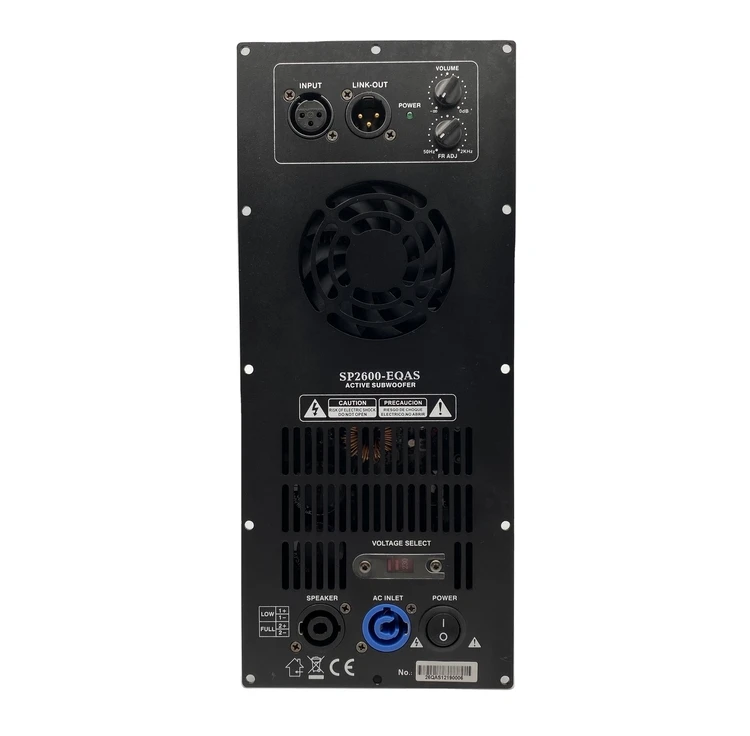

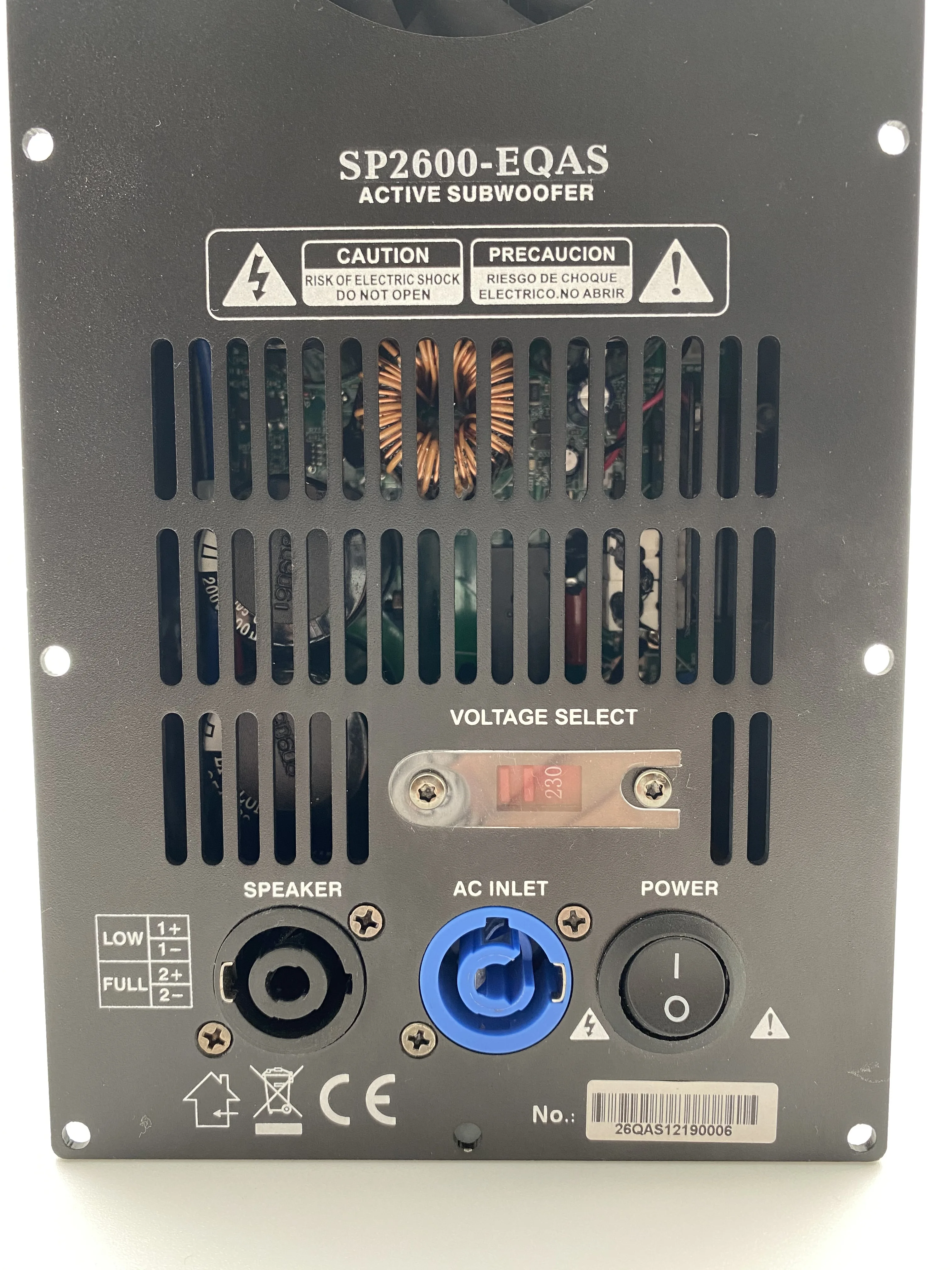

SP2600-EQAS contains a frequency divider and two amplifiers. One is responsible for high-frequency output and the other for low-frequency output. Both frequency and volume can be adjusted. It has a voltage transfer switch, which can adapt to different voltages, and a Link output, which can connect more devices. There is also a Link output to connect more devices.
