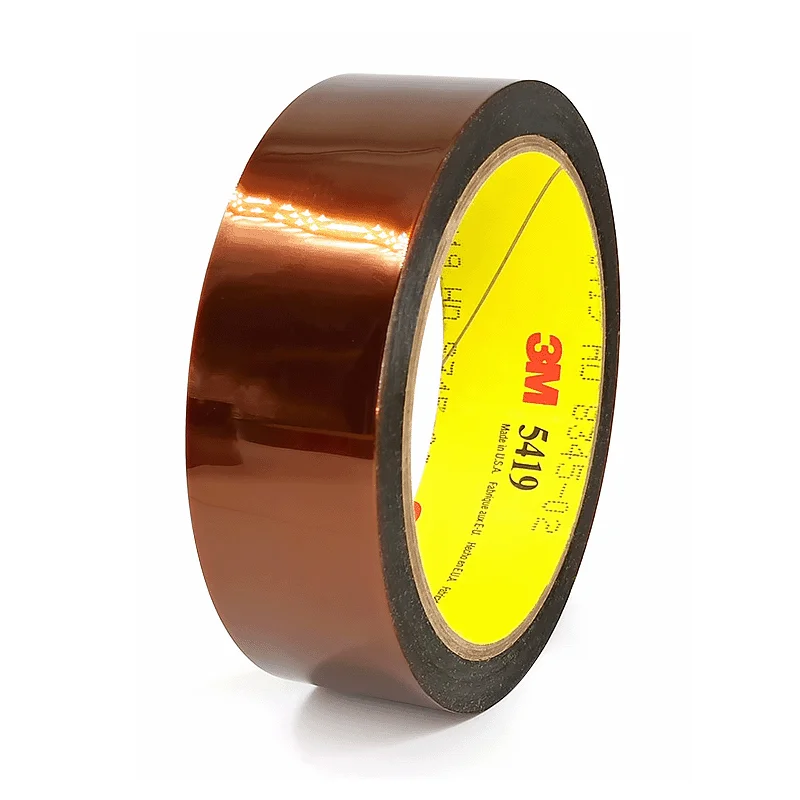

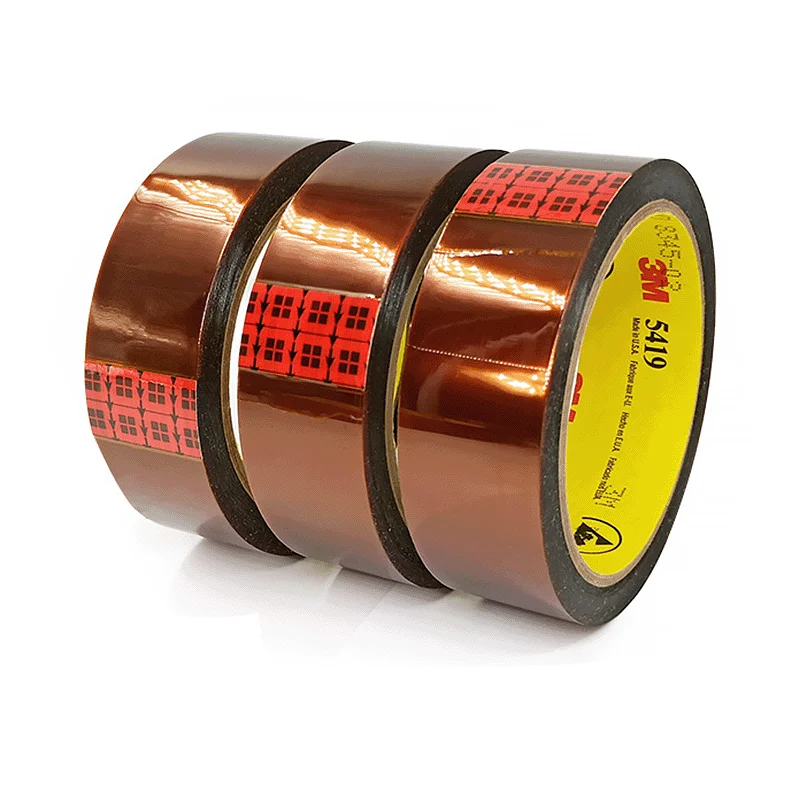

Low Static Polyimide Film Tape 3M 5419 High Temperature Surface Protection PCB Wave Solder Electrical Devices
- Категория: Electrical Tapes >>>
- Поставщик: Shenzhen,Oneway,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 38.60 $* | 40.17 $* |
| Aug-16-2025 | 38.4 $* | 40.19 $* |
| Jul-16-2025 | 32.94 $* | 34.60 $* |
| Jun-16-2025 | 37.26 $* | 39.17 $* |
| May-16-2025 | 32.5 $* | 34.5 $* |
| Apr-16-2025 | 36.20 $* | 38.23 $* |
| Mar-16-2025 | 36.8 $* | 38.58 $* |
| Feb-16-2025 | 36.71 $* | 38.76 $* |
| Jan-16-2025 | 36.11 $* | 38.52 $* |
Характеристики
Product Description
■ Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the
PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board
mounted electronic components. 3M™ Low Static Polyimide Film Tape 5419 overcomes this problem without any of
the typical drawbacks of conventional “anti-static” or “static-free” tapes (e.g., variable adhesion and opaqueness)
PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board
mounted electronic components. 3M™ Low Static Polyimide Film Tape 5419 overcomes this problem without any of
the typical drawbacks of conventional “anti-static” or “static-free” tapes (e.g., variable adhesion and opaqueness)
■ At room temperature the properties of polyimide and polyester film are similar. However, as the temperature increases or
decreases, the properties of the polyimide film are less affected than polyester.
■ Polyimide film does not soften at elevated temperatures, thus, the film provides an excellent release surface at elevated
temperatures.
■ Gold tab protection during wave solder of printed circuit boards.
■ RoHS compliant.
decreases, the properties of the polyimide film are less affected than polyester.
■ Polyimide film does not soften at elevated temperatures, thus, the film provides an excellent release surface at elevated
temperatures.
■ Gold tab protection during wave solder of printed circuit boards.
■ RoHS compliant.
■ For PCB solder masking and other high temperature applications.
Processing Services
■ The owned processing workshop
■ Plentiful inventory
■ Multiple specifications available
■ Free sample
Specification
Brand | 3M | ||||||||
Product No. | 5419 | ||||||||
Thickness(mm) | 0.07 | ||||||||
Product Type | Polyimide Film Tape | ||||||||
Adhesive | Silicone | ||||||||
Feature | Heat Resistant, Low Static | ||||||||
Temperature Use Range | -73° to 260°C | ||||||||
Color | Gold | ||||||||
Dielectric Strength | 7000 volts | ||||||||
Tensile Strength at Break | 33 lbs./in. width | ||||||||
Jumbo Roll Size | Width 635mm*Length 33m | ||||||||
Width/Length | Custom Size | ||||||||
Details Images
Similar Products Available
Company Profile
ONEWAY industrial is located in Shenzhen, Guangdong Province, China, mainly deals in 3M brand industrial tapes and adhesives. We can stably supply 3M original tapes, glues, fasteners, and other rubber/ silicone products. Our factory has been equipped three production lines with high-precision die-cutting machine and other processing equipment. According to your various requirement, we can provide customized sizes and shapes of tape or other rubber products.
All 3M brand goods here are original and genuine. Benefit from our own processing workshop, we can guarantee the dispatch of all processing orders within the agreed time.
FAQ
Q: Can I get some samples?
For most items, yes. You just need to pay the shipping cost which can be refunded when you place a bulk order.
Q: What's your normal lead time?
1~3 days after payment for inventory, customized products usually take about 7 days depending on the quantity of the order.
For most items, yes. You just need to pay the shipping cost which can be refunded when you place a bulk order.
Q: How can I know how much the freight will be?
■ For common goods such as tapes and plastic products, you could find an estimated amount through the ordering page.
■ For chemicals like adhesives and sealants, please contact us or your forwarders.
■ For common goods such as tapes and plastic products, you could find an estimated amount through the ordering page.
■ For chemicals like adhesives and sealants, please contact us or your forwarders.
Q: What's your normal lead time?
1~3 days after payment for inventory, customized products usually take about 7 days depending on the quantity of the order.
